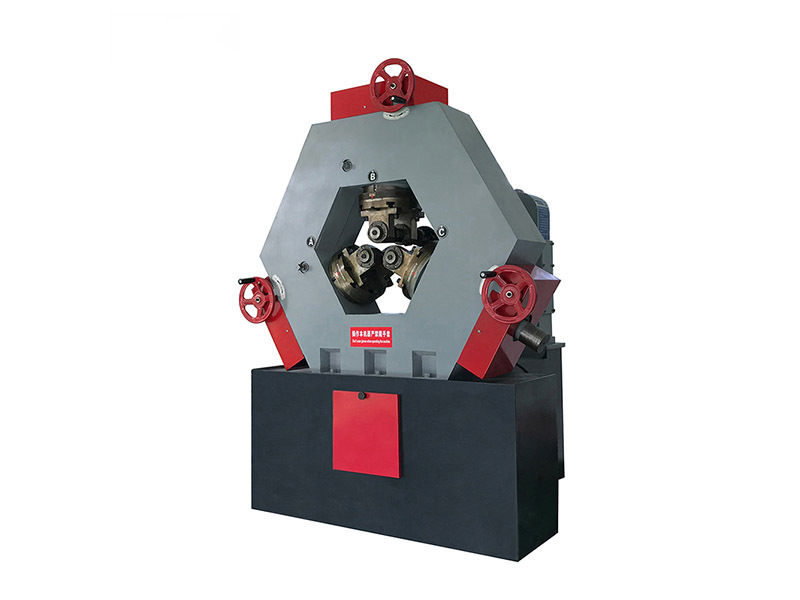

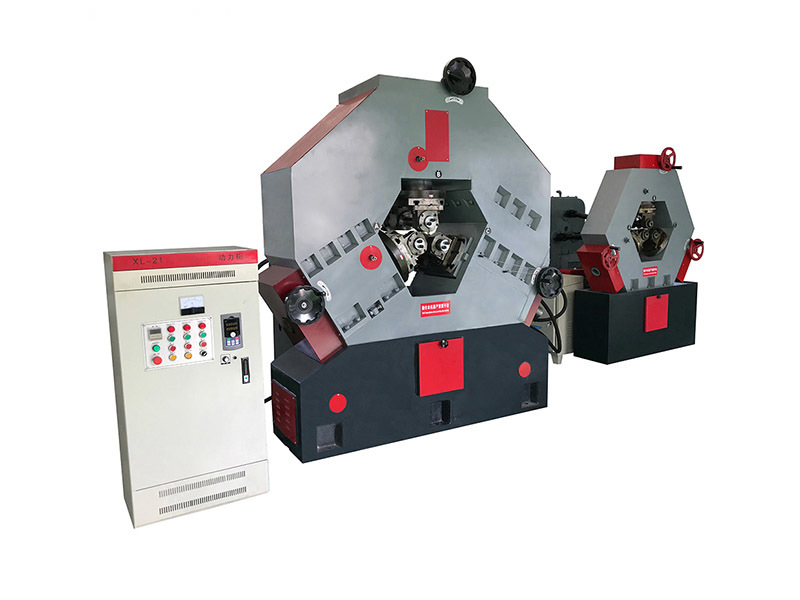

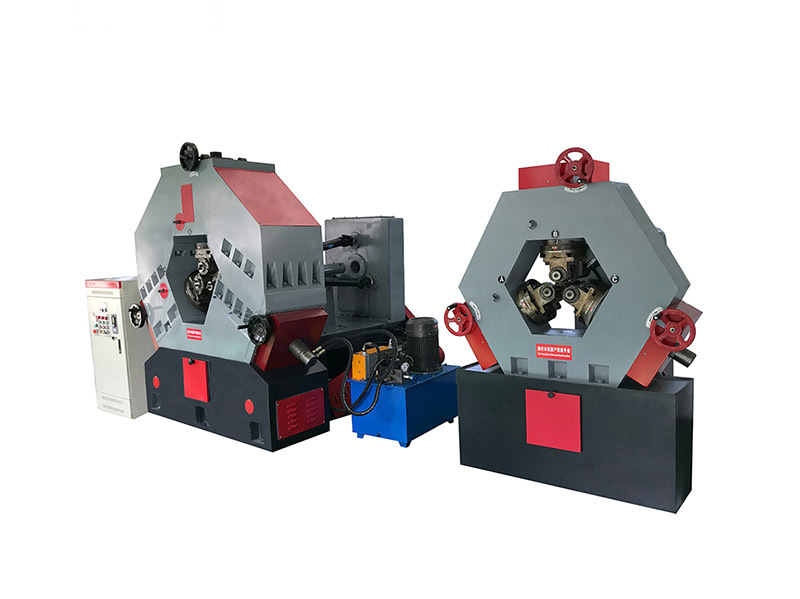

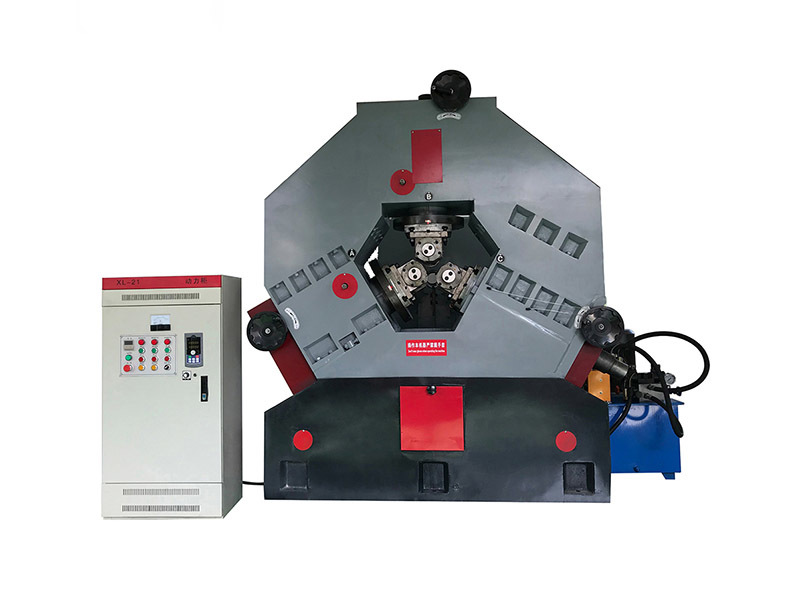

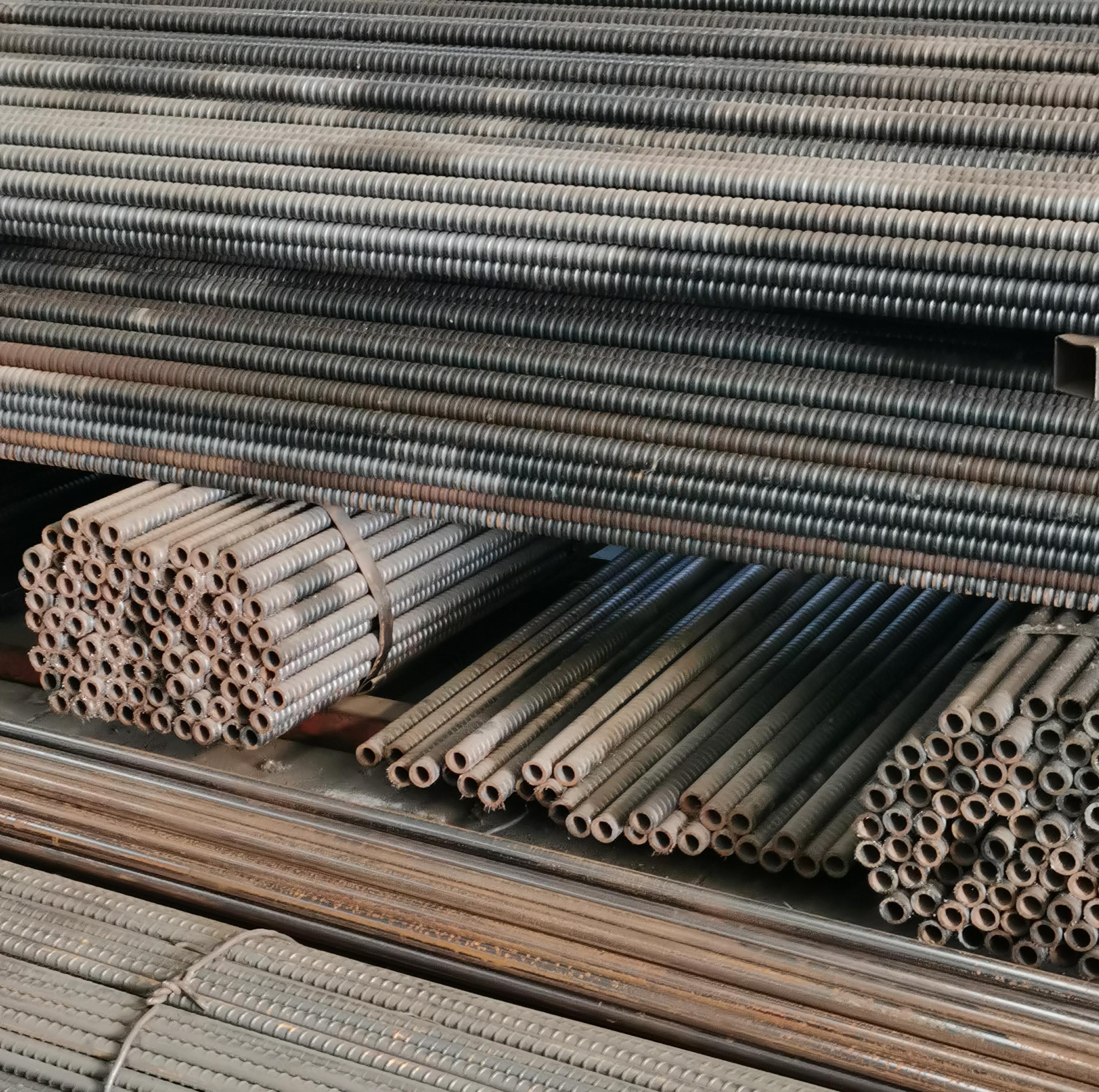

Automatic Three Axis Pipe Thread Rolling Machine for Various Thread Steel Bar Production

Video

1 / 7

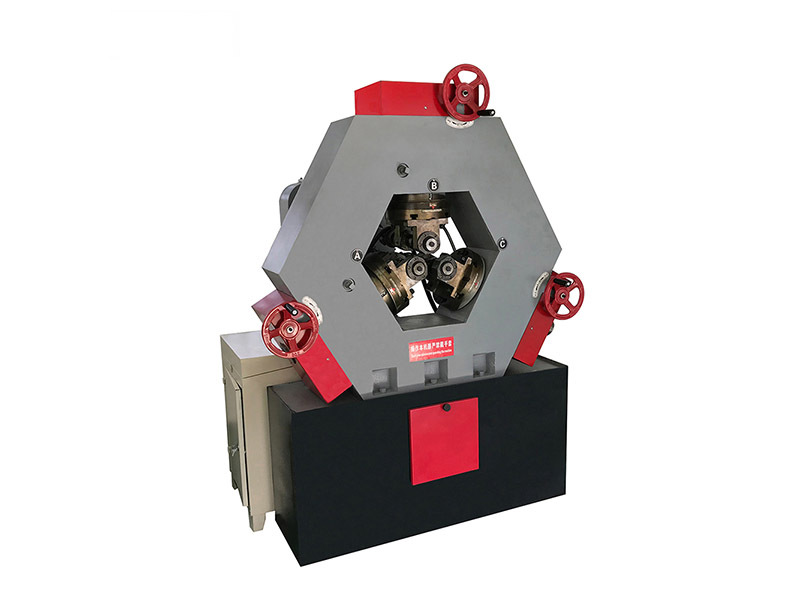

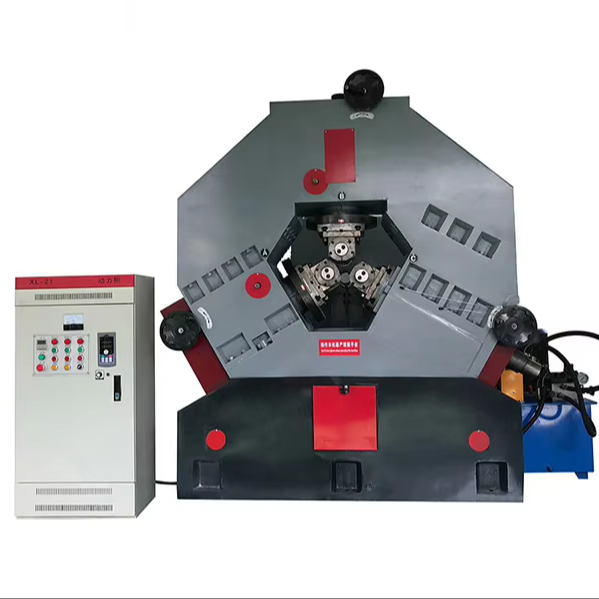

Automatic Three Axis Pipe Thread Rolling Machine for Various Thread Steel Bar Production

$15000.00

≥1 set
$14000.00

≥2 set

Options:

SZ-110

Get Latest Price

You might also like

High Speed Three Rollers Railway Spike Thread Rolling Machine

1 set (MOQ)

Railway Spike and Bolt Making Machine - Hot Rolling and Thread Rolling Equipment

1 set (MOQ)

Railway Spike Automatic Feeding Thread Rolling Machine

1 set (MOQ)

Railway Spike and Bolt Making Machine - Hot Auto Rolling Thread Rolling Machine

1 set (MOQ)

Railway Spike and Bolt Making Machines

1 set (MOQ)

Three-axis Hot Rolling Thread Rolling Machine for Precision Without Distortion

1 set (MOQ)

Large Diameter Three Axis Threading Rolling Machine for Sale

1 set (MOQ)

China Manufacturer of High Quality Triple Shaft Thread Rolling Machines

1 set (MOQ)

High Efficiency Automatic Scaffolding Pipe Thread Rolling Machine

1 set (MOQ)

AISEN Factory Cheap Price Three Roll Tube Three Axis Thread Rolling Machine for Screw Anchor Bolts

1 set (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Hebei, China
Production Capacity	1.5m/min
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core components	Plc
Brand Name	AISEN
Voltage	380v
power(w)	11KW
Dimension(LWH)	200020002100mm
Warranty	1 Year
Key Selling Points	Easy to Operate, Long Service Life
Weight (KG)	4200
Work piece diameter	25-110mm
Max Thread Length	no limitid
Thread Pitch	16mm
Max rolling pressure	30T

Product description

Model	SZ-180	SZ-110	SZ-80	SZ-50
Pressure of roller	40T	30T	20T	15T
Rolling diameter	25-180mm	25-110mm	20-80mm	20-40mm
Thread length	no limited	no limited	no limited	no limited
Maximum rolling pitch	18mm	16mm	12.7mm	12.7mm
OD of roller	260mm	200mm	170mm	170mm
BD of roller	75mm	54mm	54mm	54-40mm
Roller width max	140mm	120mm	100mm	100mm
Spindle center distance	220-360mm	100-300mm	130-270mm	130-270mm
Dip angle of main shaft	±10degree	±10degree	±10degree	±10degree
Spindle speed	stepless speed change	stepless speed change	stepless speed change	stepless speed change
Main power	18KW	11KW	11KW	7.5KW
Hydraulic power	5.5KW	5.5KW	5.5KW	5.5KW
Cooling power	0.12KW	0.12KW	0.12KW	0.12KW
Weight	10000KG	4500KG	2300KG	1680KG
Size	225024002550mm	200020002100mm	190018001900mm	130014001800mm

Q1. Are you factory or trading company ?

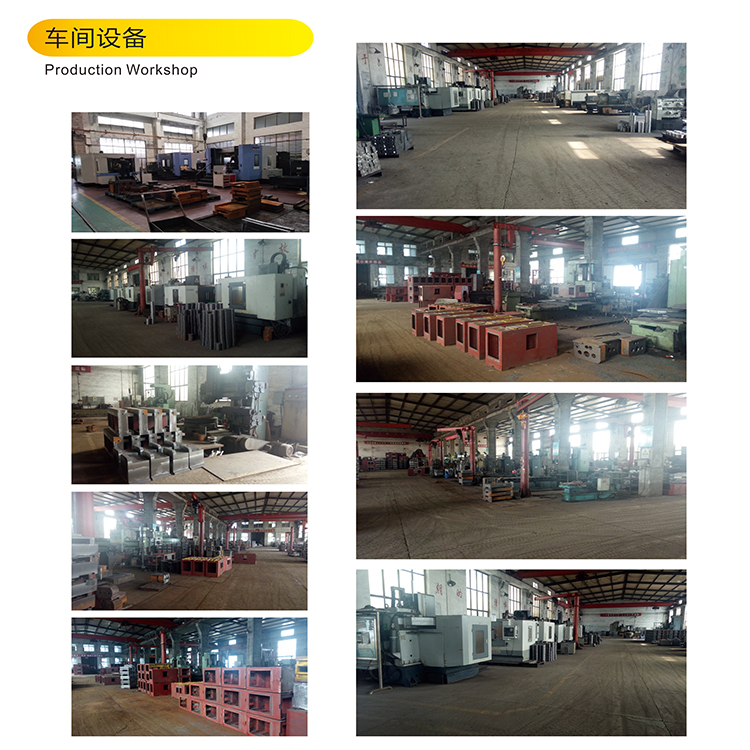

A1. We are factory of manufacturing .Welcome to visit our factory.

Q2. What is the delivery time ?
A2. Usually 5-15 days for machine

Q3. What is the warranty time for machine?
A3. Usually 12 months from Shipping date.

Q4. What is the payment term?
A4. T/T, Western Union, Moneygram, Alipay, PayPal.
30% as deposit, and 70% before shipping.

Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes, Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.

Q6. How will you solve problems that we face during using your machine?
A6. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
