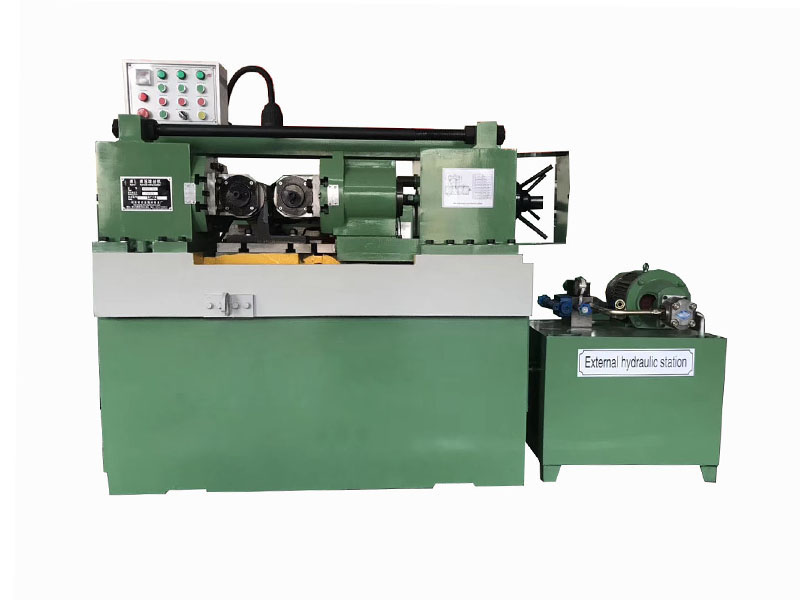

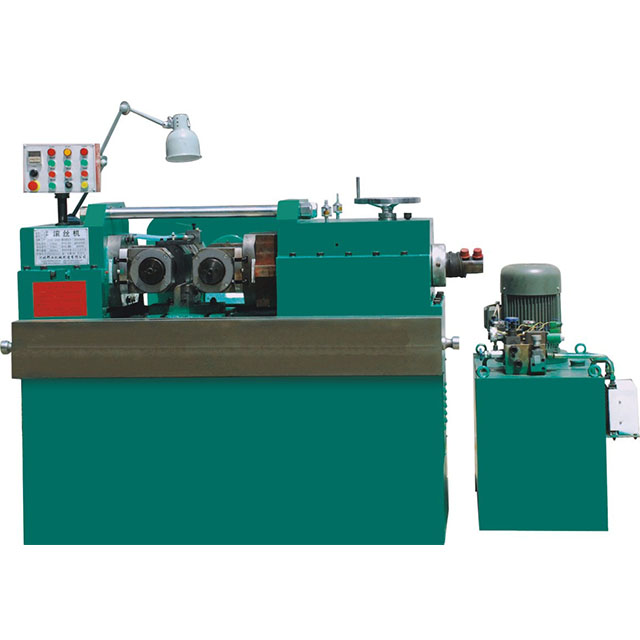

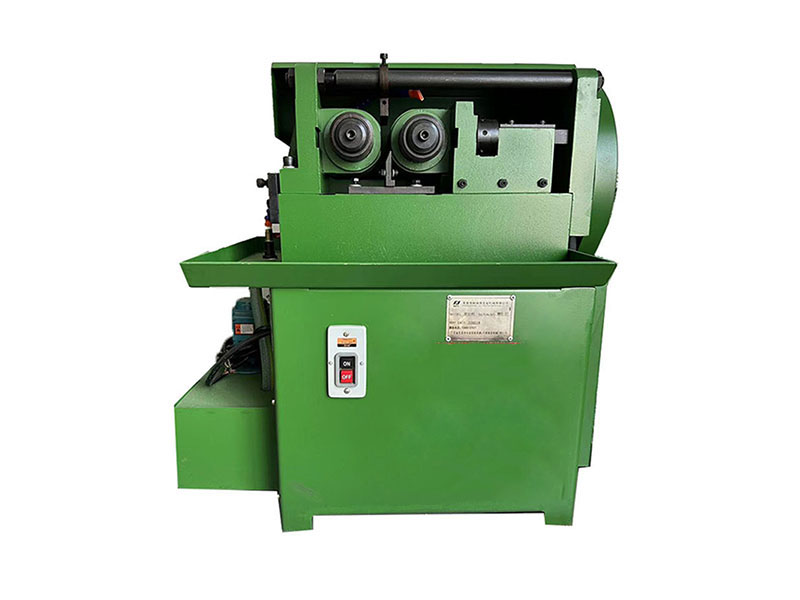

Large Diameter Three Axis Threading Rolling Machine for Sale
$33000.00
≥1 set
Options:
- SZ-180
Basic Info
| Place of Origin | Hebei, China |
|---|---|
| Production Capacity | 1.5(m/min) |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Core components | Engine |
Product description

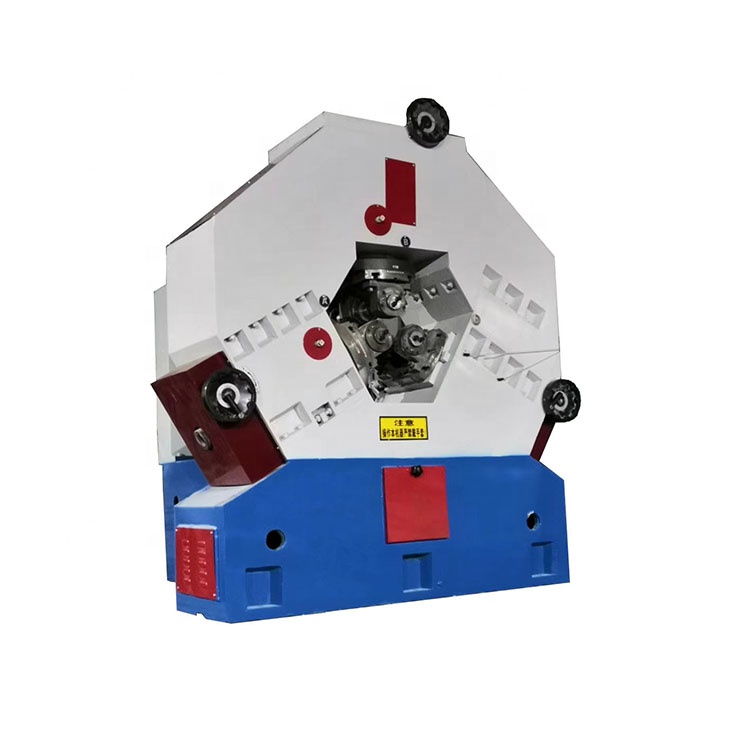

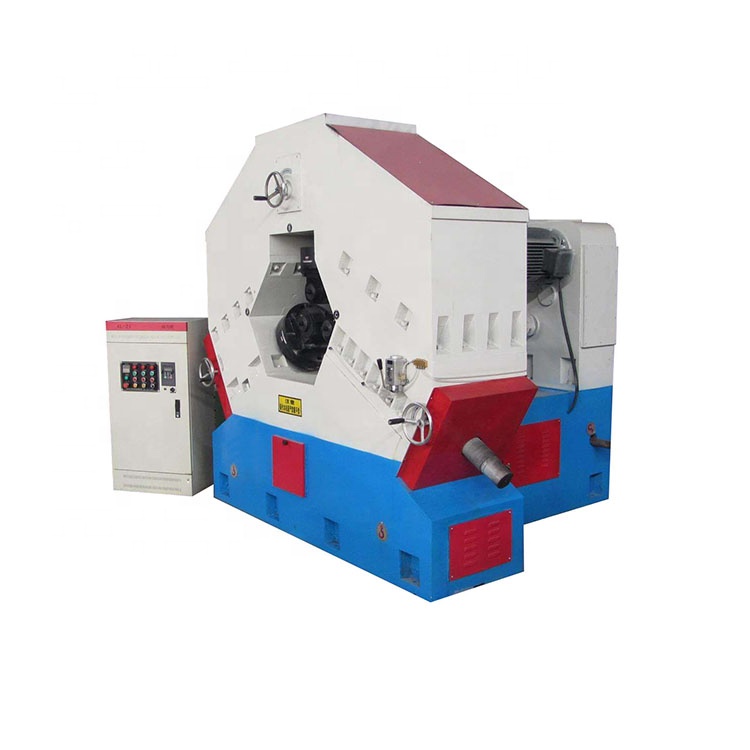

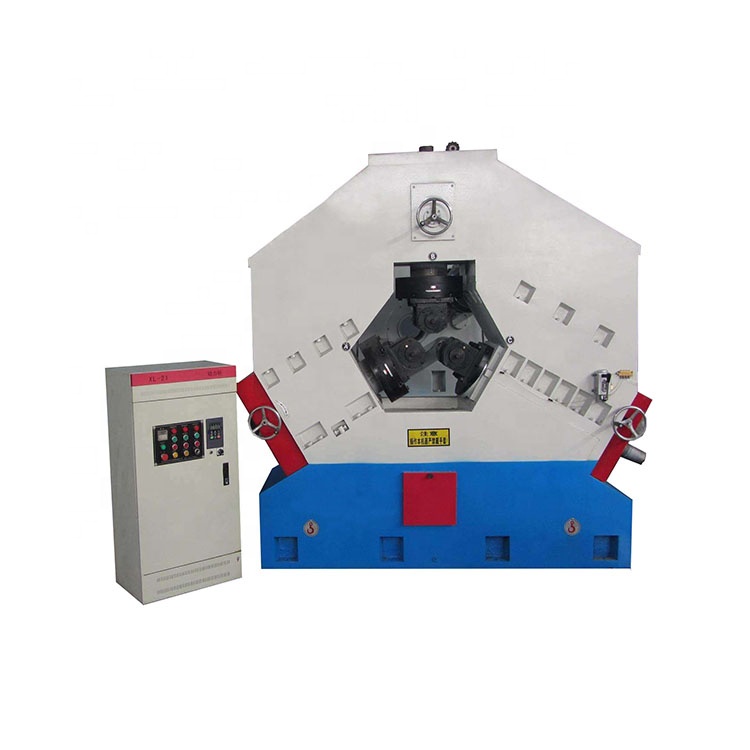

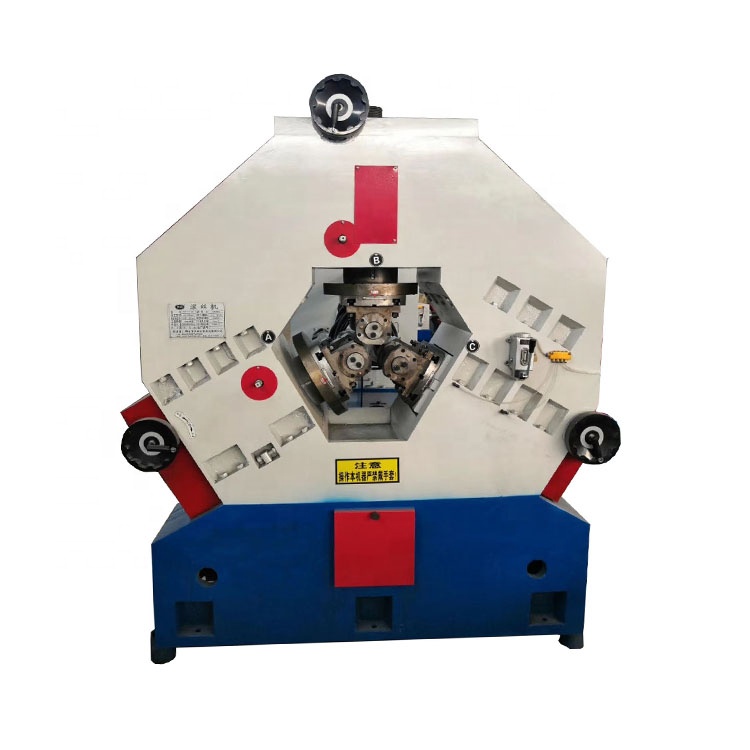

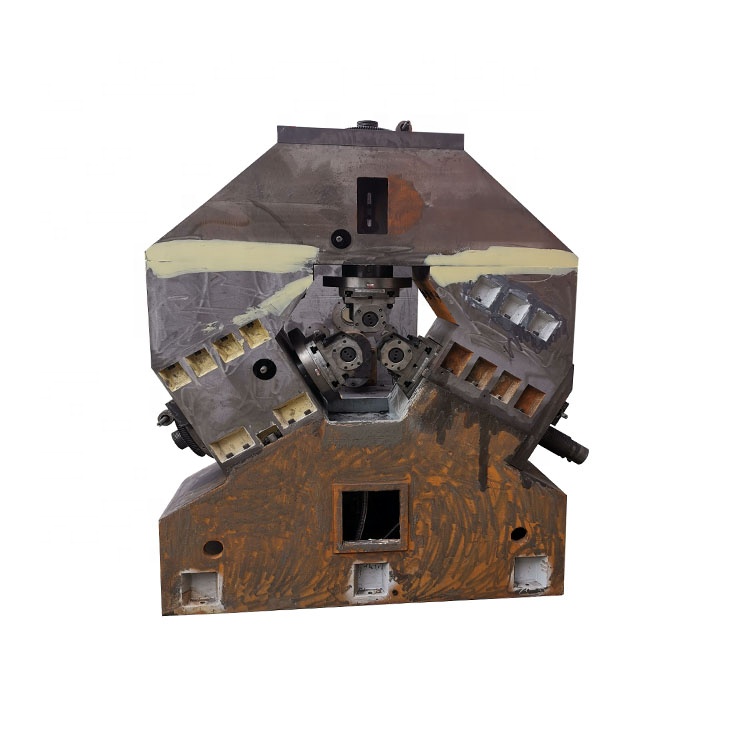

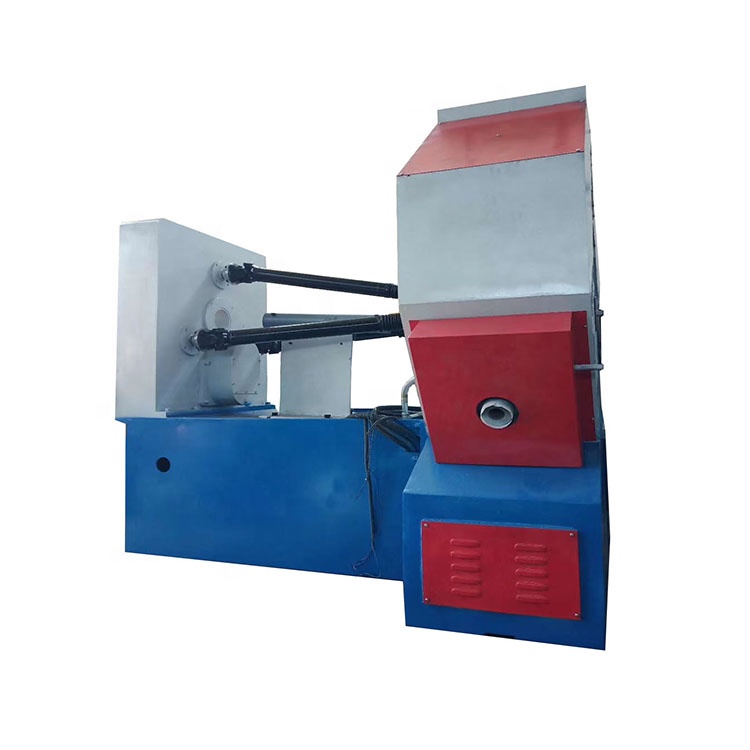

Three-axis thread rolling machine
Model | SZ-180 | SZ-110 | SZ-80 | SZ-50 |
Pressure of roller | 40T | 30T | 20T | 15T |
Rolling diameter | 25-180mm | 25-110mm | 20-80mm | 20-40mm |
Thread length | no limited | no limited | no limited | no limited |
Maximum rolling pitch | 18mm | 16mm | 12.7mm | 12.7mm |
OD of roller | 260mm | 200mm | 170mm | 170mm |
BD of roller | 75mm | 54mm | 54mm | 54-40mm |
Roller width max | 140mm | 120mm | 100mm | 100mm |
Spindle center distance | 220-360mm | 100-300mm | 130-270mm | 130-270mm |
Dip angle of main shaft | ±10degree | ±10degree | ±10degree | ±10degree |
Spindle speed | stepless speed change | stepless speed change | stepless speed change | stepless speed change |
Main power | 18KW | 11KW | 11KW | 7.5KW |
Hydraulic power | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Cooling power | 0.12KW | 0.12KW | 0.12KW | 0.12KW |
Weight | 10000KG | 4500KG | 2300KG | 1680KG |
Size | 2250*2400*2550mm | 2000*2000*2100mm | 1900*1800*1900mm | 1300*1400*1800mm |
Video
Large Diameter Three Axis Threading Rolling Machine for Sale1
Large Diameter Three Axis Threading Rolling Machine for Sale1
Large Diameter Three Axis Threading Rolling Machine for Sale1
Large Diameter Three Axis Threading Rolling Machine for Sale
$33000.00
≥1 set
Options:
- SZ-180
