ModelNo

LCB-120UV-2

Certificate

CE,ISO-9001-2000

BrandName

LC, China

Description

Cylinder of pad printer is German FESTO brand. Electrical components are imported from Japan.

While vacuum system is from Taiwan. It meets CE standard, with very stable running.

This auto printing press system is specially used for printing different patterns on the objects with round shape or oval shape.

Advantage

1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and flat work pieces;

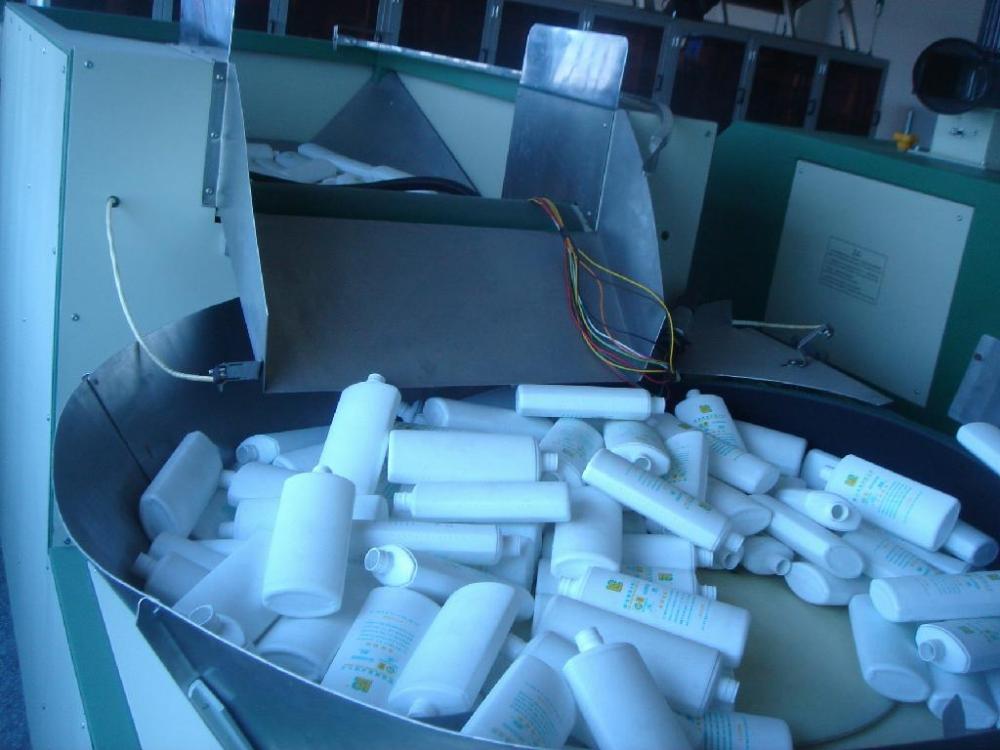

2.Coupled with auto work piece feeding and loading system;

3.Flame treatment device adopted for re-treatment on PE or PP work pieces to get ultimate ink adhesion;
4.The function of work piece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.High quality UV curing system adopted to ensure fast ink drying and color registration;
6.High printing speed that up to 4000pcs/hr will bring you with high productivity;
7.Conveniently and easily fixture adjustment and change that save your valuable time;
8.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system.

Parameter

1 Model No:LCB-120UV-2
2.Printing colors:2 color

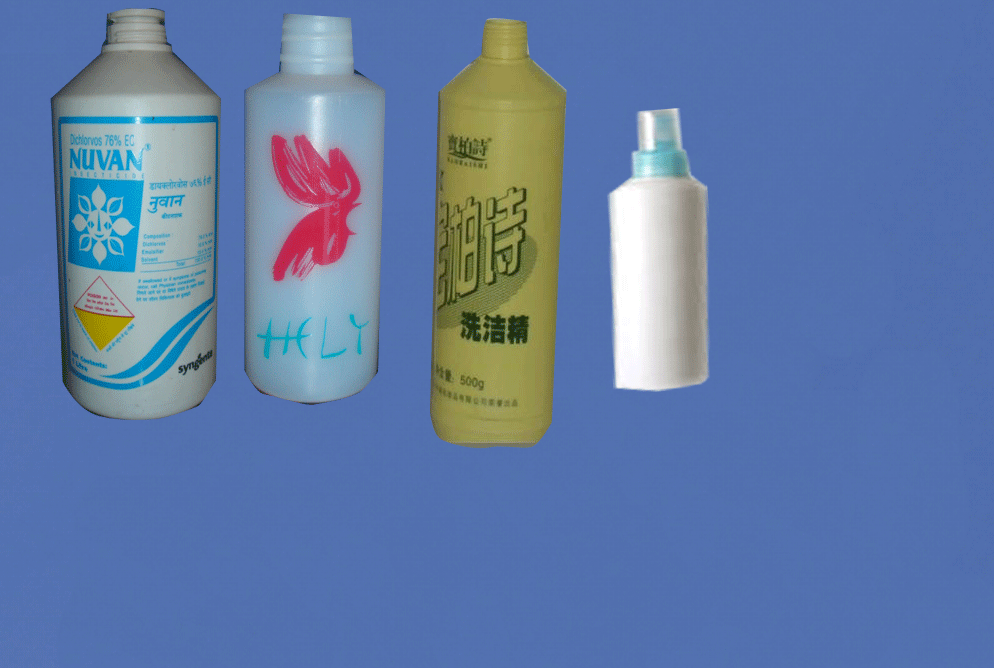

3.Product appearance:Round bottle /  oblate bottle
4.Operation:Full Auto
5.min printing diameter:round bottle: 20 mm
6.max printing diameter:round bottle :100 mm
7.min printing radius:oblate bottle :25 mm
8.max printing radius:oblate bottle :260 mm
9.oblate bottle width:20-100 mm
10.oblate bottle thickness:20-80 mm
11.Max Printing speed:4000-5000Pcs/Hr
12.Power:380V
13.Weight:2050(kg)
14.Dimensions:L:1900×W:1000×H:1500(mm)

Usage

The materials to be printed can be plastic, glass, ceramics, metal, etc

Shippingway

Bysea,byair,byexpress

Deliverytime

Within 20 days from the receipt ofpayment

Loading seaport

Shenzhenor Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

(negotiable)
