Purpose:

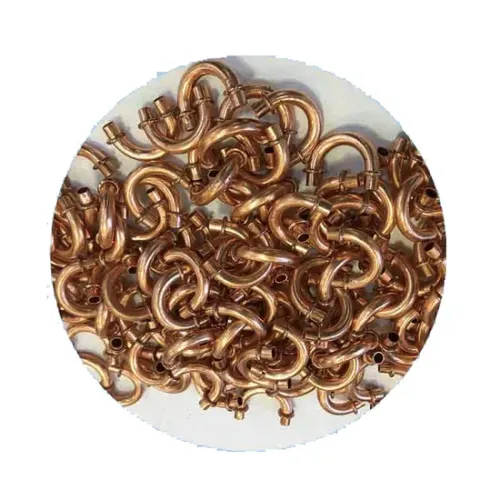

This equipment, developed with the core technology of Automatic Ring Inserting Machine, is designed to automatically load welding rings onto return bends. It is widely applied in the automatic production of return bend welding ring loading in industries such as air-condition condensers, evaporators, and water heaters, effectively replacing manual operation and improving production efficiency. Its high-speed feeding performance is also comparable to that of High-Speed Ring Feeding and Insertion Machine.

?

Feature:

1. High degree of automation: Adopting the automatic control logic similar to CNC Ring Mounting Equipment, it realizes full-process automatic feeding, positioning and loading, reducing labor intensity and avoiding human errors.

2. Convenient operation, exquisite appearance: With a compact structure and user-friendly design, it is easy to debug and maintain, and its sleek appearance fits well in various workshop environments.

3. Scale board on servo motor, accurate location: Equipped with a servo motor with a scale board, it achieves precise positioning like CNC Ring Mounting Equipment, ensuring consistent welding ring installation accuracy.

4. PLC & touch screen integrated control: Simple operation interface, allowing quick parameter setting and real-time monitoring, suitable for operators of different skill levels.

5. Device for smoothing the pipe end: Equipped with a special pipe end smoothing device, it avoids scratches on the return bend and ensures stable loading quality, matching the high standards of Automatic Ring Inserting Machine.
