Automatic Western Type Envelope Making Machine (ZX-WGT)

1 Set/Sets (MOQ)

Basic Info

Model No.	ZX-WGT
Brand Name	Innovo

Product description

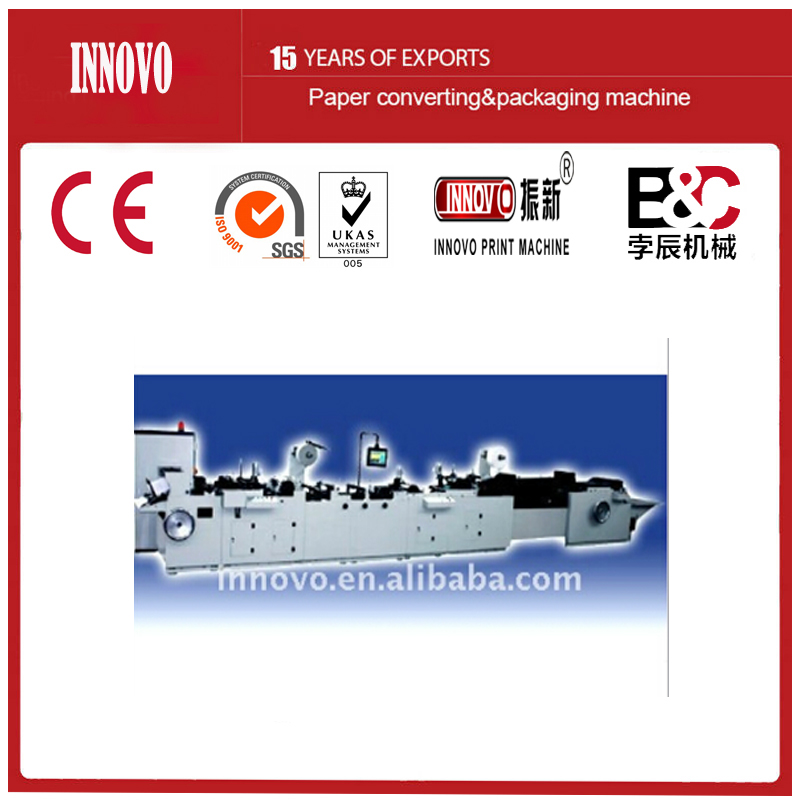

Automatic Western Type Envelope Making Machine(ZX-WGT)

Introduction:
ZX-WGT series is similar in the absorption of foreign advanced products based on the design and development of a new generation of automatic integration of Western-style paper bag machine, machine to achieve the same window film, pre-coated gum, coated self-adhesive stickers, stickers , drying folding and other functions. And can be selected according to the needs of customers with different functional models. Become the W + D company in Germany, the United States FLSMITH and other companies worldwide, after a few can produce auto-linked envelope of the machine integration company to fill the gaps, including a number of technology in the leading position as the first choice of the large envelope factory instead of imported equipment.

Technical parameters
Start the paper size: maximum width (480mm) maximum length (350mm)
Envelope size range: the maximum (250x176mm) most (100x90mm)
Paper weight: 70-120gsm
Maximum speed: 16000pcs / h
Window Size: Width (25mm-100mm) , Length (35mm-140mm)
Window material cutting length: Max (230mm) , minimum (36mm)
Window material cutting width: Max (120mm) , minimum (35mm)
Coverage of the (release paper) cut length: Max (235mm) , minimum (100mm)
Power: main motor (5.5kw) dry heat (9kw) pump (18kw) fan (1.1kw) compressor (1.1KW)
Dimensions: length (9800mm) * height (1860mm) * width (1320mm)
Net weight (8200kg)
