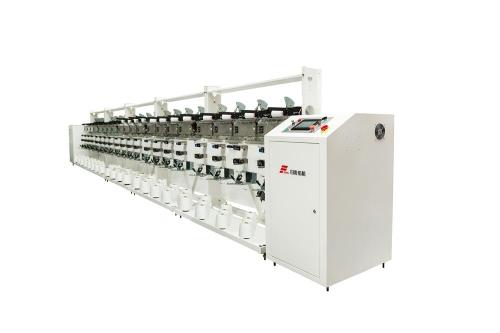

This model is one upgrade model which is precise assembly winder machine of doubling assembly winder machine

The model can merge cotton and spandex yarn if with spandex device.

 assembly winder machine merge two to three strands of cotton, wool and blend yarns into one package yarn then take up into bobbins, applied for following equipment e.g.Two-For-One twister machine.

Suitable range of Precise Assembly Winder

Merge two or three strands of cotton, canapina fibre, fur, chemical fibre or their blends into one yarn, prepare bobbins for following equipment of two-for-one twister.

Features

→ Single spindle control by single motor, speed control by frequency conversion, easier for winding speed and technique parameter adjustment

→ Use inspection device for yarn broken to avoid any strands absent

→ Applying alarm reset button, easy for finding yarn-broken spindle

→ Adopt sections assembling mode, it can shorten erection time at site

→ Control panel: operation ease, simple for winding speed setting and yarn length detecting

→ Penumatic lifting device: Package immediately after yarn broken, and easy for piecing

→ Tension device: easy to adjust yarn tension by changing tension slices

Technical parameter of AW20 assembly winder machine and Precise Rewinder for Soft:

- spindle No.: 10 spindles per section(340mm spindle gauge), Max 120  spindles.

-merge of strands No. :2-4 ply

-traverse length: 152mm

-winding speed: Max 720 m/m

-winding bobbin size:￠37.5MM(inner dia)*￠43.5MM(outside dia)*170MM(length)
