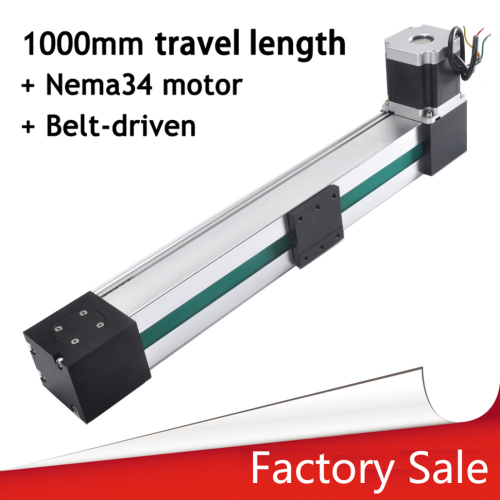

Belt linear motion rail system+ 3-phase nema 34 Stepper Motor

Package include:
 Effective Stroke 1000mm +Nema34 Stepper Motor
Feature:
Type: XP : belt slide module
T ravel Length: 1000mm
Repeat positioning accuracy: 1mm
Speed: 300mm/s
Most load: max 40kg
We have its working video, if you need, please leave message we will send to you.
Besides,we can also customize the travel length as your demand,contact us if any needs please.
Belt Driven Linear Guide

IMPORTANT NOTICE:

Shipping cost may vary based on your actual items needs, please contact us for calculate the delivery fee. Import duties, taxes and charges are NOT included in the item price or shipping charges. Buyers are responsible for these charges, we have no control over what the tax your country custom will charge, please check with your countrys customs office to determine what these additional costs will be prior to bidding/buying.

All of our product are custom made length product, please contact us by email or sales online to calculate the exact price for the items you need.If you have any questions or comments about our products or policies, please contact us by online chatting or email. We will respond within 12-24 hours.

Belt Linear Actuator

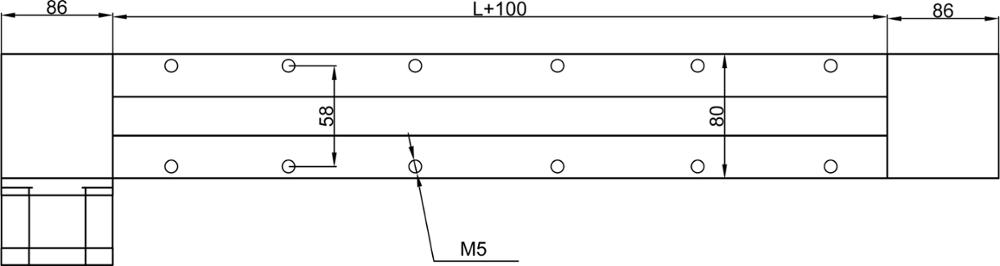

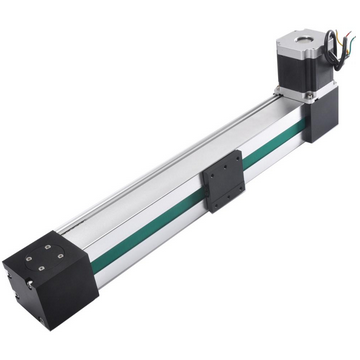

FUYU FPLS80L1000 Belt Drive linear guideway   Moved at high speed and acceleration             Long travel length

Belt Driven Linear Actuator

 Specifications





General Specifications
Model	FPLS80
Profile size (wxh )[mm]	80 x 70
Type of belt	HTD-5M
Stroke length L [mm]	1000(Max 3000)
Overall length [mm]	L+272
Overall height [mm]	86



Performance Specifications
Linear Speed, maximum[m/s]	3.0
Acceleration, maximum[m/?2;]	6.0
Repeatability[mm]	±1
Input speed, maximum[rpm]	1200
Operation temperature limits[°C]	0-50
Remarks	internal wheel guides

Linear Stage Belt

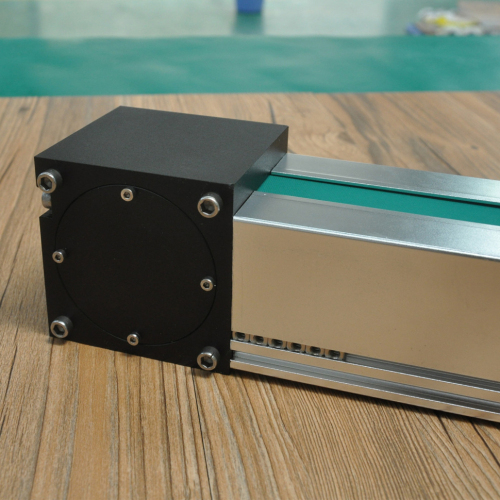

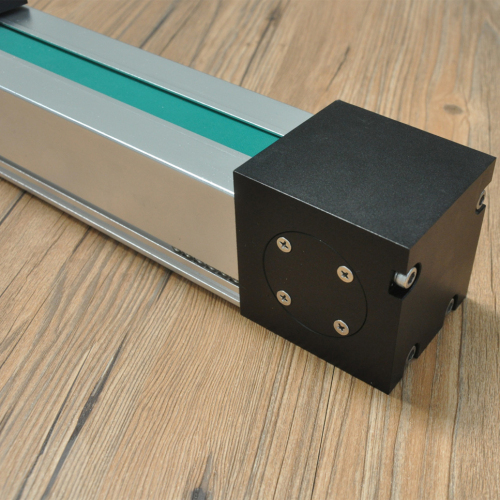

 Detailed Images



 Motor parameters

Model No	No of phase	Flange size (mm)	Motor length (mm)	Holding torque ( N.m)	Current (A)	Lead wire (No.)	Weight (kg.)
FM8698SJT03	3-phase	86	98	5	3.0	3	2.8





 Load / Speed Suggestions



Max Speed/Load	3-phase nema34 stepper motor
	Effective length 500~3000mm
	0~5kgs	5~10kgs	10~20kgs	20~40kgs
Horizontally maximum (m/s)	3.0	2.0	1.0	0.5

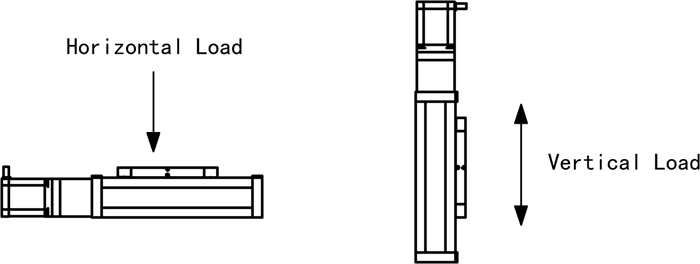

Vertically	Not recommended to use vertically
Test motor: FM8698SJT03               Test driver: FMDT220A48NOM          Drive voltage: 220v       Drive Current: 3A
