Product description

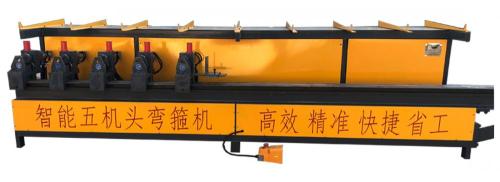

        1. The artificial bending speed is slow, the labor intensity is high, the efficiency is low, and the five-head steel bar bending machine is reasonable in design, simple in operation, and multi-purpose in one machine.

        2, Replacement specifications do not need to use the ruler to measure, directly input, for example: 20cm * 20cm, automatic adjustment, automatic locking.



        3. Greatly increased productivity, increased efficiency, and saved labor.



        4. This product has simple structure, reasonable design, sturdy and durable, and low maintenance cost.

Product features：



1. There is an electronic ruler on each head, which shows the current position and the set position, which is easy to learn.



2, Using intelligent control, can process a variety of sizes and sizes of square, rectangular, diamond, single and double head hooks.



3, From the wire rod raw material to the stirrup product once formed, can process cold and hot rolled high-strength wire rod steel.



4, High production efficiency, equivalent to 10 to 20 labor.



5. The equipment is practical and requires only one person to operate, saving a lot of labor.



6, Saving raw materials, in the work is continuous molding almost no loss of steel head.



7. Small footprint, saving straightening work area and cutting work area, can work in Di narrow area.



8, Changed the previous stand-alone mode, the use of double-clamp hydraulic motor, stability.



9, Equipment maintenance costs and energy costs are very low

Product parameters





Hydraulic pressure	5-16MPa	Total power	6KW
Pneumatic pressure	0.4-0.6MPa	Processing capacity	1500-200/hour
Machine head lock method	Hydraulic lock	Total Weight	1200kg
Fixed length method	Automatic fixed length /Manual length	Processing quantity	Φ6	14
Molding speed	5s		Φ8	10
Side length error	±2mm		Φ10	8
Angle error	±1°		Φ12	5
Overall size	6000*1200*1000mm		Φ14	3
