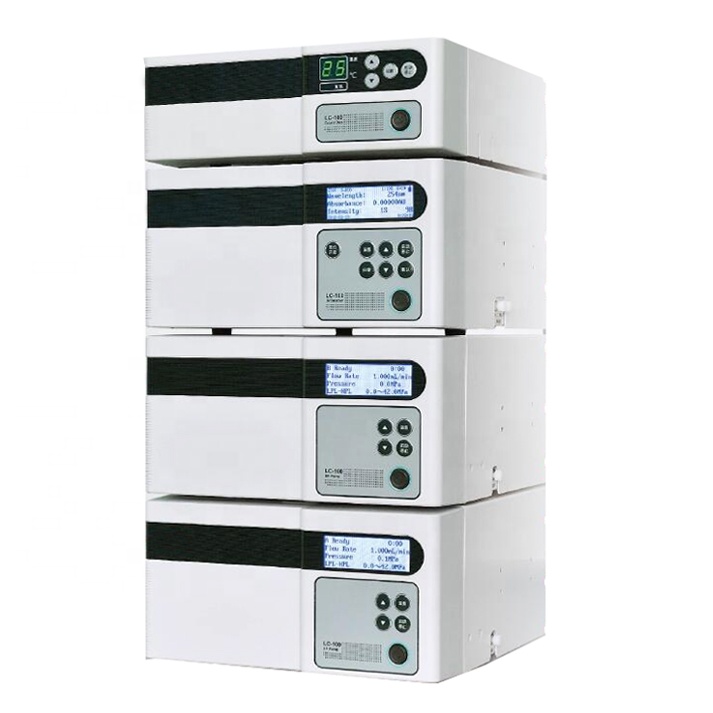

LC-100 HPLC System

Flow rate range: 0.001-10.00 mL/min, in 0.001 mL increments
Flow accuracy: ≤±0.1% (1.00ml/min, H2O,R.T.,8.5MPa); Flow precision: RSD≤0.06% (1.00ml/min, H2O,R.T.,8.5MPa)
Maximum pressure: 6090 psi ; Pressure accuracy: ≤±1.0%; Pressure pulsation: ≤0.1 MPa

P100 C Dual-piston reciprocating parallel
Flow Precision: 0RSD<0.06%; Fluctuation: 0.1MPa ; Mixing Accuracy :±1%;Mixing Precision:±0.2%;

Power Supply: 110V / 220V

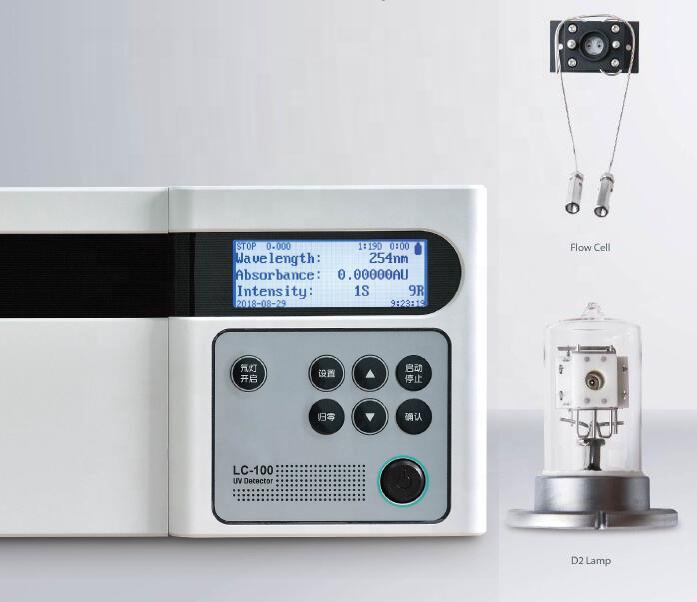

UV100 Detector :?Wavelength Range: 190-700 nm
Flow cell volume: 8nm; Wavelength Accuracy: ±1 nm ; Wavelength Precision: <0.1nm;
Minimum Detectable Concentration: 5×10-9 g/mL; Noise :±0.25×10-5AU(Static)/±1×10-5AU(dynamic, under specified requirements);
Drift :≤0.4×10-4AU/h(Static)/±2×10-4AU/h (dynamic, under specified requirements);

Power Supply: 110V / 220V ;

WS-100 Chromatographic Data-processing Workstation

Signal Transmission Form :Full digital signal;
Operation Mode:Reflecting and monitoring the operation of instruments’ each unit (editing gradient

program for changing wavelength scanning, setting event procedure, spectrum scanning, spectrogram comparison, etc.)
Original Series C18 5μm ID4.6×150mm

Manual Injector Rheodyne 7725i
Manual injection valves include manual injector, The standard 20ul quantitative ring can be extended to -1000ul,

100ul flat head injection needle, injector bracket.

CO 100 COLUNM OVEN
Column capacity: Three columns, up to 10mm internal diameter, up to
300mm length with guard column
Temperature range: ambient+5.0 to 80℃, settable in 0.1℃ increments
Temperature accuracy: ≤±2℃

Temperature stability: ≤±0.1℃
