Biodegradable PLA Tableware Making Machine
$45000.00
≥1 set
$35000.00
≥3 set
Get Latest Price
You might also like
$85000.00
1 set (MOQ)
Basic Info
| Processing type | Plastic Thermoforming Machine |
|---|---|
| Plastic type | Ps |
| Max.Forming Height(mm) | 80 mm |
| Forming Width (mm) | 780 mm |
| Forming Length (mm) | 300 mm |
Show More
Product description
Products Description

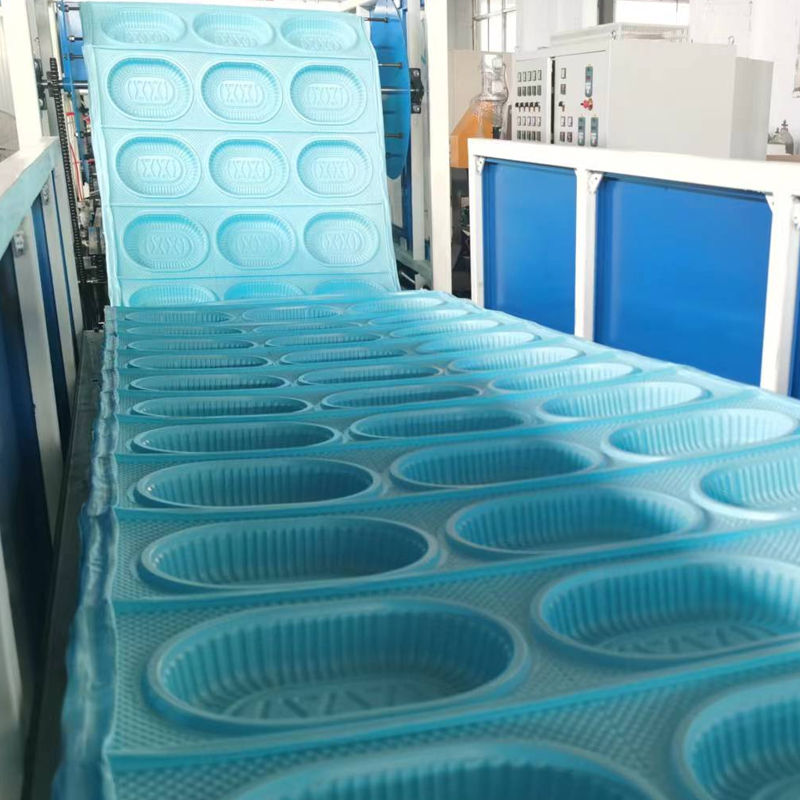

One-step tableware forming machine will make the finished granules form tableware through heating, This machine is the latest core product developed by our company, integrated, punching, cutting, and stacking. It has a wide range of uses and is suitable for most customers' requirements. It can produce bowls, plates, various fast food boxes, packing boxes, supermarket trays, moon cake boxes, tofu boxes, biscuit boxes, etc. Stable operation, low noise, high efficiency and good quality.

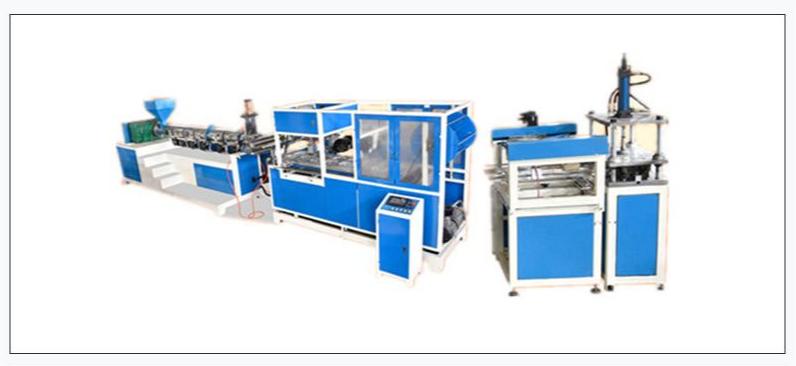

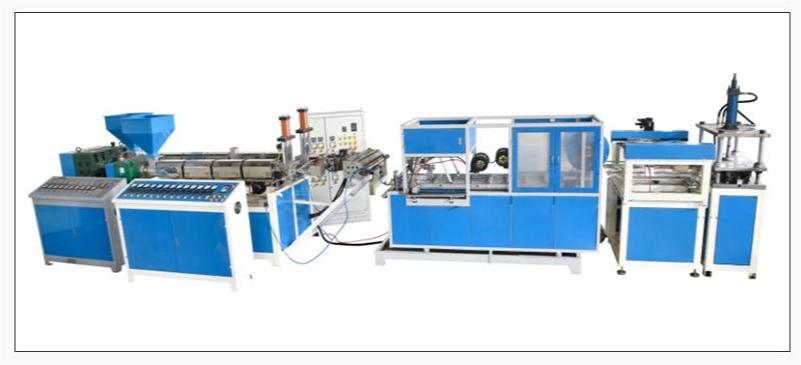

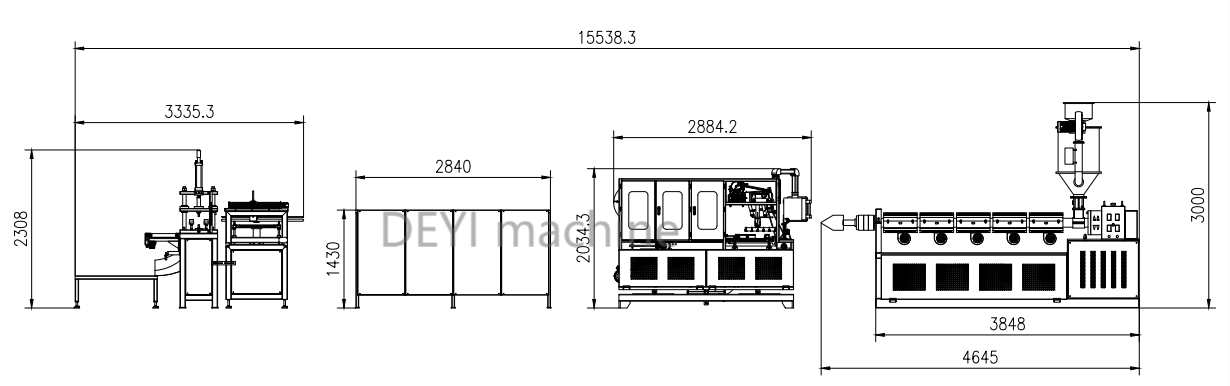

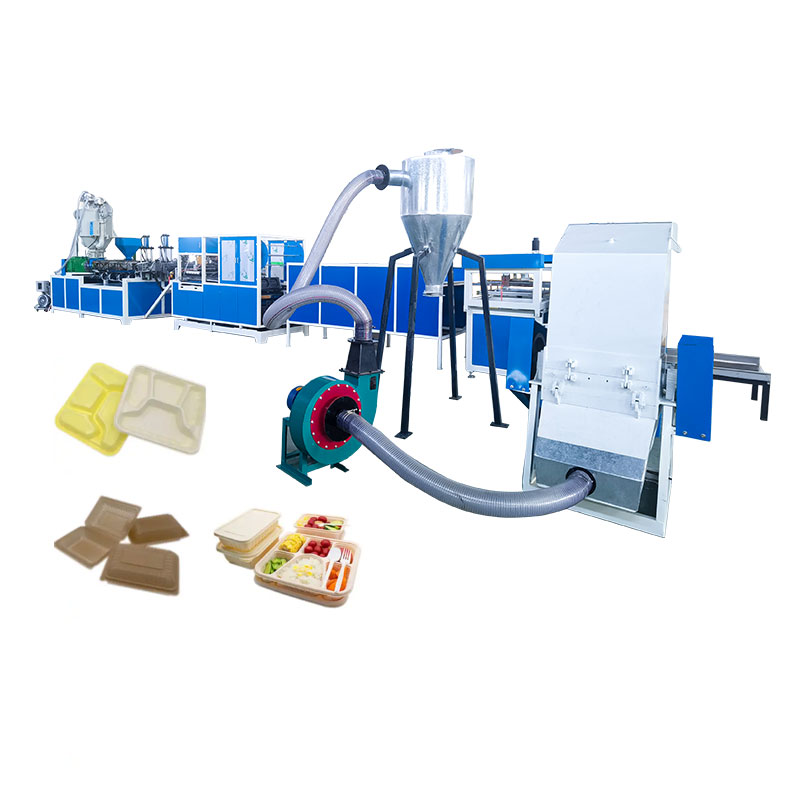

DY-90 automatic degradation lunch box equipment production line | ||||||
Screw (mm) | 90 | Average power consumption per hour (kw) | 30 - 40 | |||
Screw length-diameter ratio | 1:33 | Extrusion method | 1set | |||
Extrusion capacity (kg/h) | 140 - 170 | Die size (mm) | L = 1000 | |||
Motor (kw) | 37 | Molding area (mm) | (750 - 800)×300 | |||
Frequency converter (kw) | 37 | Mold size (mm) | 250 - 800 | |||
Heating zone | 12 | Equipment Size (mm) | 6800 * 1300 * 2000 | |||
Heating system (kw) | 22 | Machine weight (tons) | 5.2 - -5.5 | |||
DY-90-65 automatic degradation lunch box equipment production line | ||||||
Screw 1 (mm) | 90 | Heating system (kw) | 30 | |||
Screw 2 (mm) | 65 | Average power consumption per hour (kw) | 45-55 | |||
Screw length-diameter ratio | 1：33 | Extrusion method | ABA | |||
Motor 1(kw) | 37 | Die size (mm) | L=1000 | |||
Motor 2(kw) | 18.5 | Molding area (mm) | (750 - 800)×300 | |||
Inverter 1(kw) | 37 | Mold size (mm) | 250 - 800 | |||
Inverter 2(kw) | 18.5 | Equipment Size (mm) | 7000 * 1600 * 2000 | |||
Extrusion capacity (kg/h) | 180 - 210 | Machine weight (tons) | 6 - 6.5 | |||
DY-90-80-65 automatic degradation lunch box equipment production line | ||||||
Screw 1 (mm) | 90 | Heating system (kw) | 40 | |||
Screw 2 (mm) | 80 | Average power consumption per hour (kw) | 60-70 | |||
Screw 3 (mm) | 65 | Extrusion method | ABAC | |||
Screw length-diameter ratio | 1：33 | Die size (mm) | L=1100 | |||
Motor 1(kw) | 37 | Molding area (mm) | (850-900)×300 | |||
Motor 2(kw) | 22 | Mold size (mm) | 250-900 | |||
Motor 3(kw) | 18.5 | Equipment Size (mm) | 7500*2000*2000 | |||
Inverter 1(kw) | 37 | Extrusion capacity (kg/h) | 270-320 | |||
Inverter 2(kw) | 22 | Machine weight (tons) | 7 | |||
Inverter 3(kw) | 18.5 | Heating zone | 25 | |||
Our Advantage
1. Low cost for starting:

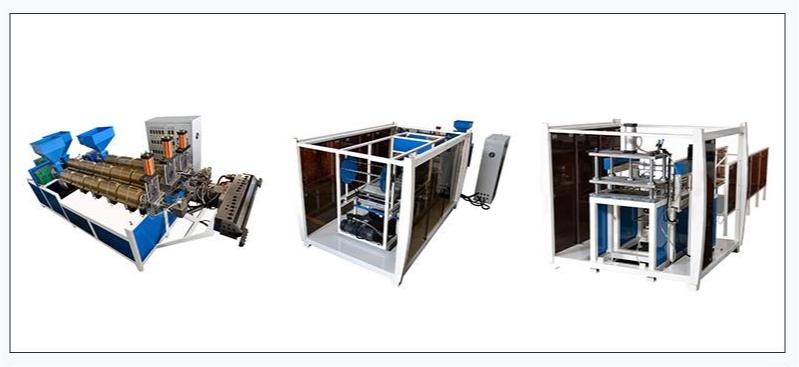

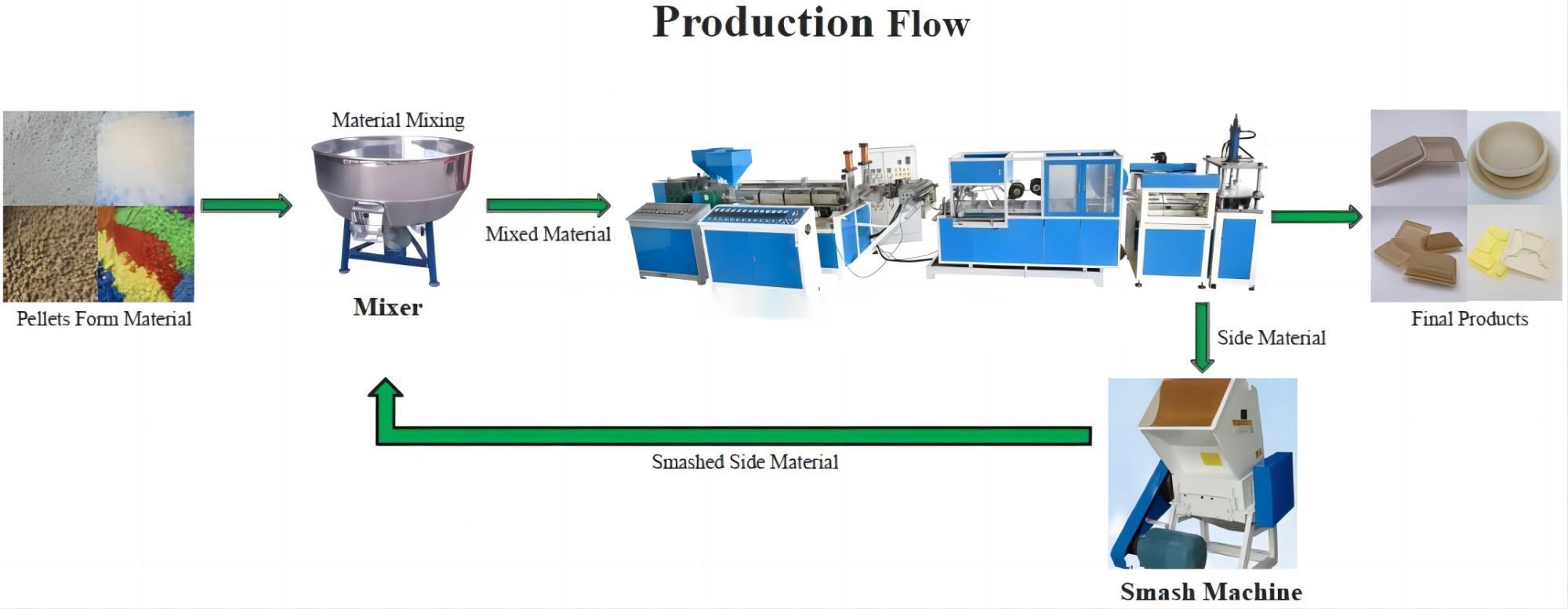

Each production line is equipped with the necessary equipment for the production of products: plate extruder, molding machine, automatic hydraulic punch, blender, grinder, custom mold and a punch knife.
2. Low energy consumption:
The plate extruder can directly complete the forming and punching of products. The product does not need secondary heating.

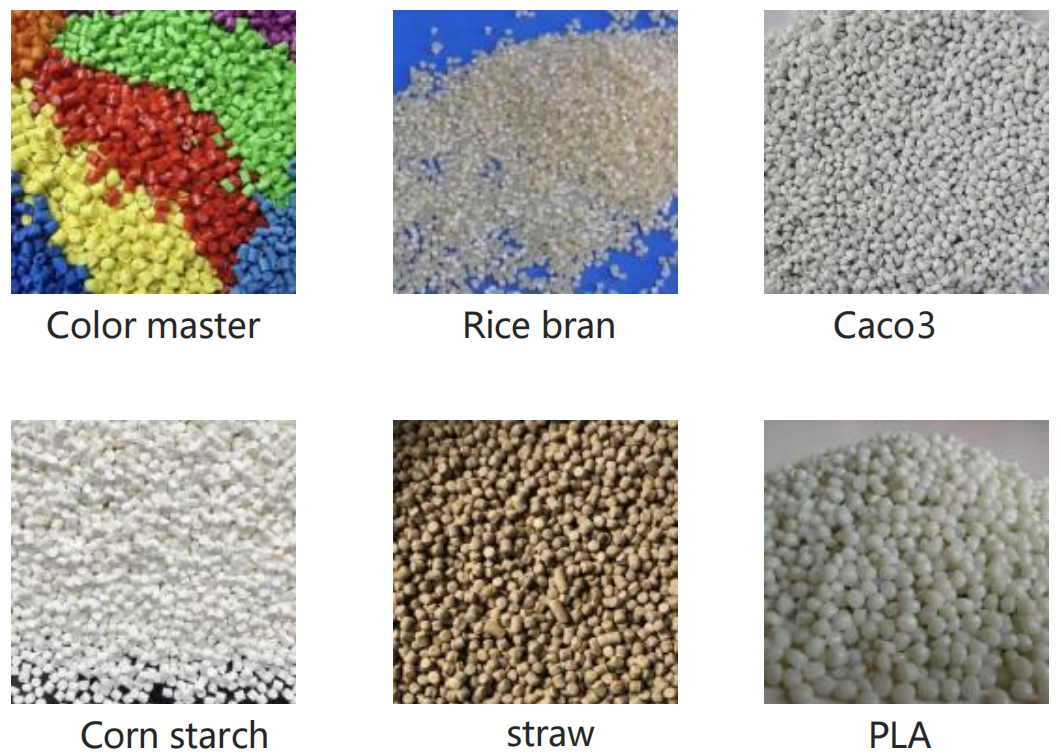

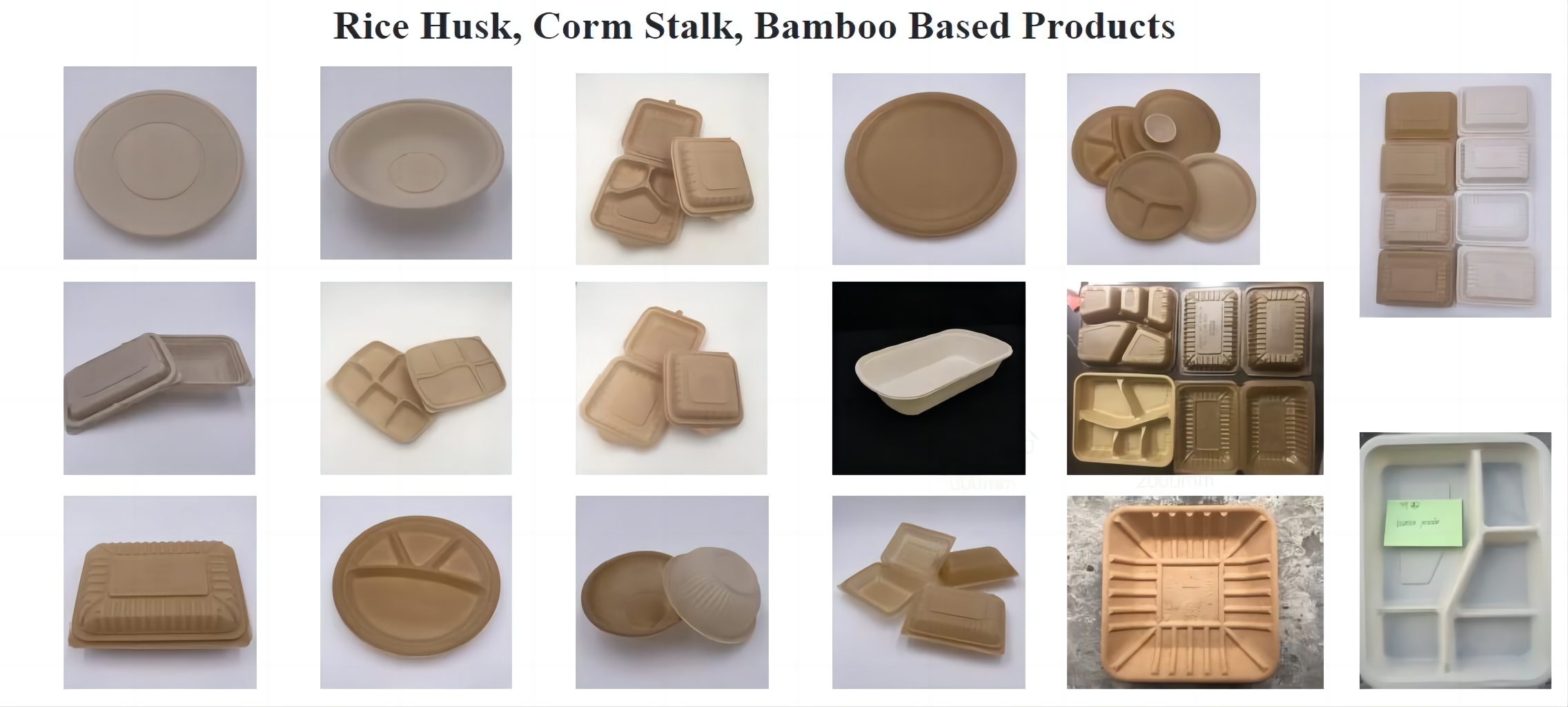

3. Can process various materials:
3. Can process various materials:

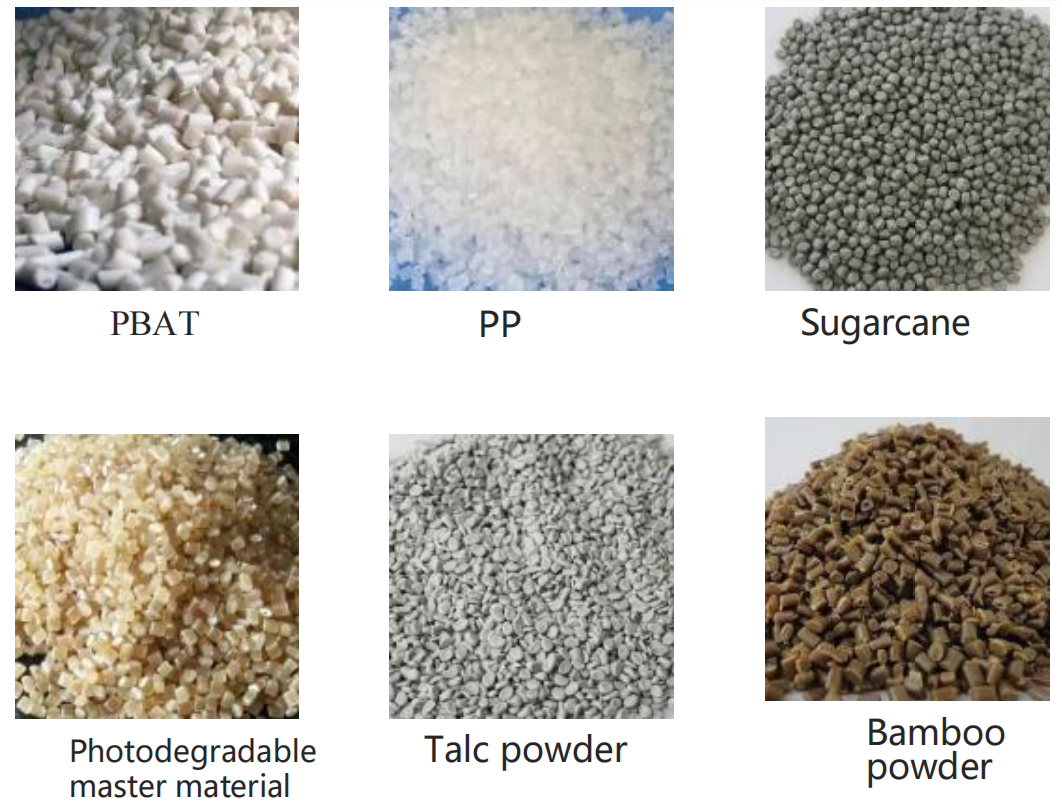

PP and calcium, rice shell, bamboo, talcum, starch, rice straw, bamboo and other plant fibers and so on

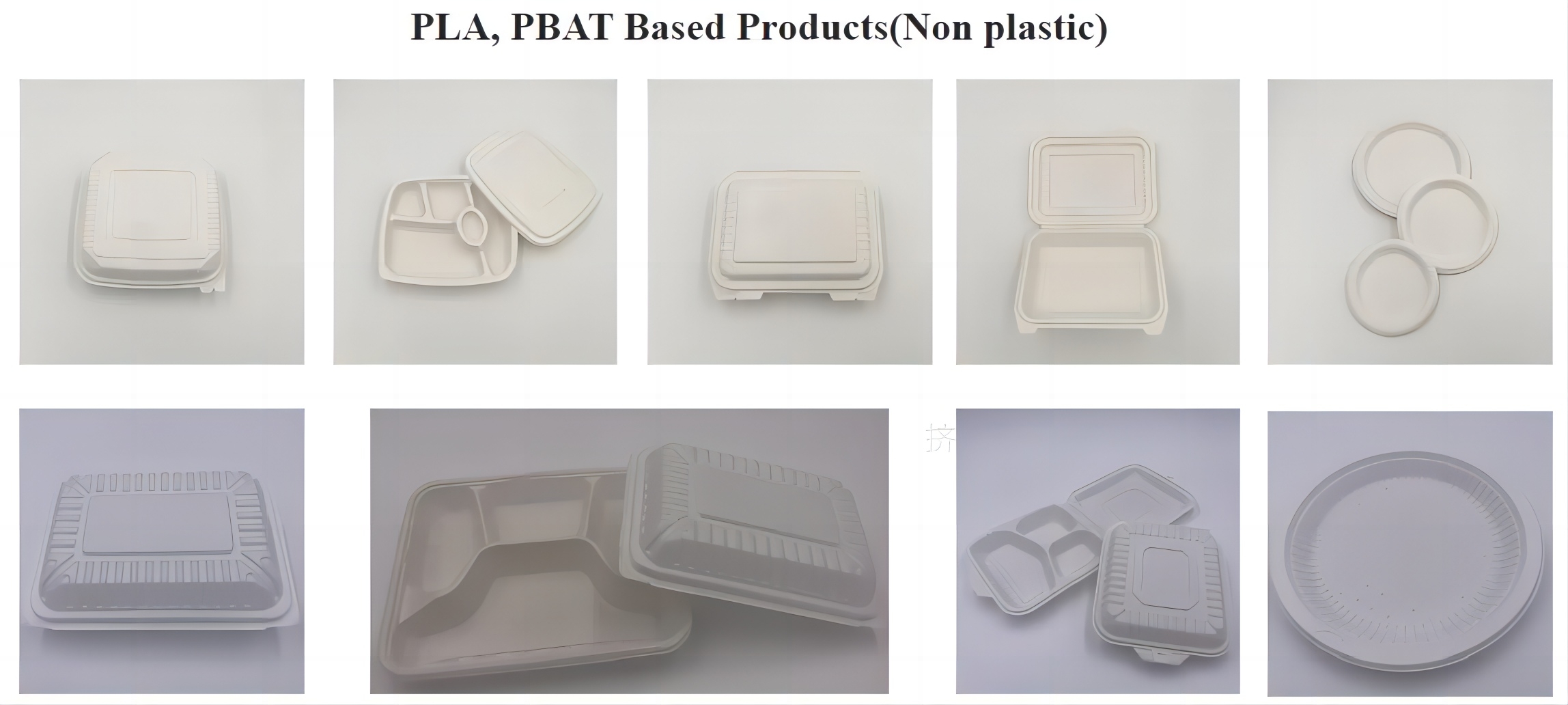

4. Adapt Plastic Free Material: PLA, PBAT etc.
5. Various production specifications:
4. Adapt Plastic Free Material: PLA, PBAT etc.
5. Various production specifications:

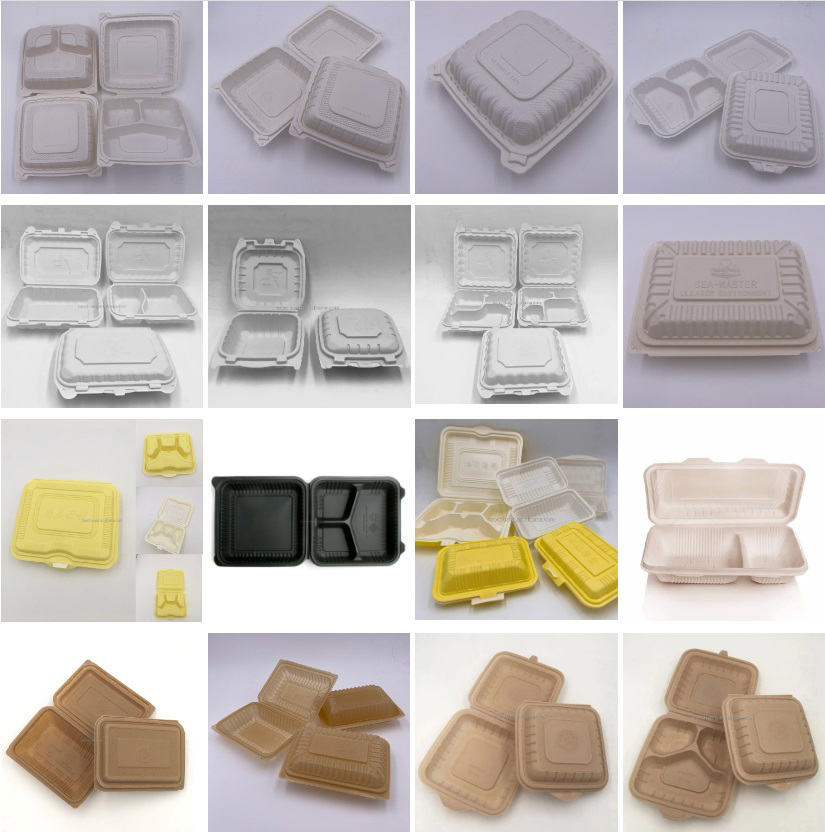

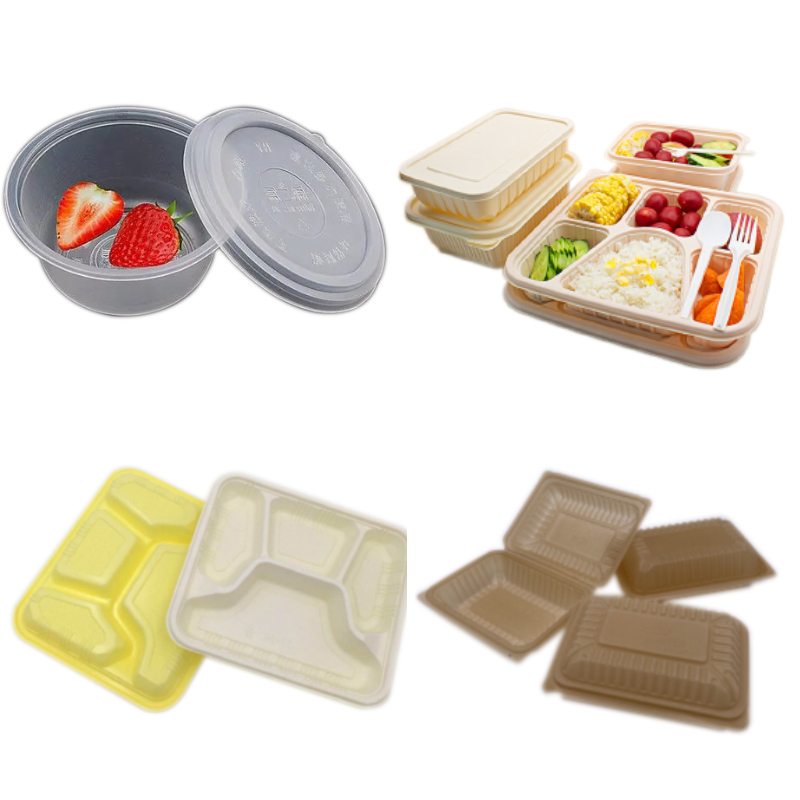

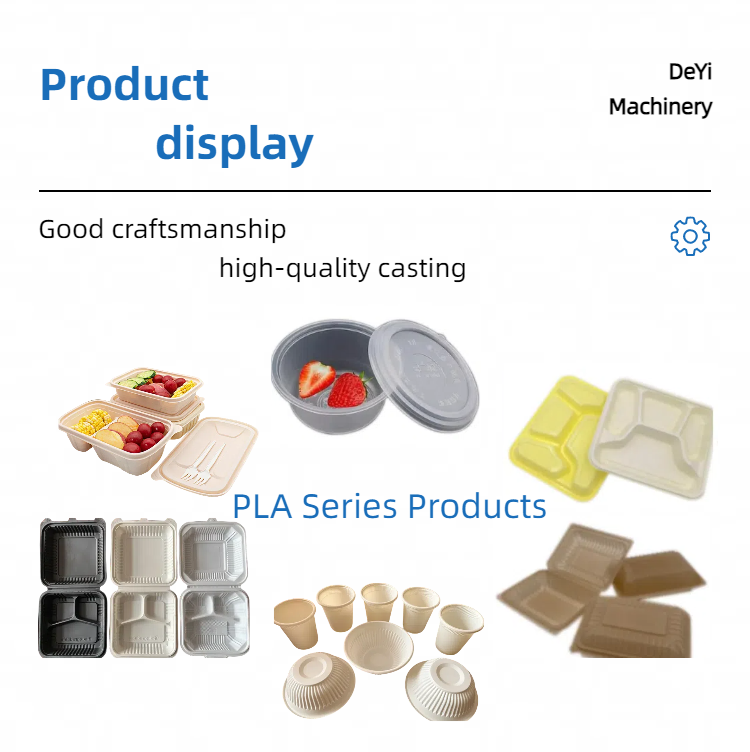

By changing the mold, we can produce lunch boxes, food containers, flip boxes, market trays,food trays, bowls, plates, etc. All our molds can be customized according to customer needs.
6. Highly automated and Easy to operate:
6. Highly automated and Easy to operate:
Two workers are able to operate the full line each shift. One worker is for packing and the other is for side material re-usage.
7. All materials can be recycled:
7. All materials can be recycled:
Side materials can be crushed and reused. And there is no gas pollution and no water pollution in the production process.
8. Durable and stable operation:
8. Durable and stable operation:
The machine can run all day without any problems. Only basic maintenance is required.
Details Image
PLC control Forming Machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

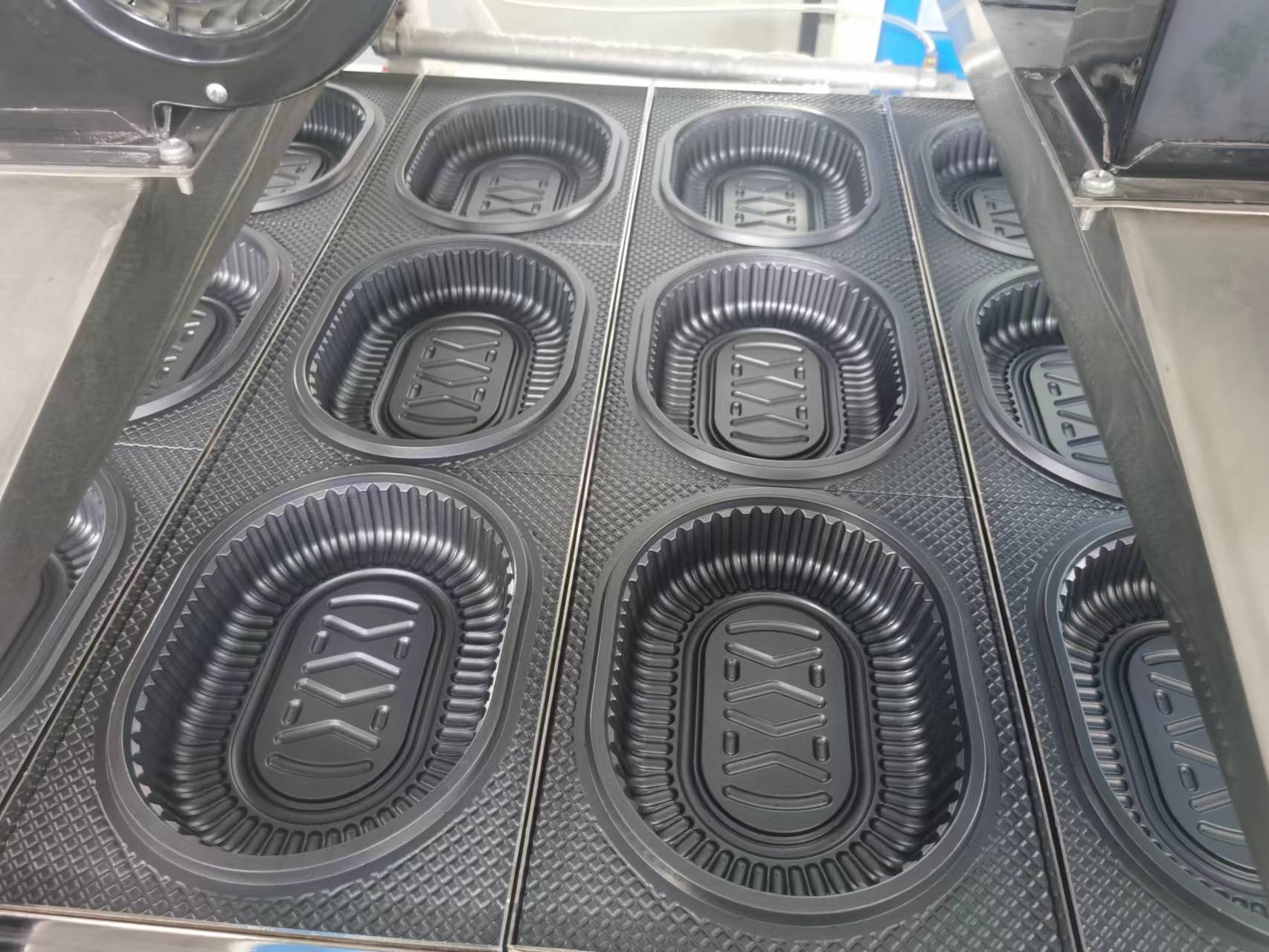

Customized Mold
1. Maximum mold install area reaches 850mm*350mm.
2. All mold are customized, client choose to add logo, words and signs on mold.
3.Each Line comes with one set of free customized mold.
3.Each Line comes with one set of free customized mold.

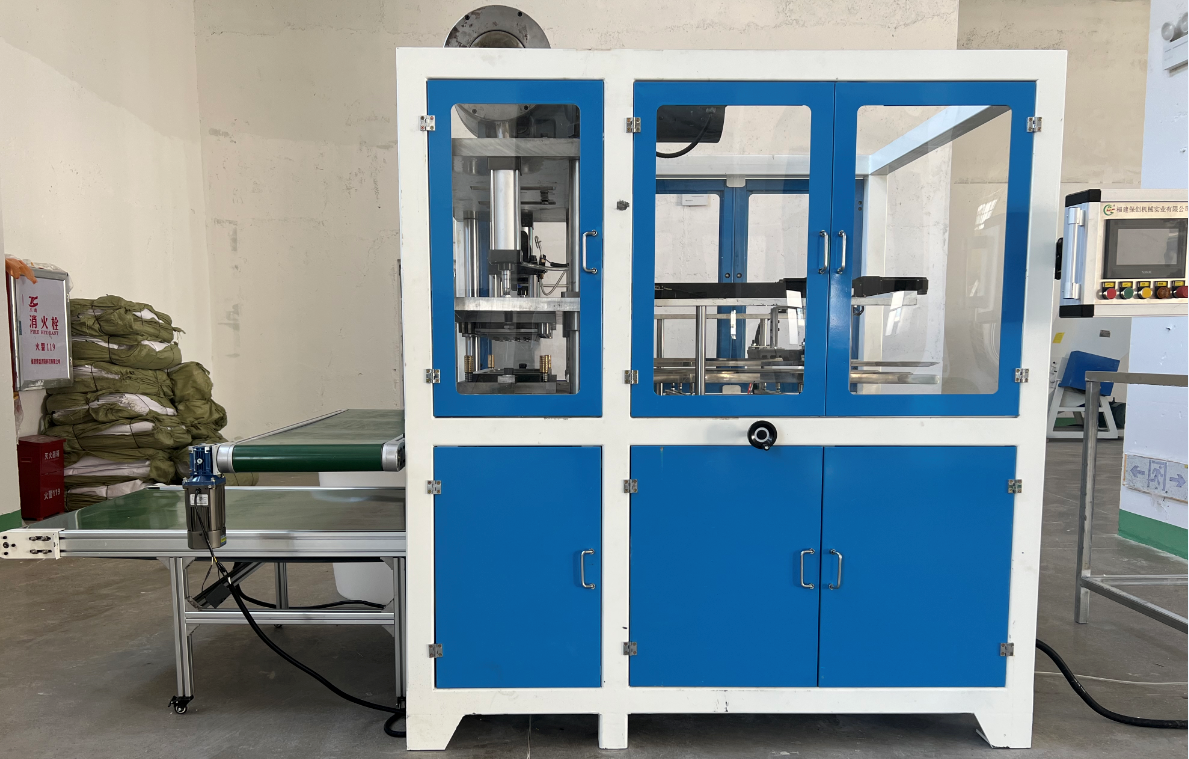

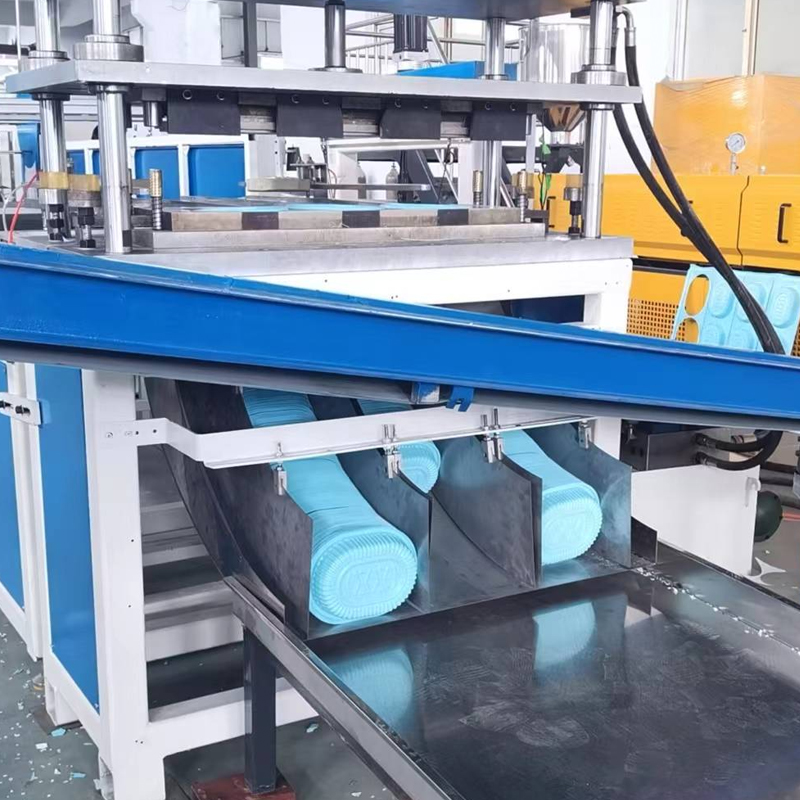

Fully Automatic Cam Punching Machine
1. Saving labor: Auto product counting, stacking, conveying. 2. Faster punching speed: maximum punching speed reaches 55 times/min
3. Lower punching noise.
3. Lower punching noise.

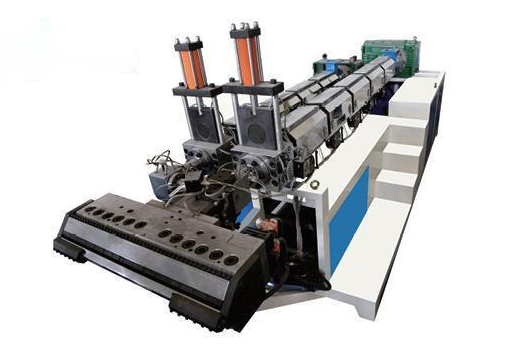

Multi Layer Sheet Distributor
The Triple screw sheet extruder produces maximum four layers ABCA sheet:products with two colors and surface coating.

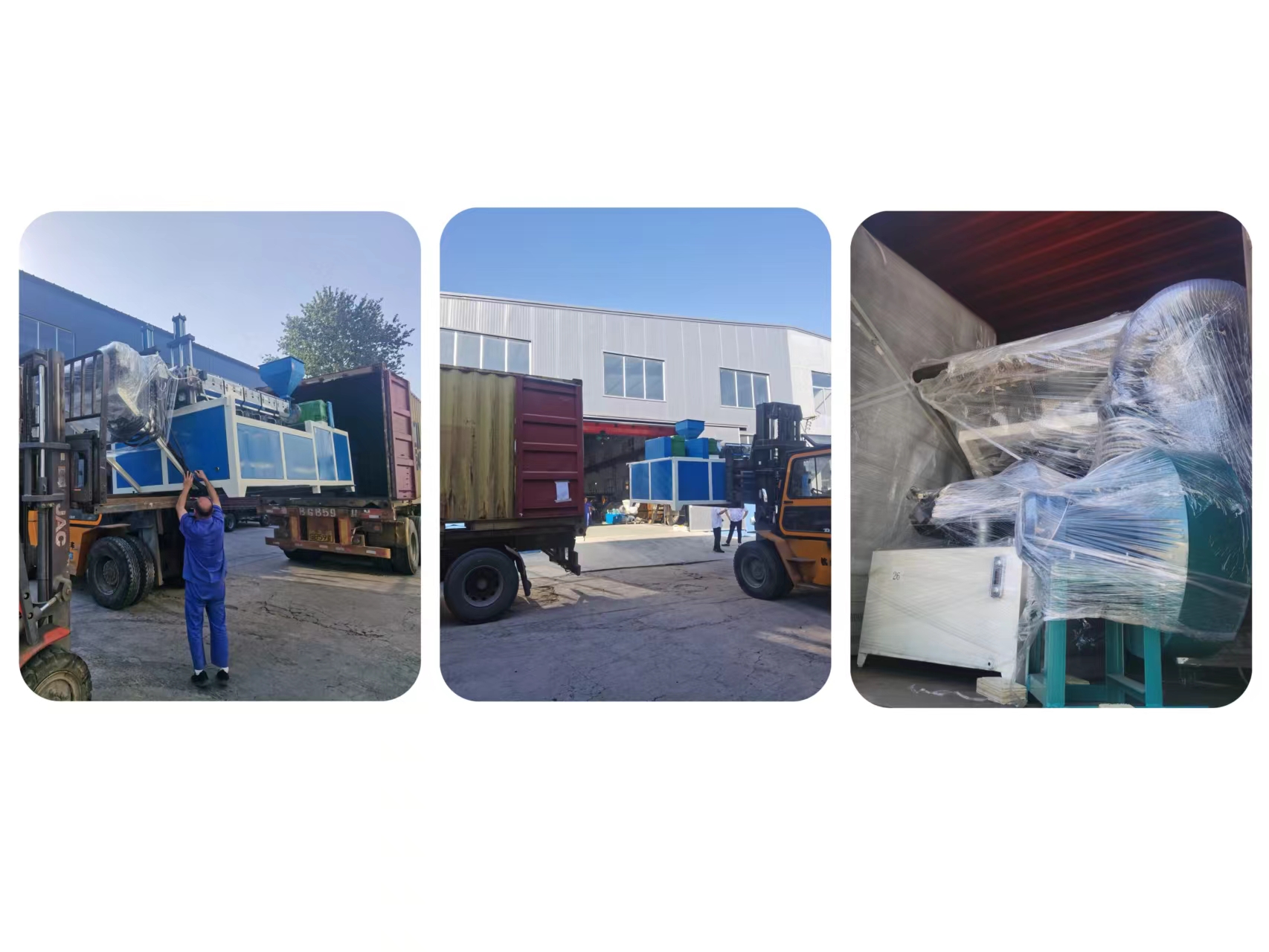

Packaging And Shipping

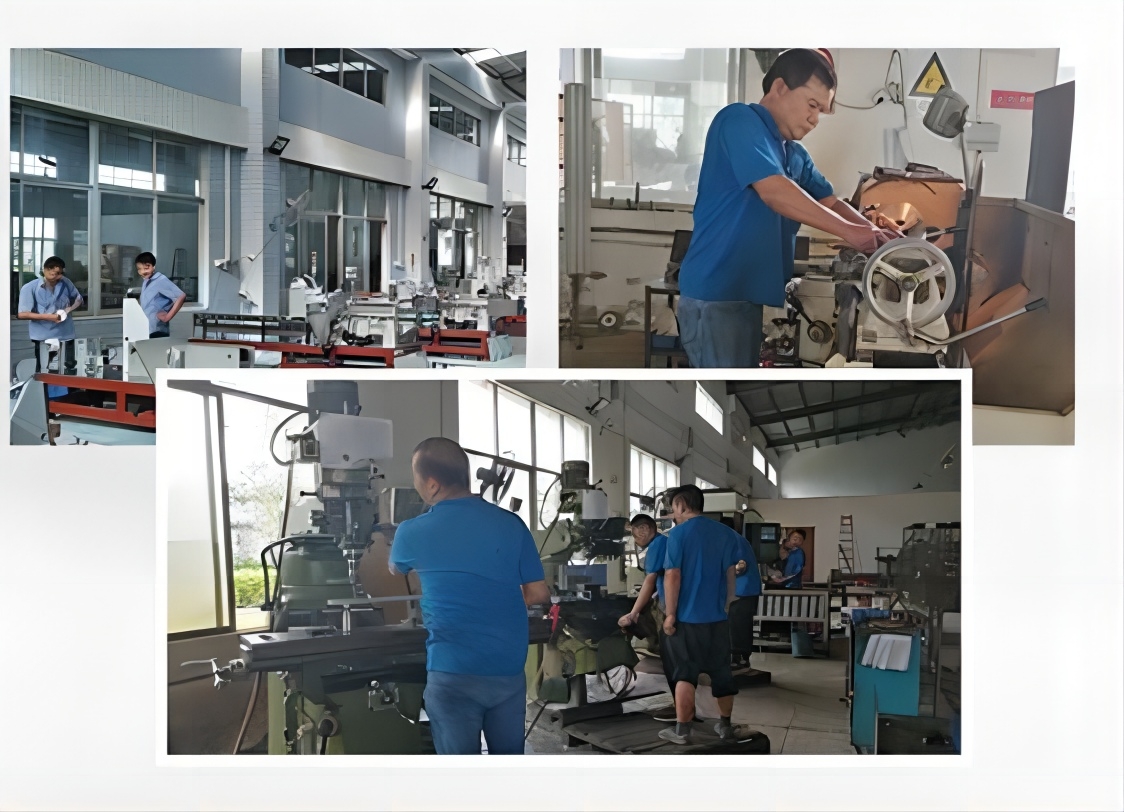

Why Choose Us
Many years of industry experience, excellent product quality, and many customers praise
① Strength ----- more machine models
Over 30 years of experience in designing non-standard cartoning machines and cartoning machines, with nearly 1000 design cases.
③ Value ---- higher cost performance
Our sales team will design and deliver cost-effective solutions according to the actual needs of customers. "Saving costs", "improving efficiency" and "creating value" are our eternal pursuit
④ Character ---- better
stability It is a lifetime honor to produce high-quality machines! It is shameful to let go of inferior products! The long-term
accumulated technology and professional talent team have created our company's good quality
accumulated technology and professional talent team have created our company's good quality
Recommend For Food Tableware Machine

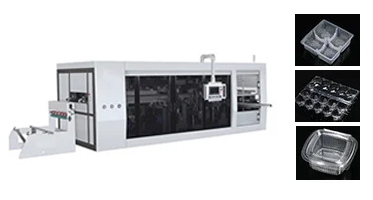

Multi Station Forming Machine
Plastic Type: Hips, PVC, PP, PET,PLA
Paper Pulp Forming Machine
Raw material: Paper Pulp

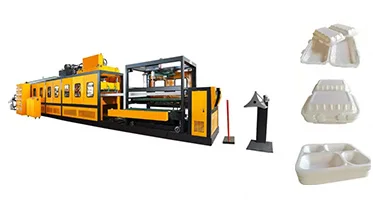

PS Foam Food Box Machine
Plastic Type: PS foam sheet
The company is located in Longkou City, Shandong Province, the factory covers an area of 70 acres. The main production cup-making machine, production machine, computer tableware machine, granulation machine, one step thermoforming machine line, high-speed mixer and plastic packaging molding machinery. With more than 30 years of production and sales experience, we provide one-stop service for customers.
1. Q: Which markets have you been shipping to?
A: EU, Russia, Canada, the United States, Bangladesh, Indonesia, Pakistan, Mexico,Jordan, Syrian Arab Republic, and Iraq. More than 20 countries in total
2. Q:How do we guarantee quality?
A: Always carry out pre-production samples before machine delivery;
Always carry out final inspection before shipment;
Welcome customers to see the machine sample before delivery;
3. Q:What can you buy from us?
A:Automatic forming machine (one-step vacuum forming tableware machine line, cup-making machine line, granulator line, high-speed mixer, filmmaking machine)
4. Q:Why do you buy from us instead of other suppliers?
A:We are the leading domestic disposable plastic food container vacuum thermoforming machine, starch disposable food container thermoforming machine professional manufacturers. Our products are exported to 15 countries such as India, Bangladesh, United Kingdom, United States, Argentina, Malaysia, etc.
5. Q:How long will it take for the machine to arrive?
A:Within 60 days after receiving 50% deposit and confirming the mold;
6. Q:What is a machine warranty?
A:Screw, grinding head, electrical appliance warranty 14 months. 36 months warranty;
7. Q:What is after-sales service?
A:(1) Provide complete formulations for the production of biodegradable products;
(2) basic mechanical operation training;
(3) mechanical maintenance training;
(4) Technical support;
