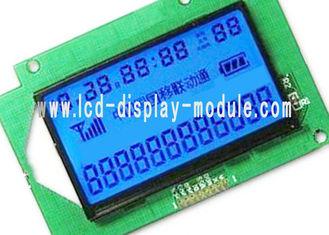

68007 customized segment LCD Display Module driving 1/6 duty 1/4 bias

HSD can make / design any kind of Segement LCD Displays and LCD modules. Welcome to custom design as per your demand.

1. Display Feature
Item Value
LCD Display Mode TN, Poaitive, Transflective

Viewing Angle 6H
Driving Method 1/8 duty, 1/4 bias
Backlight Blue

Control/Driver IC HT1622

2. Mechanical Data (unit : mm)
Item Value
Outline 90.0X59.5X10.3MAX
Viewing Area 63.0X34.0

3. Absolute Maximum

Item	MIN.	MAX.
Operating Voltage(V)	0	3.6
Operating Temperature(°C)	0	50
Storage Temperature( °C)	-10	60

Important Information for your reference.

1. Our standard COG LCD Module size:

16x3 dots, 96x16 dots, 96x26 dots, 96x64 dots, 96x96 dots, 128x32 dots,

128x48 dots, 128 x64 dots, 128x128 dots, 132x32 dots, 132x64 dots, 160x104 dots,

160x160 dots, 240x160 dots, 384x16 dots

2. Our standard Graphic LCD Module size:

122x32, 128x64, 132x64, 160x32, 160x128, 160x160, 192x64, 240x64, 240x128,

256x32, 256x128, 240x160, 320x240, 640x200.

3. Our standard TFT LCD Module size:

1.44", 1.77", 2", 2.2”, 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.7", 7", 8", 10.1".

4. Also, custom LCD / LCM availabe.

CUSTOMER LCM DESIGN GUIDE
Dimension	LCD outline (WxHxT)=( ) x ( ) x ( ) mm
	Viewing Area(WxH)= ( ) x ( ) mm
	Active Area(WxH)=( ) x ( ) mm
LCD Panel	Character Type: ( ) x ( )
	Graphics Type: ( ) x ( )
	Segment Type: (Pleease fill the display contents here)
Display Contents	Liquid Crystal: TN[ ], HTN[ ], STN Yellow-Green[ ], STN Gray[ ], STN Blue[ ], FSTN[ ], DFSTN [ ]
	Polarizer Mode: Reflective[ ], Transflective[ ], Transmissive[ ]
	Display Mode: Positive[ ], Negative[ ]
	Viewing Angle: 6:00[ ], 12:00[ ], Other[ ]
Backlight	Type: Without[ ], LED Array[ ], LED edge[ ], other[ ]
	Colour: Green[ ], Yellow-Green[ ], White[ ],Green[ ] Blue[ ], Orange/Amber[ ], Other[ ]
Specified IC	LCD driver:( ): Controller:( )
Product form	LCD panel[ ], COB(LCD module)[ ], COG[ ], COF[ ]
Connector	Zebra[ ], Metal pin[ ], FPC [ ], FFC[ ], Heat seal[ ]
Operating Temperature	0 to +50°C [ ], -10 to +60°C [ ], -20 to +70℃ [ ], -30 to +80℃ [ ]
Operating Environment	Outdoors[ ], Indoors[ ]
Operating Voltage	3V [ ], 3.3V[ ], 5V[ ], Other[ ]
Application
Other Requirements
Notes: 1. Please fill "√" in the matched [ ] and your particular requirements in the ( ) and blank.
2. Please send us the draft diagram of LCD you need if you have.
