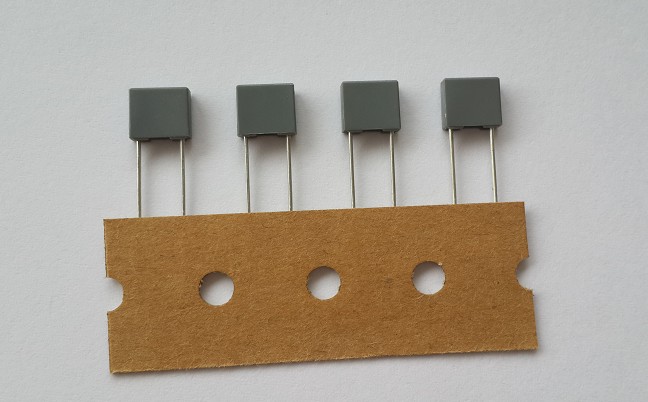

Product name:BME

Introduction:

BME Product Features:

★ loss, good stability

★ good self-healing, long life

Purpose:

★ For the whole field of investment and consumer coupling, filtering,

Noise, such as DC and pulse bypass circuit.

Technical requirements:

◆ Media: Polyester film

◆ Electrodes: vacuum-evaporated metal

◆ encapsulation: UL94v-0 flame retardant case and epoxy encapsulated

◆ Conductor: tinned wire radial

◆ Reference Standard: GB 7322; IEC 60384-2;

◆ Climatic Category: 40/085/21

◆ capacitance and rated voltage: 0.0010μF-1.0μF/50VDC, 63VDC, 0.0010μF-0.68μF/100 VDC, 0.0010μF-0.15μF/250 VDC

◆ electrostatic capacitance tolerance: M = ± 20% K = ± 10% J = ± 5%

◆ dissipation factor (loss tangent): ≤ 1.0% (at 20 ℃ 1KHz)

◆ Withstand voltage: 1.2 ~ 1.6 * Ur (5S at 20 ℃)

◆ Insulation resistance: C ≤ 0.33μF; IR ≥ 1500MΩ

C> 0.33μF; IR * C ≥ 3000S

UR ≤ 100V test 50V, UR> 100V test 100V (20 ℃, 100V, 1 min)

◆ Durability: 85 ℃ test temperature, 125% of rated voltage at 1000 hours, after completion of the test:

△ C / C ≤ 5%; △ DF ≤ 0.20%; C ≤ 0.1μF; IR ≥ 9000 MΩ C> 1μF

Initial value IR ≥ 50% (20 ℃ 1KHz)
