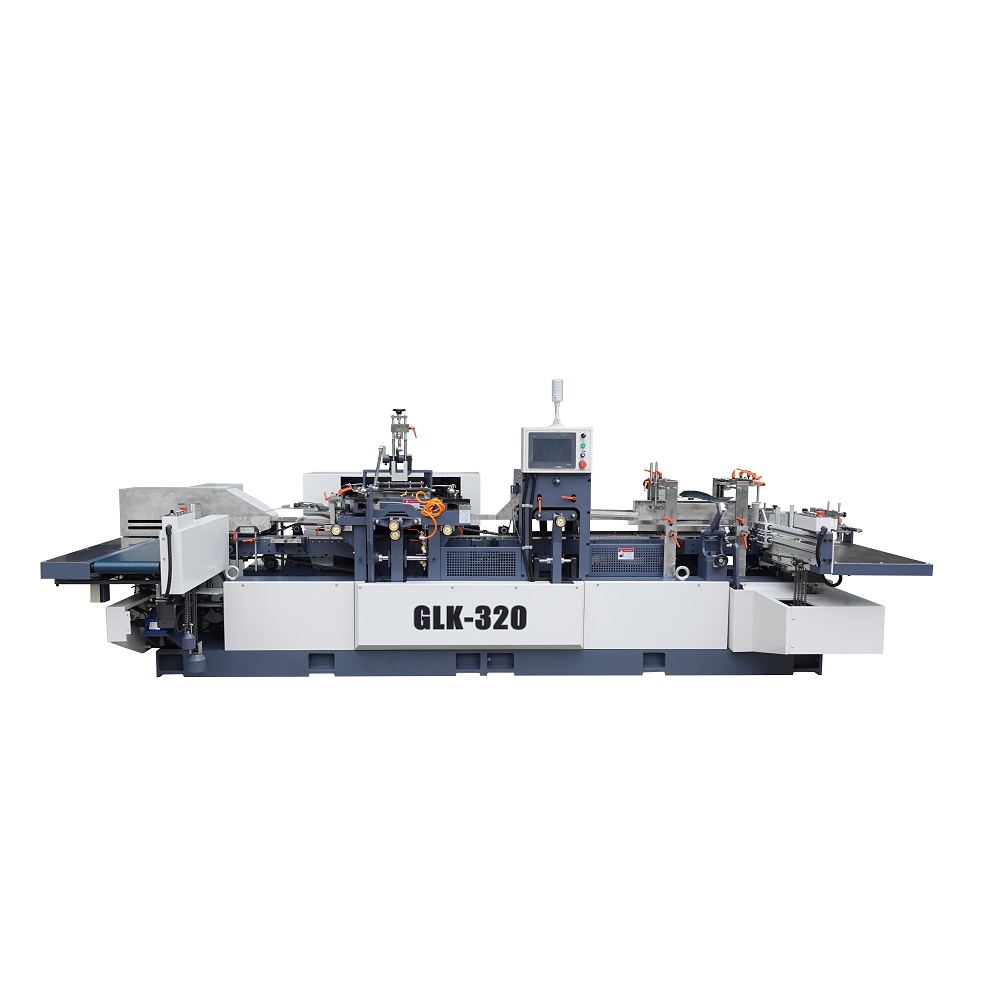

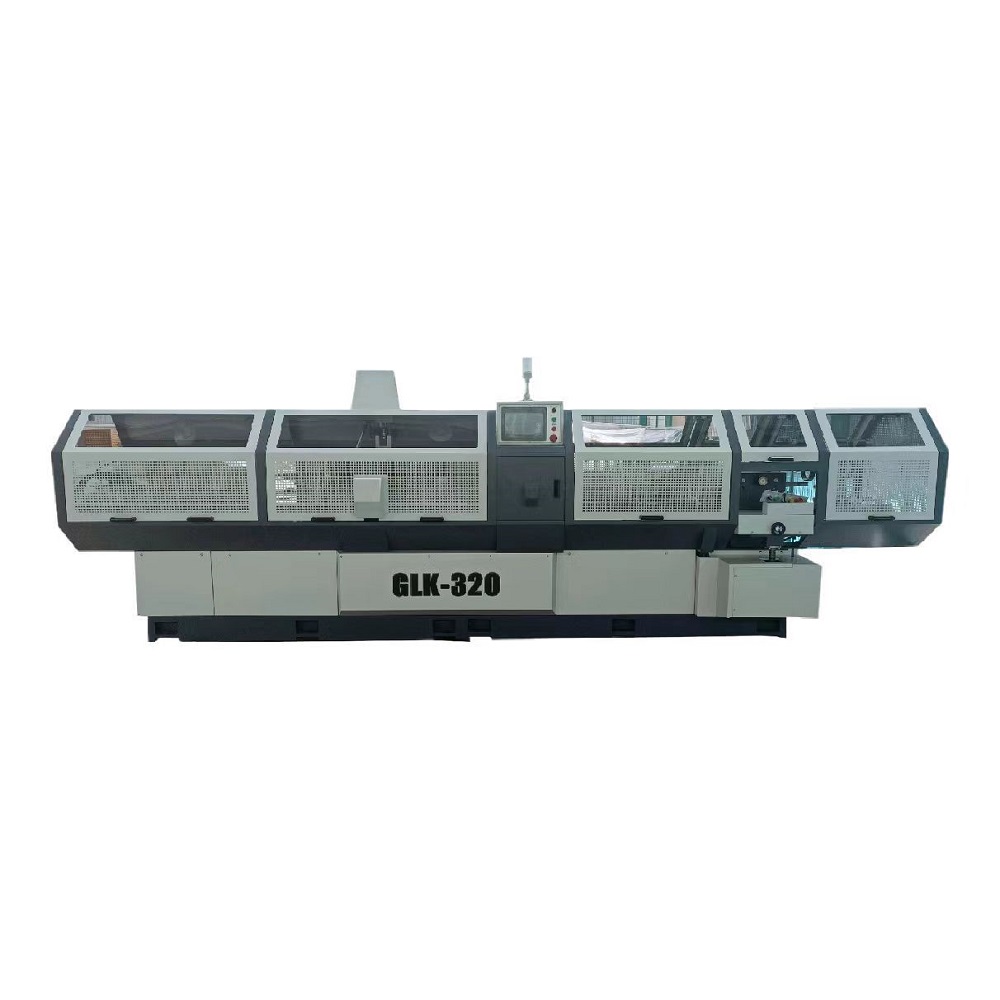

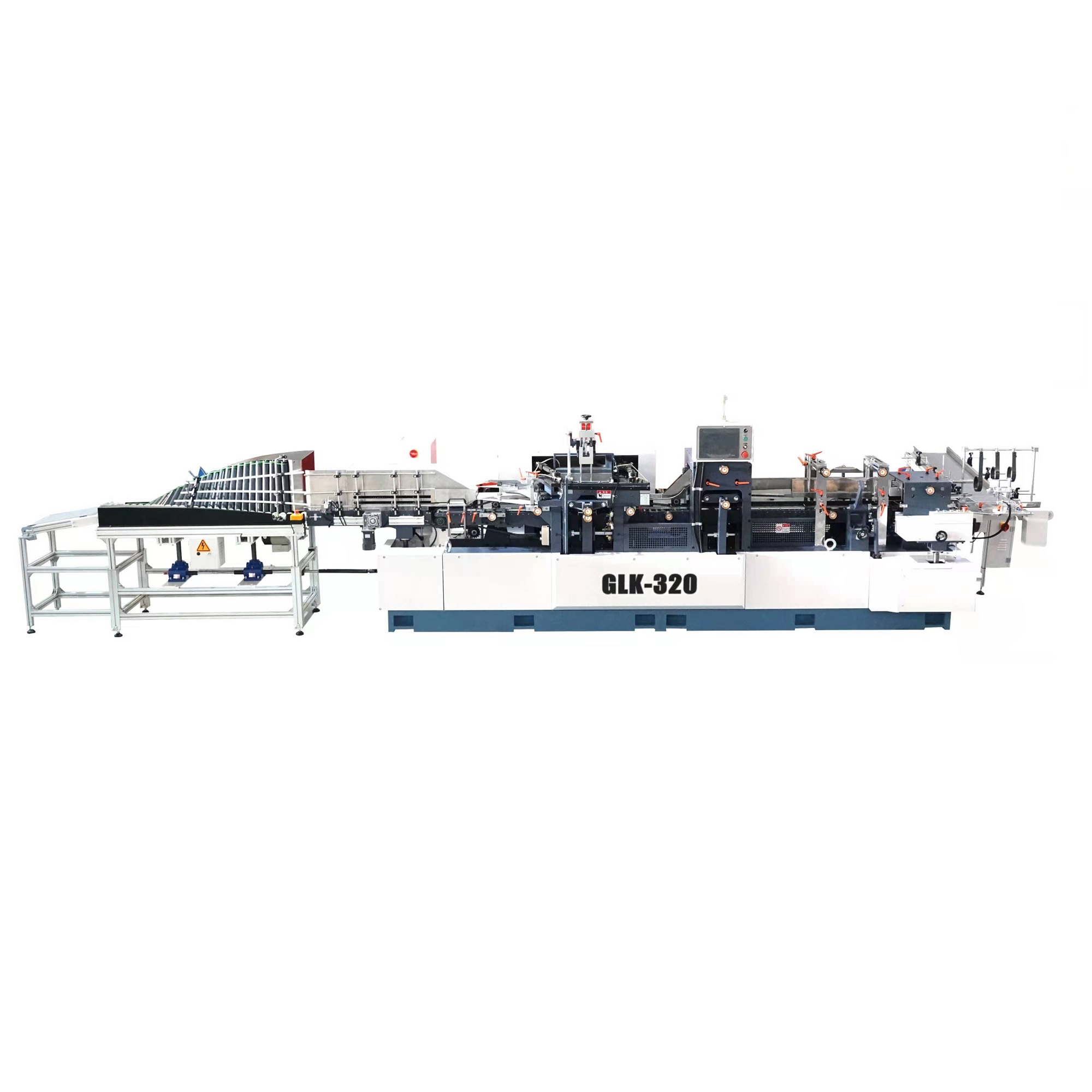

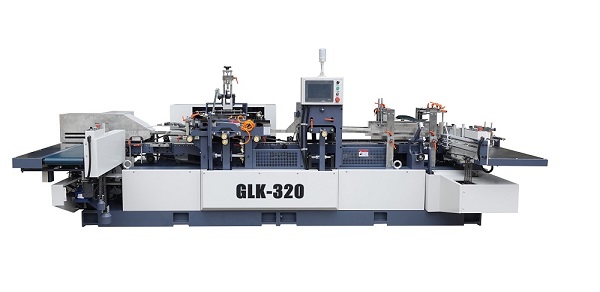

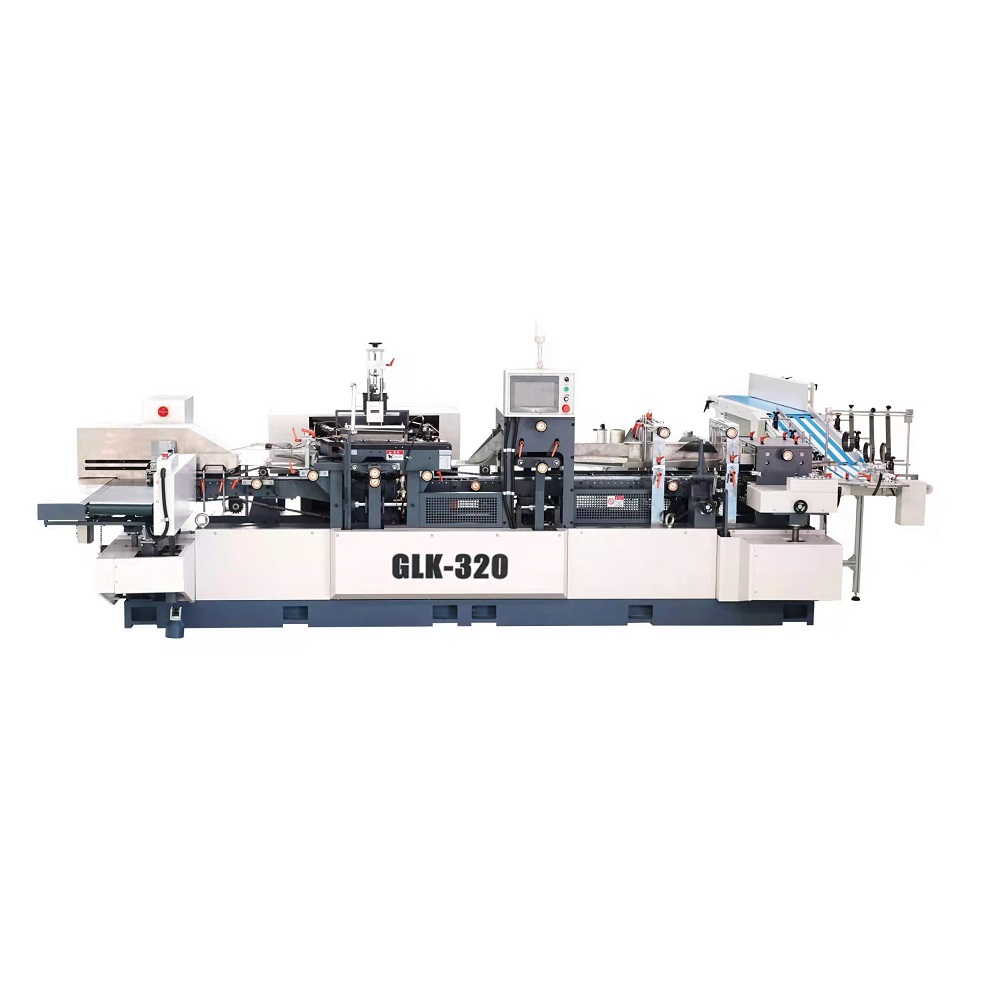

GLK320?book cover gate folding flap machine book binding machine

Application

GLK320? Book flap machine for?designed mainly for boook cover folding, for soft book / softcover/paper bound/paperback book making.

GLK320 It is suit for print shop ,binding factory,the functions as following:print shop and binding factory.

book front cutting /trimming,to trim the book block edge according to the book size,

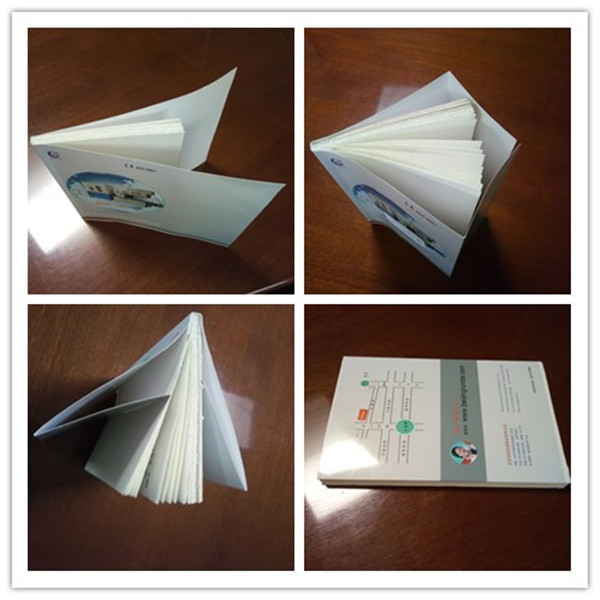

book cover folding:?book cover folding (book?cover?scoring&gate-folding)

so as to complete the book cover edge folding process,

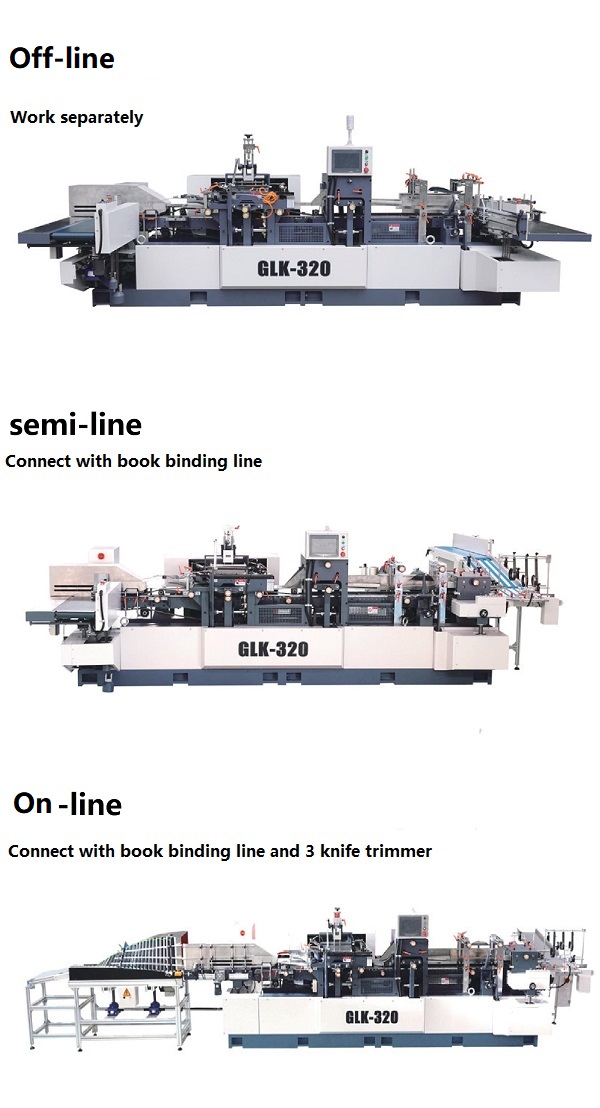

high speed meet the requirement of book binding machine and 3 knife trimmer.

Feature

?

1.GLK320?High?Speed?Book?Cover?Gate-Folding?machine,use?of?Schneider?Control?System?,with?more?steady,reliable?function.?

2.it?can?reach?the?speed?of?70times/min?,and?easily?combination?with?binding?line.?

3.complete?the?book?trimming?&?book?cover?scoring?,folding?work.

?

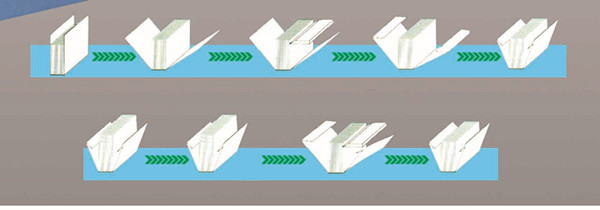

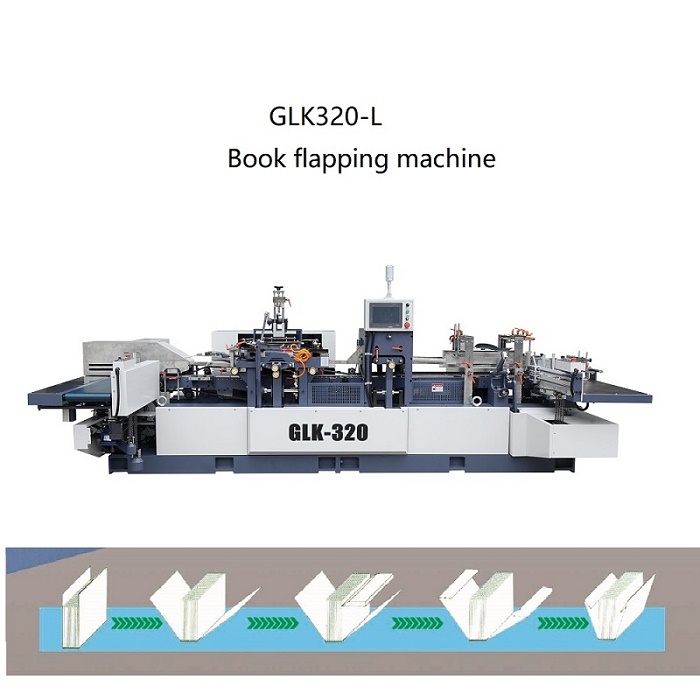

WORK:

?

?

?

Technical?parameters?

Max. Book size(mm)	320*240
Min.book size(mm)	130*94
Max.book thickness	50
Min.book thickness	6
Max.cover folding width	160
Min.cover folding width	40
Max.mechanical speed	70books/min
Power	5KW
Overall size(mm)	4600*1920*1600
Weight(KG)	3800

?

Code name	Name	Type	Brand
QF1	breaker	OSMC32N3D32	Schneider
QF2	breaker	OSMC32N3D4	Schneider
QF3	breaker	OSMC32N1C6	Schneider
KM1	contactor	LC1D38M7C AC220V	Schneider
FR1	thermal relay	LRD06C 1-1.6A	Schneider
KA3-12	intermediate relay	RXM2LB2BD/RXZE1M2C	Schneider
KA1-KA2	power relay	RPM42BD/RPZF4	Schneider
EB1-EB3	Press button head	ZB2BS54C/ZB2BZ101C	Schneider
SA1-SA3	optional switch	ZB2BD2C/ZB2BZ101C	Schneider
SB1-SB3	Positive transfer button	ZB2BA3C/ZB2BZ101C	Schneider
SB4-SB5	Reverse point move button	ZB2BA1C /ZB2BZ101C	Schneider
TC	Switching Mode Power Supply	ABL2REM24020H	Schneider
PLC	programmable controller ?	TM218LDA40RN	Schneider
HMI	Programmable man-machine interface	HMIGX05502	Schneider
INV1	frequency transformer	ATV312HU55N4	Schneider
HL1	alarm light	XVGB2SM	Schneider
SB6-SB7	reset button	ZB2BA5C /ZB2BZ101C	Schneider
SQ1	Photoelectric switch	E3Z-T61 2M BY OMC	OMRON
DT	power switch	TDS40	TEND
SQ2	photoelectric switch	E3JK-DS30M1 2 BY OMC	OMRON

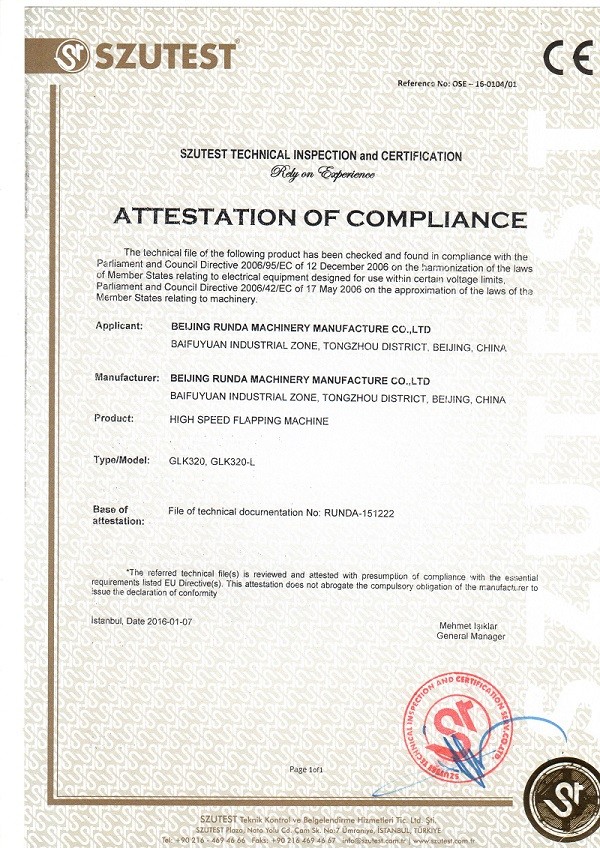

CE?

?

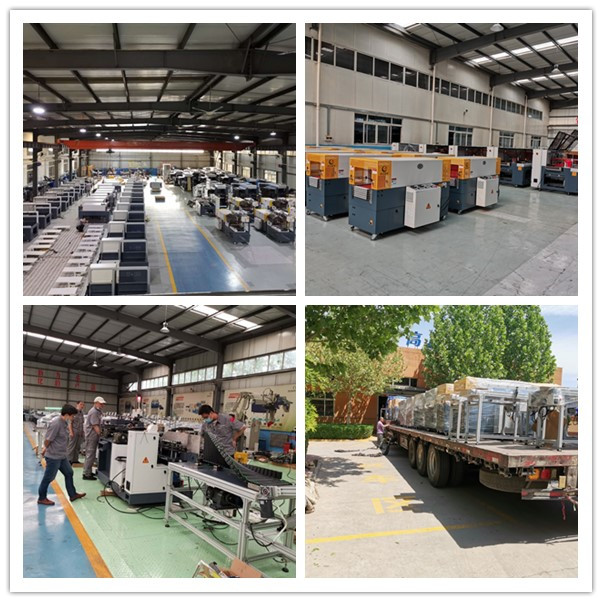

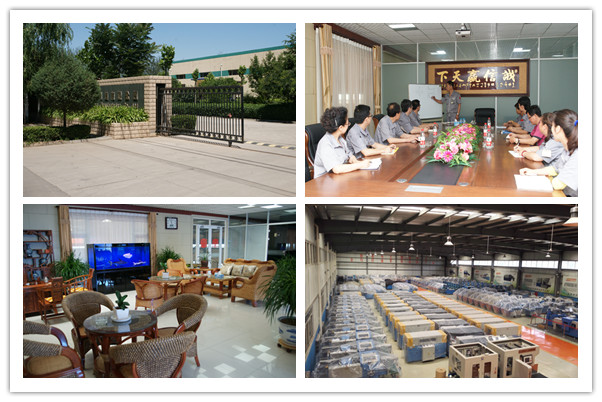

Factory

?

?

?

?

ISO

Exhibition?

?

?PACKAGE AND DELIVERY

?

??FAQ? ??

??Q:when?you?delivery?the?machine???

??A:?we?have?storck.we?will?delivery?the?machine?once?we?get?prepayment??

??Q:?What is the quality of your products???

??A: Our machine assembly by high quality?accessory of well-known brand and with our perfect control system,to insure the machine??permanent stability .??

??Q:How?about?the?after?sale?service???

??A:?You?can?send?email?or?call?us?when?have?problem,also?we?will?arrange?our?engineer?make?door-to-door?service.

?
