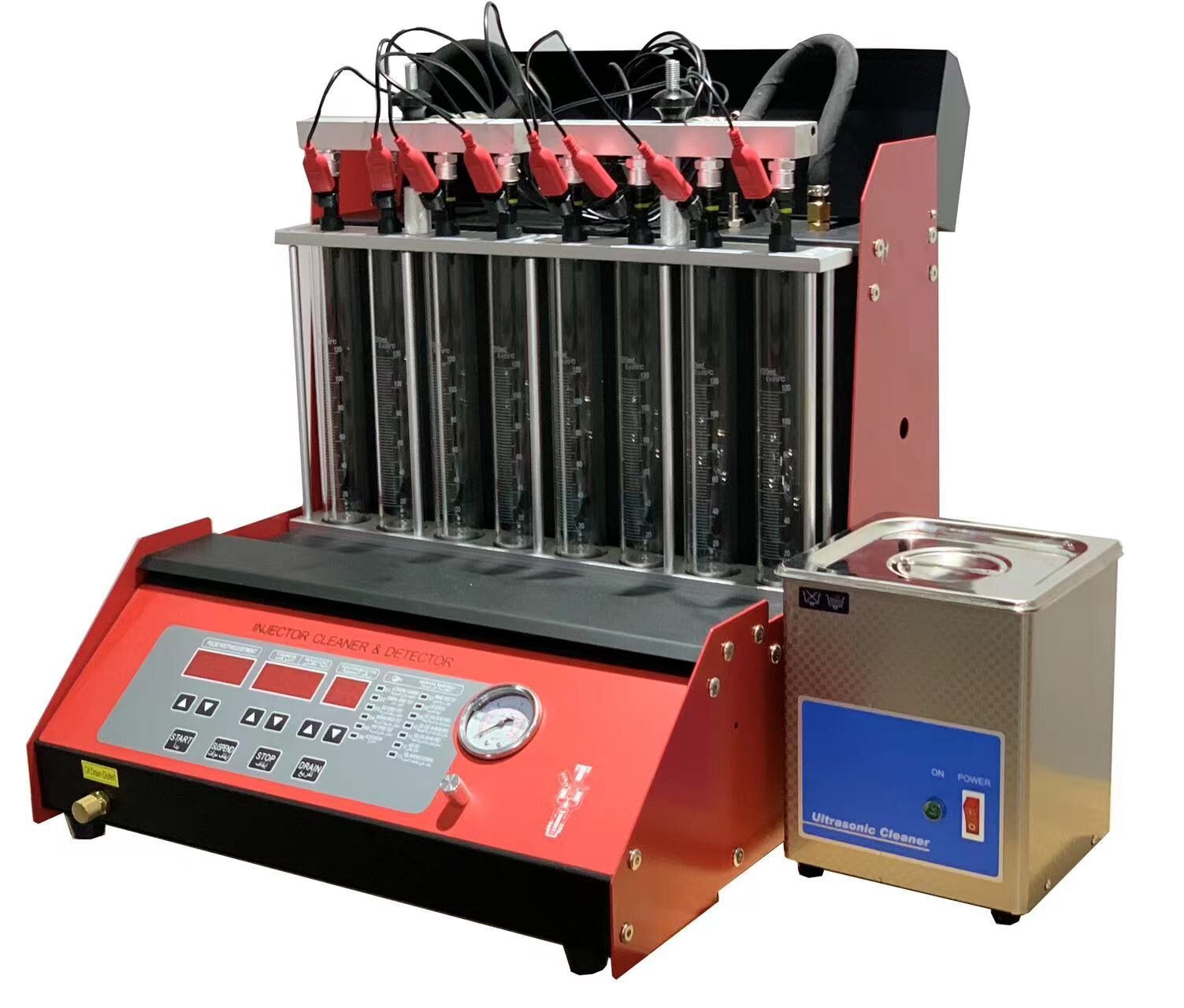

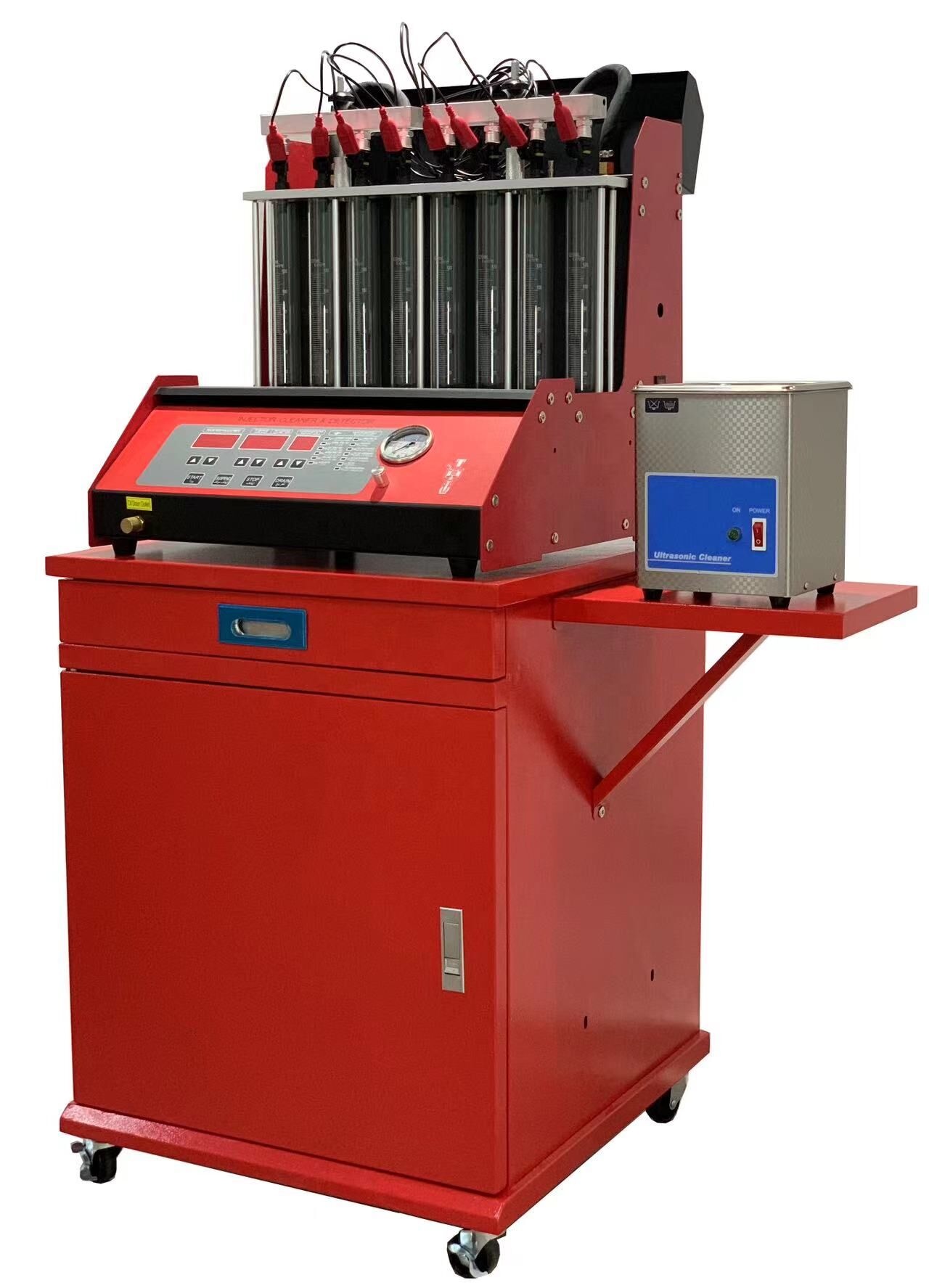

Brand NEW 8 Cylinders Fuel Injector Cleaning Testing Machine BFIT-08
$500.00
≥1 set
Get Latest Price
You might also like
Basic Info
| Year | Universal |
|---|---|
| Model | Universal |
| Engine | Universal |
| OE NO. | BFIT-08 |
| Car Fitment | Universal |
Show More
Product description
Products Description
Brand NEW 8 Cylinders Fuel Injector Cleaning Testing Machine BFIT-08
Product Description | Fuel Injector Cleaning Tesing Machine |
Reference No. | BFIT-08 |
Application | Gasoline Fuel Injectors |
Cylinder | 8 |
Item Condition | Brand NEW |
Warranty | 1 Year |
Lead time | within 10-15 Days |
Customization | Yes |
Weight | 54KGS/PC |
Package | 63*61*74CM |

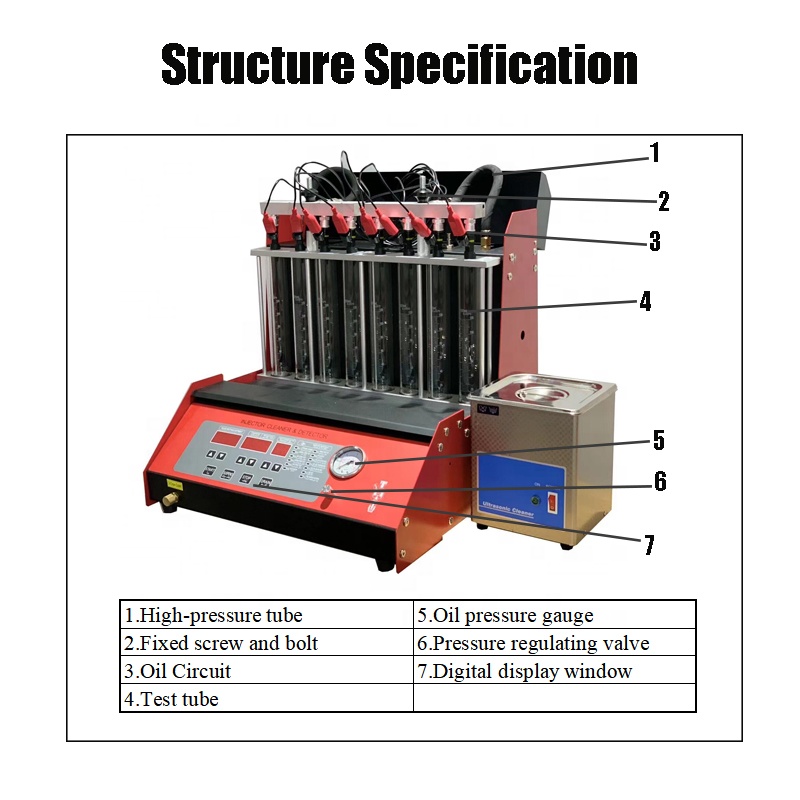

8-cylinder fully automatic test, automatic oil return, external ultrasonic (100W), observe the atomization condition of the fuel injector through the backlight, fully automatically simulate the full range of normal spray, idle, medium speed, high speed, and variable speed operation of the fuel injector process. Identify whether each injector has the same switching cycle, digital display, imported parts configuration, pressure gauge pressure display, unique oil pump protection and environmentally friendly ultra-quiet operation mode.
The fuel system can be cleaned without disassembly. Optional connectors are required. Luxurious oil regulators and sleeves are optional for cleaning the side fuel nozzles.
Technical Data:
Voltage: AC220V/110V±10%, 50/60Hz Operation Temperature:-10C°～40oｃ
Tank Capacity: 6L
Test Tube Capacity: 125CC
Ultrasonic Frequency: 28KHZ±0.5 KHZ
Rotation Speed: 0～15000r/min
Step: 100r/min
Time Counting Range: 0～9900 sec
Step: 50 sec (adjustable)
Oil Pump Pressure: 1.8kg/cm2----10kg/cm2
Fuel Flow: 4.5 L/min
Pulse width:0-20ms; step 0.1 ms
Main Functions:
1. Engine injector cleaning and detecting;
2. Test 8 injectors in one time
3. Injector fuel distribution and delivery checking;
4. Engine on-car cleaning;
5. Leakage hunting;
6. Injector cleaning;
7. Optional language applicable including English,Spanish, Arabic,Russian.

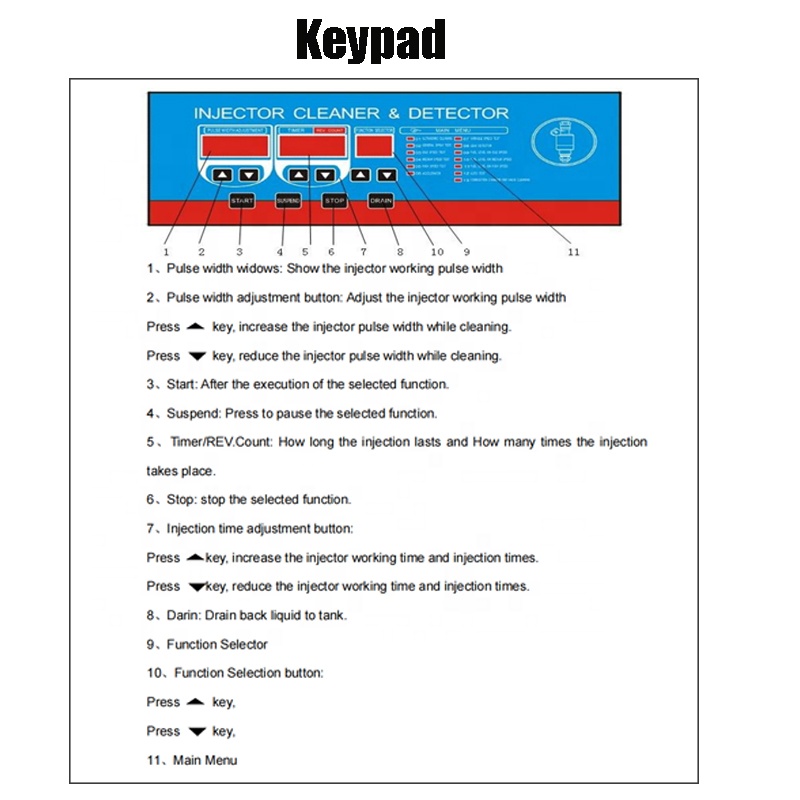

8. LED display with clear menu and easy operation;
9. Wide models can be tested with stable performance and reliable data;
10. Liquid in tube drain back to tank automatically;
11. Separated ultrasonic bath(Installed in cabinet);
12. Optional:Special adapter for MONO & Side-feed injector;
Packed inside dolly when shipped,CBM save.
1. Engine injector cleaning and detecting;
2. Test 8 injectors in one time
3. Injector fuel distribution and delivery checking;
4. Engine on-car cleaning;
5. Leakage hunting;
6. Injector cleaning;
7. Optional language applicable including English,Spanish, Arabic,Russian.
8. LED display with clear menu and easy operation;
9. Wide models can be tested with stable performance and reliable data;
10. Liquid in tube drain back to tank automatically;
11. Separated ultrasonic bath(Installed in cabinet);
12. Optional:Special adapter for MONO & Side-feed injector;
Packed inside dolly when shipped,CBM save.
Features:
1. Optimal cleaning effect by powerful ultrasonic technique
2. Adopt unique infinitely variable pressure adjustment
3. Feature with protective device for pump overtime running
4. Imitated nine running state of engine for choice
5. Clearly observe the injecting state with fluorescence
6. Suit to test the high/low resistance .voltage/current injectors.
7. Time or count test mode for choice
8. Returning the test fuel by solenoid valve .
9. Buile in protective device for over heat
10. Build in two stage filter system for test fuel.
11. Automatically simulate the nine running state to make test nine memory program
12. Ultrasonic device in the drawer
13. Sharp design for anti-dirt cover
1. Optimal cleaning effect by powerful ultrasonic technique
2. Adopt unique infinitely variable pressure adjustment
3. Feature with protective device for pump overtime running
4. Imitated nine running state of engine for choice
5. Clearly observe the injecting state with fluorescence
6. Suit to test the high/low resistance .voltage/current injectors.
7. Time or count test mode for choice
8. Returning the test fuel by solenoid valve .
9. Buile in protective device for over heat
10. Build in two stage filter system for test fuel.
11. Automatically simulate the nine running state to make test nine memory program
12. Ultrasonic device in the drawer
13. Sharp design for anti-dirt cover
Recommend Products
Shipping Option
Payment Option
Reviews

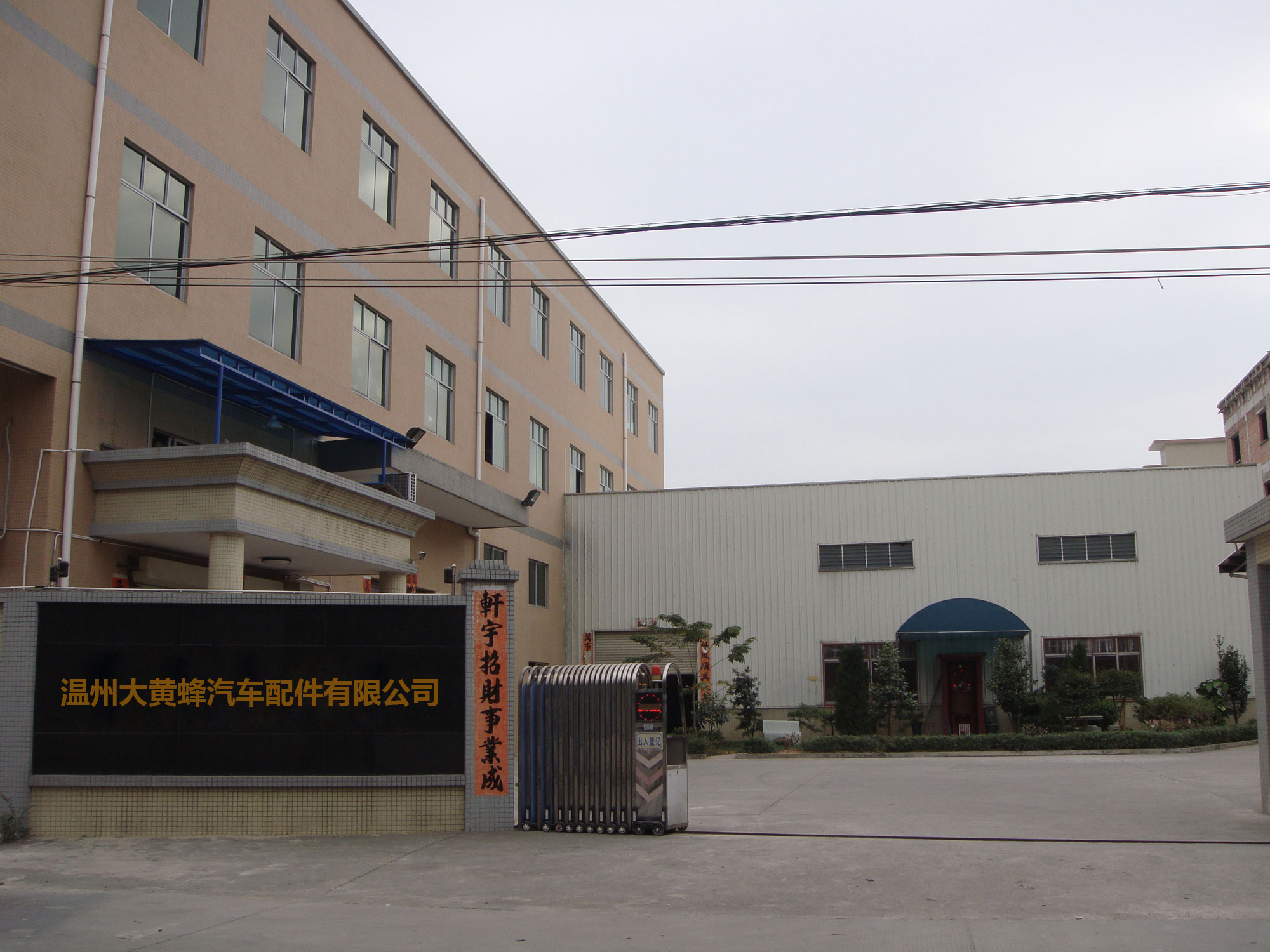

Wenzhou Bumblebee Auto Parts Co.Ltd is dedicated to providing high-performance EFI fuel system solutions , located in Wenzhou city , Zhejiang China , we are the leading supplier of powersports fuel systems in the aftermarket segment with the widest range of fitment. Bumblebee products include Fuel Injector and Repair Kits , Fuel Pump and Repair Kits , Auto Sensors , Connector Plugs , VVT Solenoids and Ignition Coils, Bumblebee products are manufactured from premium quality materials to ensure the highest specifications and industry standards are surpassed , Our mission is to provide direct fit OEM replacement and high-performance fuel system solutions to the powersports and automotive industries , Our goal has always been to deliver a quality product paired with effective, data-based customer service to ensure a fuel system solution that is second to none. Our service tenet is: "Customer and Integrity first, heart service, unity, create the future".
Q1. What's your main Products?
We main manufacture Fuel Injector and Repair Kits , Fuel Pump and Repair Kits , Auto Sensors , Connector Plugs , VVT Solenoids and Ignition Coils.
Q2. What's your Warranty ?
Aftermarket : 1 year
OE Market: 3-5 years

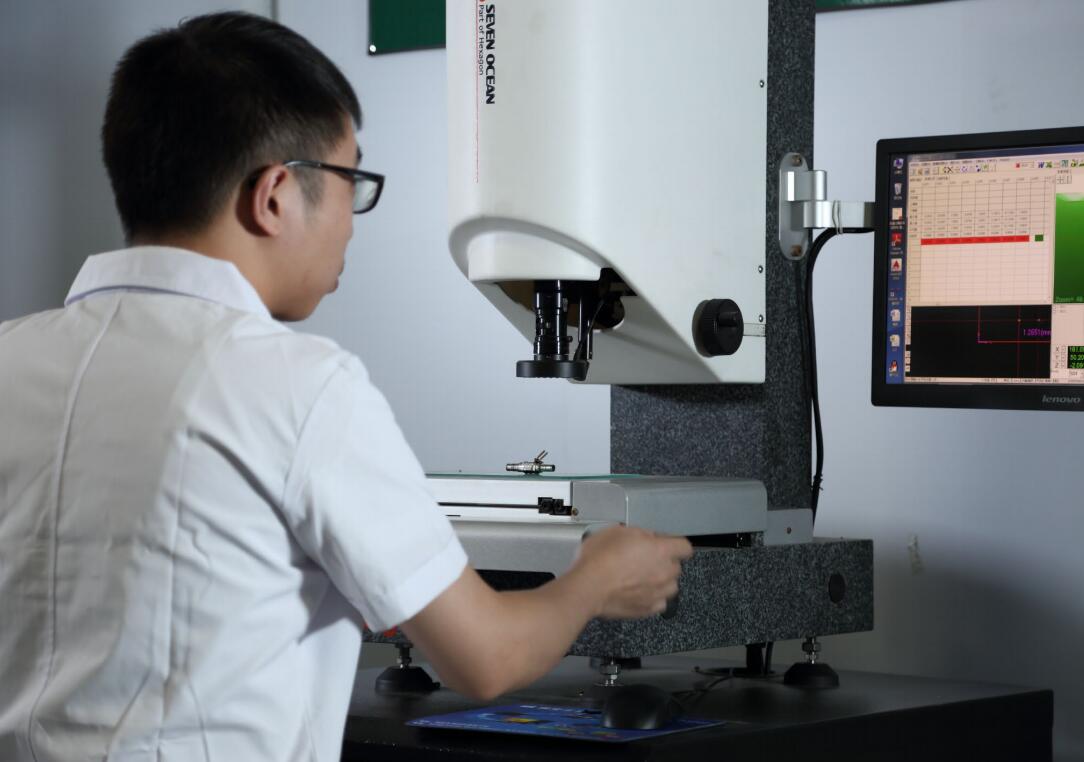

All of our products are tested before the shipment to make sure the high quality product supplied.
