Product description

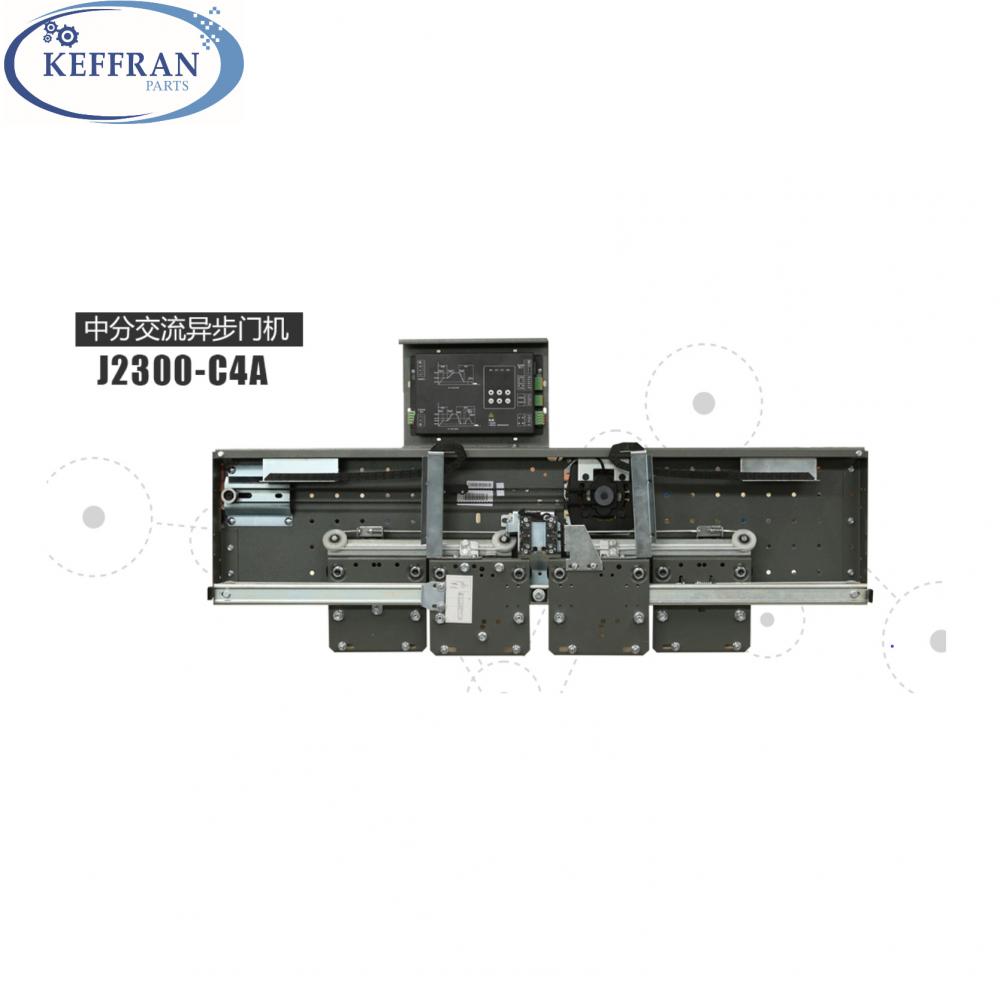

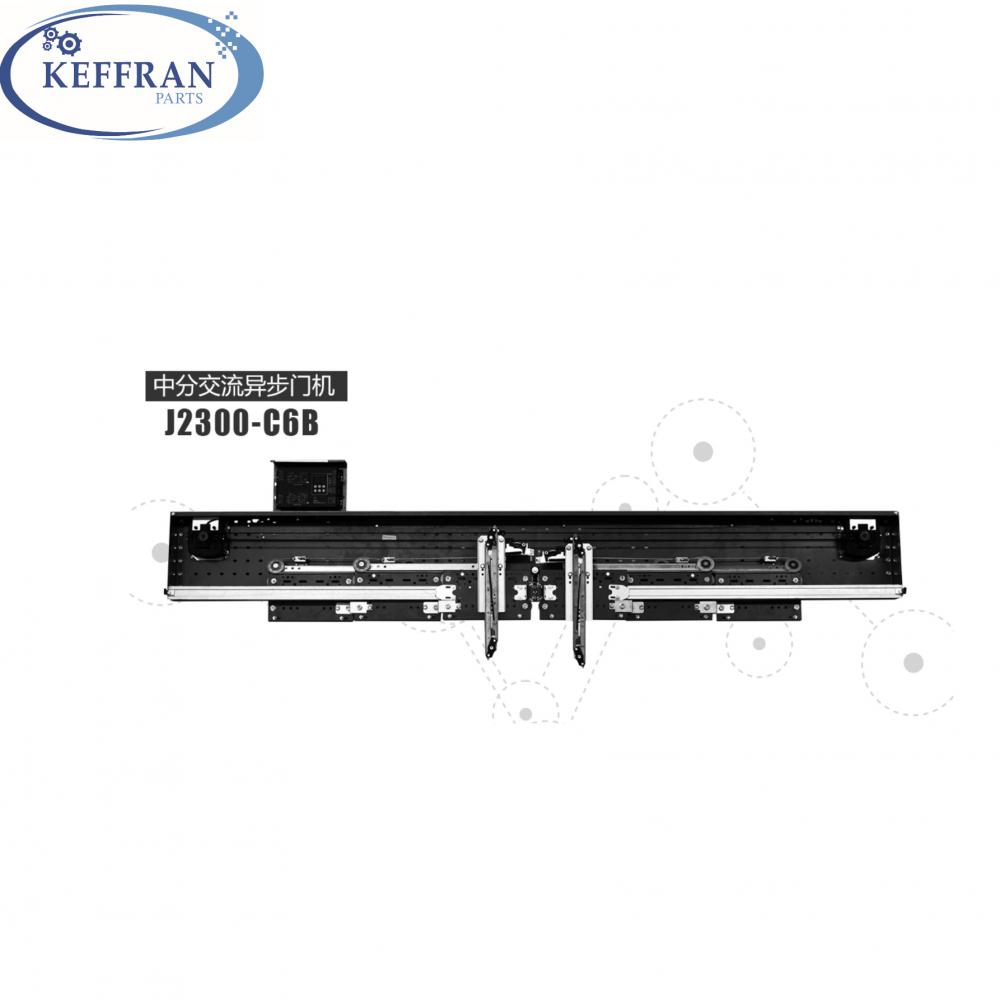

VVVF4 Elevator Door Automatic Door System Centre Opening
Product Description
Motor:
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed sensor would be
not necessary. The method of control is simple, meanwhile, same controller can drive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore,
encoder only adopts increment. Besides, AC induction motor operates without initial position, during application
of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.
Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open width with heavy load.
Opening Range:
1. Opening width: 600-1400mm, 2 panels center opening or side opening
800-1400mm, 3 panels side opening
700-1800mm, 4 panels center opening
2000-3000mm, 6 panels center opening
2. Opening height: 2000mm or 2100mm
Door Panel Finish:
1. Door panel finish: painted, stainless steel(hairline, mirror, etching)
Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed sensor would be
not necessary. The method of control is simple, meanwhile, same controller can drive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore,
encoder only adopts increment. Besides, AC induction motor operates without initial position, during application
of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.
Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open width with heavy load.
Opening Range:
1. Opening width: 600-1400mm, 2 panels center opening or side opening
800-1400mm, 3 panels side opening
700-1800mm, 4 panels center opening
2000-3000mm, 6 panels center opening
2. Opening height: 2000mm or 2100mm
Door Panel Finish:
1. Door panel finish: painted, stainless steel(hairline, mirror, etching)
Other Electric Components can also be provided
·Elevator Cabin includes
Complete Elevator Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, BST Door System, Wittur Door System, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safety Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared Traction Machine/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,Elevator COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
