Coin cell holders for CR2032P are specialized PCB-mount components designed to securely accommodate CR2032 lithium coin cell batteries, providing a reliable and replaceable power source for a wide range of electronic devices. These holders serve as the interface between the battery and the printed circuit board, featuring precision-engineered contacts that ensure consistent electrical connectivity while allowing for easy battery replacement when needed. The CR2032 battery is a 20mm diameter, 3.2mm thick lithium coin cell with a nominal voltage of 3.0V, widely used in memory backup circuits, real-time clocks, IoT sensors, medical devices, and consumer electronics. The "P" suffix in CR2032P may indicate a specific battery variant or packaging configuration, but importantly, these holders are fully compatible with standard CR2032 batteries, offering designers flexibility in component sourcing. Manufacturers such as Memory Protection Devices, Renata, TE Connectivity, and Keystone Electronics produce a variety of CR2032 battery holders to meet diverse application requirements across industrial, commercial, and consumer product lines.

?

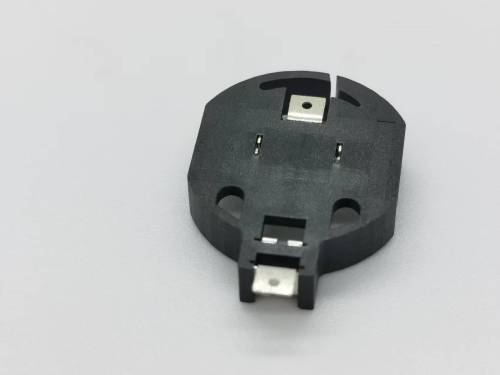

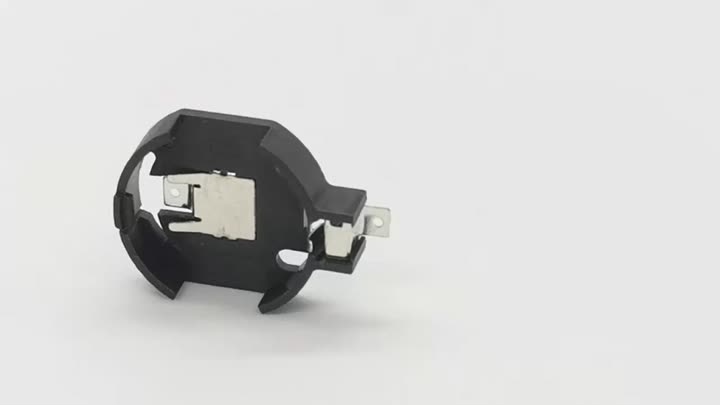

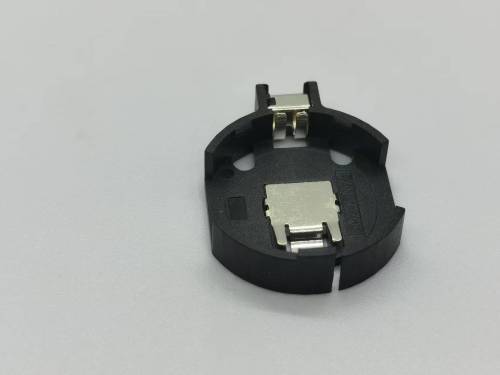

CR2032 coin cell holders are available in multiple design configurations to accommodate different PCB layouts and assembly processes. The primary distinction lies in the mounting style: Through-Hole (THT) holders feature pins that pass through drilled PCB holes and are soldered on the opposite side, providing excellent mechanical retention and ease of manual or wave soldering. In contrast, Surface Mount (SMT) holders feature flat solder tails designed for reflow soldering, supporting automated pick-and-place assembly for high-volume production. Orientation options include vertical (top-loading) holders where the battery is inserted from above, and horizontal (side-loading) holders where the battery sits flat against the PCB, offering a lower overall profile for space-constrained designs. The BHSD-2032-PC from Memory Protection Devices is a through-hole holder constructed from off-white LCP Zenite material, featuring phosphor bronze contacts with a gold flash finish for reliable electrical connection . Renata offers both through-hole (HU2032-LF) and SMT (SMTU2032-LF) variants, with the latter designed specifically for automated "pick and place" mounting . TE Connectivity's BAT-HLD-001 series provides both through-hole and tape-and-reel packaged SMT options for high-volume applications .

?

The material selection for CR2032 battery holders directly impacts their performance, durability, and manufacturing compatibility. High-quality holders utilize LCP (Liquid Crystal Polymer) or PPS (Polyphenylene Sulfide) as the insulator housing material, offering exceptional heat resistance (up to +240°C to +280°C) and dimensional stability through reflow soldering processes, with UL94 V-0 flame retardancy ratings ensuring safety compliance . Contact materials typically consist of phosphor bronze for positive contacts, chosen for its excellent spring properties and conductivity, and stainless steel for negative contacts, providing corrosion resistance and long-term mechanical reliability. Contact platings include gold flash for low contact resistance and oxidation protection, or nickel plating for cost-effective performance. Electrical specifications per AMP specification 108-1691 include termination resistance of 50 milliohms maximum and dielectric withstand voltage of 250V AC . The HU2032-LF from Renata specifies contact resistance below 100mΩ and features safety against inverse polarity (polarized design) and protection against leakage currents . The operating temperature range for these holders typically spans from -40°C to +105°C, with high-reliability versions extending to +280°C for demanding applications.

?

For mission-critical applications, premium CR2032 battery holders incorporate enhanced design features to ensure reliable battery retention and electrical performance under extreme conditions. The BHSD-2032-PC has been validated through rigorous testing, including shock tests at 150G, vibration tests, and 1-meter drop tests, ensuring cell retention and performance in demanding environments such as aerospace, medical, and industrial control systems . The BH32T-C-HITE offers compatibility with multiple battery types (CR2032, BR2032, CR2320, CR2325, CR2330, and CR2335), providing design flexibility for multi-platform applications . Key features across premium holders include: locking mechanisms to prevent battery dislodgement under vibration, polarization features to prevent reverse battery insertion, low contact resistance for minimal power loss, and heat-resistant construction for compatibility with wave and reflow soldering processes. Common applications include real-time clock (RTC) backup on computer motherboards and industrial controllers, IoT sensors and wireless devices, medical equipment such as portable diagnostic devices and patient monitors, telecommunications infrastructure, and consumer electronics including smart home devices and wearable technology . The tape-and-reel packaging option for SMT holders supports fully automated assembly lines, reducing manufacturing costs while ensuring consistent placement accuracy.

?

In summary, coin cell holders for CR2032P provide a reliable, standardized interconnect solution for integrating CR2032 lithium coin cell batteries into electronic systems. When selecting a holder for a specific application, key parameters to consider include: mounting style (through-hole vs. SMT), orientation (vertical vs. horizontal), operating temperature range, contact material and plating, mechanical retention features (locking mechanisms), and manufacturing process compatibility (wave soldering vs. reflow soldering). Major manufacturers including Memory Protection Devices (BHSD-2032-PC, BH32T-C-HITE), Renata (SMTU2032-LF, HU2032-LF), TE Connectivity/Linx Technologies (BAT-HLD-001 series), Keystone Electronics, and Eagle Plastic Devices (12BH003-GR) offer extensive product lines to address diverse application needs . Whether for low-cost consumer electronics or high-reliability industrial systems, there exists a CR2032 battery holder configuration optimized for the specific requirements of the target application, balancing factors such as cost, board space, assembly efficiency, and long-term reliability.
