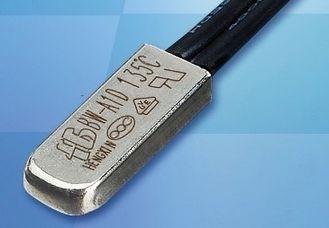

BW-A Motor Thermal Protection , Temperature Overload Protector For Ballast

Structure and protection principle:

BW-A serial universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing, bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.

Ballast thermal overload protector instruction:

BW-A serial universal and ehanced protectors with mini metal casing are widely used in motor of industry, electrical household appliance and electric equipment to avoid abnormal operation caused by overcurrent and overtemperature. The products provide effective, reliable and safe protection. The enhanced casing is suitable for internal installation of plastic hermetic motor, which can bear the plastic molding pressure at 3.5Mpa. The performance of the products satisfies the standards including IEC34-11, GB13232, GB/T13002, etc.

Installation and overall dimensions:

ProModel	length	wigth	height	Cable
BW-A type large iron casing	19.5±0.4	7.3±0.2	3.1±0.1	The cables are AWG20#, 22# silicone cable and electronic irradiated cable. Customized service is available.

Rated action temperature table:

specification	Action temperature	specification	Action temperature range
50℃	50±5.0℃	100℃	100±5.0℃
55℃	55±5.0℃	105℃	105±5.0℃
60℃	60±5.0℃	110℃	110±5.0℃
65℃	65±5.0℃	115℃	115±5.0℃
70℃	70±5.0℃	120℃	120±5.0℃
75℃	75±5.0℃	125℃	125±5.0℃
80℃	80±5.0℃	130℃	130±5.0℃
85℃	85±5.0℃	135℃	135±5.0℃
90℃	90±5.0℃	140℃	140±5.0℃
95℃	95±5.0℃	145℃	145±5.0℃
		150℃	150±5.0℃

Note: The recovery temperature is 2/3 of the standard action temperature with the tolerance of ±15℃ or

specified by customer.

Contact point maximum capacity:

Voltage	24V-DV	125V-AC	250V-AC
current	12A	12A	8A
