1. The main purpose and performance of the capping machine:

   YLXG-200 linear capping machine is a new generation of capping equipment designed and manufactured by our company for tablet production line matching and automatic capping process. It is different from the previous intermittent capping machine, and overcomes the shortcomings of slow capping speed, loose capping and small scope of application of the intermittent capping machine. The design of this machine adopts new technologies such as linear bottle feeding, automatic capping, and uninterrupted capping, and the advanced lifting capping device in the industry is used in the design of the capping to ensure that the capping output is greatly improved. .



2. Main specifications and technical parameters

1. Bottle height: 67.5MM (can be customized according to user requirements).

2. Bottle cap specification: 36.2MM (can be customized according to user requirements).

3. Capping speed: 80 bottles (depending on the size of the cap and bottle)

4. Conveying direction: left in and right out (can be customized according to user requirements).

5. Dimensions: (can be customized according to user requirements).

6. Total weight: 850kg

7. Total power: 1300W; Voltage: 220V; Frequency: 50～60HZ



3. Working conditions and applicable environment

1. Working temperature: 5～35℃

2. Working humidity: ≤85%

3. Working environment: no flammable and explosive gas and dust

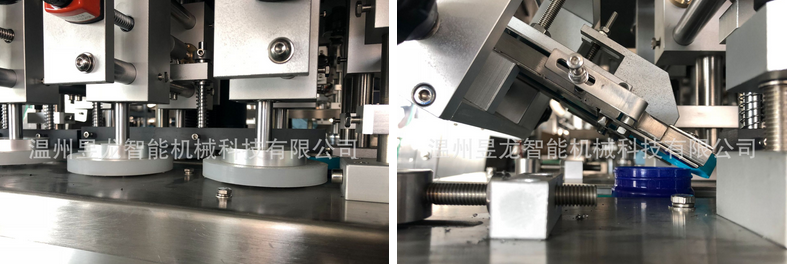

Hot filling, cooling, capping ointment production line -- capping machine scraping and capping

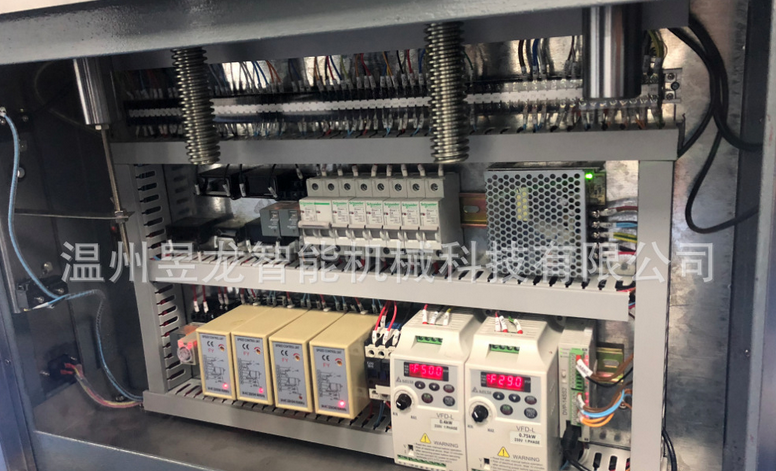

Hot filling, cooling, capping ointment production line -- capping machine circuit board
