Reamer size:
Slot length:
Types:
Basic Info
| Model No. | Reamers |
|---|---|
| Brand Name | OEM |
| Support customization | Oem, Odm, Obm |
| place of origin | China |
| Material | Tungsten Steel |
Product description

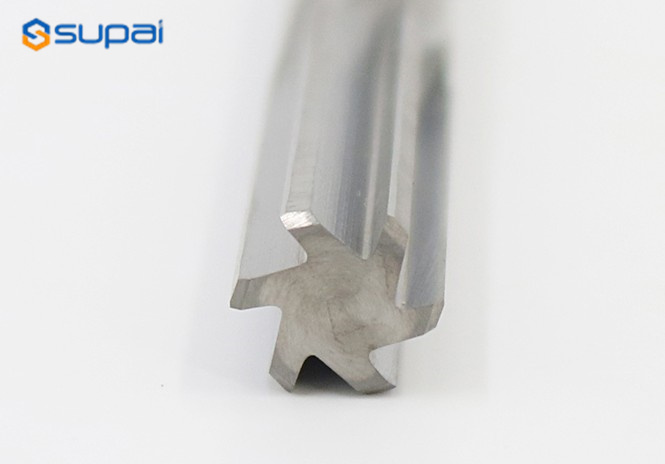

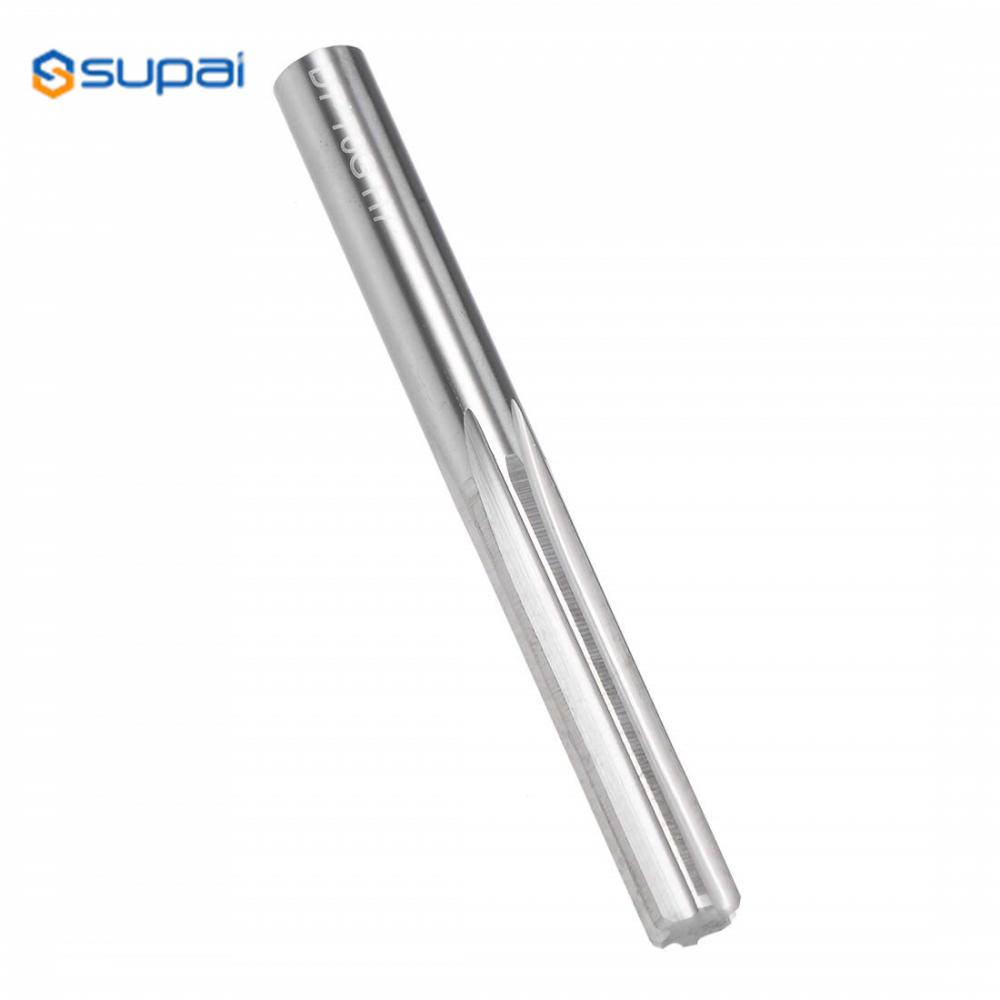

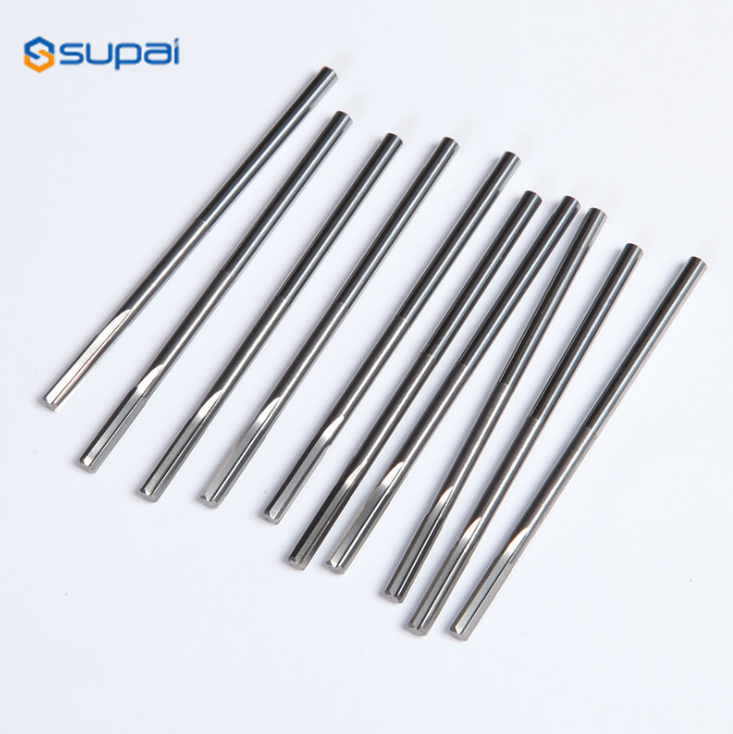

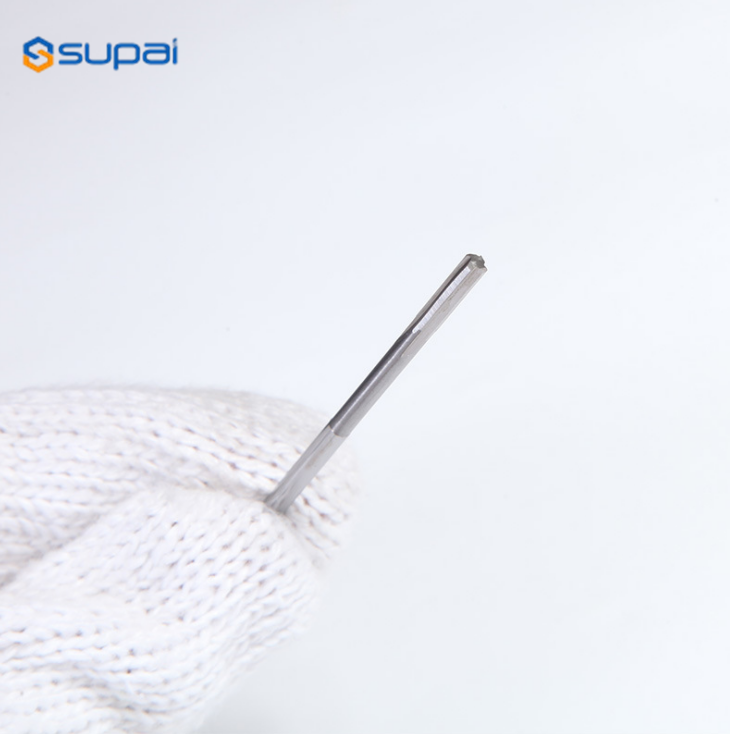

Suitable for processing chilled alloy cast iron and heat-resistant alloy steel, and precision processing of ordinary cast iron with high wear resistance. It can finish the hole, which is higher than the machining precision of the general reamer and suitable for general machine tools.
Straight Flute Reamers are for general use. Best used in non- chip forming materials such as cast iron, bronze and free cutting brass. The preferred hole type for Straight Fluted Reamers is a through hole but they do perform well in blind holes due to their non aggressive geometry.
Available in Carbide, Carbide Tipped, HSS and HSCo in Standard and Long Series.
Product Introduction
the chucking reamers are sharp, sturdy and strong wear resistance for long service life.
Used for semi-finish machining and finish machining of holes. Suitable for stainless steel, carbon steel, cast iron, die steel, alloy steel, tool steel and non-ferrous materials.
The reamer is with more cutter teeth. Holes can get exact size and shape after the reamers' processing. Finished products are smooth, intact and more beautiful.
|
Flute Diameter D |
Flute Length L1 |
Shank diameter d |
Length L |
|
3 |
30 |
3 |
60 |
|
4 |
30 |
4 |
60 |
|
5 |
30 |
5 |
60 |
|
6 |
30 |
6 |
60 |
|
8 |
40 |
8 |
75 |
|
10 |
45 |
10 |
75 |
|
12 |
45 |
12 |
75 |
