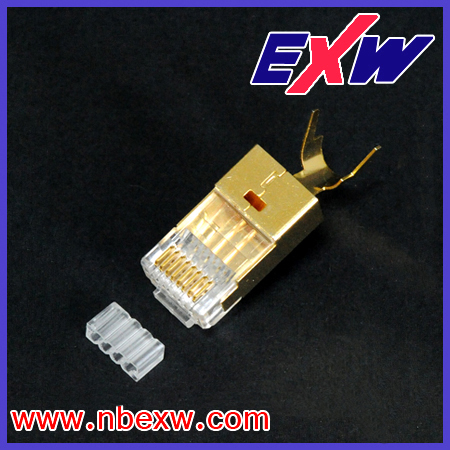

CAT6 FTP Cable Connector (wire hole 1.5)

Product Description:

1.Product Name: RJ45 connector for CAT6 FTP wire hole 1.5

2.Suitable for CAT6 shielded cable: round, both solid and stranded cable 22~24AWG;

3.Contact blade: Copper Alloy with gold plating 50u, the standard gold thickness 03U, 06u, 15u, 30u, 50u could be optional.

4.Housing Material: Japan Teijin PC, UL 94-V2, UL 94-V0 is available.

5.Shielded Shell: Copper Alloy with gold plating

6.Color: Transparent, or with Transparent color, or not transparent, 3 options.

7.Mechanical: Fully comply with FCC standard.

7.1 Cable to plug strength 25 POUND MIN.

7.2 Durability: mating cycle 750 operations.

8. Electrical:

UL Applications: 250 VOLTS AC MAX, AT 2 AMPS.

Dielectric Withstanding voltage: 500 VOLTS AC.

Insulation Resistance: 100MΩ

Termination test: Resistance 20mΩ max after environmental testing.
