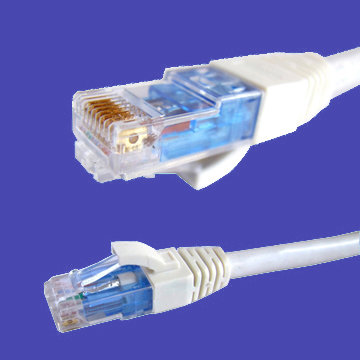

Cat6A Unshielded Patch Cord

Product Name : CAT6A patch cord UTP LSZH
Model No : 6AUTGYA5F50010LS
Origin : Ningbo,China
Brand Name : EXW or OEM case.
Packing : 1pc/bag.
Unit price : 1.5~5.0 USD/pcs.
Delivery Time : 3~4 weeks, urgent order: within 2 weeks.
MOQ : 1pc
Capability : 20,000pcs/day
Certificate : ISO9001:2001 / ISO14001 / OHSAS18001 / UL / RoHS / REACH.

1. Cable Construction

Conductor : Cat6A S/FTP stranded, 26AWG, 7*0.16, bare copper.

Cable OD : Nominal Diameter 6.2+/-0.2mm
Insulation : Polyethylene with color marking on white cores.
Color Code : BL/WH-BL, OR/WH-OR, GN/GN-WH, BR/BR-WH
Shield : Tinned copper brain laid in close contact with individual foil shields
Outer Jacket and boots : PVC, CMX,CM,CMR, Leaded and Lead-free as well as LSZH versions available
Cable Color : Grey, others colors from RAL and Pantone are available.

2. Mechanical Characteristics

Cable to Plug Tensile strength; 9kgsf (90n) Min.

Minimum Bending Radius; 22 MM

Storage Temperature; -20 to +80C

Durability; 750 mating cycles

Plug housing; UL 94-V0, UL94-V2, Polycarbonate.

Plug contact material; 50u gold plating over 100u nickel plated copper alloy.

Fire Performance; IEC332.1, IEC332.3 versions available depending on Jacket Type.

Product lengths; 0.5m~100M optional.

3. Electrical Performance

Contact resistance; 20mOhm max.

Voltage Rating; 75V max.
Dielectric Strength; 1000 Volts / 1 minute min rms

Amps; 1.0 Amps max.

Insulation Resistance: 500Mohm min. @500Vdc

Performance test; 100% patch cord test for Cat6A, Cat6, and optional for Cat5e patch cord

4. Samples

Free samples are available.
