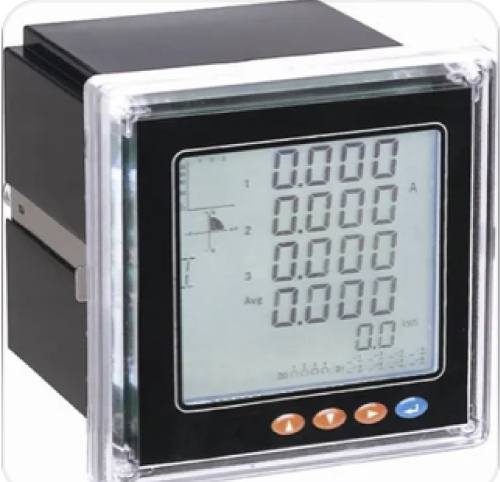

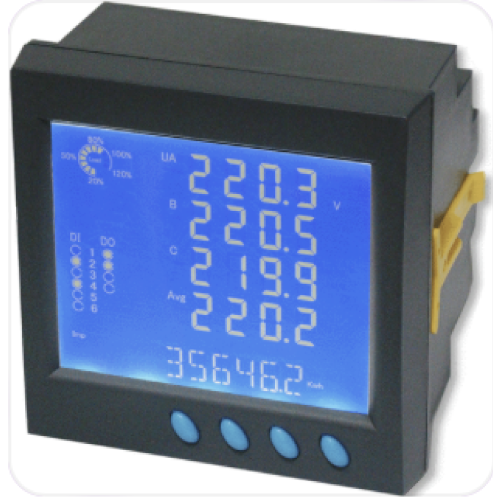

CCKIM703 Three-phase multi-function power instrument

1 Unit (MOQ)

cckem6 three phase multi function

1 Unit (MOQ)

Basic Info

Model No.	CCKIM703
Brand Name	CCK
place of origin	China

Product description

CCKIM703 Three-phase multi-function power instrument is mainly suitable for power distribution cabinet and switch cabinet in the high and low voltage distribution system below AC650V (phase voltage), etc., which can do the networking management of the instrument by RS485 / Modbus bus communication to achieve automatic control.

The product has the following main functions:

Full power measurement: three-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, voltage and current Angle, cable temperature, residual current

Electric energy metering: bidirectional electric energy, historical electric energy, multirate electric energy

Requirement function: real-time demand, maximum daily demand, maximum monthly demand

Power quality: 63 harmonic analysis, voltage and current content rate, THD, imbalance;

Alarm: overpressure, underpressure, overcurrent, undercurrent, phase deficiency, too high frequency, too low frequency, too high power, switching volume 1 off and other alarms

Data record: historical electric energy of 31days in 12 months of 10 years, 100 historical alarm records

Electrical parameter extreme value event record: event record with time mark

Communication: standard with 1 channel RS485 communication, infrared communication. Optional 4G / LoRa, support Modbus, http, Mqtt and other communication, support modbus custom register

Switching input: standard with 1 active switch input

Cable temperature: the temperature measurement of the 4-way 0-150℃ cable

Residual current: 1-way 0-8000 mA residual current measurement
