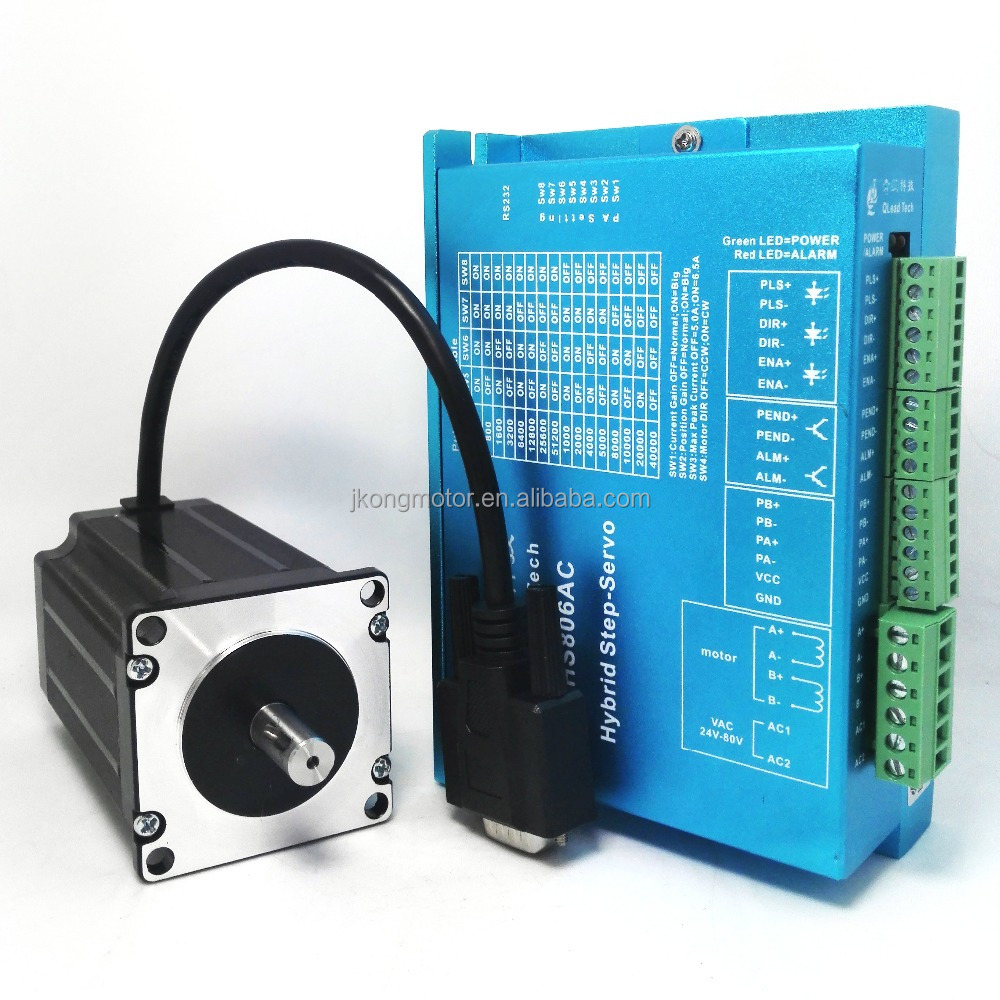

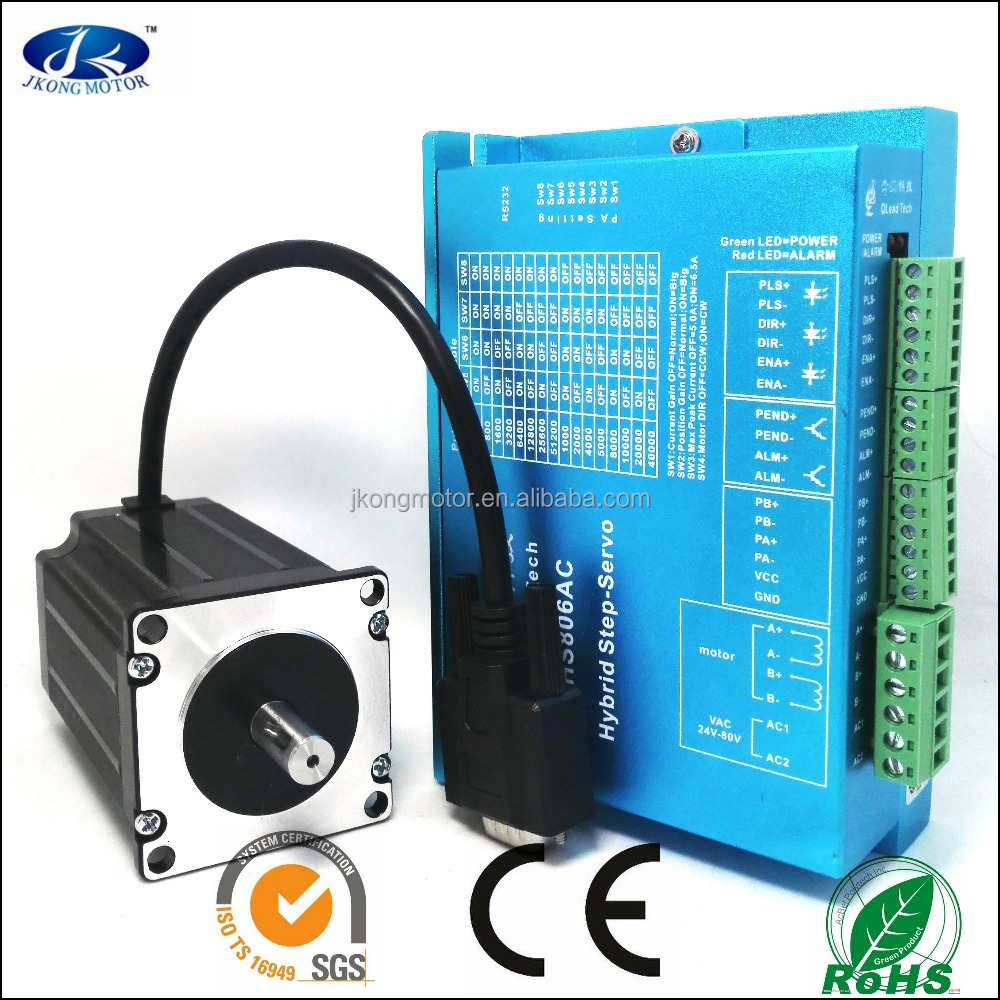

CE and ROHS Approved 2 Phase NEMA23 Closed Loop Stepper Motor
$75.00
≥3 piece
$65.00
≥100 piece
$50.00
≥10000 piece
Holding torque:
- 1.0Nm
Options:
- 1.8
Basic Info
| Warranty | 1year |
|---|---|
| Place Of Origin | Jiangsu, China |
| Brand Name | JKMOTOR |
| Model Number | JK572HBM10-1000 |
| Phase | 2 |
Product description
2 phase ?NEMA23 closed loop ?stepper motor CE and ROTHS approved
?
?
2 Phase NEMA23 Closed loop stepper motor System-1.0N.m( 138oz.in)
Stepper motor Model: JK572HBM10-1000
?
Genaral Specification:
Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%?
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C?
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N
Electrical Specification:
|
STEPPER ?MOTORS?TYPE?JK572HBM10-1000 |
|||||||||
|
JK Model |
No.of |
Voltage |
Current |
Inductance |
Resistance |
Holding |
Weight |
Length |
Encoder |
|
? |
? |
V |
A |
mh±20% |
Ω±10% |
N.m(oz.in) |
kg |
mm |
PPR |
|
JK572HBM10-1000 |
2 |
2.52 |
2.80 |
2.5 |
0.9 |
1.0(138) |
1.0 |
73 |
1000 |

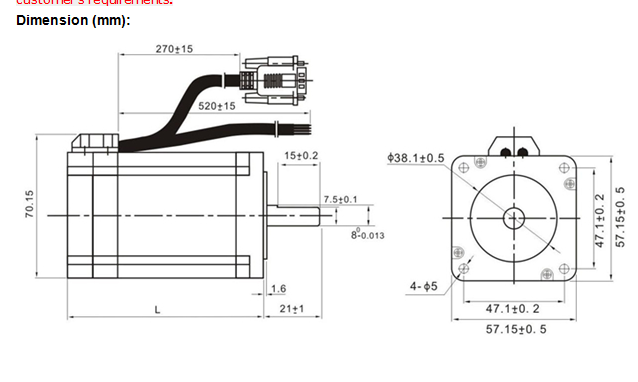

Note:? about shaft and electrical specification we are all can manufacture according customer's requirements.
?
?
we also provide other product?
?
