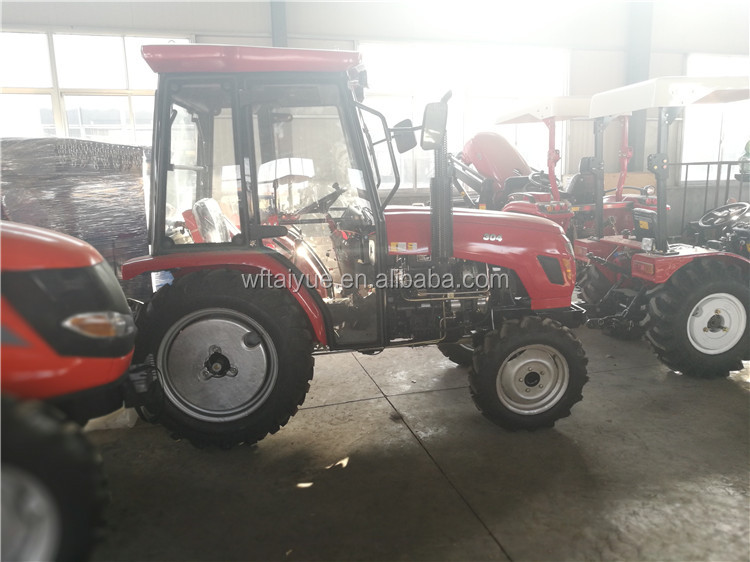

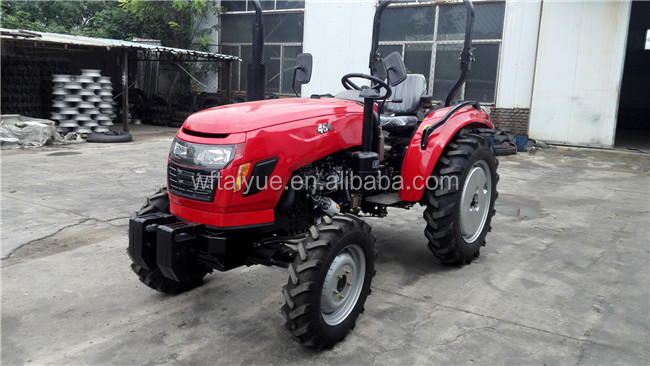

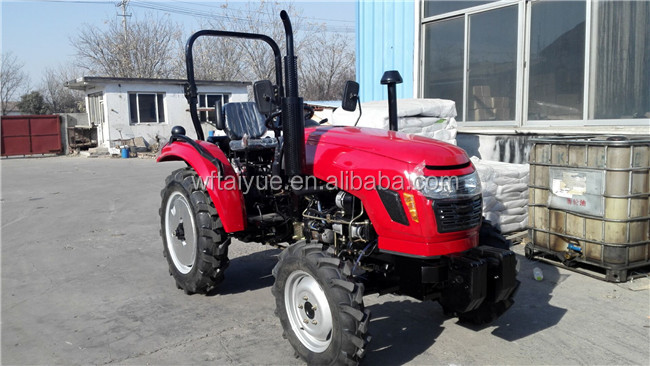

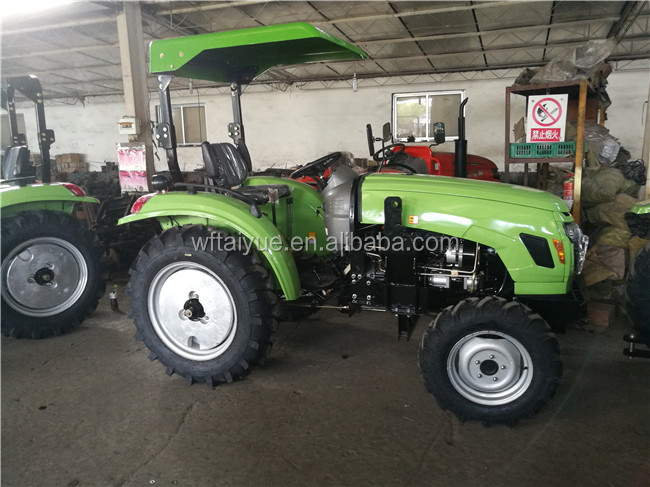

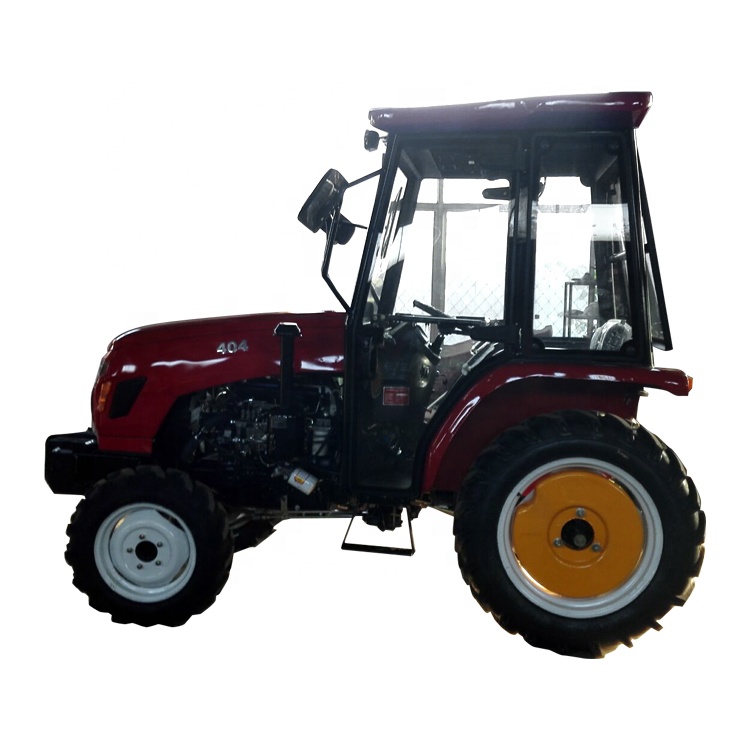

CE Approved Multi-Function Mini Traktor 4x4

$3700.00 ~ $4900.00 / set

Options:

Get Latest Price

You might also like

1 set (MOQ)

$3000.00

1 set (MOQ)

$3000.00

1 set (MOQ)

$3000.00

1 set (MOQ)

$3700.00

1 set (MOQ)

1 set (MOQ)

$4000.00

1 set (MOQ)

1 set (MOQ)

$3100.00

1 set (MOQ)

$3700.00

1 set (MOQ)

Basic Info

Model No.
Brand Name
Type	Wheel Tractor
By wheel	4wd
Usage	Farm Tractor
Drive Type	Gear Drive
Brand Name	Taiyue
Place of Origin	Shandong, China
Warranty	1 Year
Product Name	mini traktor 4x4
Engine	laidong diesel engine
Clutch	Double Clutch
Tire	6.0-16/9.5-24
Implements	harrow plough tiller
Options	Cabin
Color	Customized/customized
Applicable Industries	Farms
Condition	New
Certificate	Ce
After-sales Service Provided	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support

Product description

Product Description

mini traktor 4x4 specification

mini traktor 4x4 SPECIFICATION?
Model	304	404	504
Drive type	4*4	4*4	4*4
Engine	?	?	?
Engine brand	LD	LD	LD
Model	KM390BT	4L23BT	4L100
Type	3 cylinder,water-cooling, In-line, direct injection	4 cylinder,water-cooling, In-line, direct injection	4 cylinder,water-cooling, In-line, direct injection
Rated speed (r/min)	2300	2300	2300
Engine power?(hp)	30hp/22.1kw	40hp/29.4kw	50hp/36.8kw
Transmission
Clutch	Dry, single or double clutch	Dry, single or double clutch	Dry, single or double clutch
PTO size	6 teeth φ35	6 teeth φ35	6 teeth φ35
PTO Speed(rpm)	540/720	540/720	540/720
Gear shift	(4+1)*2	(4+1)*2	(4+1)*2
Hydraulic system
Hydraulic output valve	2-Way opitonal	2-Way opitonal	2-Way opitonal
Three point linkage
Category of 3-point link	Category I	Category I	Category I
Lifting capacity(at point? of 610mm)KN	>6.4	>7.4	>8.4
Technical parameter
Dimension(LWH)?mm	300015001900	300015001900	315015001900
Min.Net weight	1350kg	1400kg	1500kg
Wheel base(mm)	1900	1900	1900
Front wheel tread(mm)	1200	1200	1200
Rear wheel tread(mm)	1200	1200	1200
The Min. clearance(mm)	360	360	360
Front tyre	6.0-16/6.5-16	6.0-16/6.5-16	6.0-16/6.5-16
Rear tyre	9.5-24/11.2-24	9.5-24/11.2-24	9.5-24/11.2-24
Steering type	Hydraulic Steering	Hydraulic Steering	Hydraulic Steering
