Product Specifications:

Product Name: Ceiling filter

Model	CRC-630	CRC-600	CRC-560
Brand	Clear	Clear	Clear
Material	Synthetic fiber	Synthetic fiber	Synthetic fiber
Weight	630 g/sqm	600 g/sqm	560g/sqm
Thickness	22mm	20 mm	20 mm
Air flow rate	900 m3/hr	900 m3/hr	900 m3/hr
Initial Resistance	27 Pa	26 Pa	23Pa
Final Resistance	400Pa	400 Pa	400 Pa
Efficiency	98.70 %	97.90 %	93.50 %
Air velocity	0.25 m/s	0.25 m/s	0.26 m/s
Dust Holding	478 g/sqm	435 g/sqm	400 g/sqm
Max. Working Temp	120 °C(248°F)	120 °C(248°F)	120 °C(248°F)
Filtering Grade	F5/EU5 DIN24185	F5/EU5 DIN24185	F5/EU5 DIN24185
Fireproof Level	F1 DIN53438	F1 DIN53438	F1 DIN53438

Application Field:

a. Air filter for the spray booth,paint booth, furniture painting and baking room.

b. Air supply system for dusty enviroment.

c. Any other place that you need.

Product Feature:

a. The ceiling filter full of solid glue have much more capacity of dust holding and have more power to resistance the airflow.

b. Our clients are satisfied with our filters, we also use them in our auto spray painting booth.

c. High capacity of dust holding, the windward side is mesh surface or cloth surface.

Product Picture:

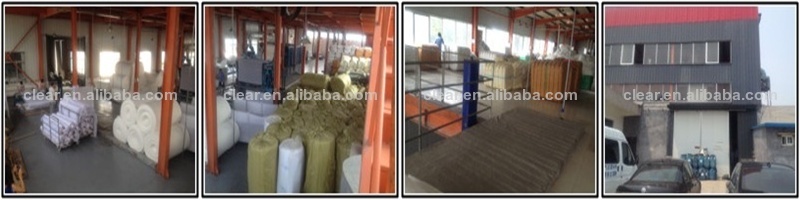

Factory Picture:

Our factory 's output is large as you can see the picture below, so we can also complete the production fast when there is a large order.

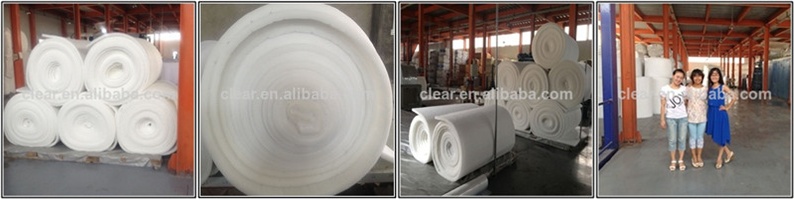

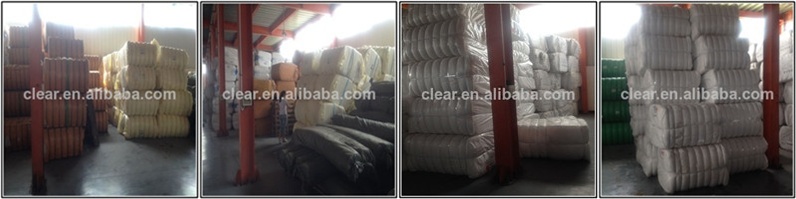

Storage of Our Material:

Sufficient raw material with the synthetic fiber or fiberglass can guarantees the steady and continuous production.

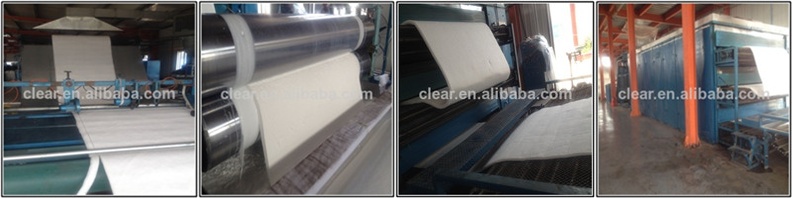

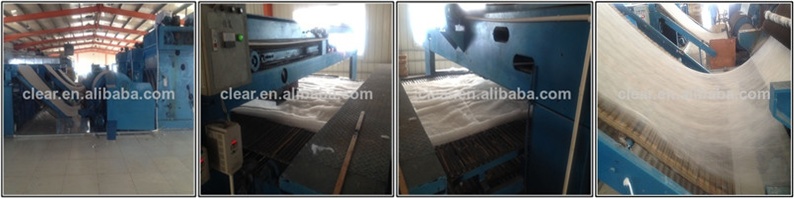

Product Line:

Combing the synthetic fiber with aotomatic machine--Over lay the combed fiber --Compression--Clipping--Immersing the glue water--Heating

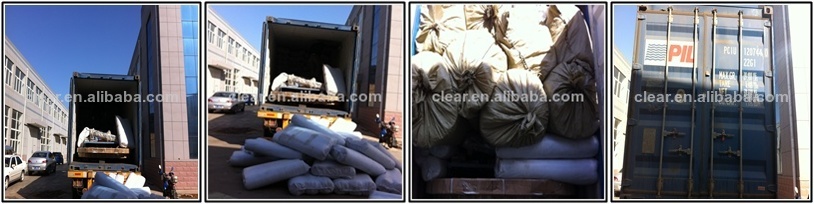

Delivery Picture:

Why You Choose Us:

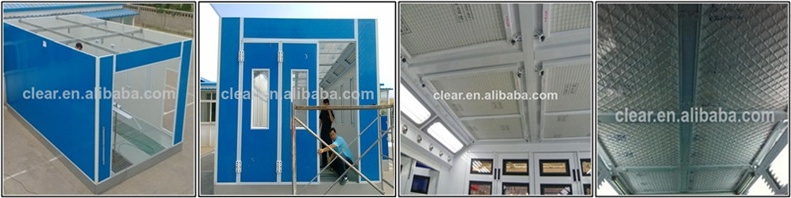

a. Our ceiling filter are used on our spray booth and our clients are satisfied with them even the most fastidious ones.

b. You will get the most patient survice from us. Please don't hasitate to ask if you have any questions .
