Ceiling Panel Rolling Machine
$25000.00
≥1 Set/Sets
Model:
- YY--TCB---003
Basic Info
| Model No. | YY--TCB---003 |
|---|---|
| Brand Name | YY |
| status | New |
| Applicable industry | Hotels, Machinery Repair Shops, Energy &Amp; Mining, Food Shop, Food &Amp; Beverage Factory, Printing Shops, Other |
| Out-of-warranty service | Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
Product description
Below are our main machines and service:
Fully automatic Flat plain T bar T Grid Roll Forming Machine
Fully automatic FUT T bar T grid Roll Forming Machine
Fully Automatic Select T bar T Grid Roll Forming Machine
Fully Automatic Center black T bar T grid Roll Forming Machine
Fully Automatic L Wall Angle Roll Forming Machine
Fully Automatic W Angle Roll Forming Machine
Automatic GI profile stud and track Roll Forming Machine
Automatic Furring Channel Roll Forming Machine
Offering Automation technology to retrofit the old manual T grid and T bar Machines
Working process:
Decoiler - Feeding guide - Main roll forming machine - PLC control system - Servo tracking cutting -Feeder for punch - auto punch- Receiving table
Technical parameters:
Main T roll forming machine
1. 2 tons manual de-coiler (vertical type)*2
2.Main tee roll forming machine*1
① Matching material:PPGI/GI
② Thickness: 0.3mm
③ Main power: 5.5kw
④ Wall panel: standing plate with iron casting
⑤ Forming speed: no stop cutting, all speed is 0-25m/min, with punch, it is 25m/min
⑥ Shaft material and diameters: #45 steel and 50mm (Made the steel for cementation)
⑦ Roller material: Cr12 with well heat treatment ,58-62
⑧ Material of cutter blade: Cr 12mov mould steel with quenched treatment，HRC 58-62℃
⑨ Forming Steps: 16 steps for forming
⑩ Driven: Double gear (heavy)

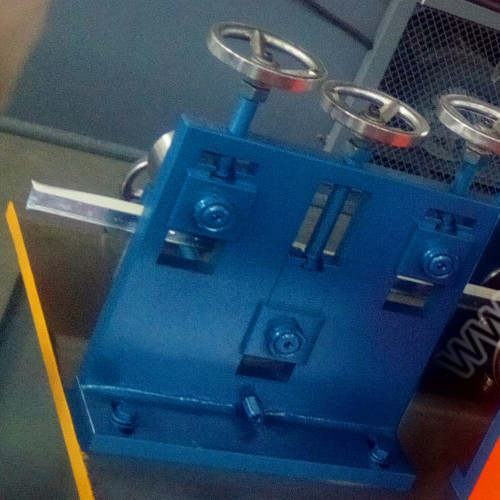

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period
2. Effective communication
3. Interface customized.
