Detailed Product Description

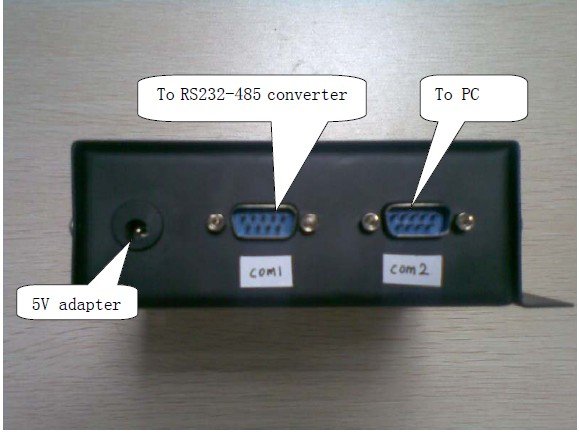

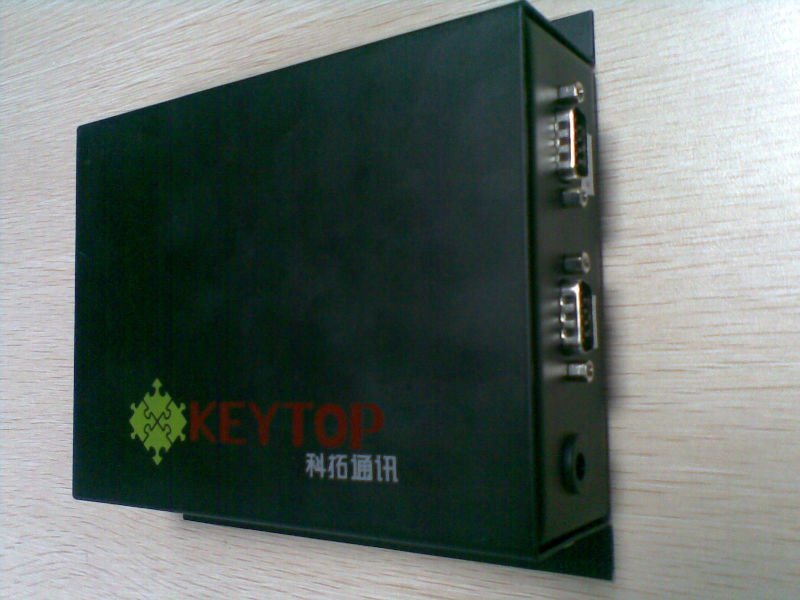

1 CCU is responsible for processing and transfering the data
2 automated parking system guide driver to find free lot

parking equipment/automated parking system

  1 Main Functions and Features:

 The main function of central controller is to inquire the relerant ZCU data via RS485-NODE by turns and processes these datas, then send these processed data to PC or other relevant equipment, besides it updates the LED display's data via RS485-NODE.

one CCU can support 60 ZCU at max.









2 How parking guidance system/ ultrasonic parking sensor works:

Firstly, ultrasonic detector takes use of ultrasonic wave to detect the parking space to see if it is occcupied and transfer the relative commands to LED indicator which will turn from green to RED when occupied, or it will turn GREEN.Meanwhile, the UD transmits its status message to ZCU immediately. and ZCU will collect and forward the information to CCU. CCU processes these data  and sends the relevant commands to ZCU and LED panel.









 3 We have the successful cases in  CHINA.

9) March, 2008    2100cars  Taipei    Taipei Municiple Carpark

10) April, 2008     1200cars   Singapore  City Squire Mall

11) April, 2008     300cars    Wuxi      YaoHan Department Store

12) April, 2008     310cars    Indonisia         Cambrige city square of Medan

13) May, 2008     200cars    Changchun    Chapter Shopping Center

14) May, 2008      700cars   Tianjing    Railway Station

15) May, 2008    200cars      Weifang   Jialejia Supermarket

16) May,2008     1000cars      Beijing   SOLANA Lifestyle shopping park

17) July,2008    3850cars   Singapore   Changi Airport (OEM)
