Node Controller

Get Latest Price

Basic Info

Model No.	Key-WH06
Brand Name

Product description

The node controller(ZCU) is the middle layer of ultrasonic parking detector, which be used to manage grouply

ultrasonic detector, detect loop the information of the detector, then send the relevant

information to central controller. One node controller can control 40-60 parking space detectors.

Product Details:


Work temperature:	-20--+80
Current rating:	13mA+17mA(LED indicator)
Rate Voltage:	AC110--220V
Frequency	50--60Hz
Communication	RS-232-Node

Payment & Shipping Terms:

Price:	FOB USD 10~1000 / Piece Get Latest Price
Minimum Order Quantity:	Negotiable Trial Order
Minimum Order Quantity:	1 Piece/PiecesTrial Order
Port:	Xiamen
Packaging Details:	100pc/carton
Delivery Time:	within one month after the receipt of your payment
Payment Terms:	T/T
Supply Ability:	100,000 Piece/Pieces per Month

Detailed Product Description

1 parking guidance system
2.ultrasonic detector with RJ45 adapter plate
3.network cable makes installation easier

1 Zone Control Unit of parking guidance :

1) The LCD in ZCU is to show the detector's working status.

2) Main Functions:

It is to inquire about the relevant sensor status via RS485-B by turns and forward the data by RS-485-C. Meanwhile, ZCU forwards the commands of CCU to LED SCREEN via RS-485-B.

The RS485-B data bus can support 60UD at max, whose addresses must be set repeatedly.

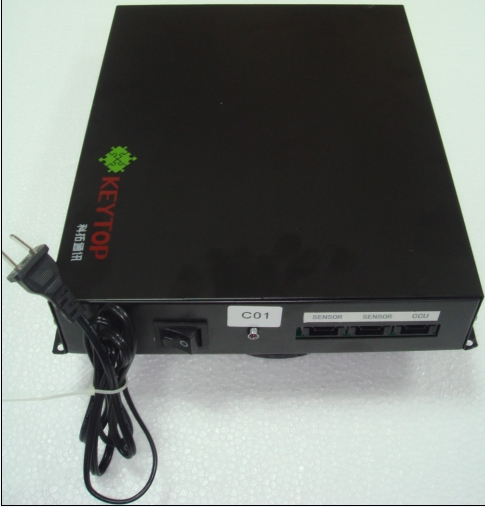

ZCU(with green teminator).JPG

2.How parking guidance system (car park system) Works:

network cable system structure.jpg

3.Cases

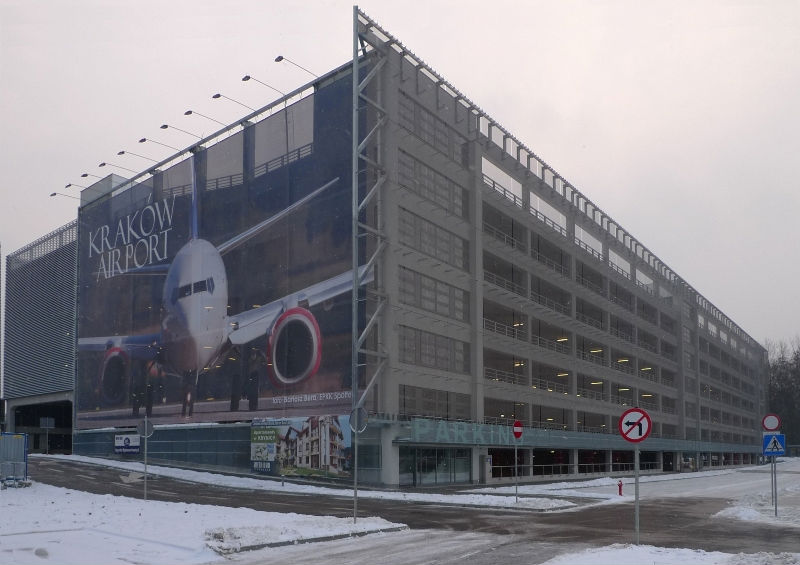

Poland Krakow Airport(1160 lots)

Philipine Mall of Asia(3160 lots)

Singapore Changi Airport(3850 lots)

OTHER :

19 July,2008        3850 cars       Singapore                  Changi Airport(OEM)
20 August,2008    200 cars       Japan                           Shin-Tokyo Building(TOKYO Marunouchi)
21 August,2008    70 cars         Beijing                         hongqiao pearl-market
22 Sep,2008        3160 cars     Philippines                    Mall of Asia (Manila SM)
23 Oct,2008         1500 cars       Singapore                      Harbourfront Centre(OEM)
24 Nov,2008           320 cars      Thailand                          Kasikorn Bank

25. Feb,2009 241 bays Xuchang PANGDONGLAI Plaza

26. April,2009 105 bays Spain OviedoBus station

27. May,2009 330 bays Chengdu CNPC South China branch

28.May, 2009 109 bays Beijing Ocean family

29.June,2009 650 bays France Alizes

30.July, 2009 890 bays Kunming THE TWIN TOWERS

31. July,2009 1700 bays Philippines SM megamall

Firstly, UD takes use of ultrasonic wave to detect the car space to see if it is occupied by vehicles and transfer relative command to LED Indicator which will turn from green to RED when occupied, or it will keep GREEN; meanwhile, the UD transmit its status message to ZCU immediately, and ZCU will collect and forward the information to CCU; CCU processes these data and sends the relevant command to ZCU and LED panel.
