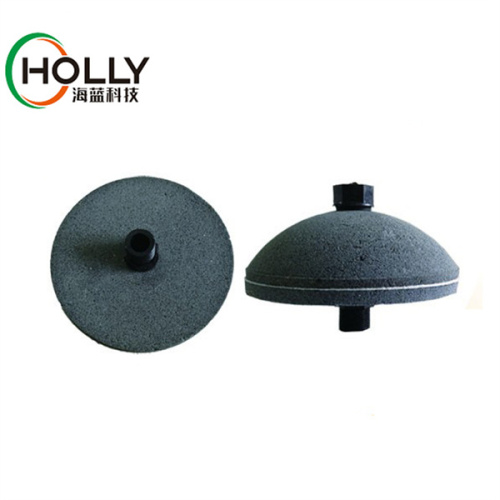

Ceramic Disc Type Fine Bubble Diffuser
Model:
- Φ160
- Φ178
- Φ180
- Φ200
- Φ230
Purification rate:
- 100
Options:
- customized
Basic Info
| Model No. | customized |
|---|---|
| Brand Name | Holly |
| status | New |
| Applicable industry | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Energy &Amp; Mining |
| Out-of-warranty service | Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | Turkey, Pakistan, Mexico, Russia, Morocco, Kenya, Chile, Uae, South Africa |
| Showroom location (in which countries are there sample rooms overseas) | Saudi Arabia, Indonesia, Pakistan, Russia, Spain, Uae, Sri Lanka, Romania, Bangladesh, Kyrgyzstan, Tajikistan, Japan, Malaysia |
Product description

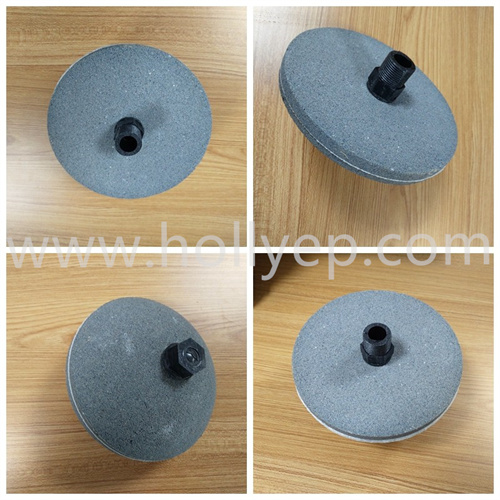

ceramic disc fine bubble diffuser
Product Description
Ceramic disc fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications. It can be operated over a wide range of airflows with minimum maintenance for long term performance.
Technical parameters
Model
Operating air flow range
Service aera
Oxygen absorption rate
Resistance loss
Sort
Applicable water depth
Φ160
1.3-2.5m3/h
0.24-0.52m3
30-42%
≤2300pa
0.2-0.5kg/m3`h
3-6m
Φ178
1.5-2.8m3/h
0.25-0.6m3
30-42%
3-6m
0.2-0.5kg/m3`h
3-6m
Φ180
2-3m3/h
0.3-0.5m3
30-42%
3-6m
0.2-0.5kg/m3`h
3-6m
Φ200
2.2-6.5m3/h
0.31-0.72m3
30-42%
3-6m
0.2-0.5kg/m3`h
3-6m
Φ230
3-7.5m3/h
0.4-0.75m3
30-42%
3-6m
0.2-0.5kg/m3`h
3-6m
Features
? Low resistance loss
? Highly Tear Resistant
? Anti-clogging, anti-backflow
? Ageing-resistant, anti-corrosion
? High efficiency, energy-saving
Applications
1.Aeration of fishpond and other applications
2.Aeration of deep aeration basin
3.Aeration for excreta and animal waste water treatment plant
4.Aeration for denitrification/dephosphorization aerobic processes
5.Aeration for high concentration waste water aeration basin,and aeration for regulating pond of waste water treatment plant
6.Aeration for SBR,MBBR reaction basin,contact oxidation pond;activated sludge aeration basin in sewage disposal plant
Video
Fine Bubble Diffuser
Fine Bubble Diffuser
Fine Bubble Diffuser
Ceramic Disc Type Fine Bubble Diffuser
Model:
- Φ160
- Φ178
- Φ180
- Φ200
- Φ230
Purification rate:
- 100
Options:
- customized
