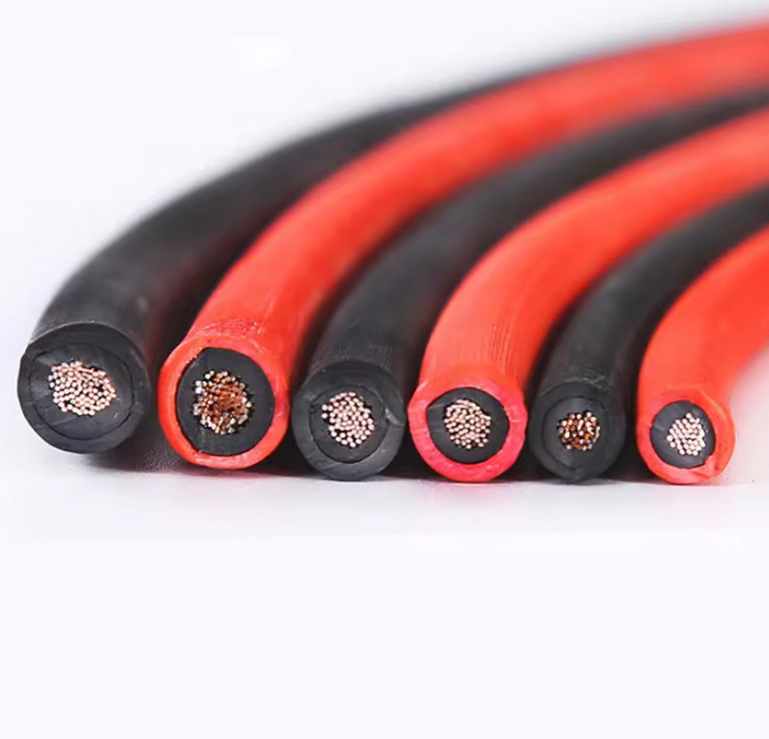

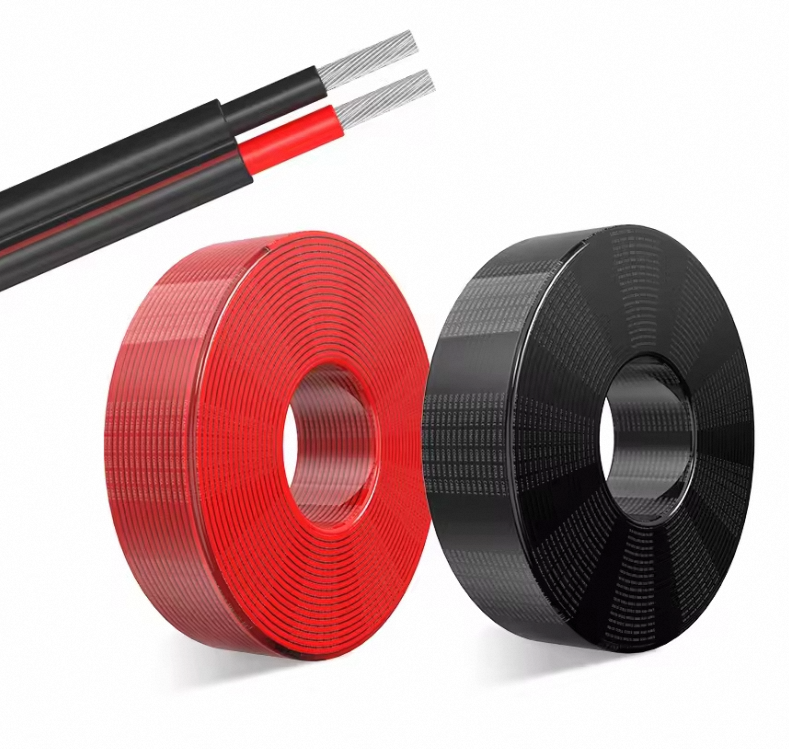

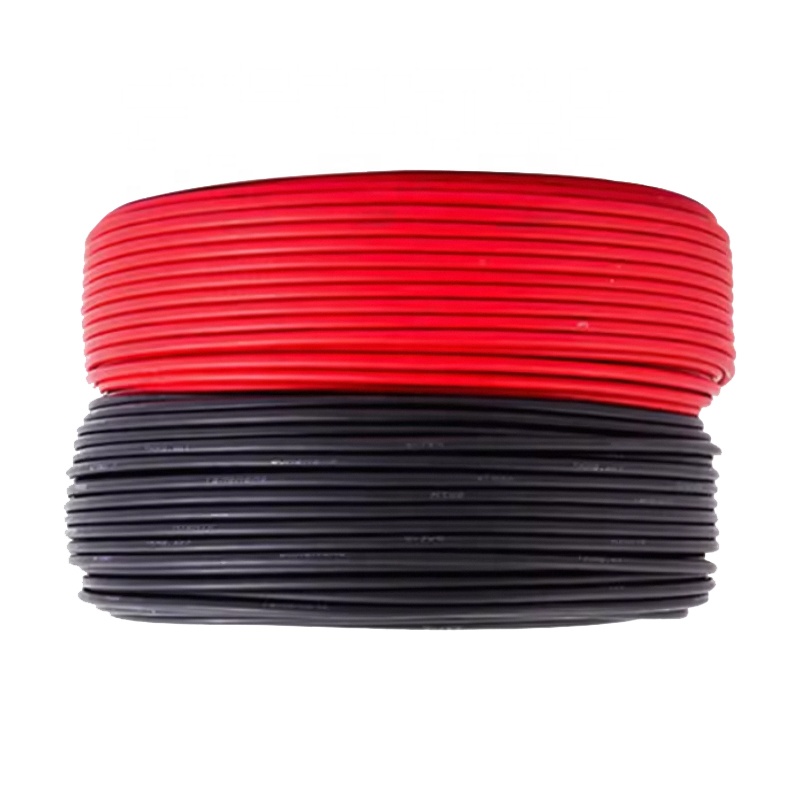

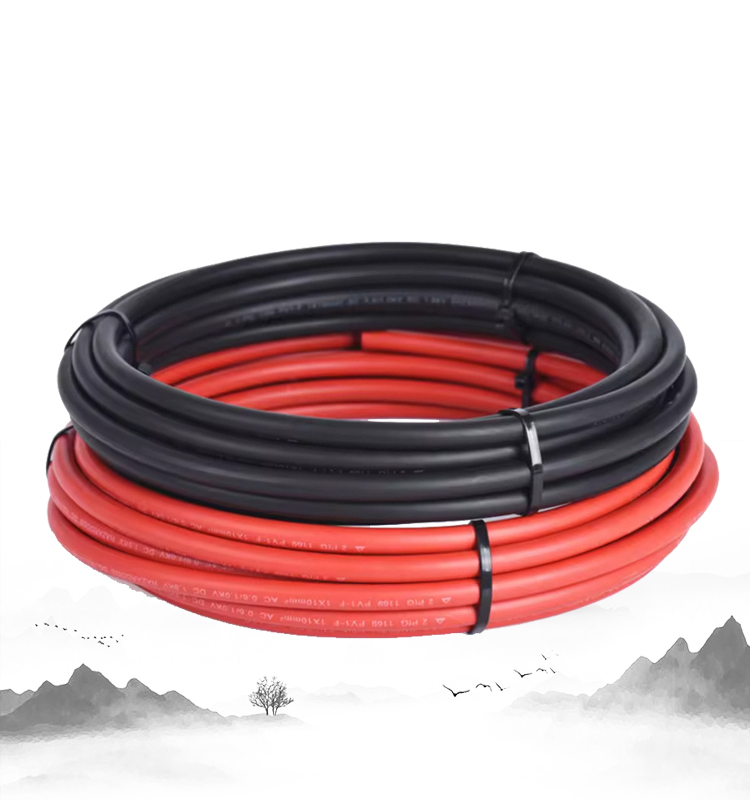

China Hot Selling Solar DC Wire PVC Insulated Copper Photovoltaic DC Cable

  • $0.50

    ≥100 meter

  • $0.43

    ≥1000 meter

  • $0.35

    ≥10000 meter

Options:

  • Black
  • Red
  • 100m
  • Single-Core
Get Latest Price

Basic Info

Model No.
Brand Name
Place Of Origin Jiangsu, China
Brand Name Jing Wei
Model Number PV1-V,H1Z2Z2-K
Insulation material Xlpe
Type Low Voltage
application Power Station
Conductor material Copper
jacket Pvc
Size 100Meters
Certificate Tuv
Color Black
Name photovoltaic cable
Warranty 25 year
Working Temperature -40℃ to + 120℃
MOQ 100meters
Show More

Product description

Products Description

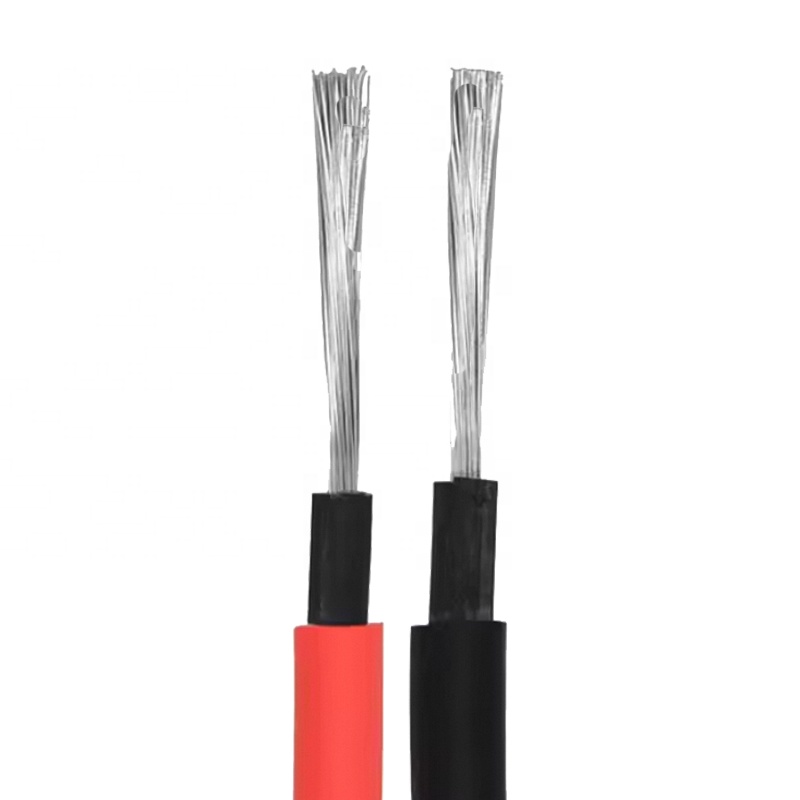

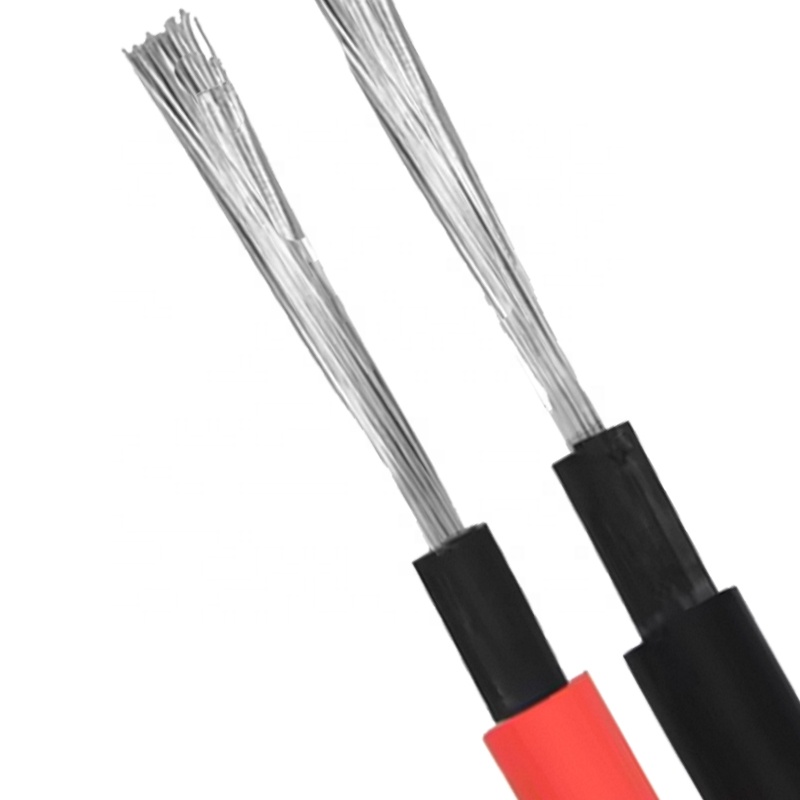

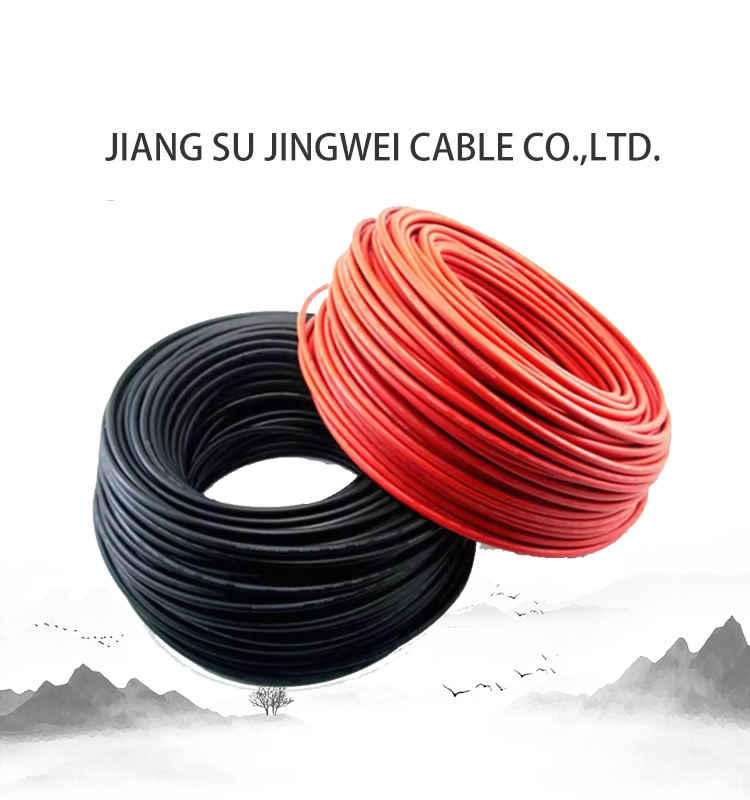

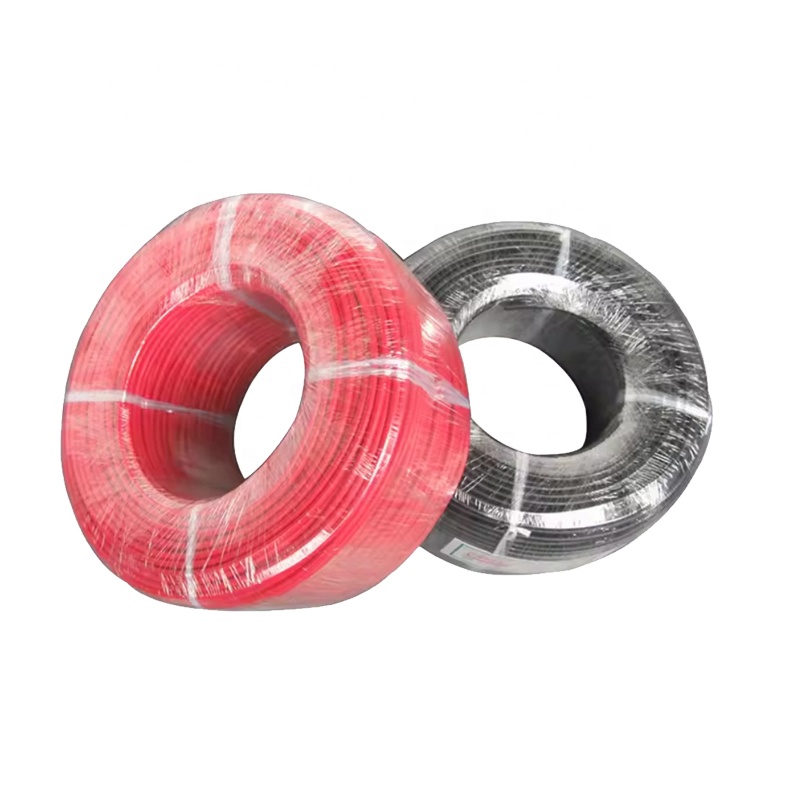

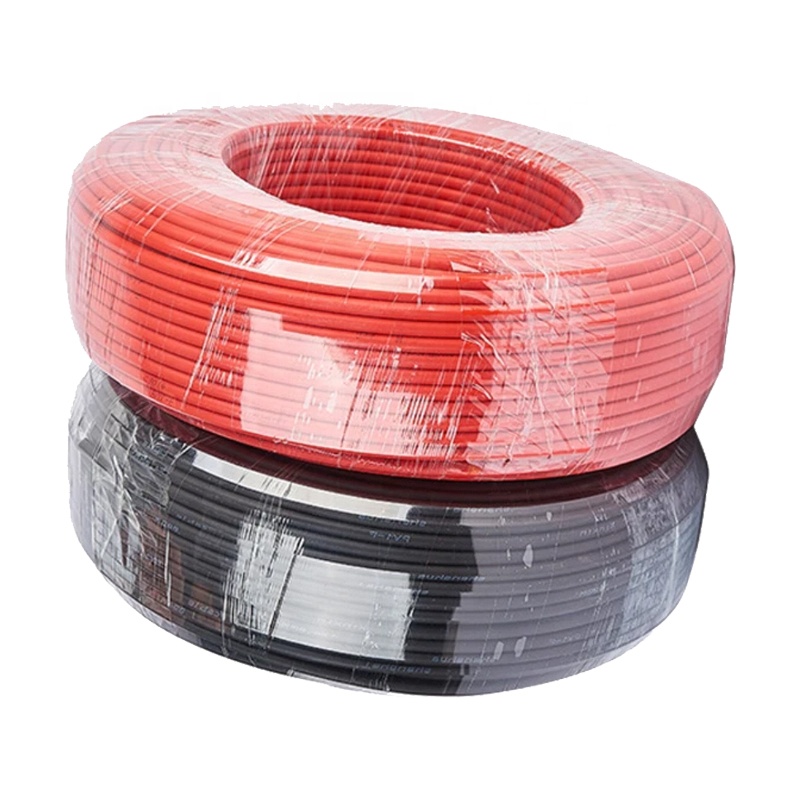

Details Images

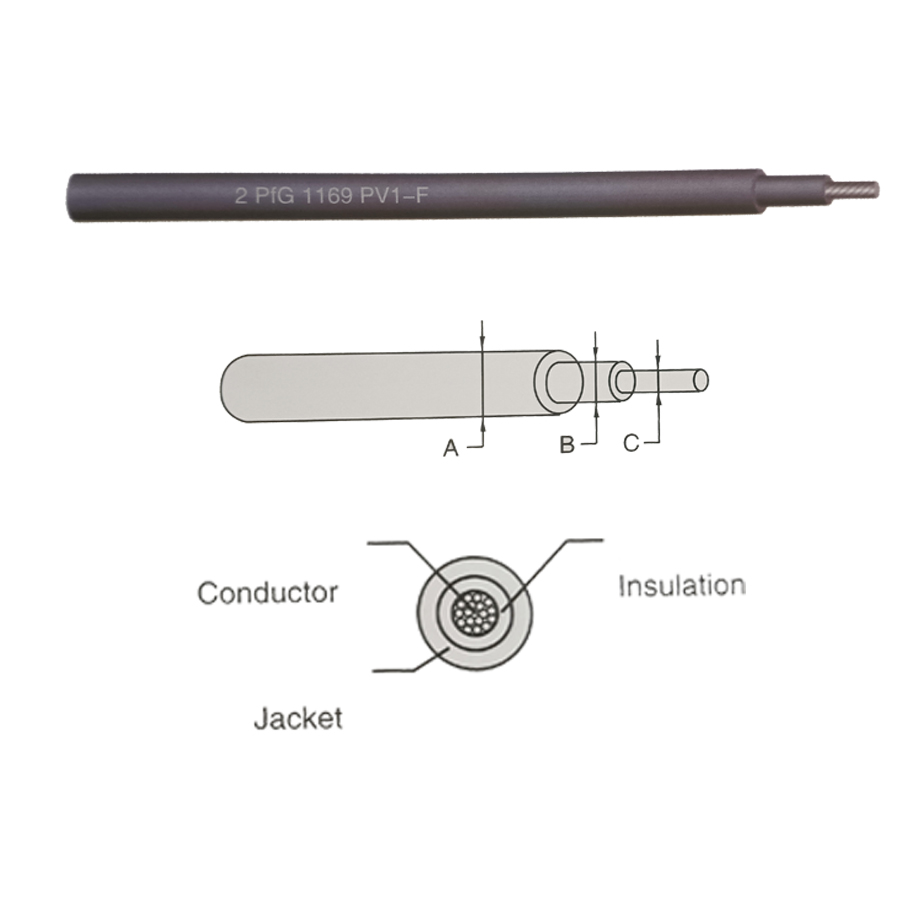

PV1-F、H1Z2Z2-K
Corssilinked polyolefin insulation crosslinked polyolefin sheath solar?photovoltaic cable
Nominal crosssectional area mm2
(tinnedcopper)conductor type
Calculatedconductor overalldiameter(mm)
Calculated cableoverall diameter(mm)
Calculated cableweight(kg/km)
Max.DC resistanceat 20℃(Ω/km)
1.5
5
1.6
5.1
41
13.7
2.5
5
2
5.5
53
8.21
4
5
2.6
6.2
73
5.09
6
5
3.2
6.8
96
3.39
10
5
4.2
7.9
149
1.95
16
5
5.5
9.2
208
1.24
25
5
7.2
11.2
310
0.795
35
5
8.2
12.2
411
0.565

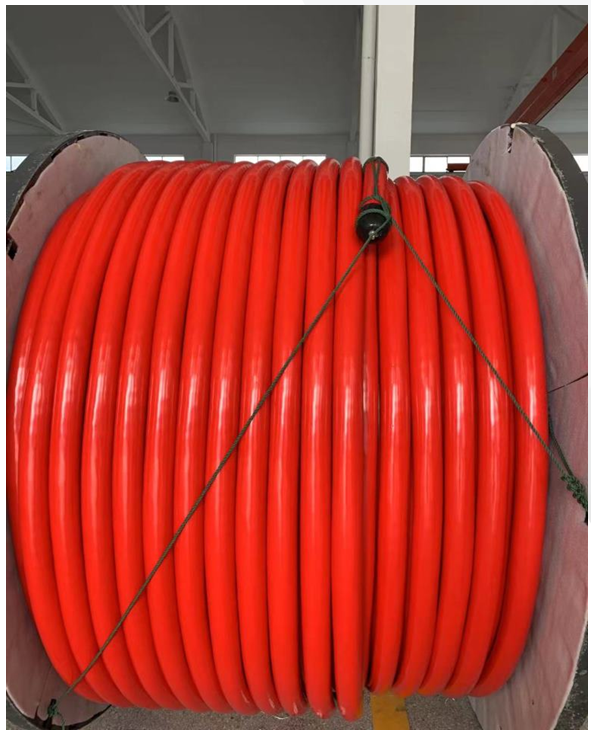

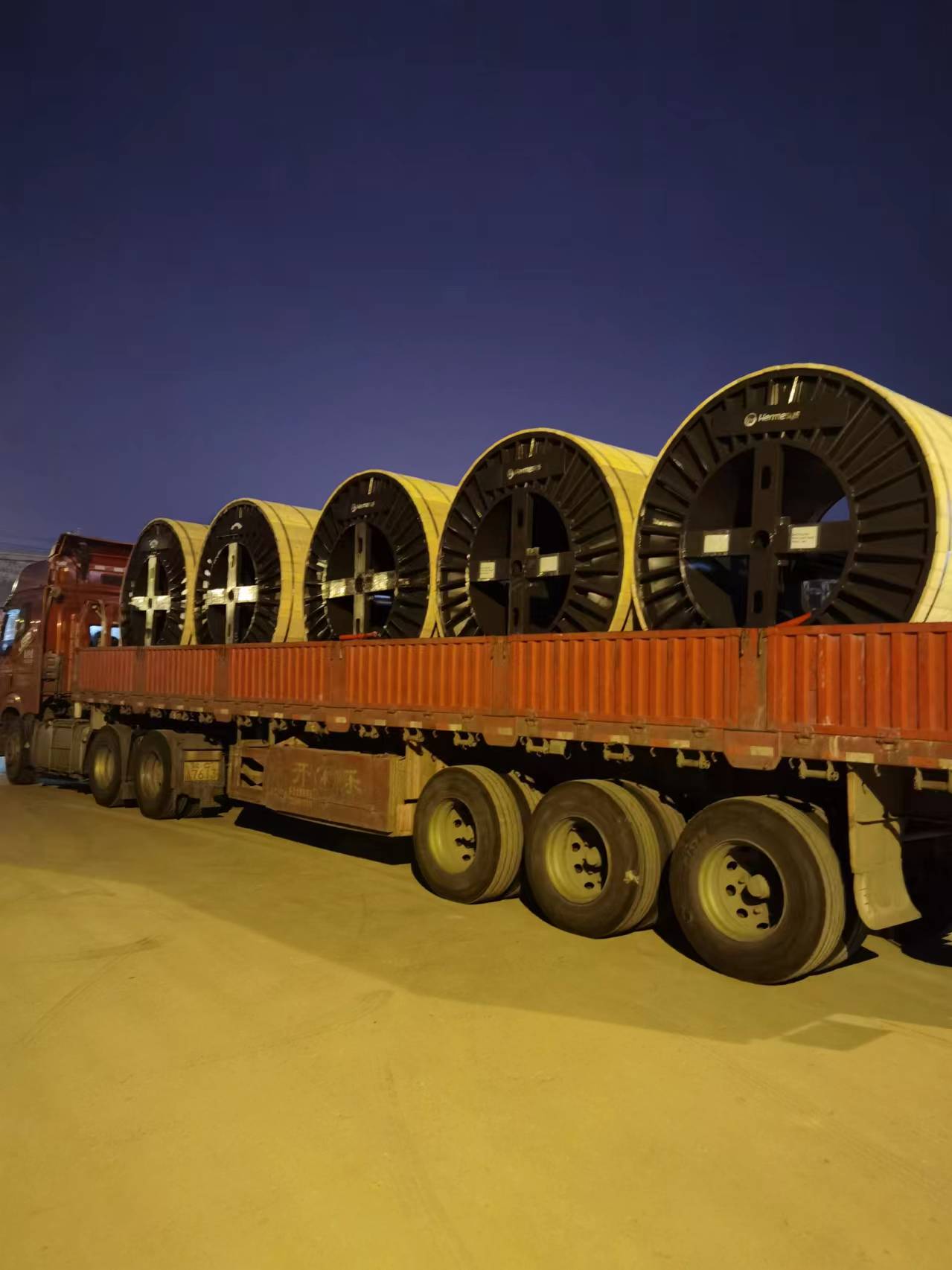

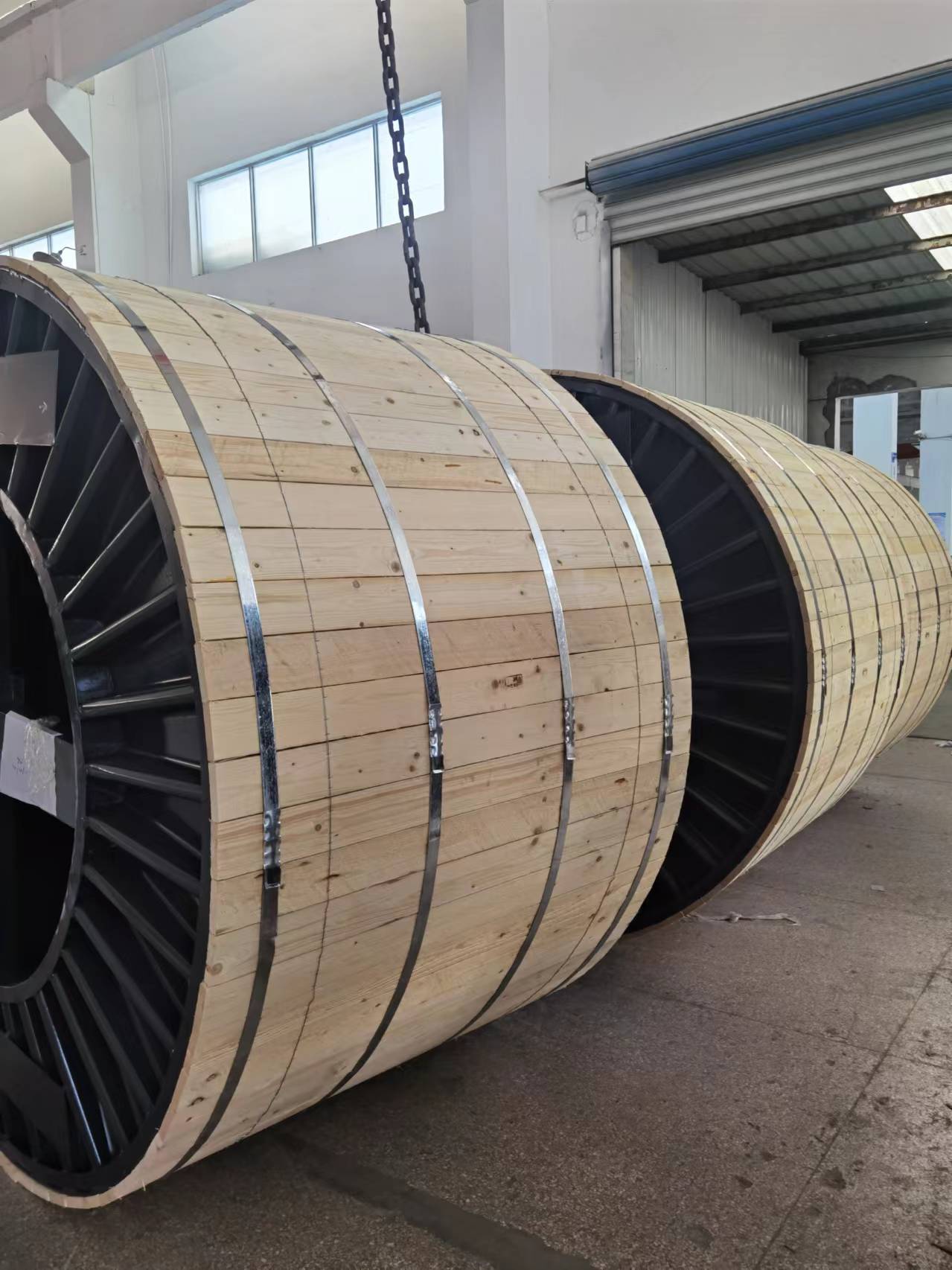

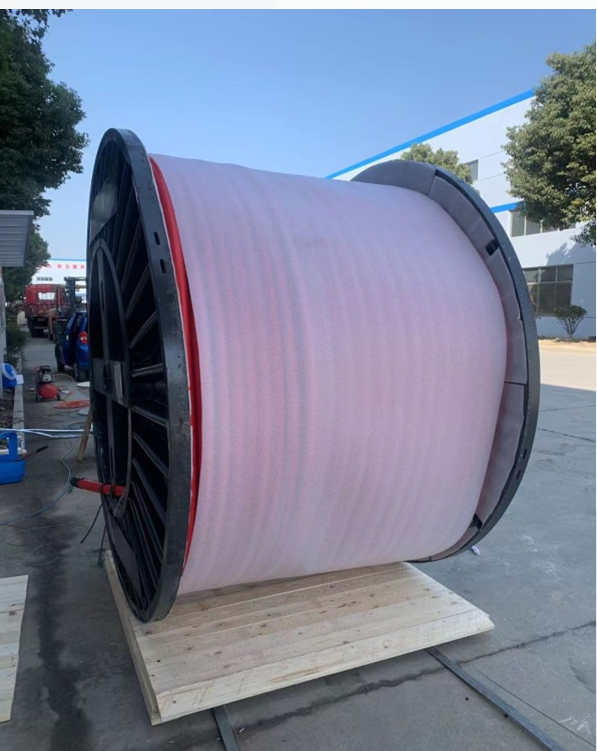

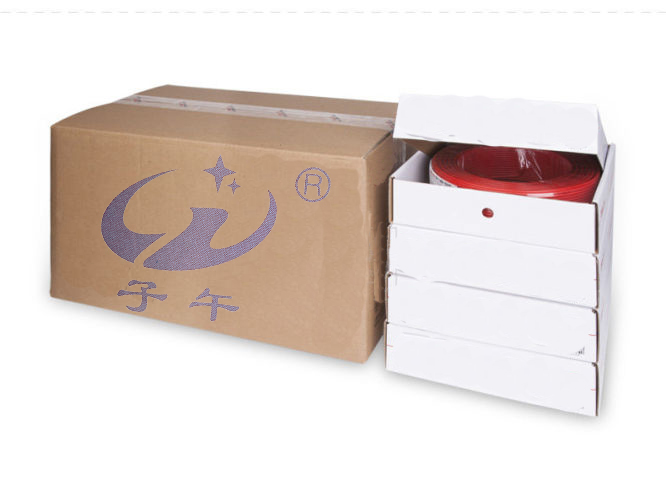

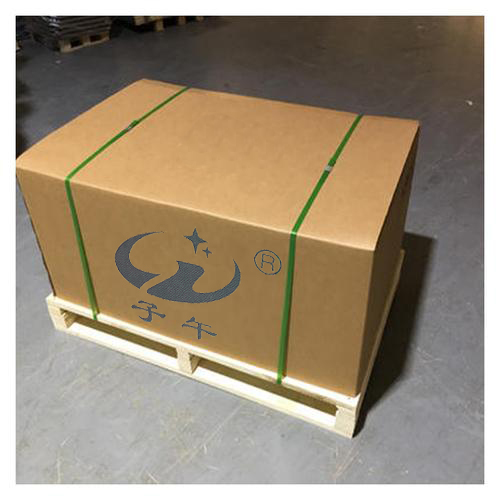

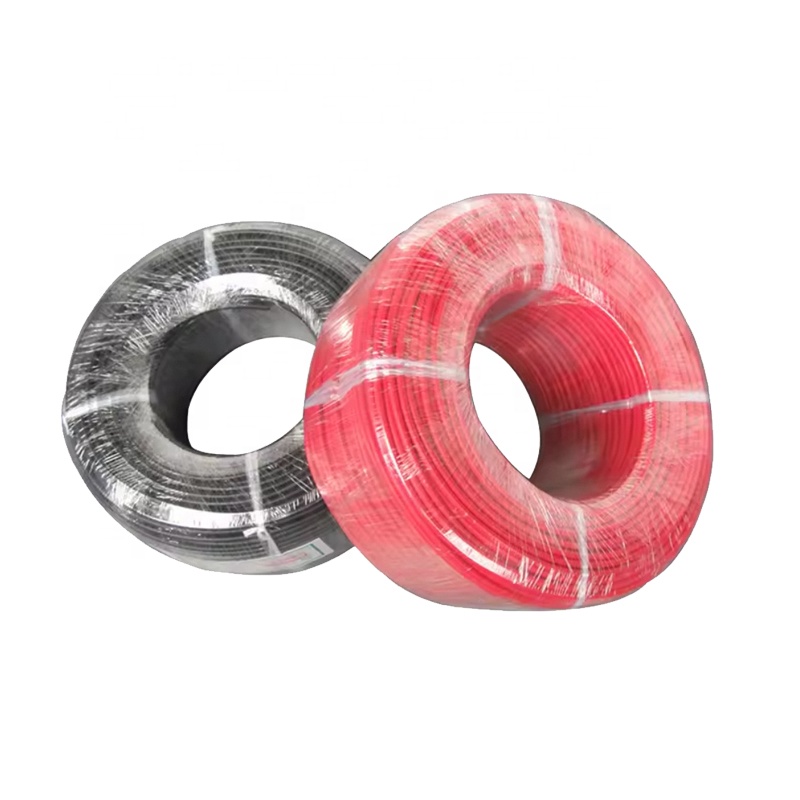

Product packaging

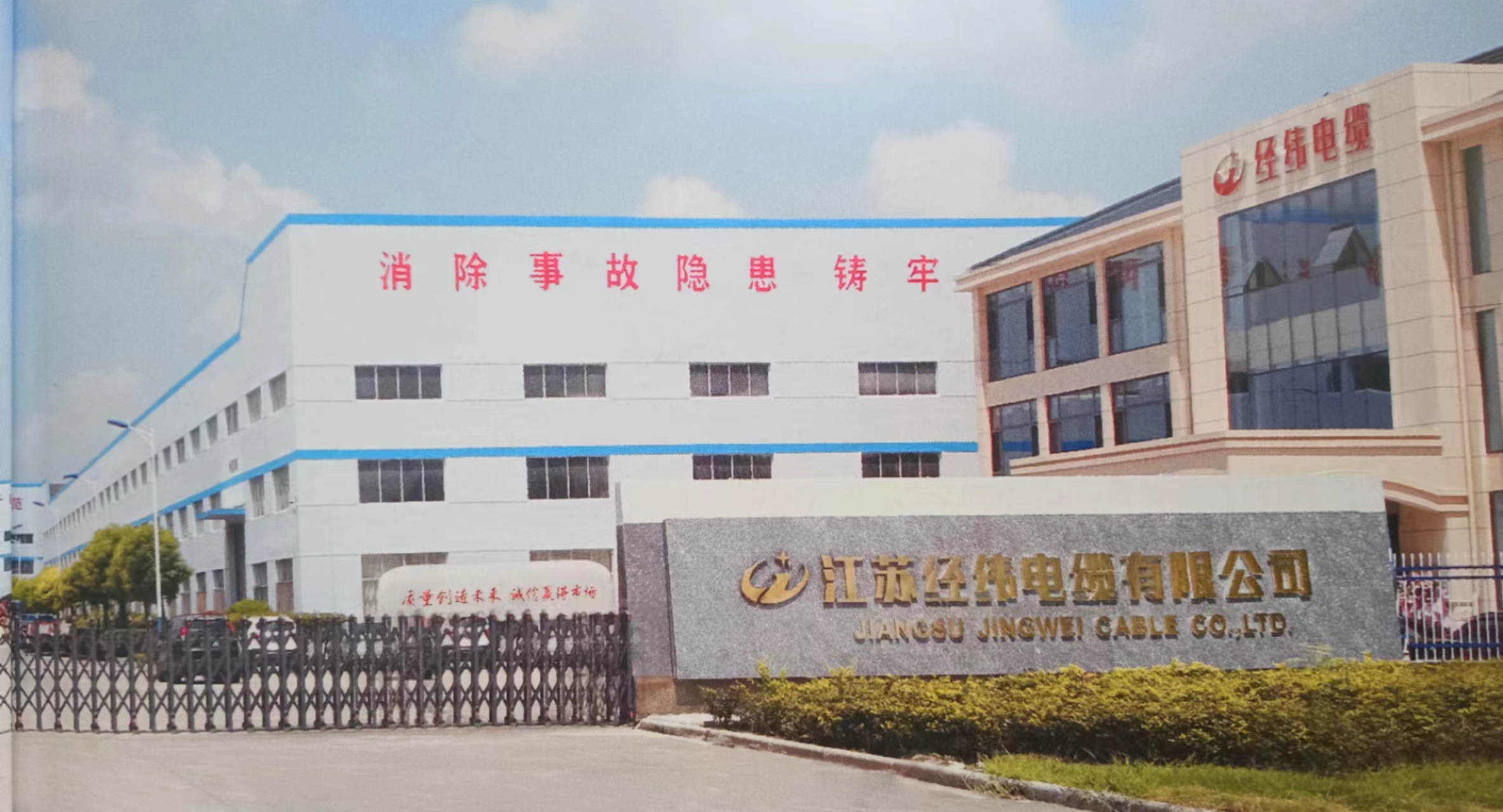

Jiangsu Jingwei Cable Co., Ltd. is a professional wire and cable manufacturer, located in industrial concentration zone C, Guanlin Town, Yixing City, Wuxi, Jiangsu Province. The enterprise covers an area of more than 33,300 square meters and a construction area of 23,700 square meters, with an annual production capacity of more than 1 billion yuan. The production equipment of the factory is excellent. The the key equipment with the international first一class level is imported from abroad. We have domestic advanced facilities and complete product testing capacity.

Jingwei wire and cable products cover more than ten varieties and more than 1,000 kinds of specifications, such as cross-linked power cable, MV/HV power cables, PVC power cable, branch cable, control cable, flame retardant cable for coal mine, flame retardant and fire-resistant cable, low smoke and low halogen cable, low smoke and zero halogen cable, overhead cable, silane cross-linked cable, rubber sheathed cable, PVC wire, Steel cored Aluminium Stranded Wire, etc. We have served the energy field (power station, urban and rural power grid, coal mine, petrochemical, etc.), transportation field (Civil Aviation Airport, railway and urban rail transit, ships and offshore ports, etc.), and engineering field (engineering construction, iron and steel, metallurgy, construction, etc.). The products are selected by a number of national key projects.

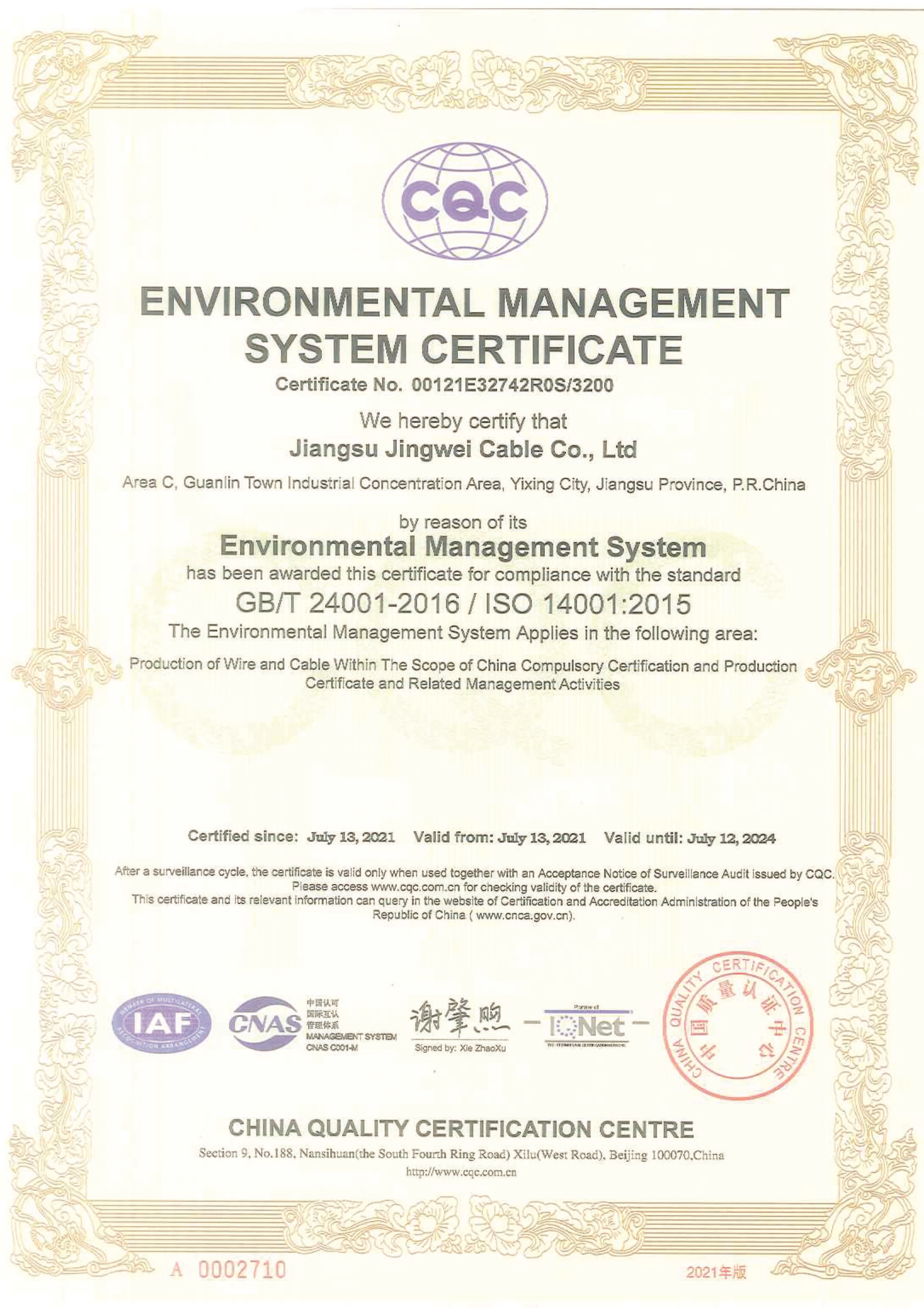

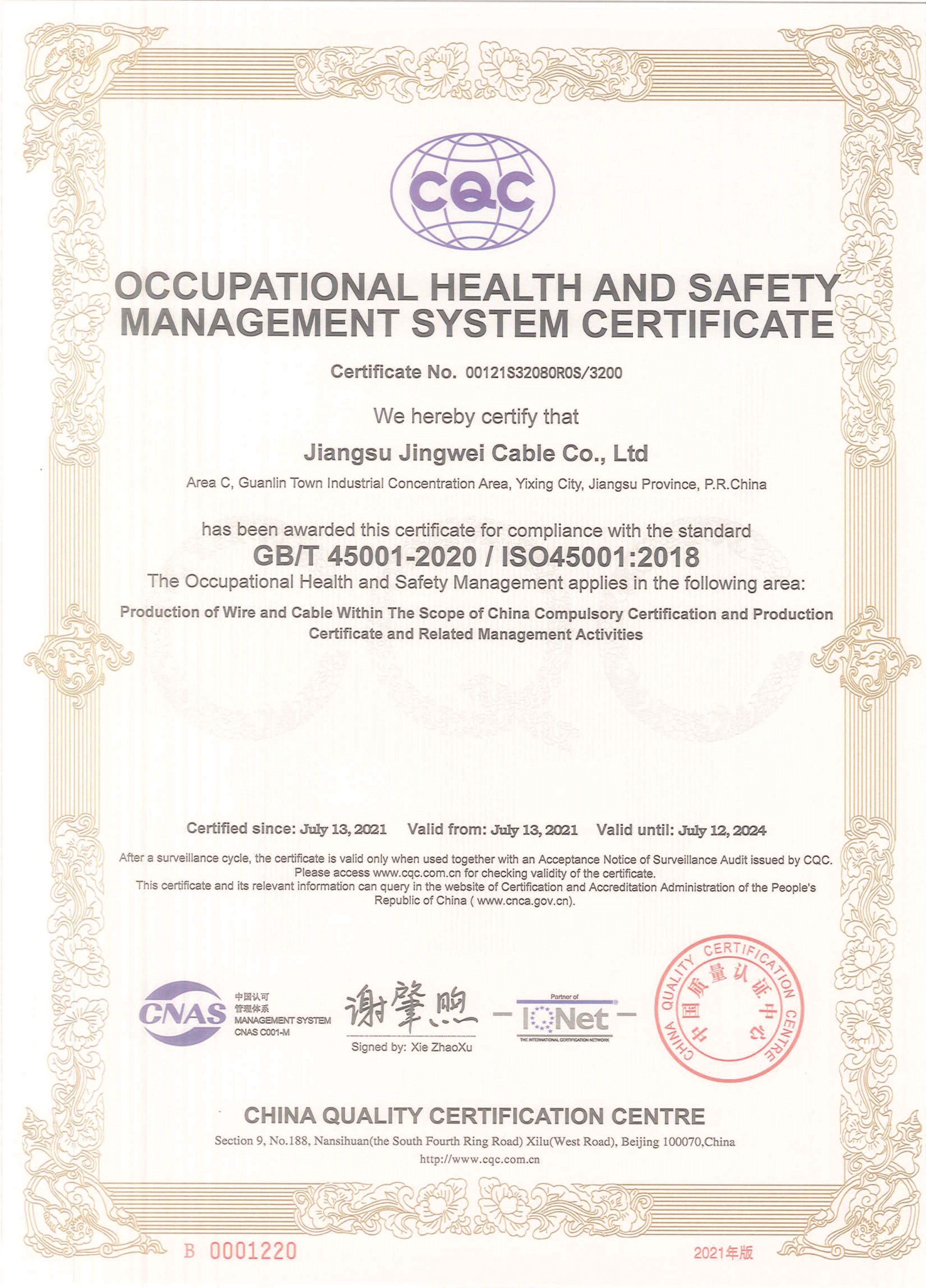

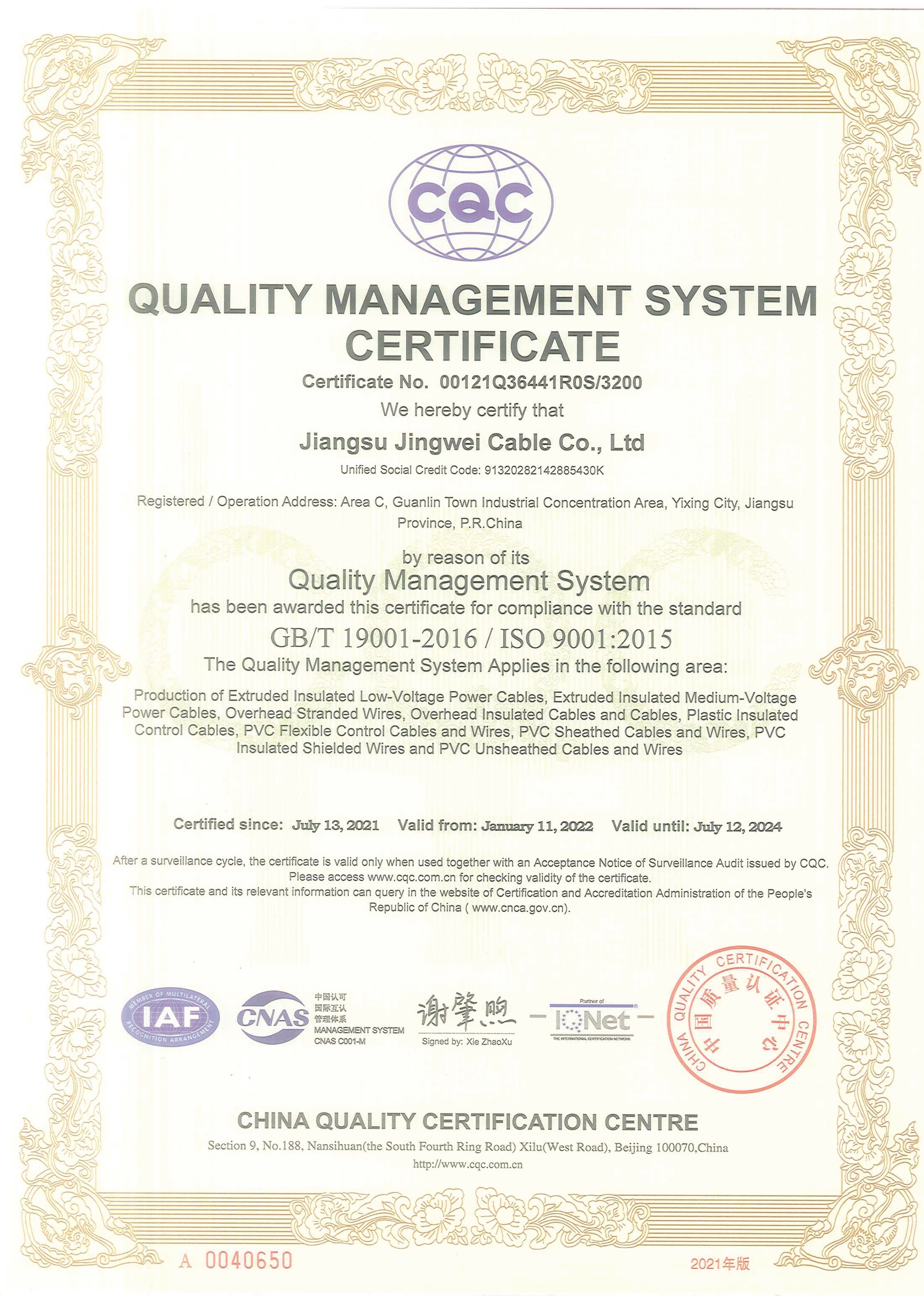

Jingwei cable is constantly improving the infrastructure, but constantly improving the management level and strengthening the construction of software funds as well. We have successfully passed 1S09001 quality management system certification,1S014001 environmental management system certification,1S045001 occupational health and safety management system certification, Jiangsu measurement assurance confirmation and quantitative packaging commodity enterprise measurement assurance ability confirmation. We can carry out production and management in strict accordance with the requirements of system certification in the production process. All the products have obtained the compulsory certification and the national industrial product manufacturing license certificate in accordance with the national product production regulations. Facing the new development opportunities, in order to achieve the rapid and stable development of Jingwei Cable, we have formulated a new development strategy: to adhere to the business philosophy of quality first and customer first, to implement the brand strategy and vigorously explore the domestic and foreign markets; By means of improving the level of science and technology, to optimize and upgrade the product structure, to produce and sell high value-added products to meet the needs of our customers; Based on the improvement of management level, to realize energy conservation and consumption reduction and improve the profitability of the company. We hope to become a well-known large-scale cable enterprise in China within a few years.

Jingwei people keep improving, adhere to customer first, quality-oriented, continuous development beyond ourselves and never being satisfied.

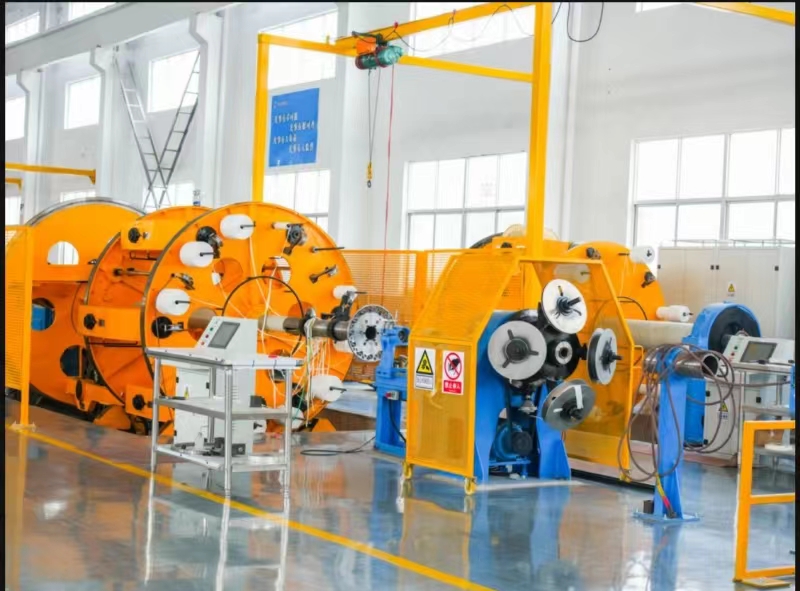

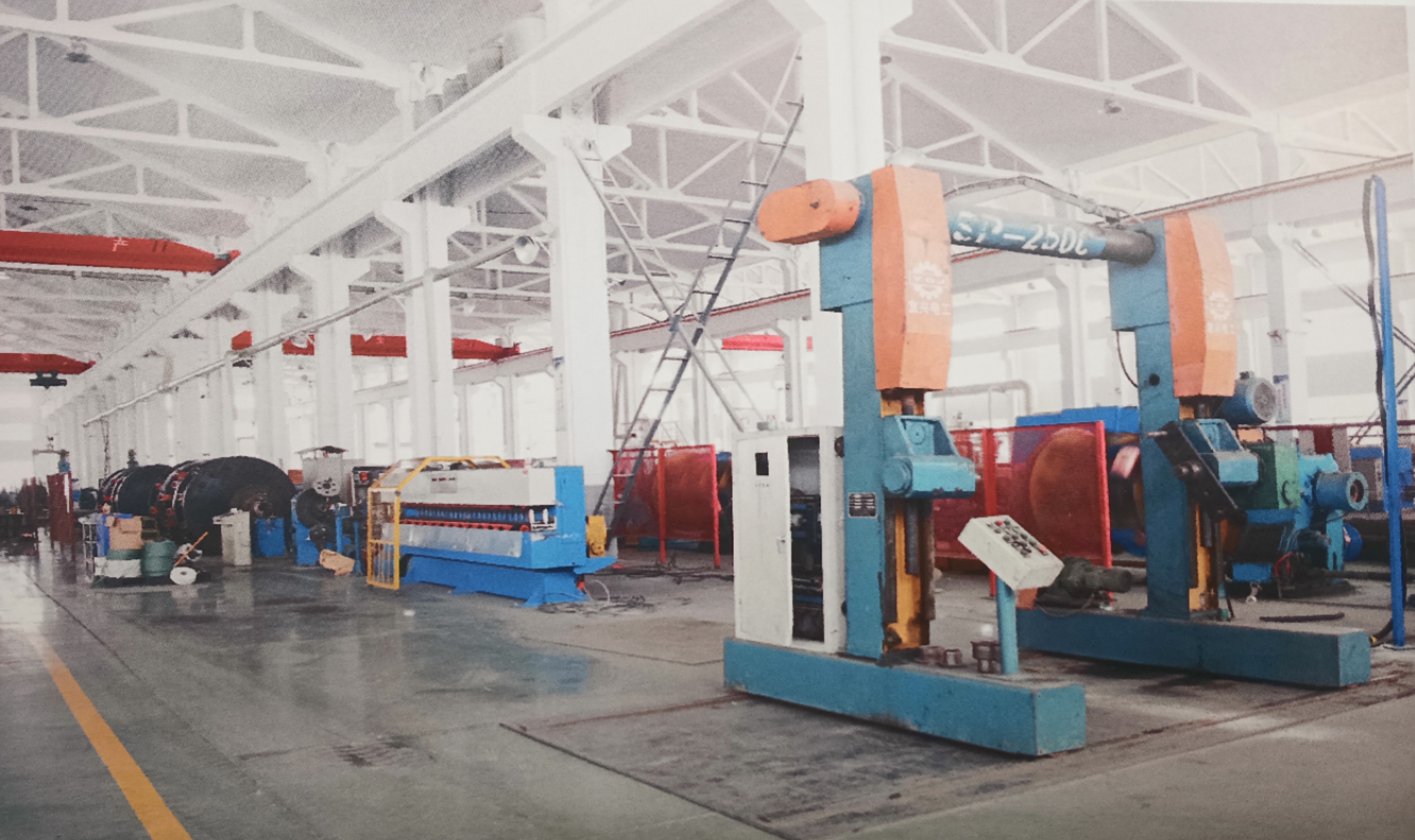

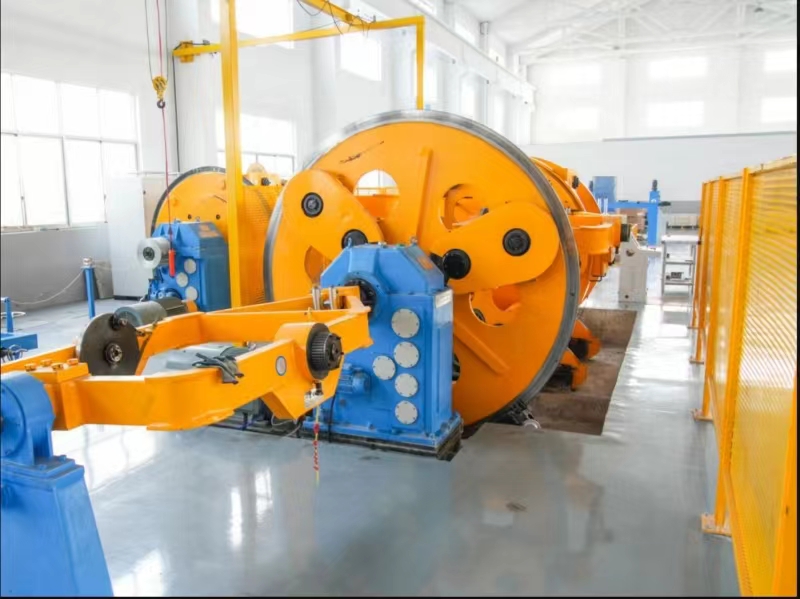

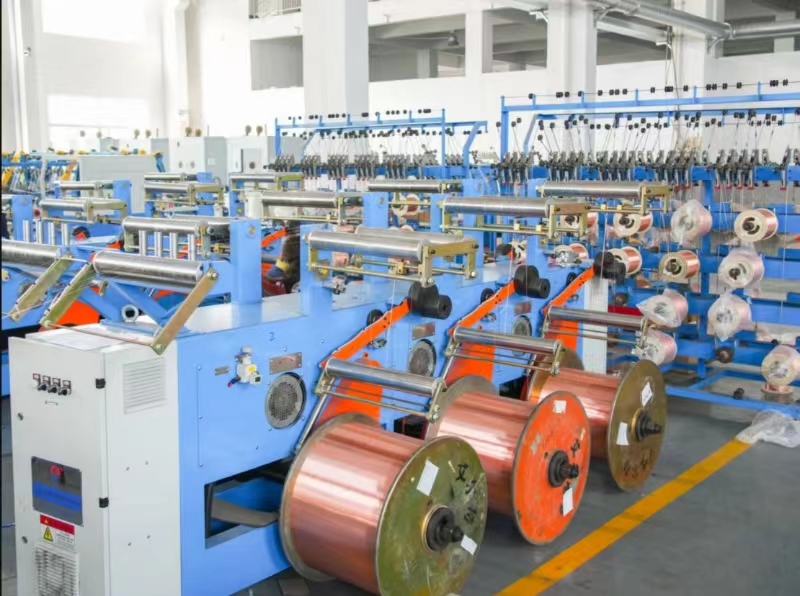

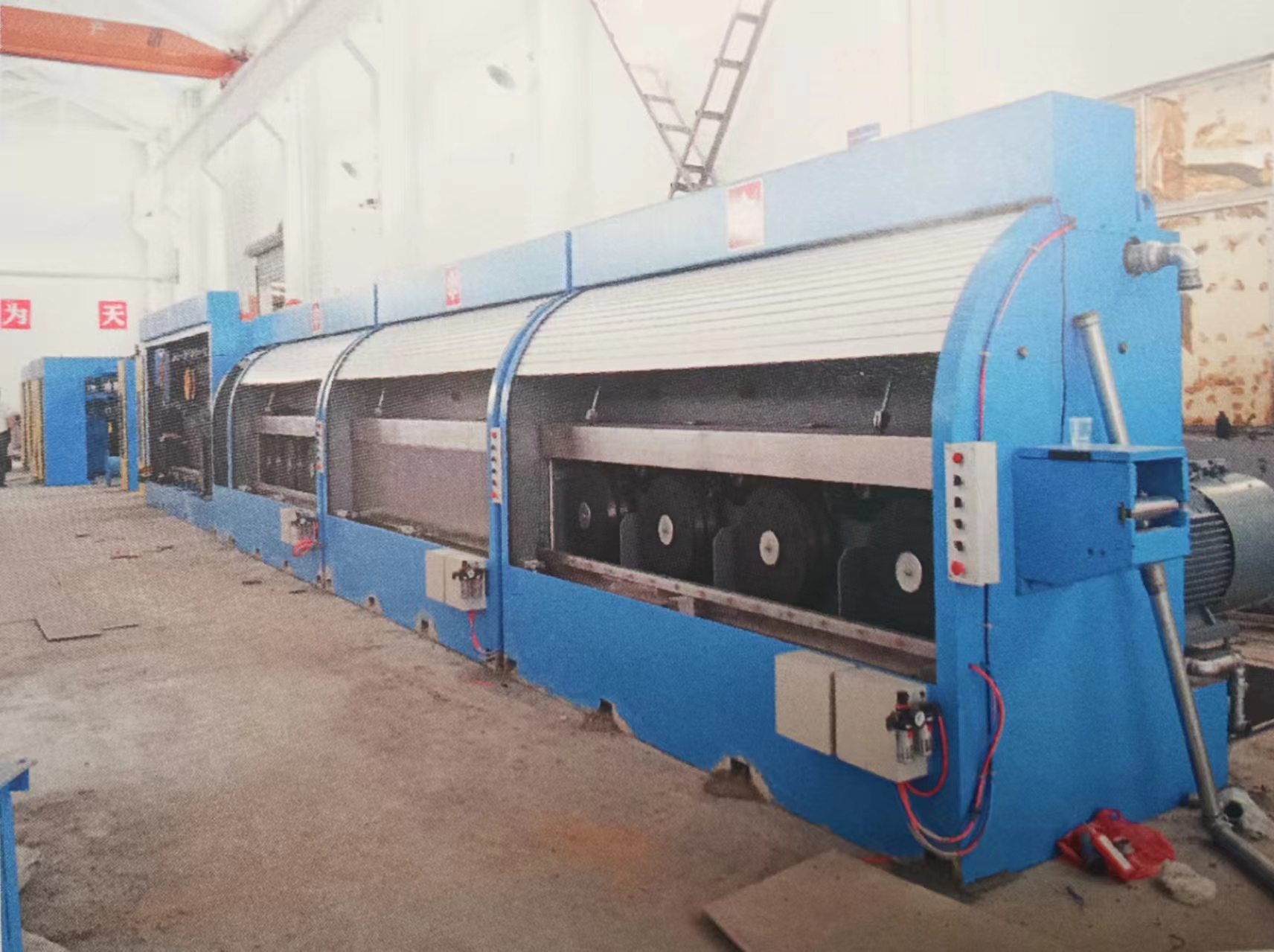

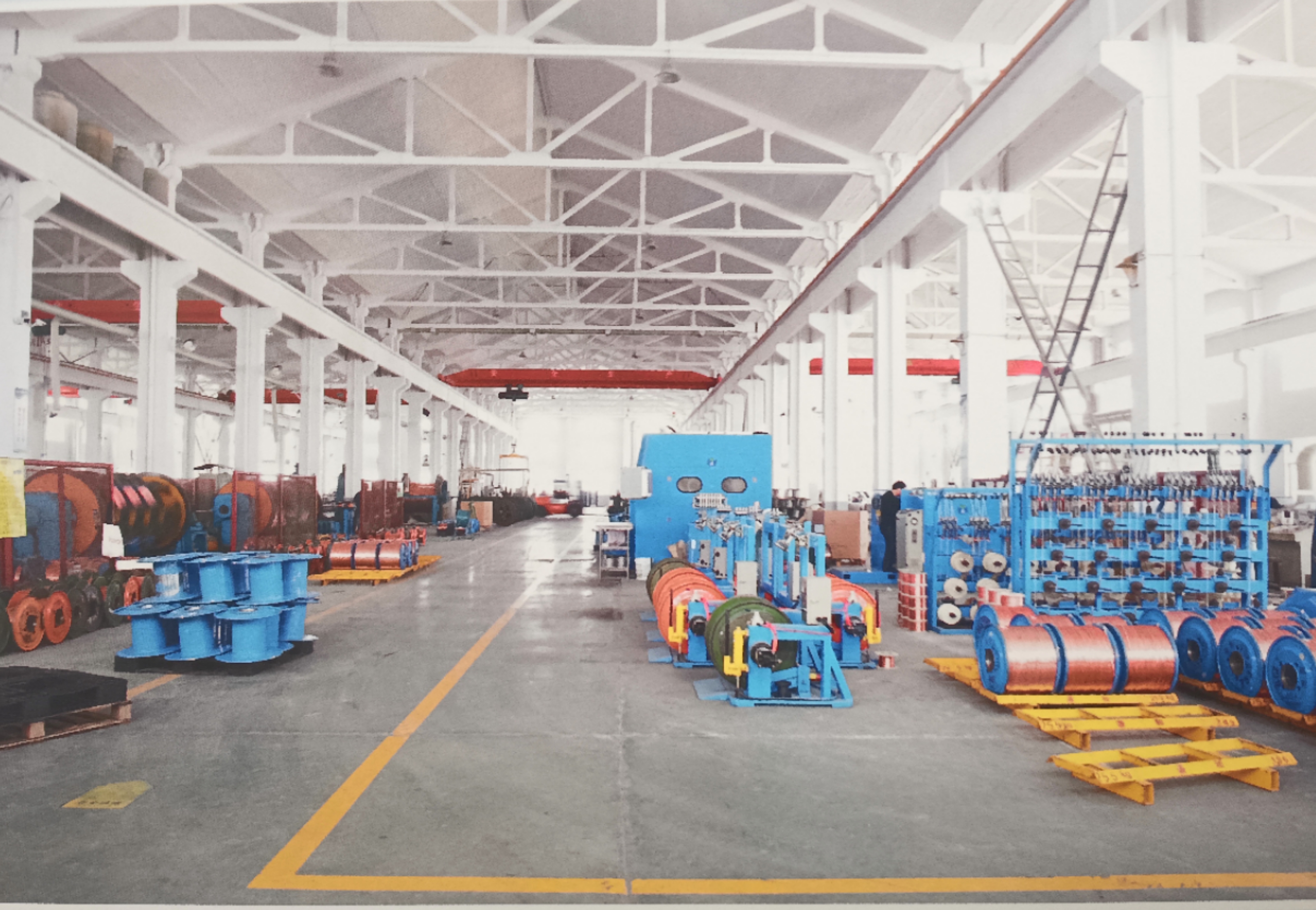

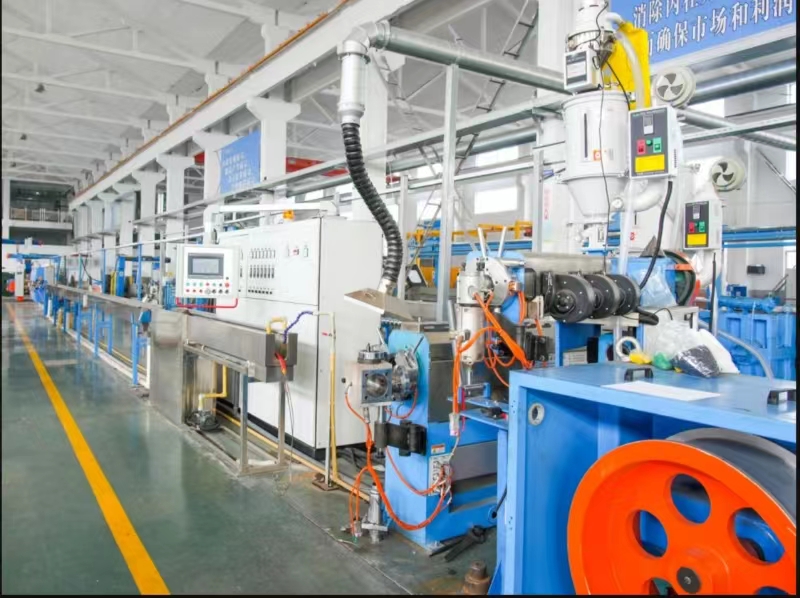

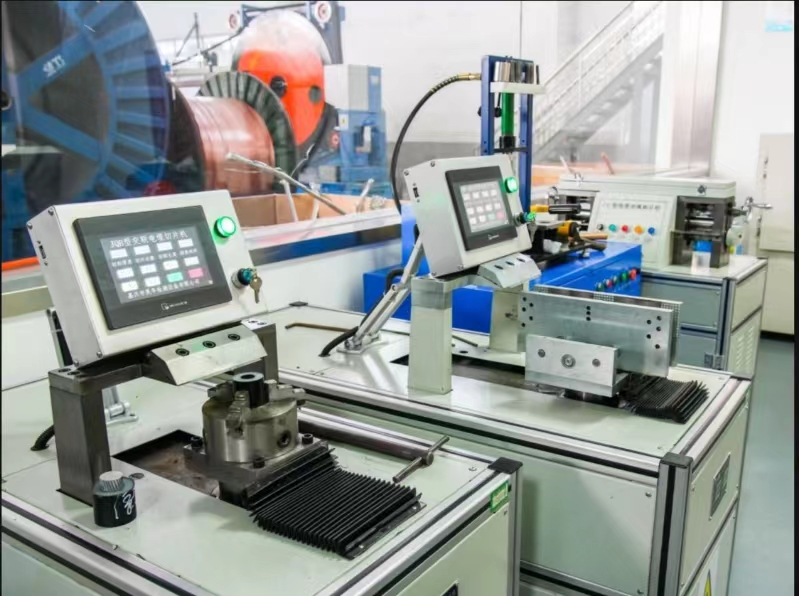

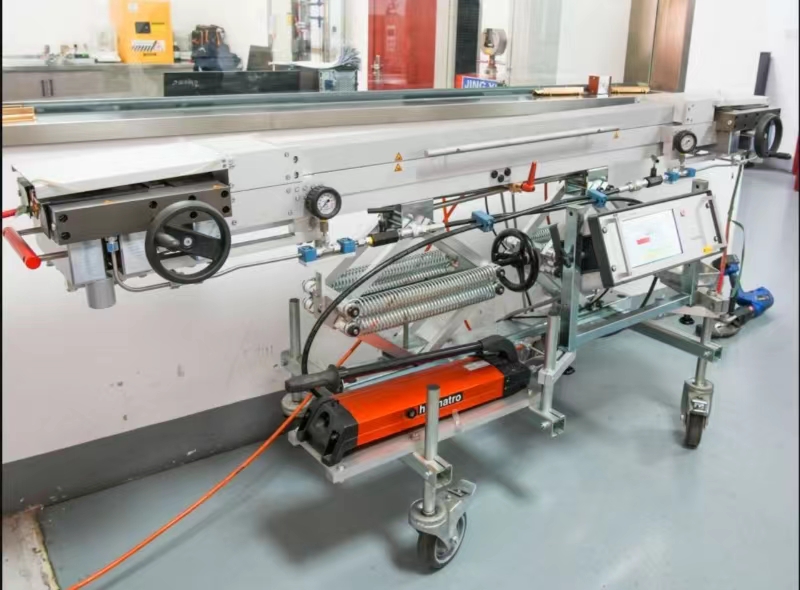

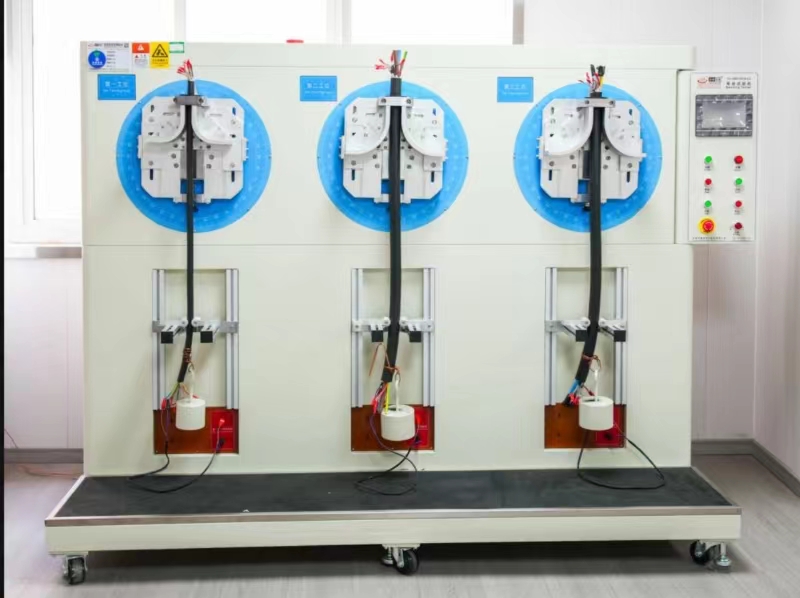

Manufacturing Technique
Exhibition
Q1:Are you factory or trader? A1:We are factory,We have production bases in Jiangsu province of China. Q2 :How about your price? A2 :We promise that our price is the best based on same good quality among Chinese counterparts. Q3 :How about your productquality? A3 :We have our own technicians and engineers, and the production of each batch of products is controlled through layers of technology. We resolutely do not allow unqualified products to enter the market. Q4 :How about your delivery time ? A4 :Generally speaking, we can finish the production and deliver the goods within 7 days.If your order is large, please consult our sales staff for the specific production time. Q5 :Can you offer sample service? A5 :Yes,we can offer free sample,but the shipping cost need to be charged by you. Q6 :How about your after-sale service? A6 :We have a professional sales team to accurately understand your needs before the sale and try to avoid problems. After-sales,if you have any questions about the product, you are welcome to consult. Q7 :Can you accept OEM? A7 : Yes,We can.Please feel free to tell us your requirements, and our professional engineers will help you make the most suitable plan. Q8 : Why choose your company? A8 :We have over 30 years wires and cables production and export experience,We know well every detail during exporting and Each index of cable.So it will be much easier to cooperate with us.
