CK6150 New CNC Lathe with 8 Station Tool Holder - Price

Video

1 / 5

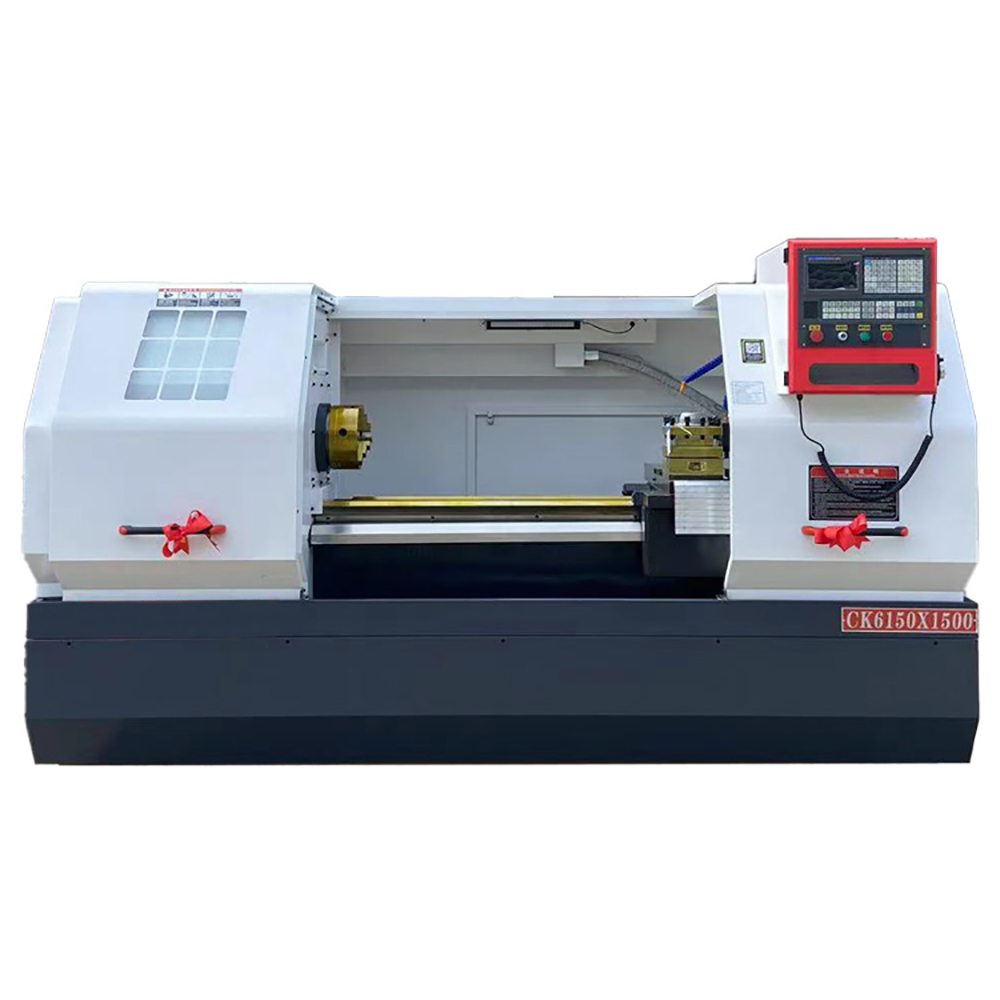

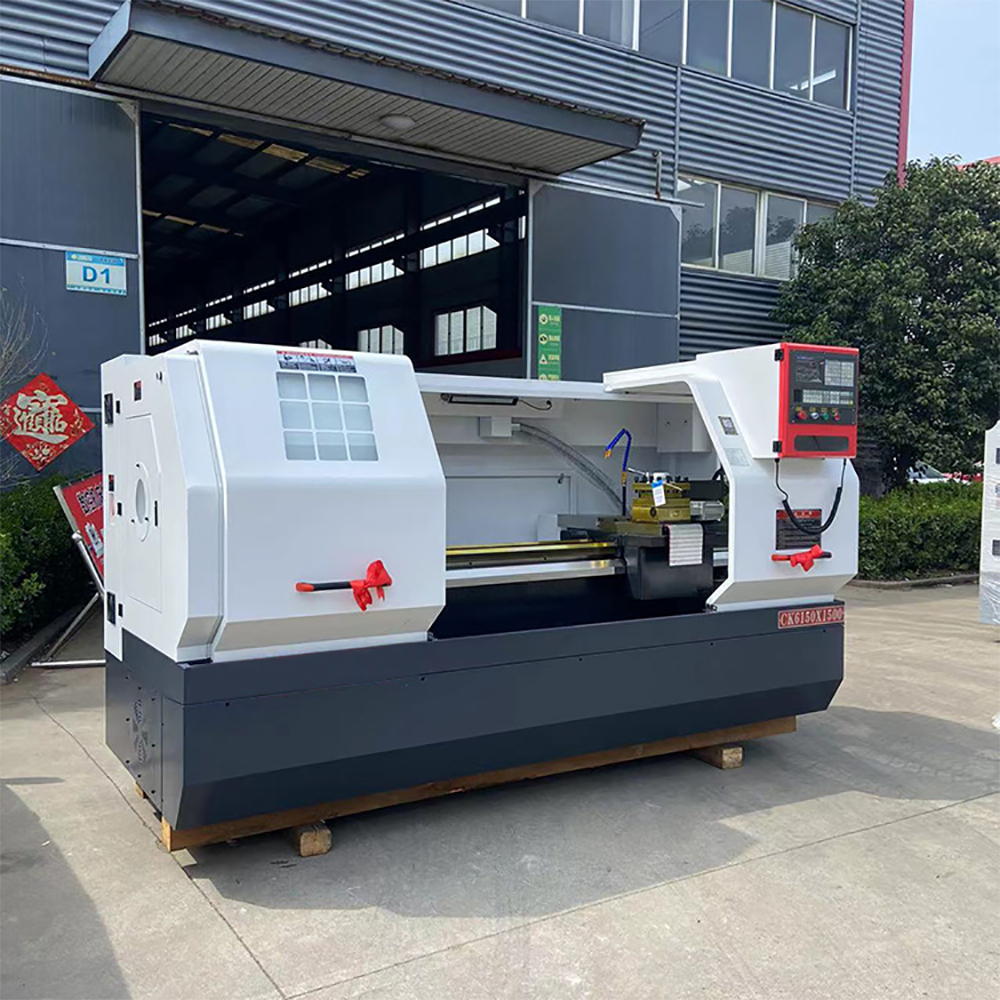

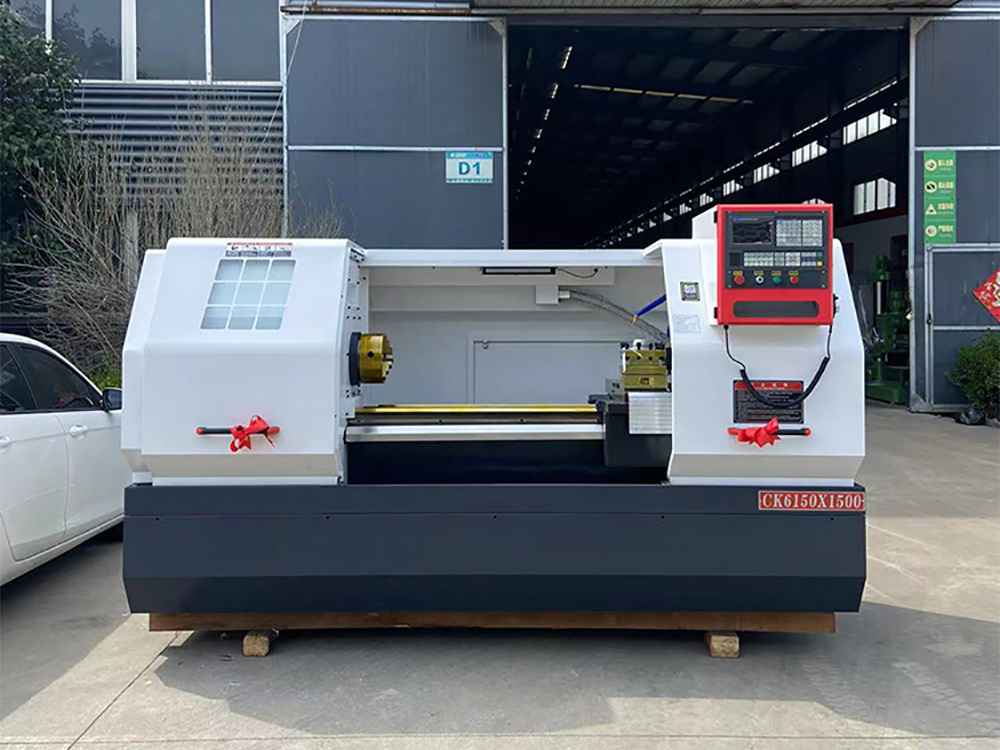

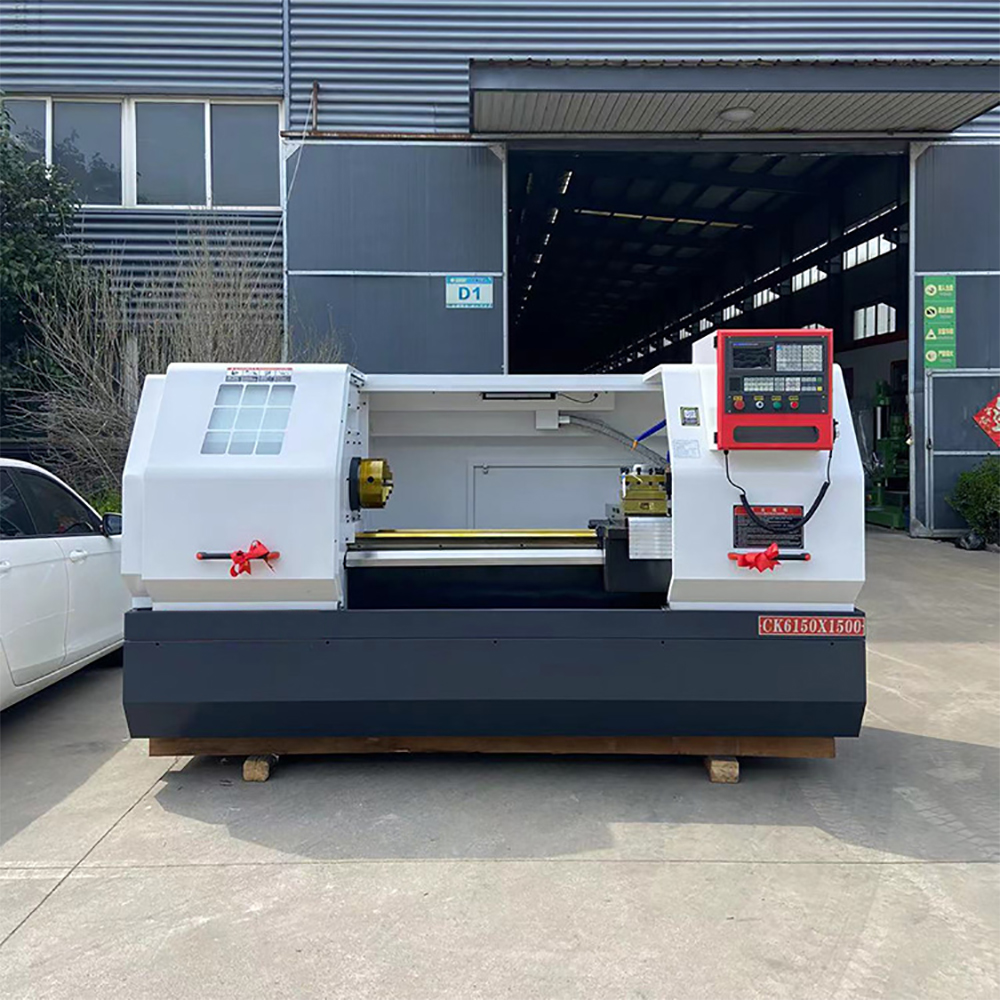

CK6150 New CNC Lathe with 8 Station Tool Holder - Price

$9500.00

≥1 set
$8600.00

≥3 set

Options:

500
7,5kw

Get Latest Price

You might also like

High Speed Machining Centers for Automotive Industry

1 set (MOQ)

CK6140 CK6150 Metal CNC Flat Bed Turning Machine

1 set (MOQ)

Vertical Machining Center for Metalworking" could be effectively simplified to: "Vertical Machining Center for Metalworking Tasks" However, for a more concise and SEO-friendly title, consider: "Vertical Machining Center for Metalworking" This title

1 set (MOQ)

CK6136 CK6140 X1.5m 2m CNC Lathe - Chinese Hot Sale Heavy Duty Metal Lathe Machine with Optional Fanuc Controller

1 set (MOQ)

CK6130 CNC Horizontal Lathe Machine: Flat Bed CNC Turning Machine

1 set (MOQ)

CNC Lathe Machine CK6150 Precision Flat Bed Hard Guide Rail

1 set (MOQ)

CNC Automatic Precision Metal Lathe Machine CK6160

1 set (MOQ)

CK6140 CNC Machine 1500mm Guide Rail 360mm Width Heavy Cutting

1 set (MOQ)

CK6150 New CNC Lathe with 8 Station Tool Holder - Price

1 set (MOQ)

High Precision CK-6163 Horizontal Flat Bed CNC Lathe Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
TYPE	Horizontal
Max. Length Of Workpiece (mm)	3000 Mm
Structure	Flat Bed Lathe
Machining Capacity	Heavy Duty
Max. Weight Of Workpiece(kg)	600kg
Width Of Bed (mm)	400mm
No. Of Spindles	2
Number of axes	2
Travel (X Axis)(mm)	350 Mm
Travel (Z Axis)(mm)	1000 Mm
Positioning accuracy (mm)	±0.001
Repeatability (X/Y/Z) (mm)	±0.001
Place Of Origin	Henan, China
Dimension(LWH)	3620x1600x1750mm
Brand Name	WADJAY
Model Number	Ck6150
Voltage	380V/220v
CNC Control System	GSK/FANUC/MITSUBISHI/KND/Siemens/DELEM
Tool Post Stations	8, 6, 4
Weight (KG)	3550
Warranty	2 Years
Key Selling Points	Competitive Price
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	2 years
Range of Spindle Speed(r.p.m)	150 - 1500 r.p.m
Cutting torque	7.5 N.m

Product description

Description

Mainly used for turning inner and outer cylindrical surface, end surface, taper surface, arc surface and thead of shaft, etc., with high efficiency and accurate processing. WADJAY precision cnc lathe CK6150 will offer you perfect service by excellent performance, strong rigidity, long-term stability and higher accuracy.

SPECIFICATIONS & EQUIPMENT

* Full enclosure complete, safe and easy operation.
* High rigidity casting bed.
* High precision spindle bearing.
* GSK, FANUC ,Siemens system as optional selection.
* Precision cnc lathe bed guideways industively hardened.

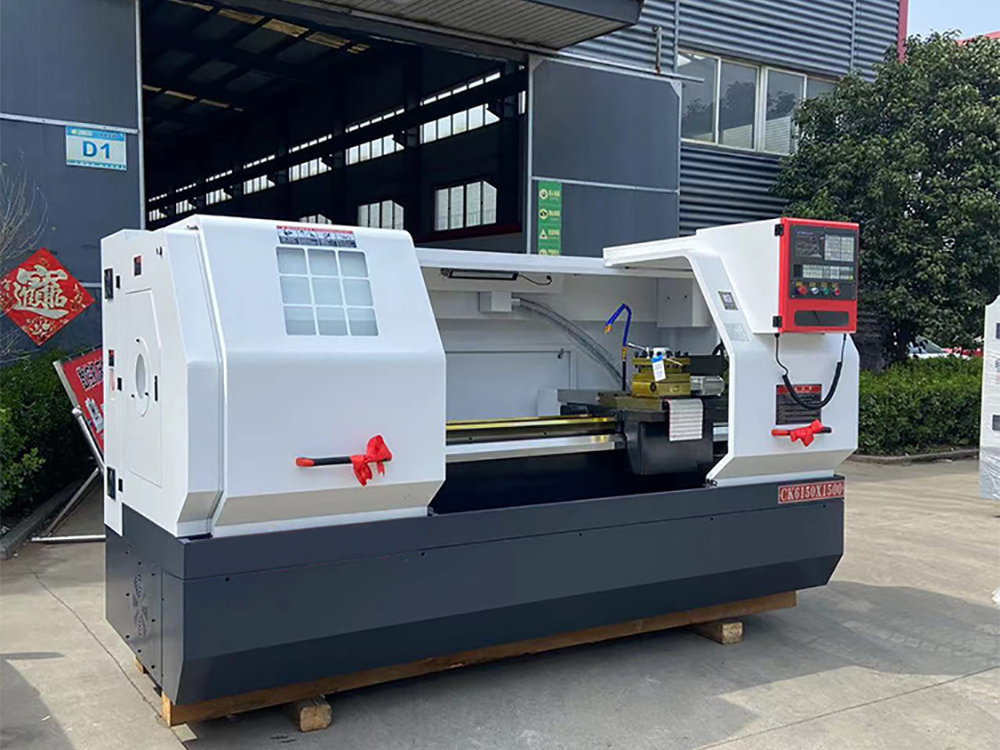

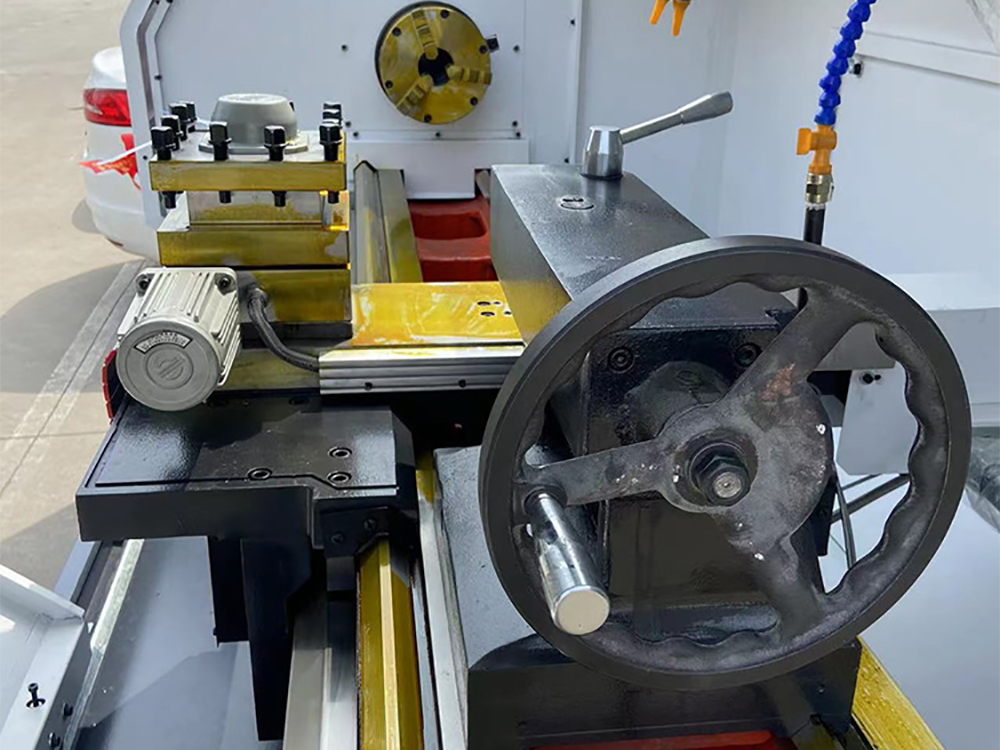

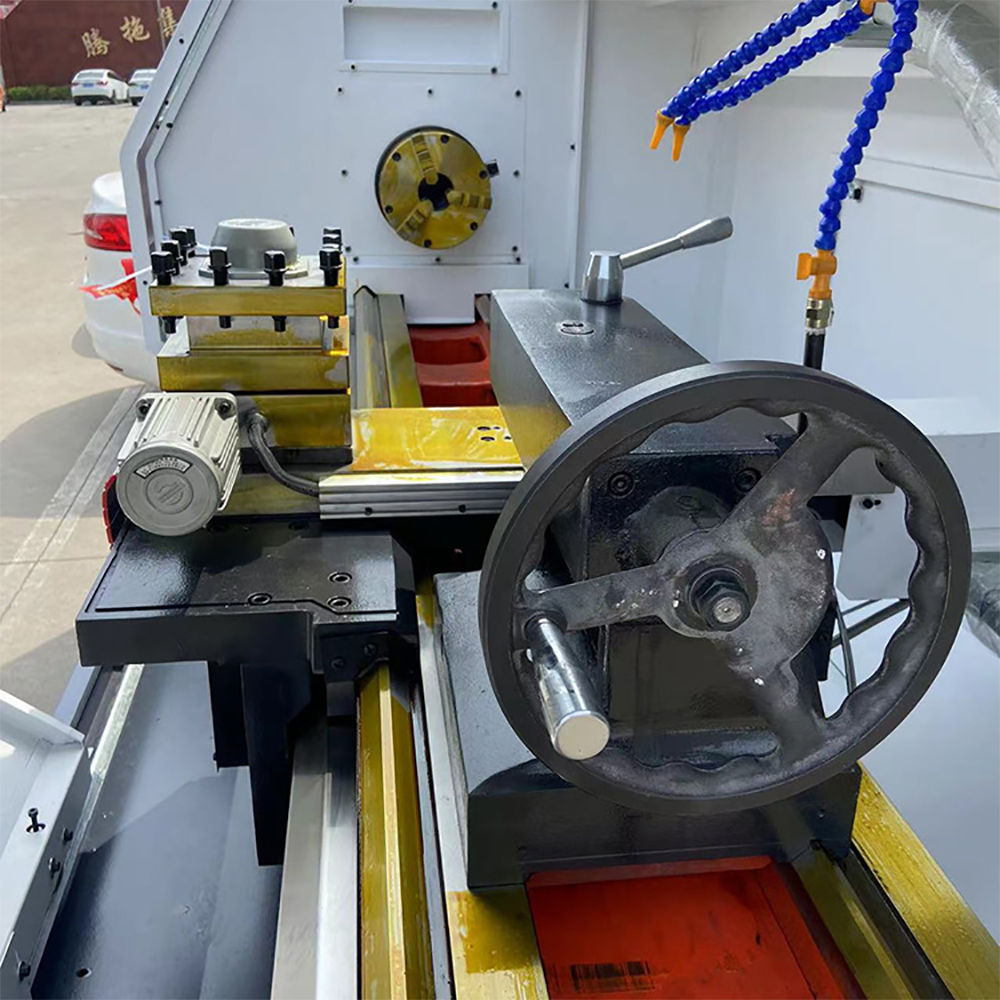

PRODUCT DETAILS

PRODUCT SPECIFICATIONS

Specification	CK6150
Capacity
Chuck size	10”
Max. swing dia. over bed	500mm
Max. swing dia. over slide	280mm
Distance between center	750/1000/1500/2000mm
Width of bed	400mm
Spindle
Spindle speed range	150-1500rpm
Spindle bore	Φ82mm
Max. dia. of through-hole	Φ60mm
Spindle nose	A2-8(*105mm for A2-11)
Spindle taper	Φ90mm 1:20,*105mm for 105mm 1:20
Axis
X axis travel	350mm
Z axis travel	750/1000/1500/2000mm
X/Z axis rapid traverse	6/8m/min
Turret
Type	Electrical type
No. of tool stations	4,6,8 position
Max. section of tool	25x25mm
Tailstock
External diameter	Φ80mm
Travel of tailstock quill	150mm
Taper of tailstock quill	MT5
Motor
Spindle motor power	7.5kw,*11kw
Coolant pump power	180w(120w)
Machine Dimensions
Overal dimension (L×W×H)	2420/2860/3110/3620x1600x1750mm
Packing size(L×W×H)	2600/3050/3350/3850x1800x2220mm
N.w	2750/3100/3350/3550kg
G.w	3000/3450/3750/3950kg

Why Choose Us

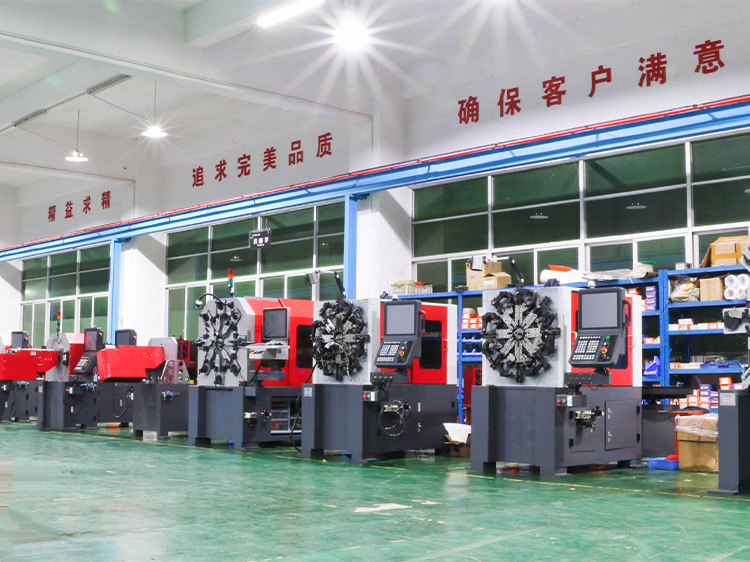

Company Profiles

WADJAY welcome customers from all over the world to visit our factory.

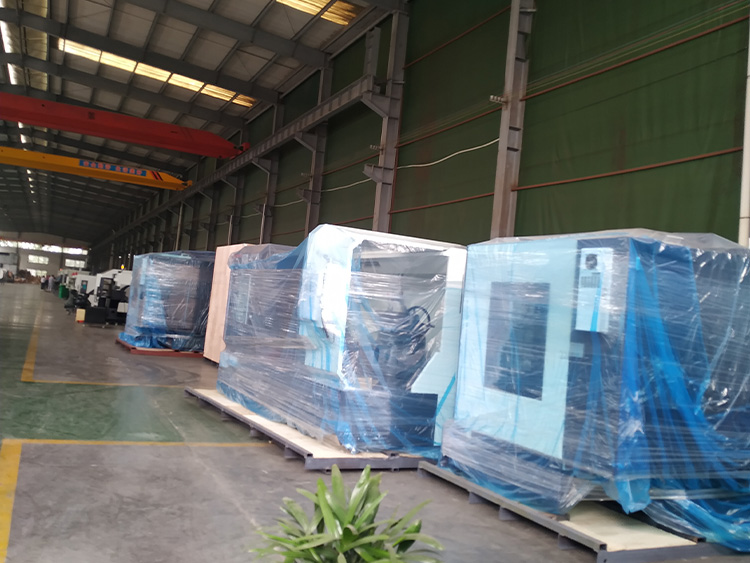

Packing & Delivery

Q1: How ??long is the warranty?

A1: We guarantee a 18-month after-sale service. Any problem when using, call or mail us, we will advise on technically sound methods. If needed, we will provide free accessories.

Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.

Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How ??about your delivery time?
A7: Generally, It will take about 35 days to send goods out. The specific delivery time depends on the items and the quantity of your order.
