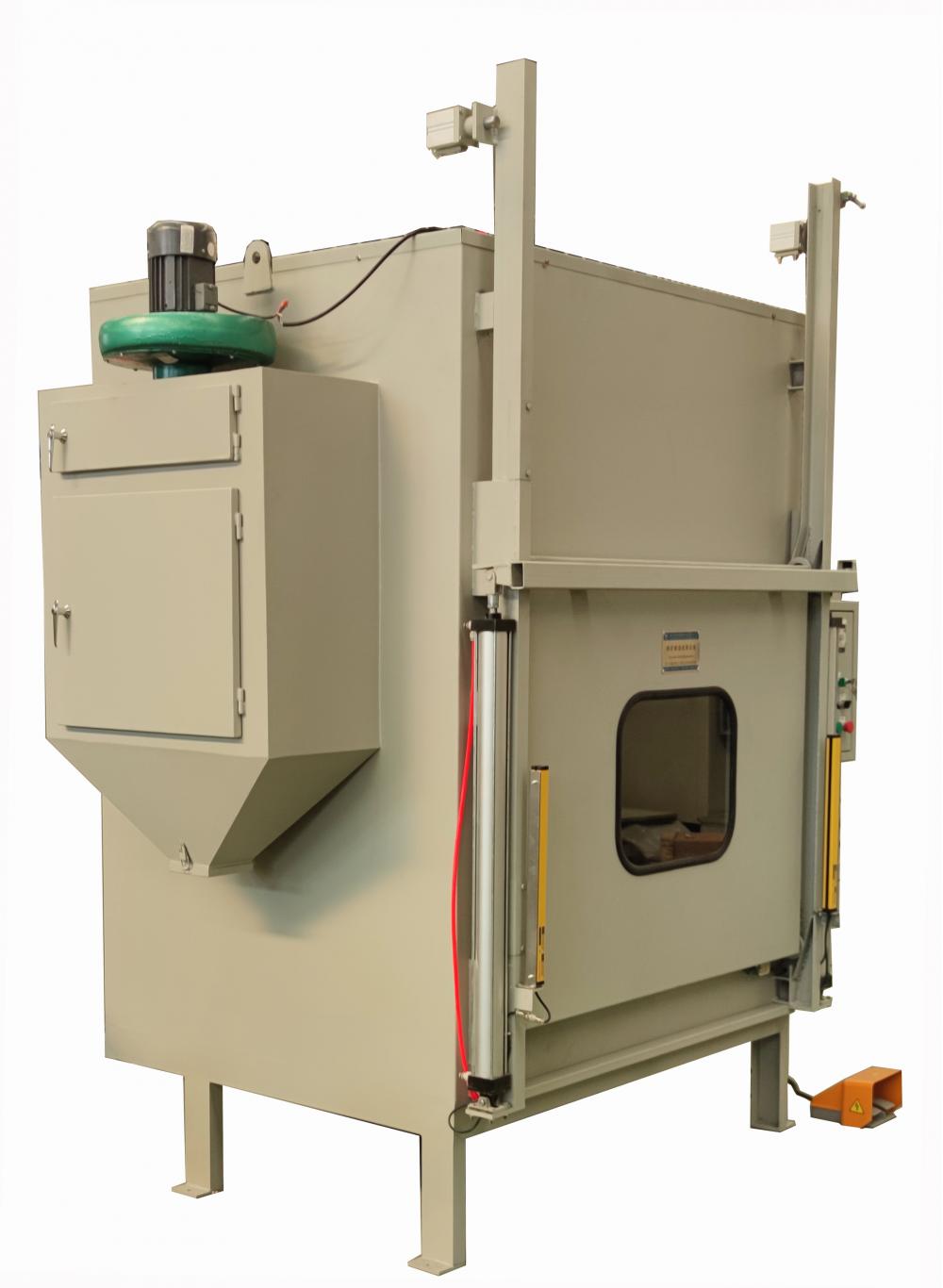

Closed environmental type shell shaker machine

1. impact energy: 100J;
2. impact times of air pick: 1080 times / min;
3. impact frequency: 18Hz;
4. air consumption: 23l/s;
5. working pressure: ≥ 0.63Mpa;
6. dust removal fan power: 1.1kw*2 sets;
7. minimum height of pick and drill: 180mm;
8. maximum height of pickaxe drill: 670mm;
9. lifting height of vibrating rod: 500mm;
10. table size: 500 × 500mm;
11. overall dimension: 2020 × one thousand and three hundred × 2800mm;
12. the enclosed machine body is equipped with built-in sound-absorbing cotton, sound insulation felt, etc., which greatly reduces the noise during the operation of the vibrating shell; At the same time, it is conducive to centralized dust removal, reducing dust pollution and improving the working environment of operators;
13. the air cylinder quick opening door opening mode makes the operation safer and faster;
