The bed is the backbone of a cnc router machine,our machine bed adapt wall steel square tube welded together,solid and not deformed.After high temperature tempering treatment to ensure the best strength and rigidity side arranged structure,heavy column,150*250mm gantry. Compared to ordinary machines,it has better stability.

The forklift location display of Sofia CNC router machine.

Forklift loading and unloading reserved space,which can better protect body and cargo carrying weight

2.Machine spindle

Because the accuracy of cnc router machine is greatly depends on the spindle ,The Sofia-ATC Series CNC Router machine comes with Water-Cooled spindles produce higher RPM with lower noise levels.With our sealed cooling system and temperature monitoring, the spindle is always running in a dust-free, cool and highly efficient state

3.Servo motor and drive

Sofia-ATC series cnc router machine adapt Delta servo motor driver,SHIMPO reducer structure*3

They use position feedback to account for errors and system disturbances unlike open loop systems.Servo drives offer a wide range of advantages for automatic machining systems, including superior positioning, speed, and motion control.With this motor, the machine can realize high-precision machining at high speed.

SHIMPO 1:8 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.

4. Transmission structures

PMI 20 Linear guide+Flange slider+precision 1.25 helical rack

The PMI linear guideway

• Low frictional resistance, high precision maintained for long period
• High rigidity with four-way load design
• Suitable for high speed operation
• Easy installation with interchangeability
• thus all Sofia series adapt PMI linear guideway.

Rack of Sofia adopts high-precision 1.25 helical tooth rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

Adapt PMI 20 Linear guide+Flange slider+precision 1.25 helical rack transmission structures can ensure that Running stably and reliably, working life is long, machine can keep working for long time.

5.Machine head piece



The machine head of sofia Series is made of T6061/6030 aluminum parts by professional CNC machining center.After oxidation surface and low temperature annealing treatment, the machine head is lighter and more durable.

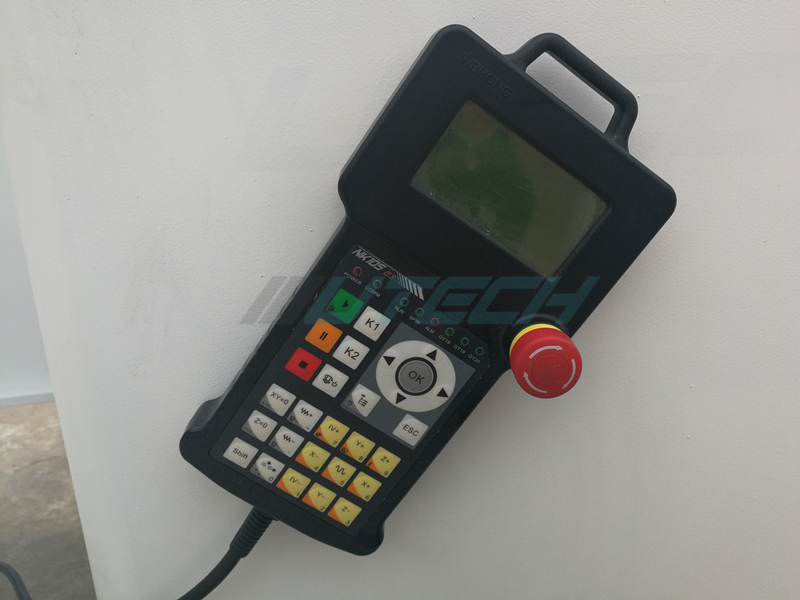

6.NK105 G3 handle controller



7.T-slot&vacuum working table+vacuum pump(You can also choose T-slot working table with PVC)



Vacuum table with 6vacuum zones, which can be strong adsorption of materials of different sizes, density, no deformation. No oil vacuum pump, hight suction, me convenient, stable capability.

Popular CNC Router table structures that use a vacuum to hold the working objects are called Vacuum Tables. Besides its firm holding, a vacuum table can also flatten boards and make closed shaped cut-outs more easily without obstructs like clamps on the toolpath.

 8.LED light



The whole sofia cnc router mahcine is beautiful and elegant.More importly it has cool visuals.

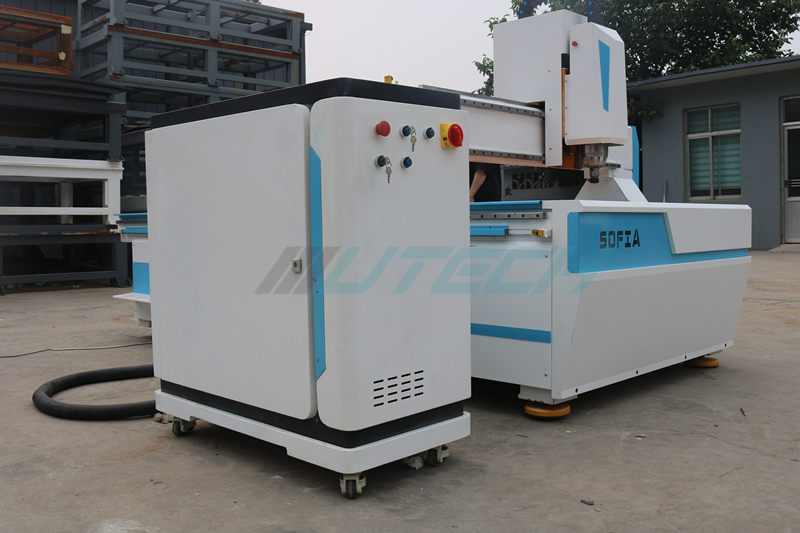

9. Independent control cabinet



Control cabinet manufacturers in the side of the sofia cnc router machine, easy to operate.

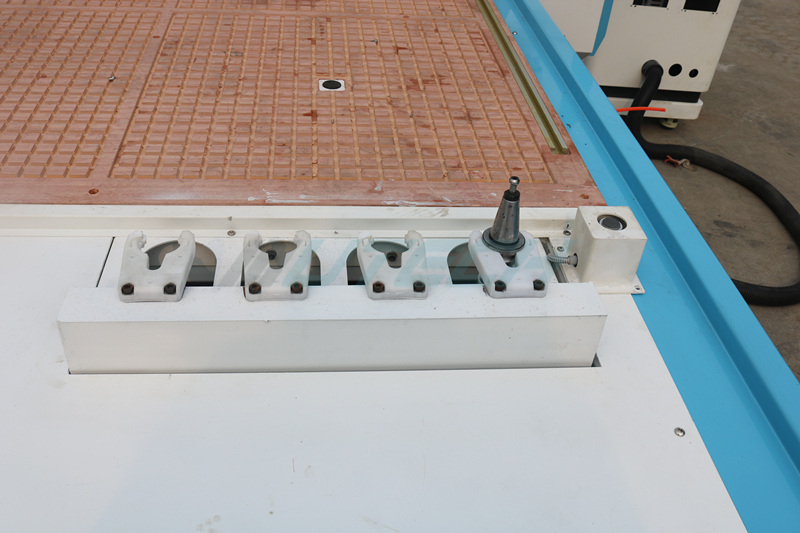

10.4 PCS linear type( back side) and ATC Tool Calibration



4 PCS linear type ATC machining centers, most using a manipulator tool change,it is more time-saving.

Automatic tool calibration pad allows for easy and accurate Z" zero position for single and multiple tool changes through the program.

And sofia is fully customizable. Options include Oscillating Tangential knife,Vision Registration system which uses a camera and software to eliminate errors while cutting, the Automatic Tool Changer for rapid tool changes while machining,a misting system for use while cutting aluminum and other non-ferrous metals, CAD/CAM software,control system and many more.
