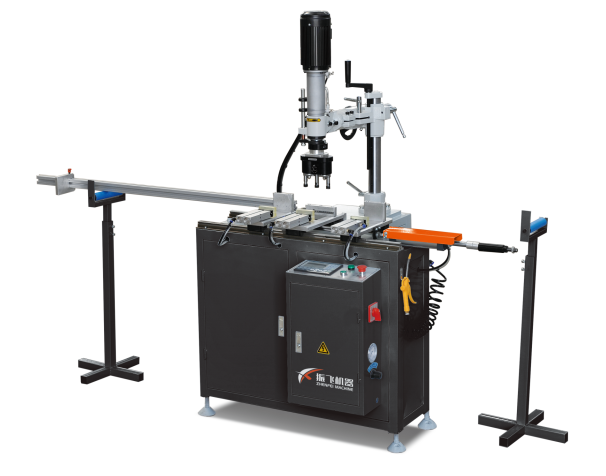

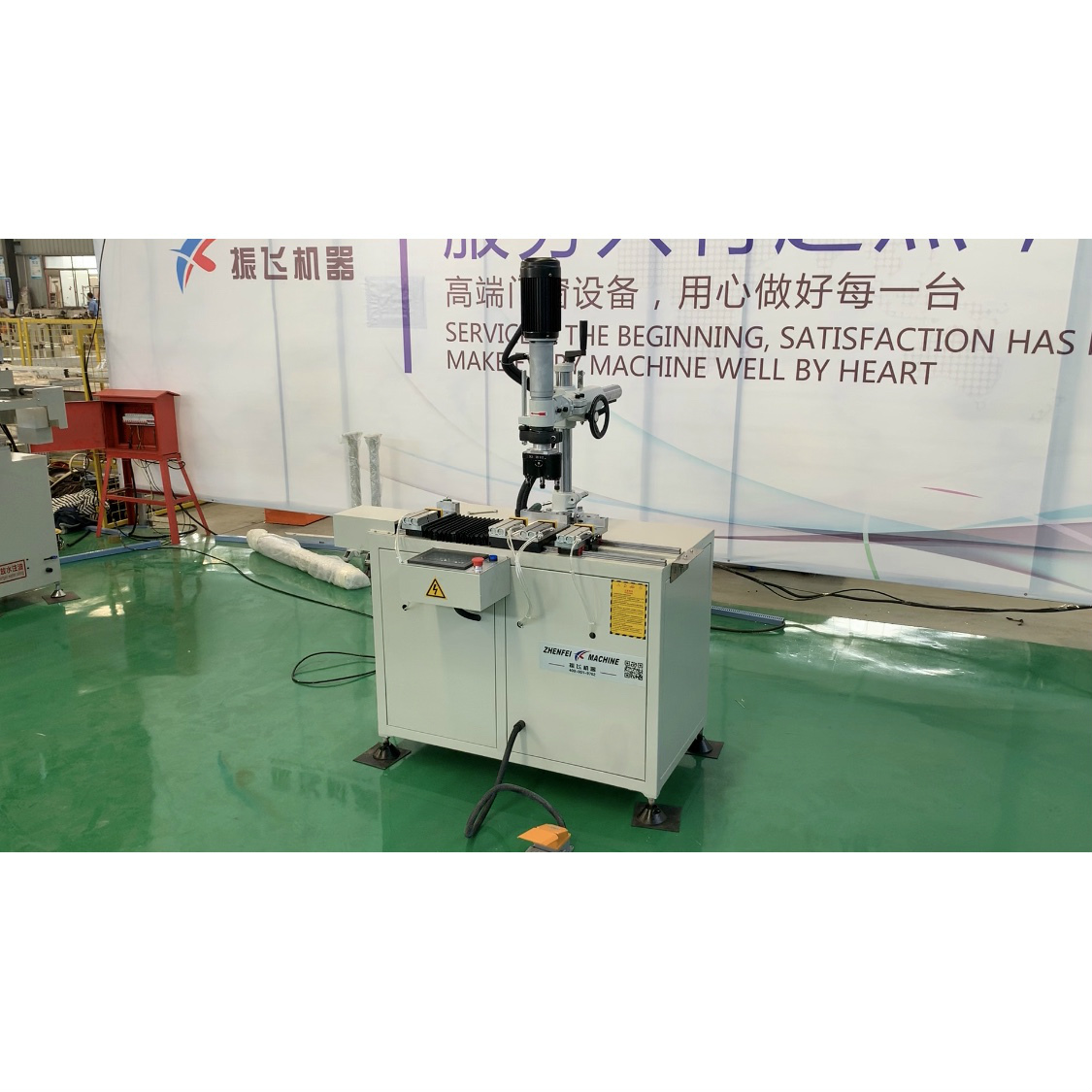

CNC Shutter Mullion Punching Machine

$3000.00

≥1 set
$2800.00

≥5 set

Options:

BYZC-CNC-200
140mm

Get Latest Price

You might also like

Fixer Punching Machine for Aluminum

1 set (MOQ)

Punching Machine for Aluminum Profiles

1 set (MOQ)

Aluminum CNC Shutter Million Punching Machine" could be refined to: "Aluminum CNC Shutter Punching Machine" However, if you want to keep the essence of "million" as it might refer to high precision or capacity, another option could be: "High-Precision

1 set (MOQ)

Zhenfei Punching Machine for Aluminum Profile Windows and Doors

1 set (MOQ)

Mid-Mullion Punching Drilling Machine

1 set (MOQ)

Punching Machine for Aluminum Profiles

1 set (MOQ)

ZLY6-50 Six-Station Punching Machine for Aluminum Window and Door

1 set (MOQ)

Punching Machine for Aluminum Windows and Doors

1 set (MOQ)

Transom Hole Puncher for Aluminum Windows and Doors

1 set (MOQ)

Lock Hole Device: Slot-Machine for Aluminum Window and Door

1 set (MOQ)

Basic Info

Model No.
Brand Name
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Brand Name	Zhenfei
Voltage	380V/50HZ, 380V/50HZ
Weight	260 kg
Warranty	1 Year
Production Capacity	100%
Power	1.1KW, 1.1KW
Dimension(LWH)	14008001800mm
Applicable Material	stainless steel, Carbon steel, Aluminum
Key Selling Points	High Rigidity
Air pressure	0.6~0.8MPa
Air consumption	30L/min
Drill Specifications	3~7
Drill Speed	2800r/min
CNC Feeding Length	0~5m/min
Volume	1.5m3
Condition	New
Showroom Location	None
Marketing Type	New Product 2020
Warranty of core components	1 Year
Applicable Industries	Building Material Shops, Manufacturing Plant, Retail, Construction works?, window and door factory

Product description

Equipment Features

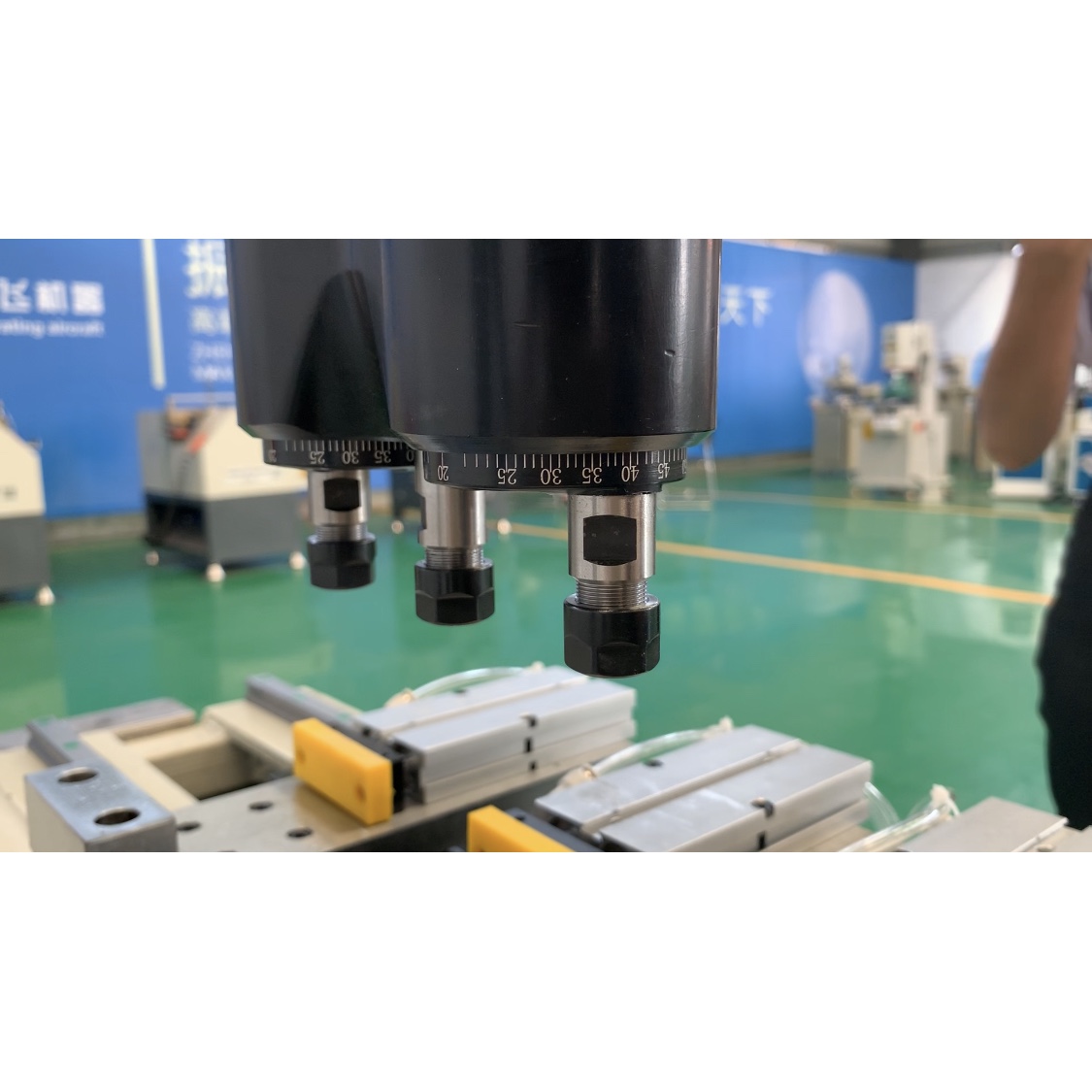

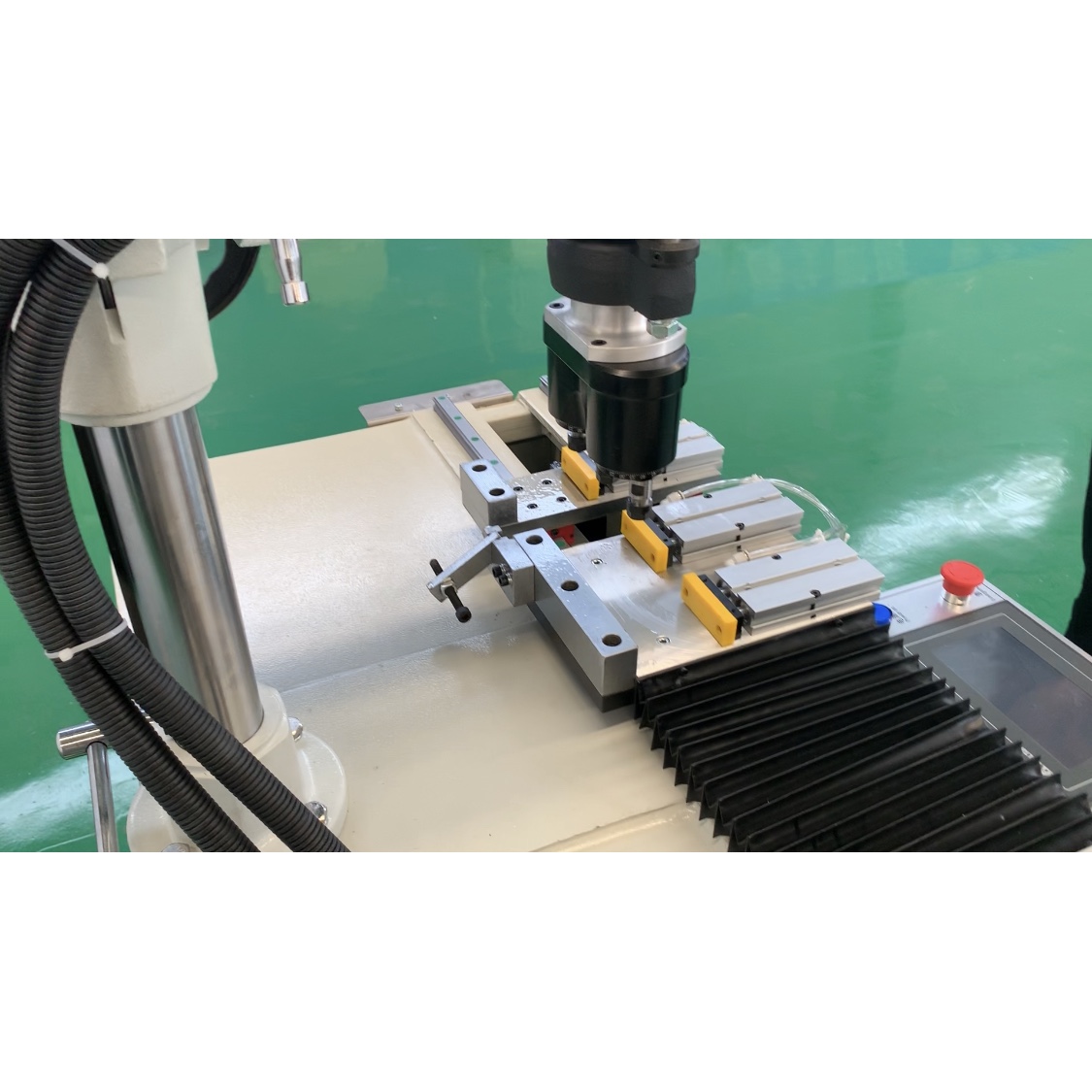

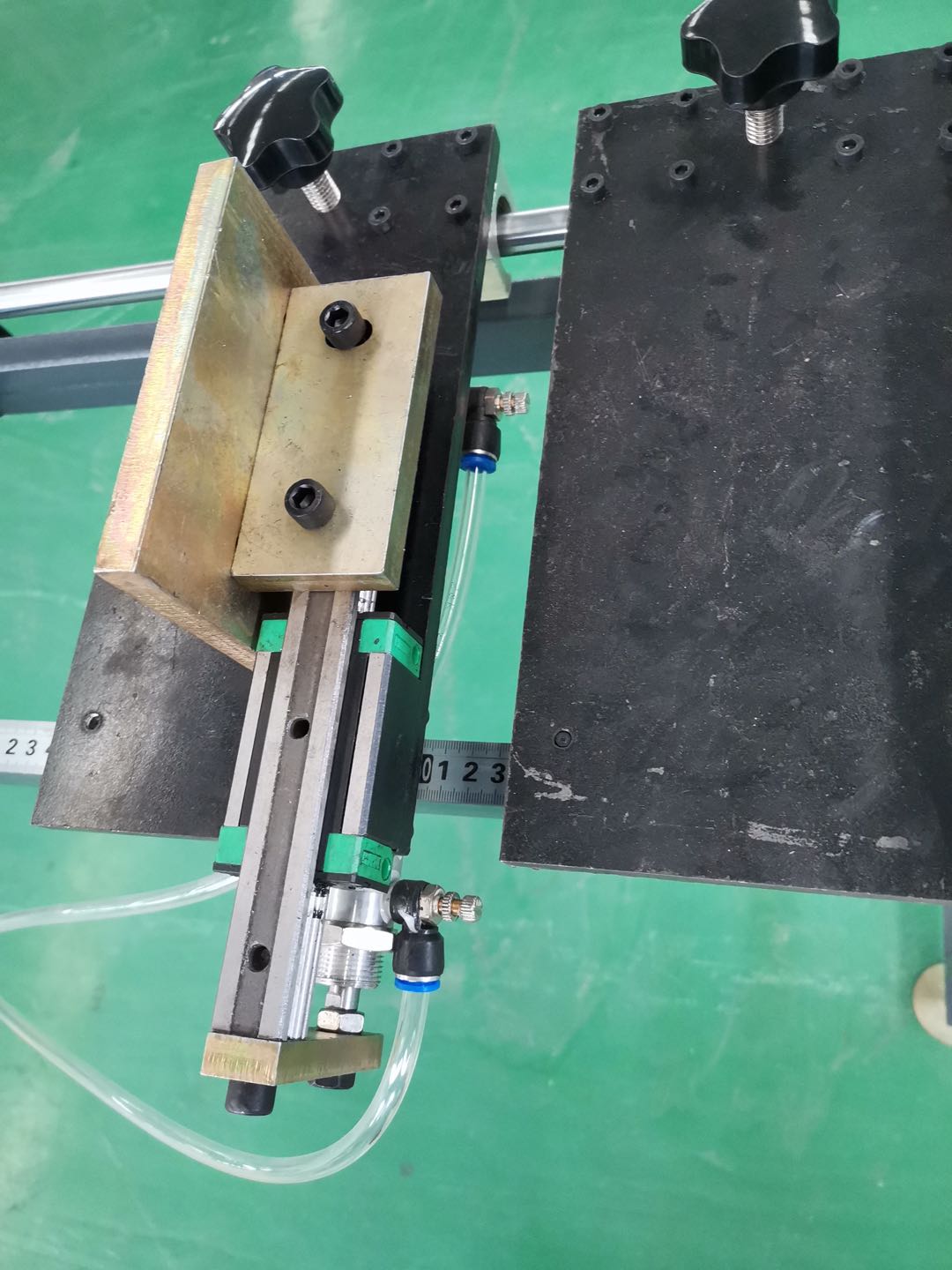

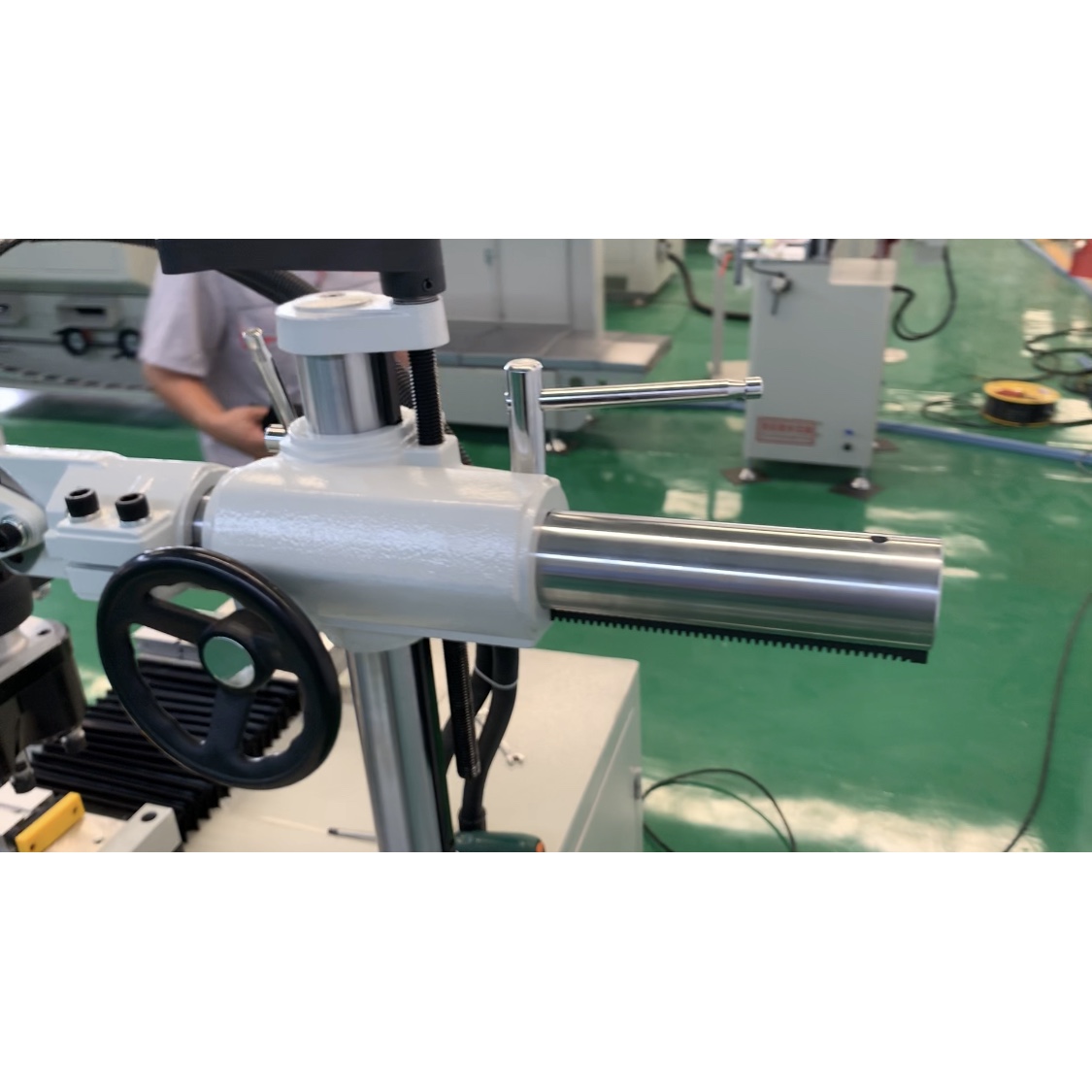

Mainly used for drilling aluminum doors and windows blinds, especially double-layer blinds that cannot be punched. 1、The bed of the machine tool is equipped with a drilling device and a numerical control feeding device. The drilling device is composed of a drilling motor, a drilling work cylinder, a three-head drill bag, up and down adjustment, front and rear adjustment devices, etc.; the numerical control feeding device is composed of a stepping motor, a lead screw linear motion pair, a clamping cylinder, etc.

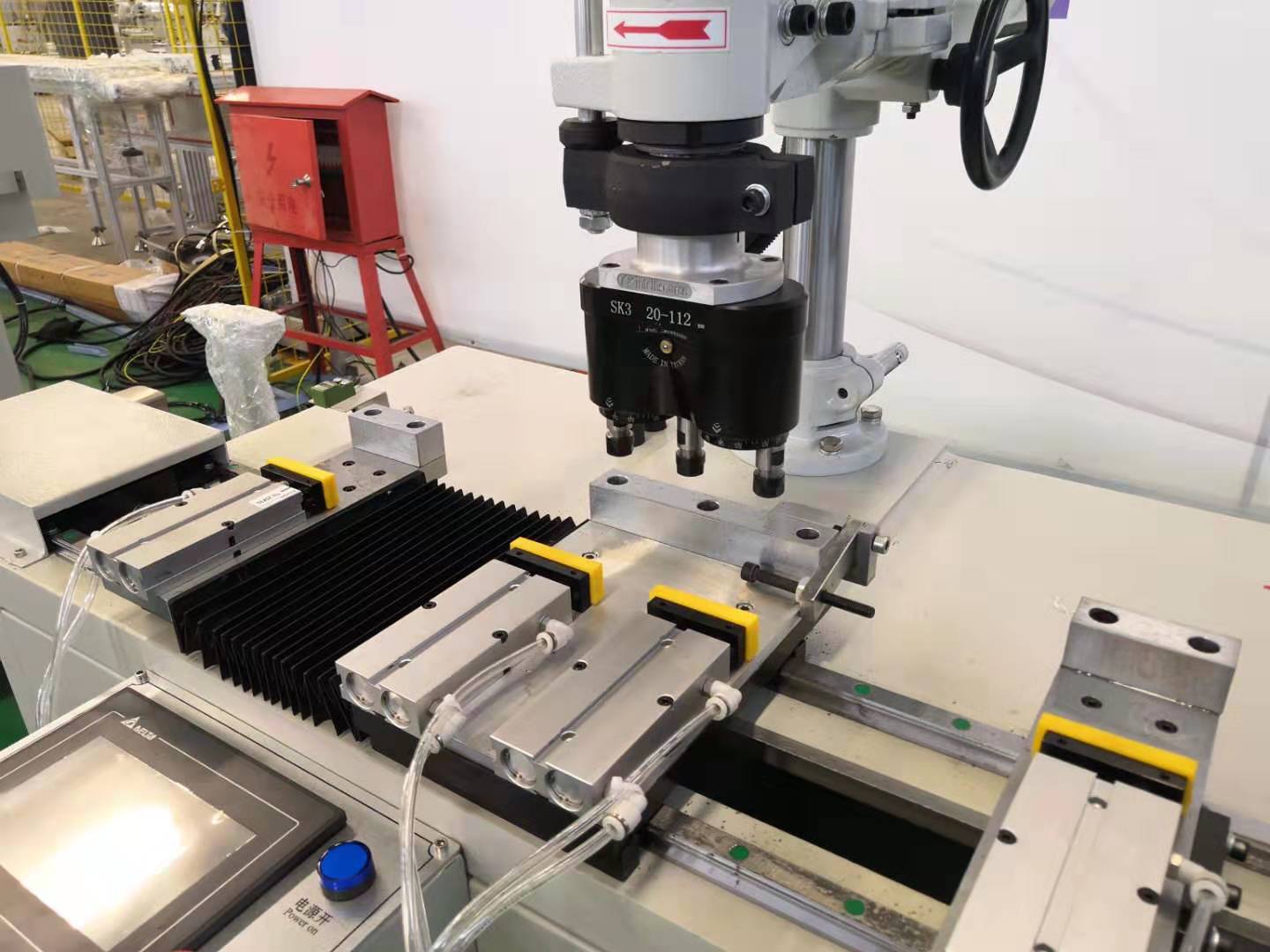

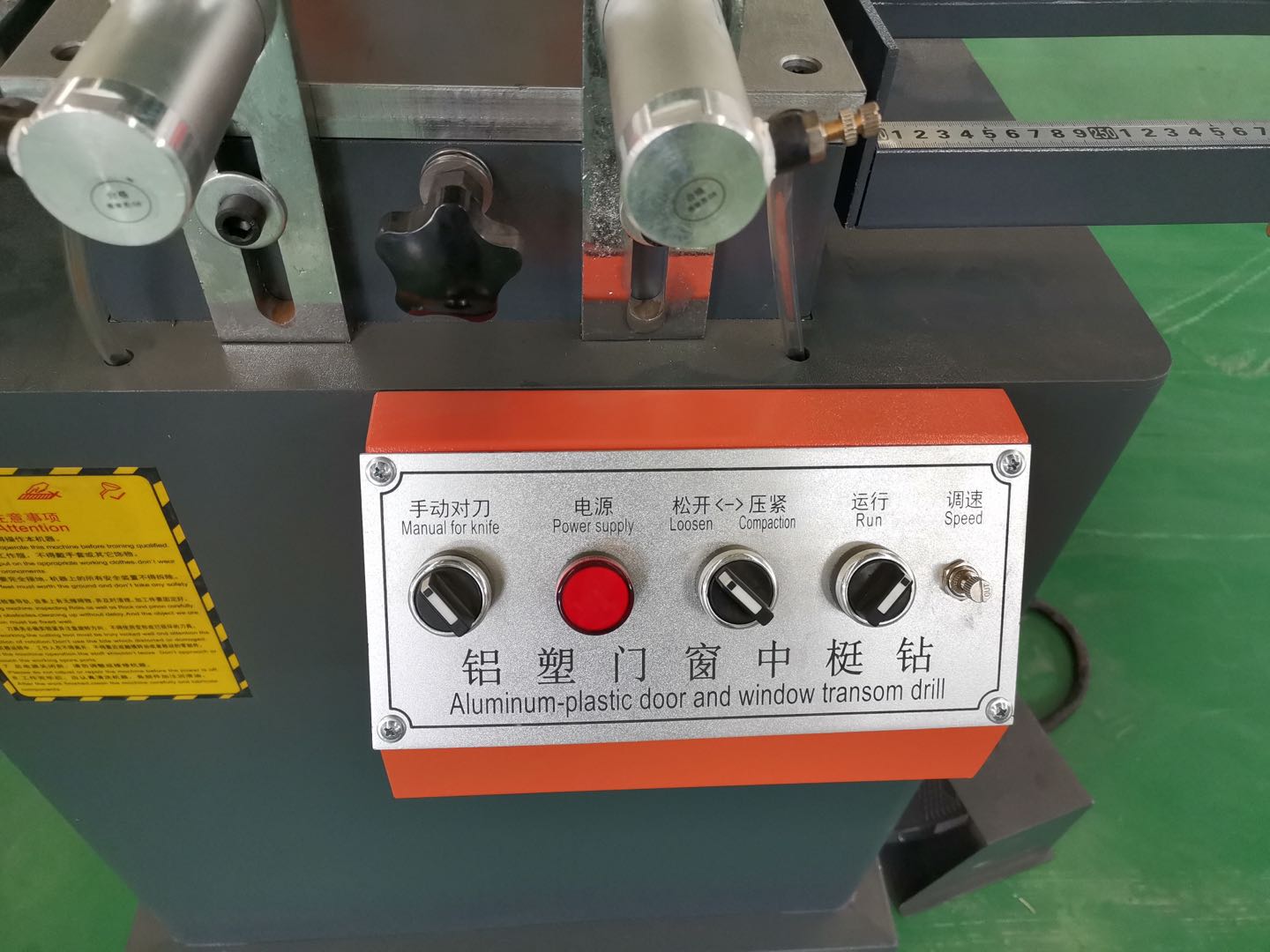

2、An operating table is installed in front of the machine tool, and the electrical control components are all installed in the electrical control box. After the workpiece is placed on the feeding table, as long as the operator presses the feeding clamp on the operation screen, the motor starts and runs automatically, and the machine completes the CNC feeding and drilling. Until it stops by pressing automatic operation.

3、On the left side of the drilling table, there is a numerical control feeding table, and on the right side of the drilling table is a pulling table. The two tables are linked, and the feeding length is controlled by the rotation of the screw。The profile processed in this way has no remaining material.
