Pneumatic Vacuum Lifter for Double Glazing Glass/Insuating Glass:

?

Main Function:

?

1.Suitable for moving? double glazing glass /tempered glass/glass curtain wall, on -site

? ? construction of glass deep processing and solar photo-voltaic glass

2. It can select DC charging vacuum pump,equipped with battery device.

3. Maximum bearing capacity is 1000kgs Max. Glass size can reach to 8m

?

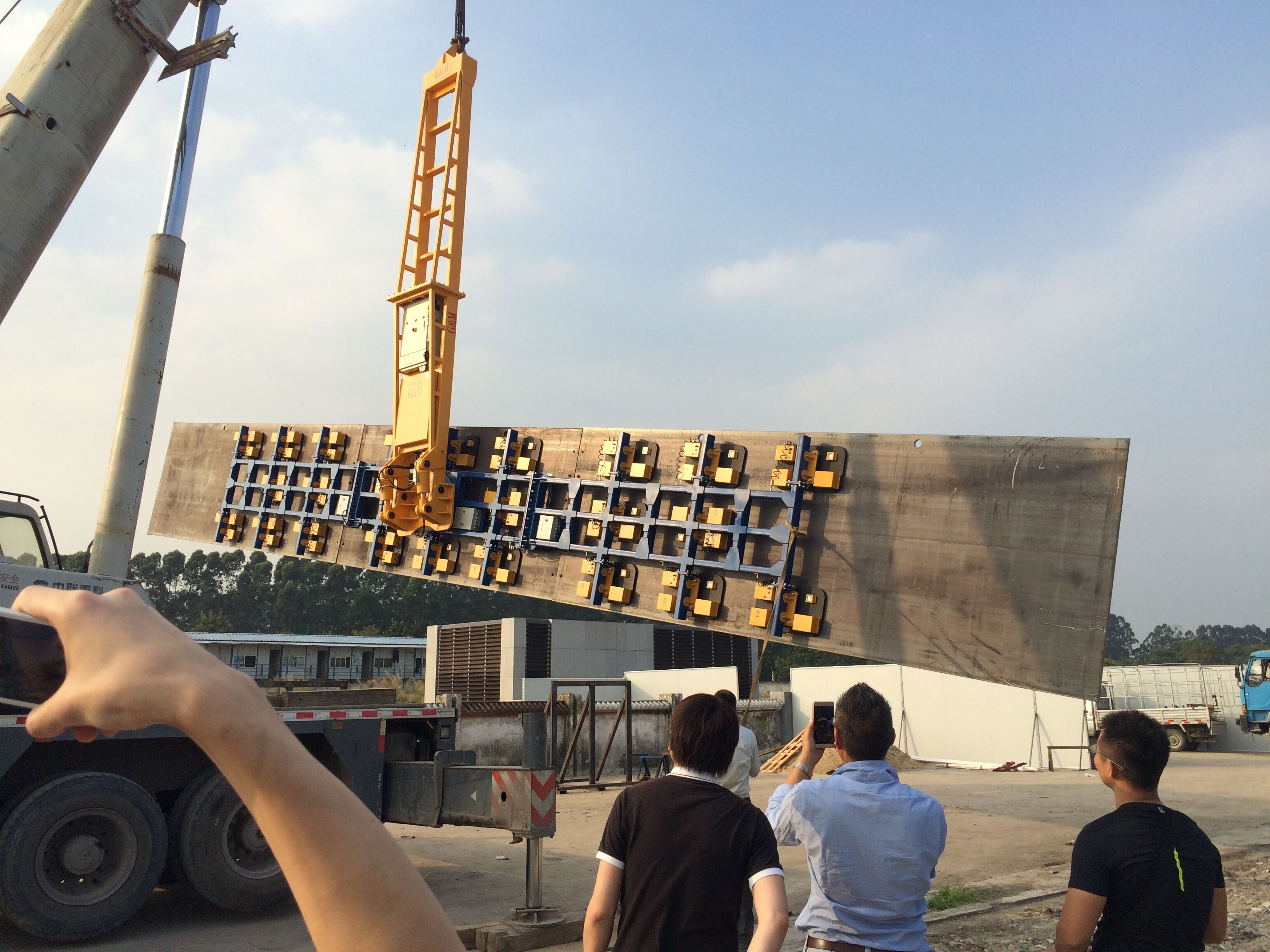

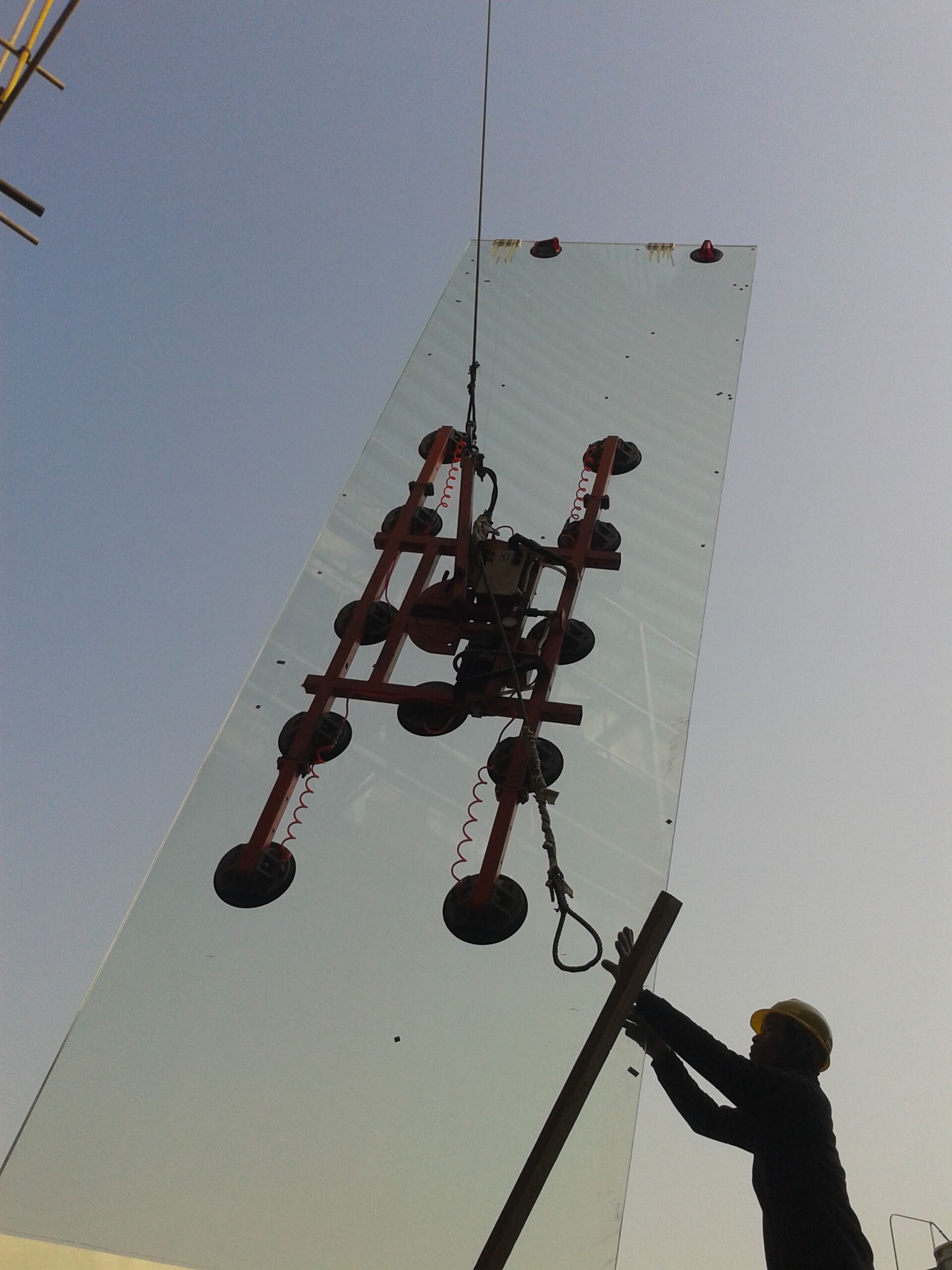

With powered 90°tilting, continuous 360°rotation, cable-less remote control for fast attach and release, suited for big-sized glass handling in workshop and heavy-duty installation outdoors

?

?

Technical Data:

Quantity and size of sucker	2x 300mm(dia.)/4x250mm(dia) or customized
Working model	Pneumatic
Working gas source	5-8Pa
Outer size	1120*660*620mm (L*W*H)
Net Weight	45kgs

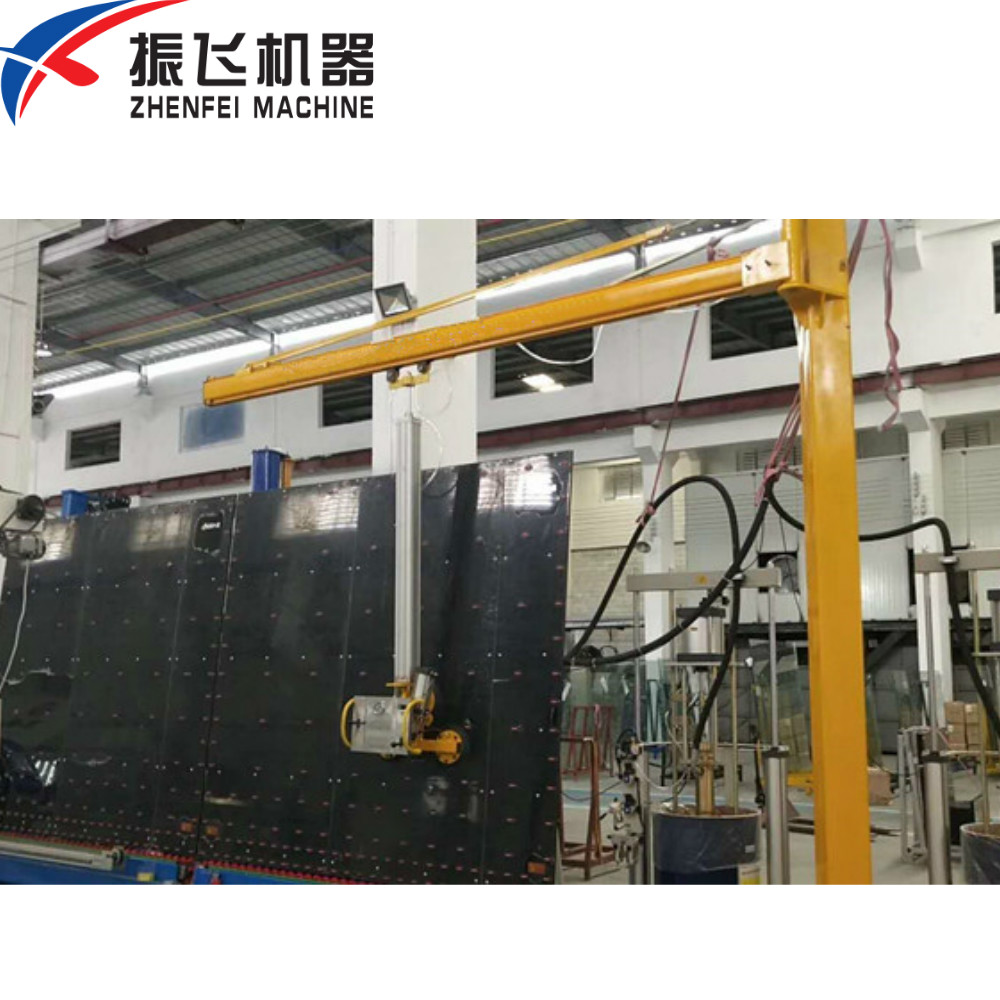

Jib Crane	Includ

?

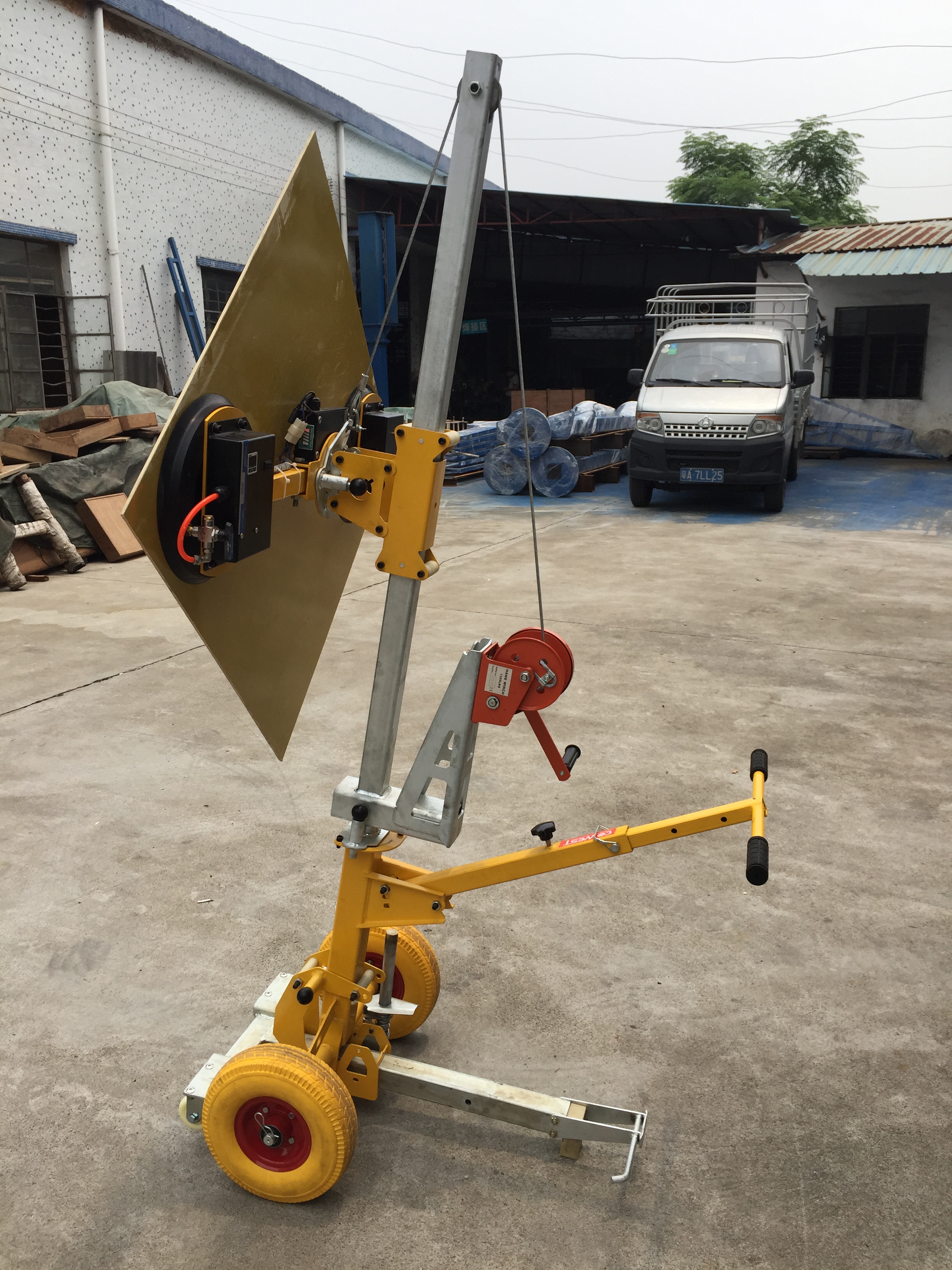

Hot Sale 400kgs Manual Nomad Glass Vaccum Lifter :

?

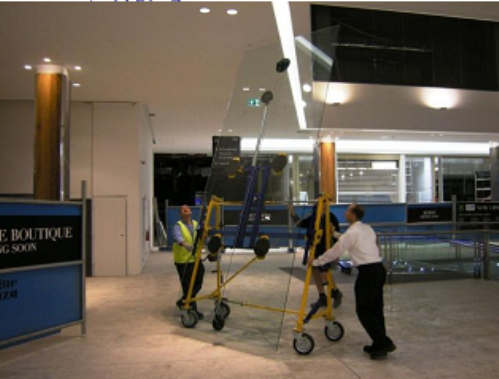

Quattro model: This model adapted hand-pump suction pads instead of powered pads.

It featured?With its convenience with no power needed and detachable parts for easy

carry, its movable function?help people to handle or transport glass indoors with easy,

unload glass from truck, as well as for?installation indoors, the Quattro has continuous

360°rotation but without tilting.

?

Model	Express	Nomad
Capacity (kg)	150	400
Dia of pads (mm)	230	4 of 300mm, 1 of 230mm
Pad number	2	5
Vacuum source	Hand-pump	Hand-pump
Lifting	By hand winch	By hand winch
Moving	Manual	Manual
Rotation	Manual	Manual
Rotation degrees	Continuous 360°	Continuous 360°
Packing size	1790*600*700mm	2010*1025*740mm
Weight (G.W)	90kgs	200kgs
H.S.Code	8425110000	8425110000
?	? ?	?

?

?

?

Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.

?
