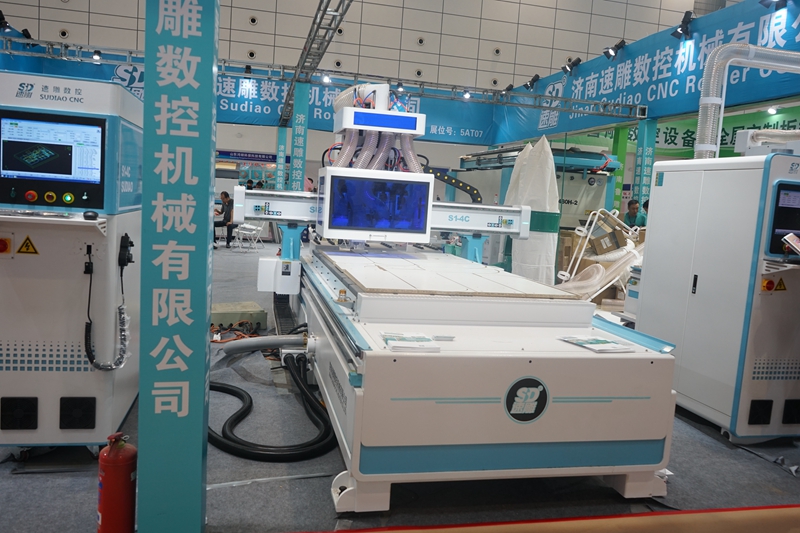

CNC Wood Router CNC Router Table CNC Nesting Machine S1-4
Options:
- S1-4
$8000.00
1 set (MOQ)
Basic Info
| CNC or Not | CNC |
|---|---|
| Place of Origin | Shandong, China |
| Brand Name | SUDIDAO |
| Voltage | 380V/220V 50-60HZ |
| Dimension(L*W*H) | 2170*3170*1500MM |
Product description
?Cnc wood router cnc router table cnc nesting machine S1-4
?
1. Introduction of S1-4 CNC Router /3D cnc router
?? It can be used for 2D&3D engraving and cutting hard wood, rosewood, insulation, plastic and chemical,?PCB,PP, PE, PVC, MDF, acrylic, aluminium, brass and so on.
?? It is qualified for mass-producing funiture with the vacuum holding?table and dust collector.
?
2. PARAMETERS
?
Model | S1-IV |
Working area | 1220*2440mm |
Spindle power | 6kw*2,4.5kw*2 |
Inverter | 7.5kw Sunfar Inverter |
Drive system | 750w Yaskawa |
Control system | 6MA syntec |
Max travel speed | 80m/min |
Max working speed | 25m/min |
Reponsitioning accuracy | ±0.05 |
Vacuum pump | 7.5kw |
Table structure | Vacuum suction |
Orbit | PMI |
Transmission type | Reducer |
Dia.of suction port | Φ150mm |
Air pressure | 0.6-0.8Mpa |
Working Voltage | AC380V/3PH/50Hz |
Total power | 29kw(include dust hood,vacuum pump) |

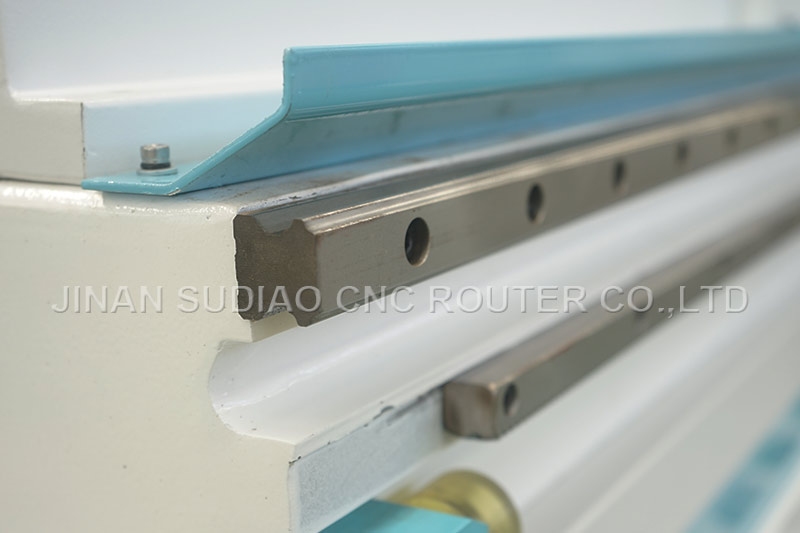

?1) Taiwan PMI square rails4. CONFIGURATIONS

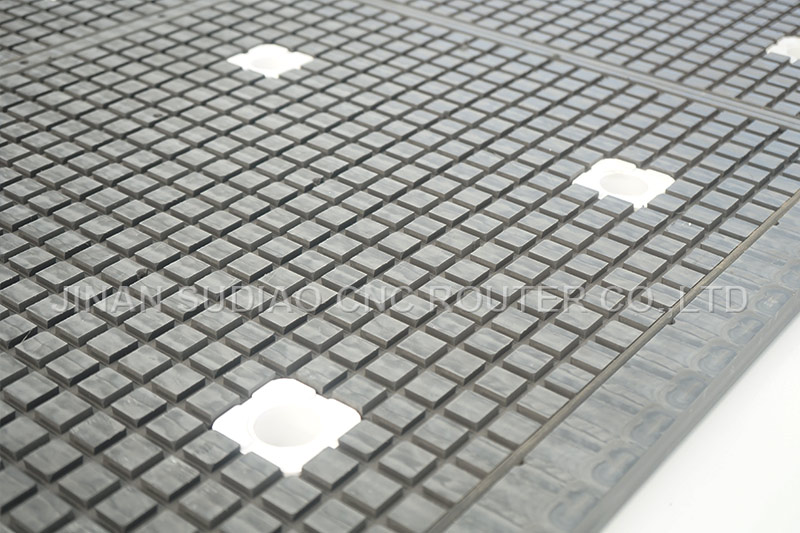

2)vacuum table
?

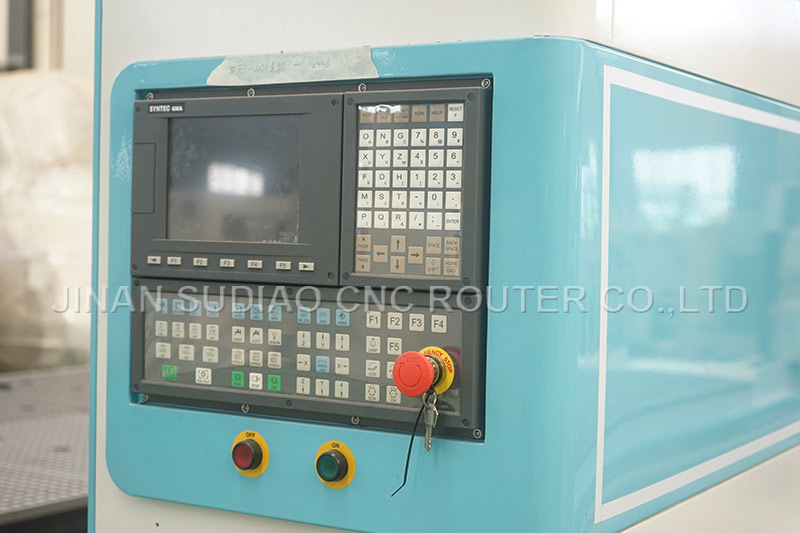

3)syntec control system
?
?

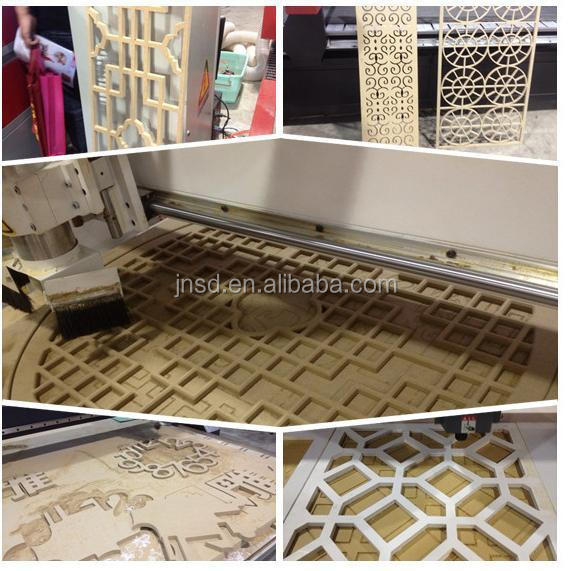

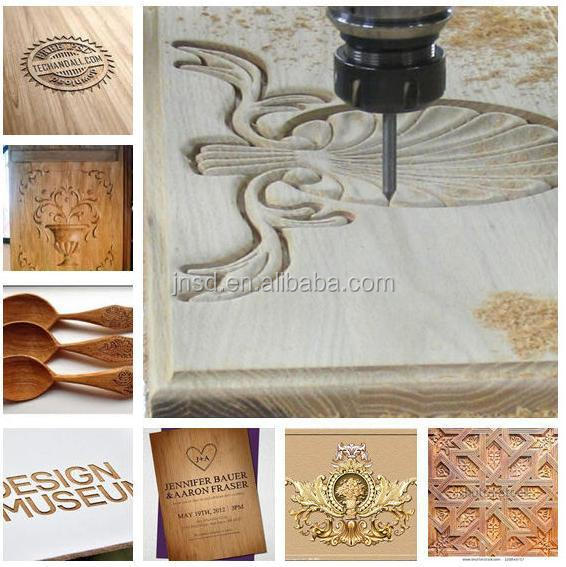

?5.Samples:

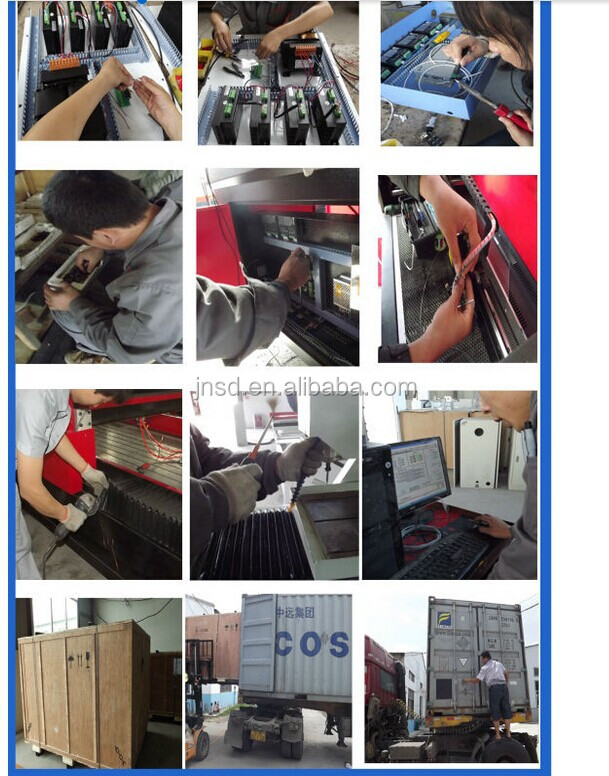

6.Process

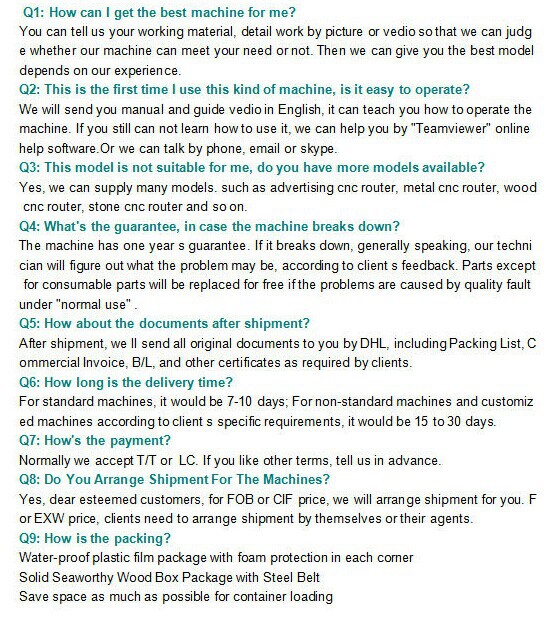

7.RFQ:?

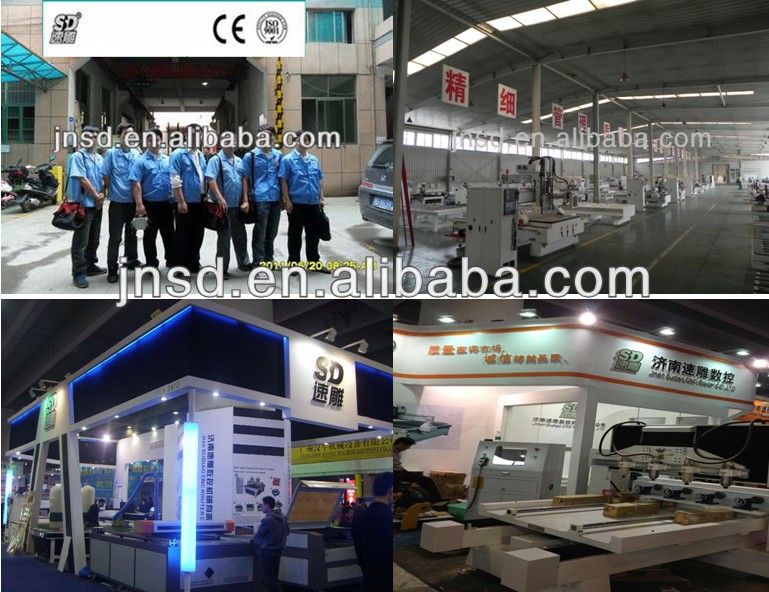

8.Our company
?
?
Contact information
?
Name:phill Liu
wechat/mob/whatsapp:+86-18865270179
Skape/QQ:739667595
?
