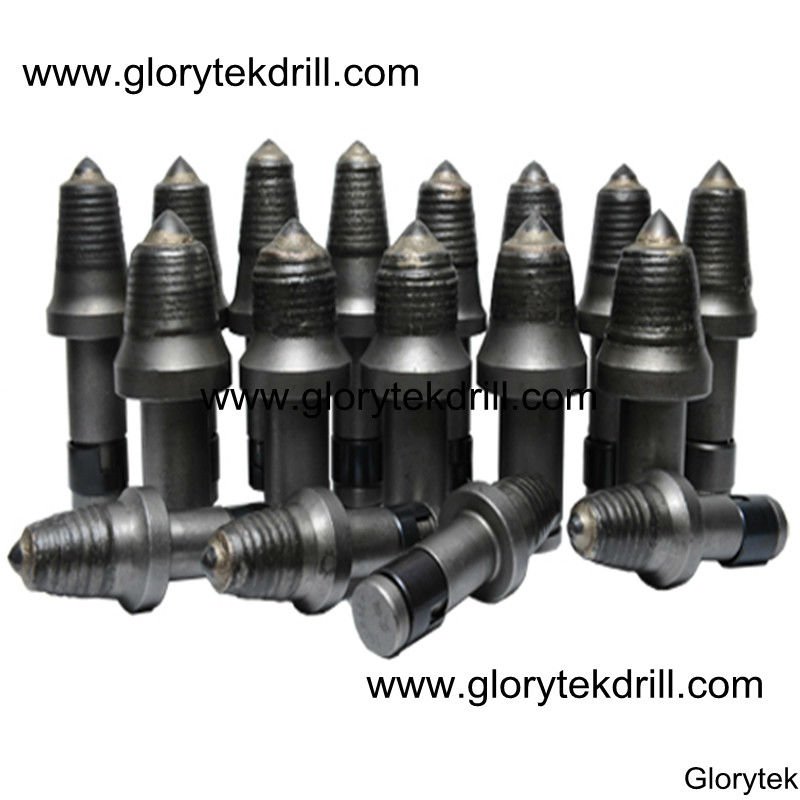

Cutter Picks

We choose high quality steel, and high quality tungsten carbide tip via forging, welding, heat treatment. Steel body, made by material 42CrMo, heat treatment with 40-44HRC hardness, has high toughness and wearable character. Tip is made by material tungsten carbide, and Suitable Grade Selected according to the Target Projects, Which are to make sure the good performance during working.

The specification:

U82, U84, U85, U92, U94, U95, U47, U765, S100, S120, S135, S150, S170, S200, etc.

Physical Description: Steel Body, made by material 40Cr or 42CrMo, heat treatment with 40-44HRC hardness, has high toughness and wearable character. Tip is made from Low press Sintered, and Suitable Grade Selected according to the Target Projects, Which are to make sure the good performance during working.

For Areas Using: TBMs /Miner cutting / Tunnel construction

We customize different pick cutters as per customers' requirements.
