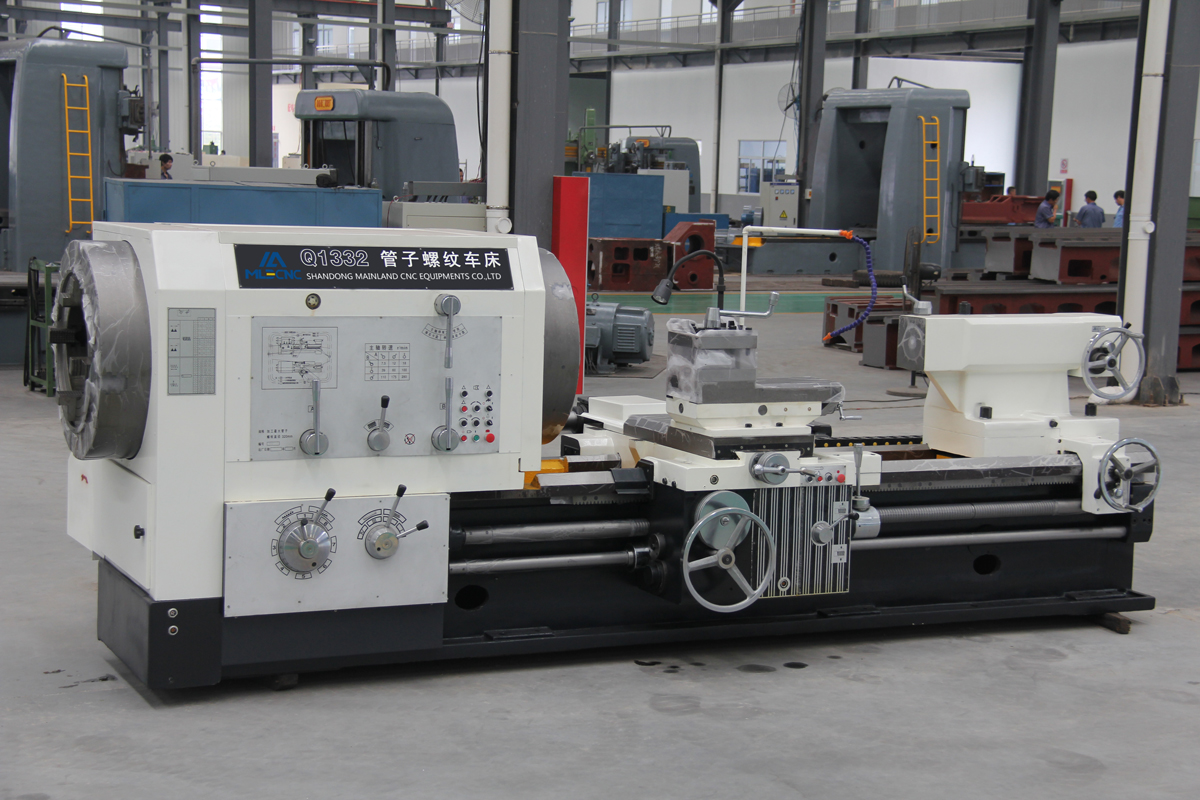

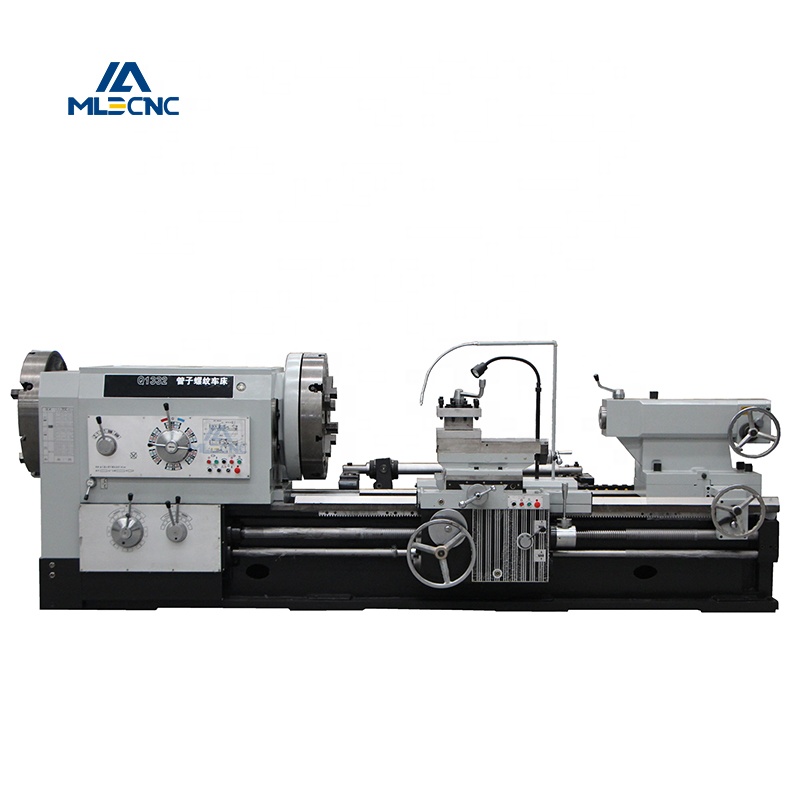

Competitive Price Q1332 Manual Universal Horizontal Heavy-Duty Lathe Machine for Pipe Threading
$38500.00
/ set
Spindle bore:
- 330mm
Options:
- 1000
- 22
Get Latest Price
You might also like
$29000.00
1 set (MOQ)
Basic Info
| Max. Length Of Workpiece (mm) | 1500/3000 |
|---|---|
| Range Of Spindle Speed(r.p.m) | 7.5 - 280 R.P.M |
| Machining Capacity | Medium Duty |
| Width Of Bed (mm) | 755 |
| Type | Horizontal |
Show More
Product description
Products Performance
Features:
The main performance characteristics：
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic requency quenched guide-ways are hard enough for good wear-resistance;
Equiped with taper guide bar device this enables the machine to process taper threads.
Application:
Heavy duty pipe threading lathe machine is mainly used for turning the internal and external threads including metric and inch thread,as well as having all the common functions of normal engine lathe such as processing the inner bore and end face of shafts and disks,this machinery is equipped with taper guide bar device which enables this series to process taper thread.This series lathe machine is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.

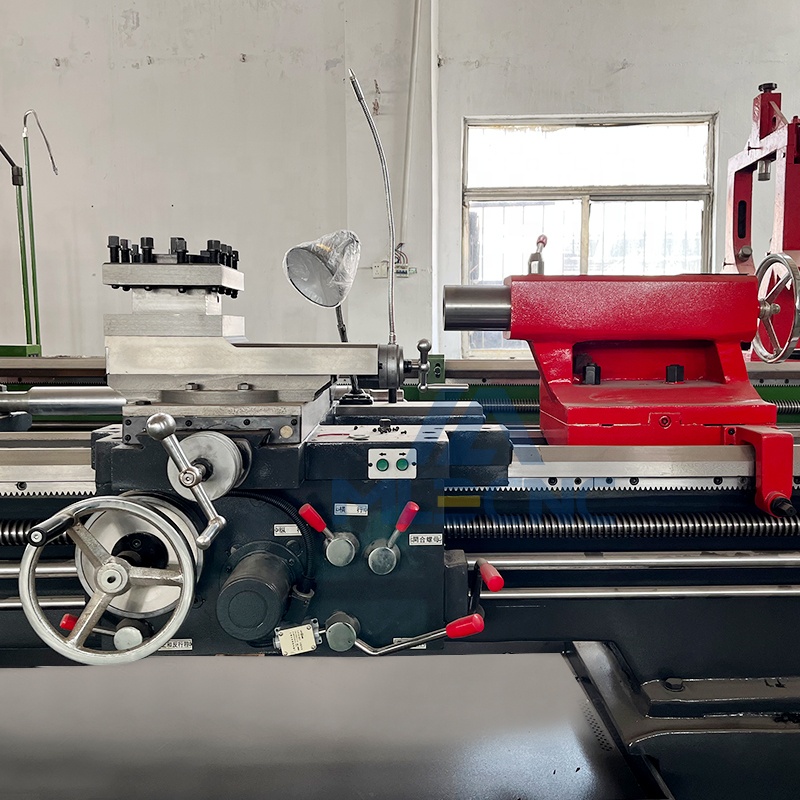

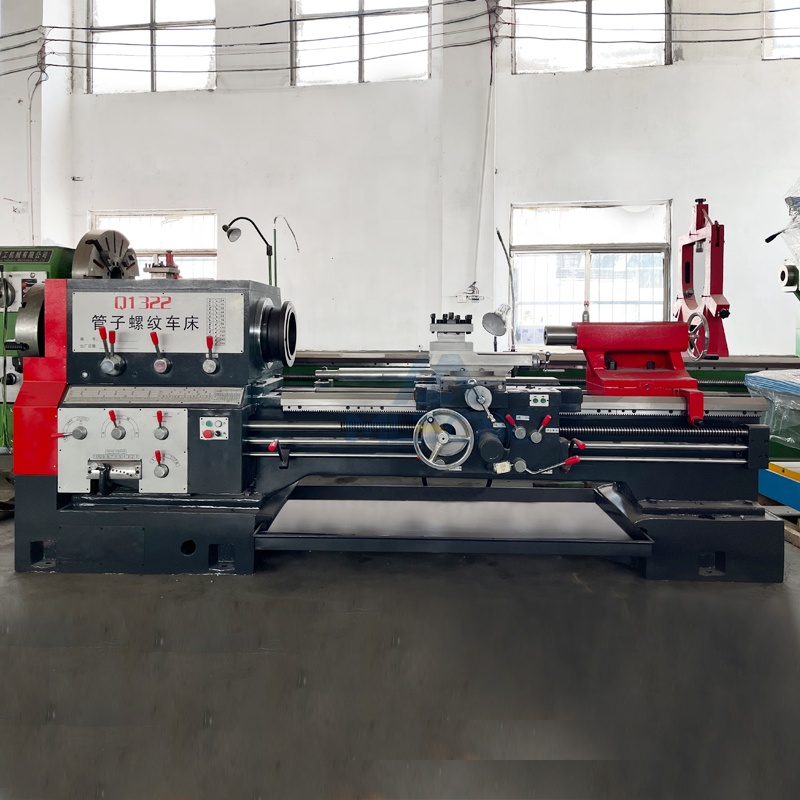

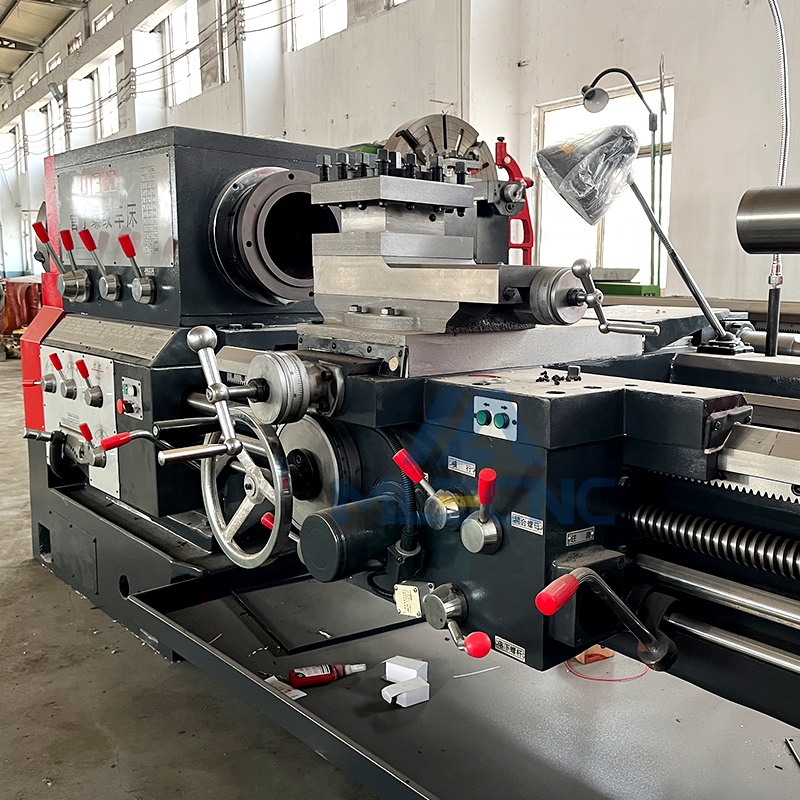

Machine Photos
Standard Accessories
Standard:
Tool post,
Tailstock,
Chuck,
taper guide bar,
Lighting lamp,
Coolant pump,
Rear support bracket,
Pad iron etc.
Optional :
Digital readout,
Chuck,
Faceplate,
Chasing dial,
Center rest,
Signal light,
Protective cover(lead-screw,chuck,tool post)
Grinding attachment
Product Paramenters
SPECIFICATIONS | Units | Q1327 | Q1332 | Q1338 |
Swing over bed | mm | 1000 | 1000 | 1000 |
Swing over cross slide | mm | 610 | 610 | 610 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
Pipe threading range | mm | 130-270 | 190-320 | 190-380 |
Guideway width | mm | 755 | 755 | 755 |
Max. load capacity | kg | 6000 | 6000 | 6000 |
Spindle bore | mm | 280 | 330 | 390 |
Spindle speed steps | - | FWD. 12 steps | FWD. 9 steps | FWD. 9 steps |
Spindle speed range | rpm | 16-380 | 7.5-280 | 6-205 |
Chuck | mm | φ800 4-jaw manual | φ780 4-jaw electric | φ850 4-jaw electric |
Turret/tool post | - | Manual 4 position | Manual 4 position | Manual 4 position |
Tool shank size | mm | 45 x 45 | 45 x 45 | 45 x 45 |
X axis travel | mm | 520 | 520 | 520 |
Z axis travel | mm | 1350/2850 | 1350/2850 | 1350/2850 |
X axis feed steps /range | mm/r | 40/0.05-1.5 | 32/0.05-0.75 | 32/0.05-0.75 |
Z axis feed steps /range | mm/r | 40/0.1-3.0 | 32/0.1-1.5 | 32/0.1-1.5 |
X axis rapid traverse | mm/min | 1870 | 1870 | 1870 |
Z axis rapid traverse | mm/min | 3740 | 3740 | 3740 |
Metric thread kinds /range | mm | 30/1-30 | 23/1-15 | 23/1-15 |
Inch thread kinds /range | T.P.I | 27/28-1 | 22/28-2 | 22/28-2 |
Tailstock quill diameter | mm | φ160 | φ160 | φ160 |
Tailstock quill taper | - | MT6 | MT6 | MT6 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Main spindle motor | kW | 22 | 22 | 22 |
Rapid traverse motor | kW | 1.5 | 1.5 | 1.5 |
Coolant pump motor | kW | 0.125 | 0.125 | 0.125 |
Weight for 1500 | kg | 10000 | 11500 | 12800 |
Weight for 3000 | kg | 11500 | 13000 | 14300 |
Dimension for 1500 | mm | 4800x2100x1600 | 4900x2100x1650 | 4900x2100x1700 |
Dimension for 3000 | mm | 6300x2100x1600 | 6400x2100x1650 | 6400x2100x1700 |
