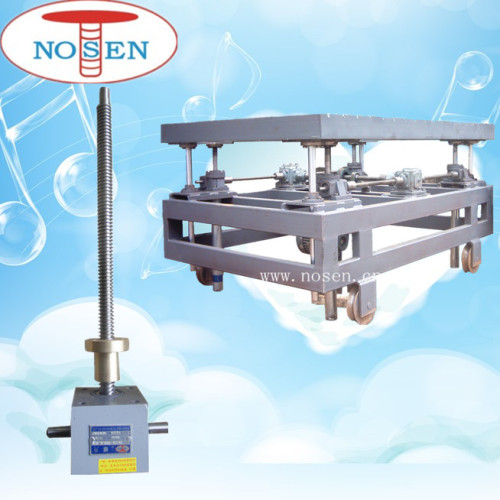

Compound Heavy Load Workshop Table Automatic Lifting Screw Jack
1 Piece/Pieces (MOQ)
Basic Info
| Model No. | RNF |
|---|---|
| Brand Name | NOSEN |
| Application | Industry |
| Material | Cast Iron |
| Hardness | Hardened |
| Manipulate Way | Semi-Automatic Manipulation |
| Manufacturing Method | Cast Gear |
Product description
NOSEN Compound Heavy Load Workshop Table Automatic Lifting Screw Jack can be used in factory, workshop and office huge or small size table lifting. You can operate it manually or automacticall.
Model Details of RNF070
* Model
RNF070
* Screw Diam
70 mm
* Screw Pitch
10 mm
* Static Load
max 200 kN
* Dynamic Load
max 200 kN(Depends on stroke and speed )
* Speed Ratio
1/10 1/40
* Lifting Speed
max 1500 mm/min
* Input Power
0.100-22.500 kw
* Max Input
1500 rpm
* Screw Type
trapezoidal screw
* Stroke Range
max 5000 mm
* Top End
top plate, clevis end, threaded end, plain end
* Power Source
electric, manual, both
Materials
| *Lifting screw | steel C45 (optional: stainless steel) |
| *Worm Gear | phosphor bronze (optional: zinc alloy) |
| *Worm Shaft | heated treated steel C45 (optional: stainless steel) |
| *Bearing | Taper Roll Bearing |
| *Housing | Casting Iron and Die-Casting Aluminum . |
| *Oil Sealing | Normal, (optional: high/low temperature oil sealing) |
Selection Guide:
Example:RNF016-A-R-MDR-1/16-300-P
1).RNF016→Model→Max working load 1KN/set
2).A→Installation→Upright
3).R→Screw Top End→Plain end
4).MDR→Input form→Flanged type-Double input-Right flange
5).1/16→Gear ratio
6).300→Travelling storke 300mm
7).P→Protective tube→Steel cover
Applications:
|
*Energy & Communications |
Solar Panel Tracking Systems, Satellite Dish Tracking |
|
*Water Projects & Hydropower Station |
Sluice Gates, Water Gates, Penstocks, Tilting Barriers, Raise & Lower Power Station Dampers |
| *Iron & Steel |
Heavy Plate Steel Mills on Roll Adjustment, Steel Pipe Mills for Roll Adjustment and Back Stops and Tensioners |
| *Food Processing |
Dough Presses, Roll Adjustment, Tunnel Freezer, Curing Ovens, Tensioners, Conveyor Height Adjustment |
| *Civil Engineering | Building Ventilation, Bridge Lifting |
| *Railways | Maintenance Jacks and Railway Carriage Lift |
| *Theatre |
synchronized lifting table for Stage Elevator Platforms Creation of Orchestra Pits, Screen Manipulation |
Packaging Detail:Standard exporting package
Nosen company has 10 years experience in this line ,
Have accumulated our special experieneand methods to control the quality through the whole process.
