Computer Control Compression Testing Machine for Concrete Rupture Test - 3000KN Price
use:
- Auto Testing Machine
- Compression Testing Machine
Basic Info
| Place Of Origin | Shandong, China |
|---|---|
| Brand Name | XLC |
| Model Number | YAW-3000KN |
| power | Hydraulic |
| Product name | Computer Control Compression Testing Machine for Concrete Rupture Test |
Product description

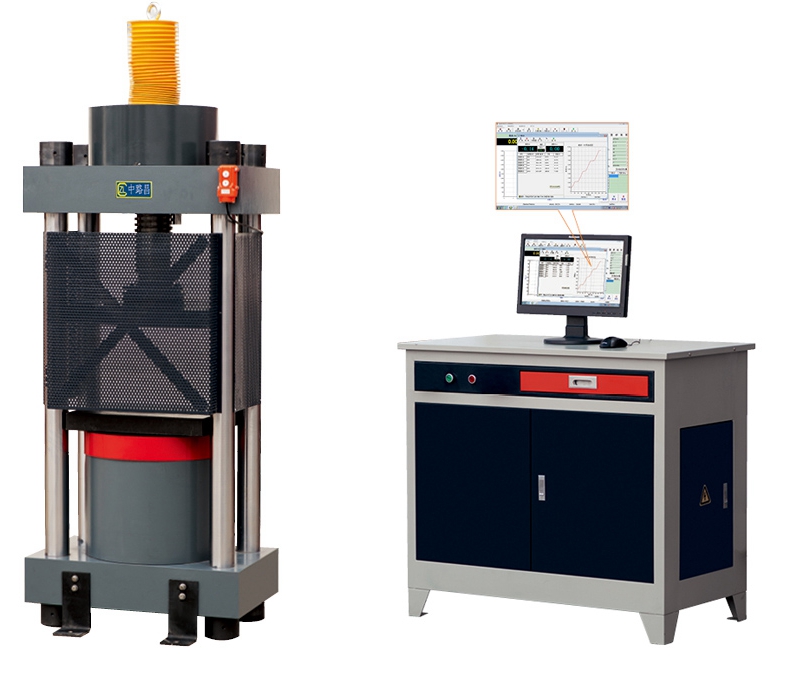

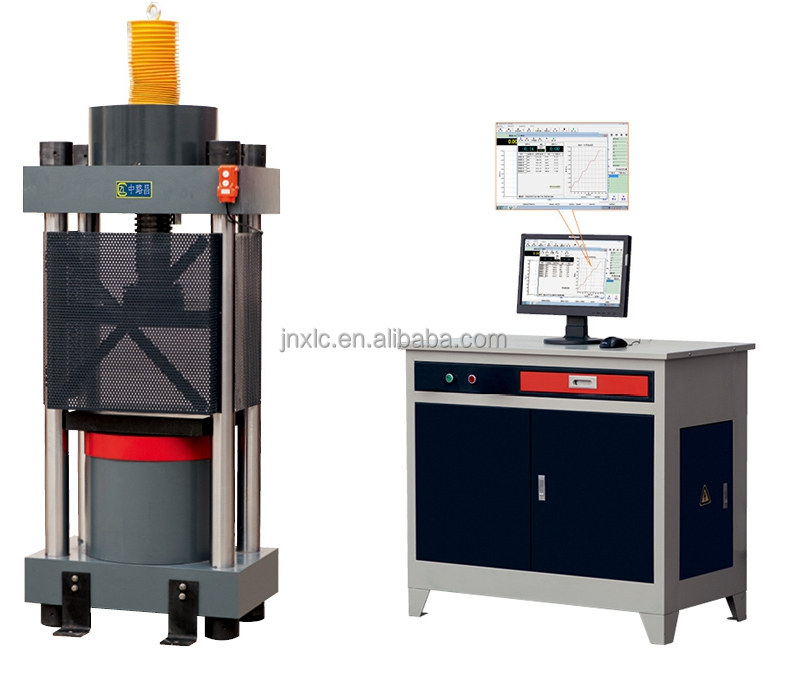

3000KN Computer Control Compression Testing Machine Price for Concrete Rupture Test
?
Main Function and Usage
1. It is mainly used in the testing of compression strength of the concrete.
2. Control Method of Testing Rate: Electro-hydraulic closed-loop control
Main Specifications and Technical Parameter
Maximum Testing Force | 3000kN |
?Measure Range of Testing Force | 2%~100%FS |
?Relative Accuracy of Value Display of ?Testing Force | |
?Adjustment method of Lead Screw | Electronic |
?Top and Bottom Pressure Plate Dimension (mm) | 400×500 |
?Max.Space of Top and Bottom Pressure Plate(mm) | 500 |
?Max.Piston Stroke(mm) | 150 |
?Piston Diameter(mm) | Φ400 |
?Rated Pressure of the Hydraulic Pump(MPa) | 40 |
?Source Power(kW) | Three phase1.1 |
?Overall Dimension(L*W*H)(mm) | 800×800×1800 |
?Weight (kg) | 2300 |
?
?
