Remarks:

1). All the above prices are based on USD FOB WENZHOU CHINA.

2). Payment: By T/T.

3). Delivery time: Within 30 days after receiving the deposit.

4). Packaging: In bulk.

5). Engineer service and after sale service: we will send one technician to install the machines in your factory, and train your workers how to operate the machines, but you will be in charge of the technician’s plane ticket, visa, accommodation, food, living and salary(USD100/day) or other living expense.

6).We guarantee the quality of the machines for one year, and the after sale service is lifelong.



The technical parameters for the machines as follows

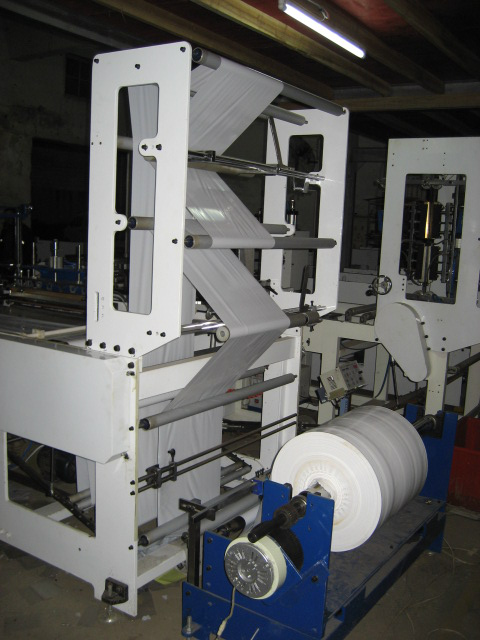

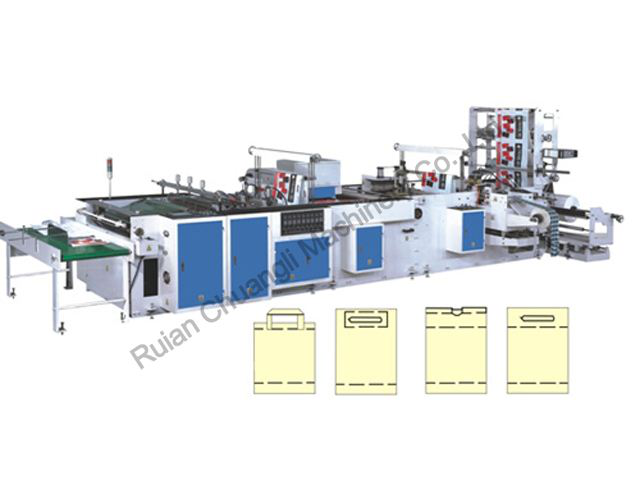

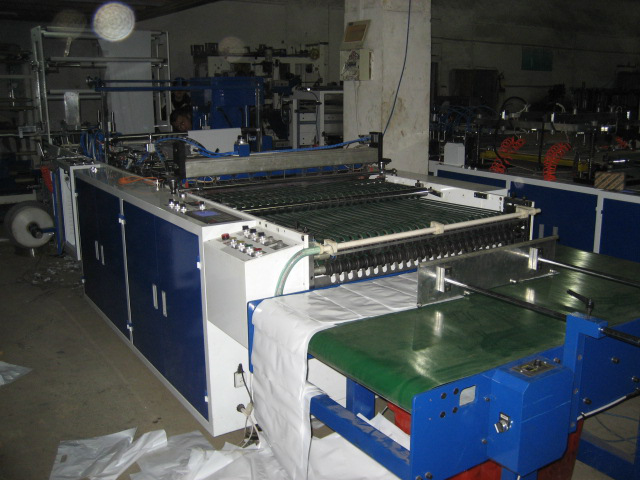

1). CLZD-800 Computer Control Patch Handle Bag Making Machine





This machine is specially designed to produce plastic patch handle bags.

Features:

1. Overall computer control

2. Equipped with EPC device(Web guiding device) and magnetic powder tension controller on the unwinder station.

3. Equipped with cutting knife to cut the tubular film open at one side of the film.

With device to put plastic attachment to the bags and punch the handle holes on the bag automatically.

6. Inverters to control the main motor and save the electricity.

7. Equipped with one photocell to track the color

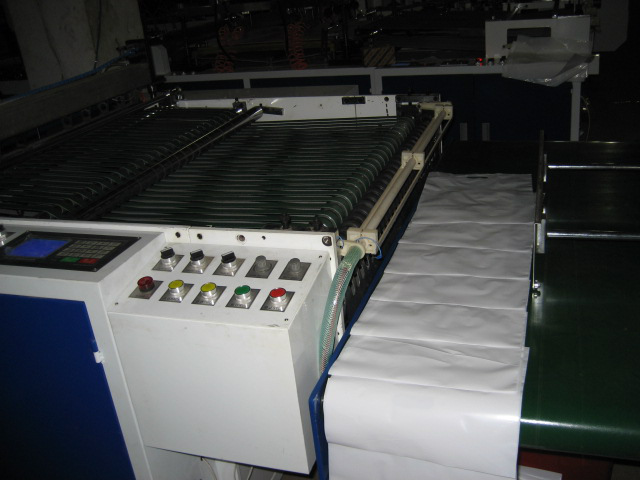

8. With auto delivery belt conveyor to collect the bags.

9. Anti-static bar,auto alarm and auto counting meter.

11. Equipped with the Panasonic brand, Japan servo motor.

12. Equipped with auto pneumatic hole puncher

13. Auto add glue slip on the bag

Main technical parameters:

  Types of bags making : patch handle bags

  Width of unwinding material：800mm

  Diameter of roll material：Max.  ￠600mm

   Length of bag-making：250-750mm

   Width of bag-making：250-600mm

   Folding width: 30-70mm

    Thickness of film：0.03-0.08mm

    Length of soft loop:360mm

    Thickness of bag：HDPE  0.11-0.18mm(Double)

    Speed of making bag: 60pcs/min

    Total power: 6KW

    Dimension：4600X2200X1850mm

    Weight：2200kg

    Air compressor：6HP

Spare parts:

1). Temperature controller: 1pce

2). Thermocouple: 2pcs

3). Spring: 20pcs

4). Heater: 2pcs

5). Button switch: 2pcs

6). One set of tools
