Basic Info
| Warranty | 3 Years |
|---|---|
| Customized Support | Oem |
| Place Of Origin | Shandong, China |
| Brand Name | East |
| Model Number | Wdw |
Product description

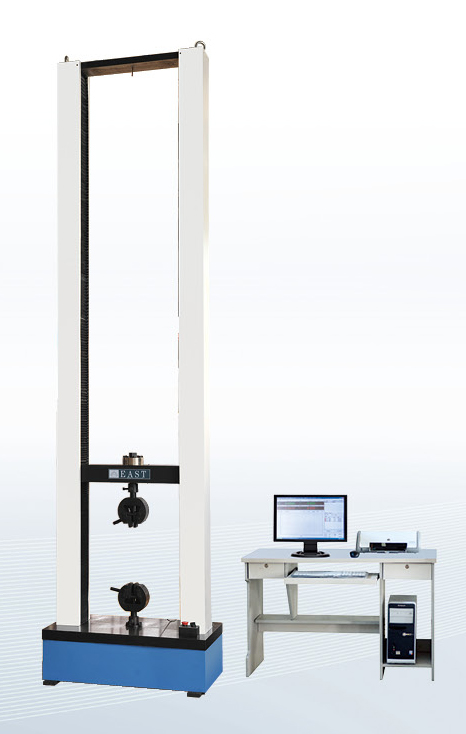

?Computer control Electronic? universal Testing Machine
??
?
The main purpose
1.It can test and analyze the mechanical properties of various metals, non-metals and composite materials. It is widely used in aerospace, petrochemical, machinery manufacturing, plastics and rubber, ceramic building materials, metal materials, construction engineering and other industries, as well as institutions of higher learning , Research institutes, technical supervision, quality inspection stations and other departments.

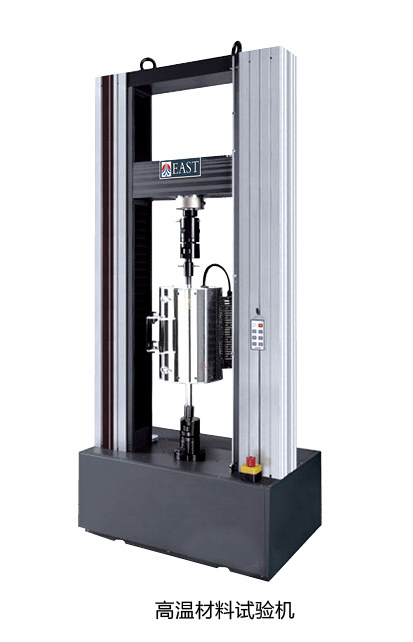

2.According to GB, ISO, ASTM, JIS, DIN and other standards for tensile, compression, bending, peeling, shearing, tearing, puncture, bursting and various high and low temperature tests, and the?parameters?such as?yield strength , Tensile (compression, bending) strength, elongation, fixed elongation strength, non-proportional strength, elastic modulus and other parameters?of the material can be detected.
3.The control system adopts computer control combined with advanced electronic control technology to realize standardized and unitized design. It has the characteristics of accurate control, high measurement accuracy, flexible configuration, easy exchange of accessories, and convenient after-sales service.
4.It has three control modes of load, displacement and deformation. The control modes can be switched randomly, test data are automatically collected and processed, various curves are drawn and test reports are printed.
5.With mechanical limit protection, overload protection, over current protection, leakage protection and other functions.
?
?
|
series |
WDW series microcomputer controlled electronic universal testing machine |
||||
|
model |
WDW-01,02,05,1,2,5 |
WDW-02,05, 1,2,5,10 |
WDW-5,10,20,30,50 |
WDW-100 |
WDW-200,300/500,600 |
|
Structure type |

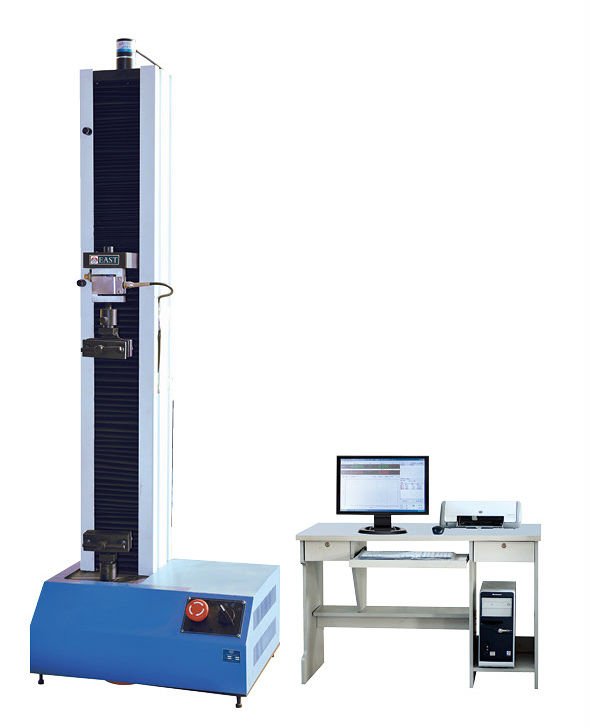

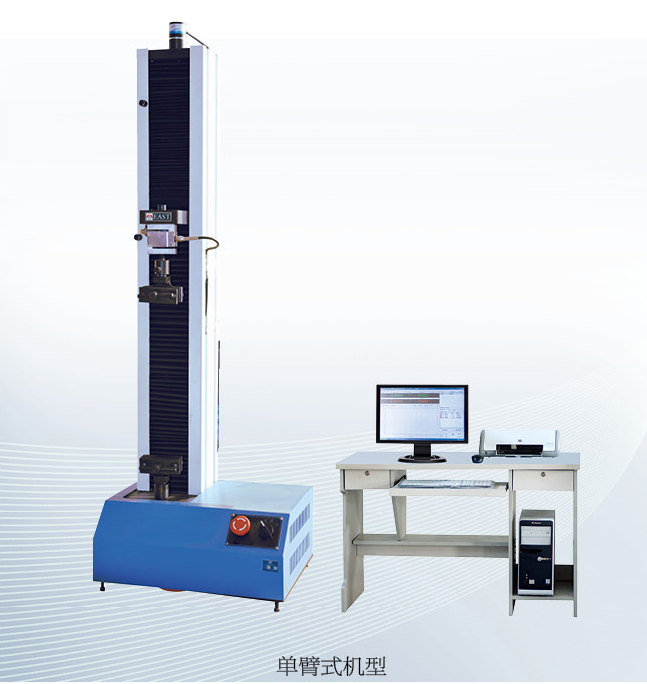

Single arm?type |

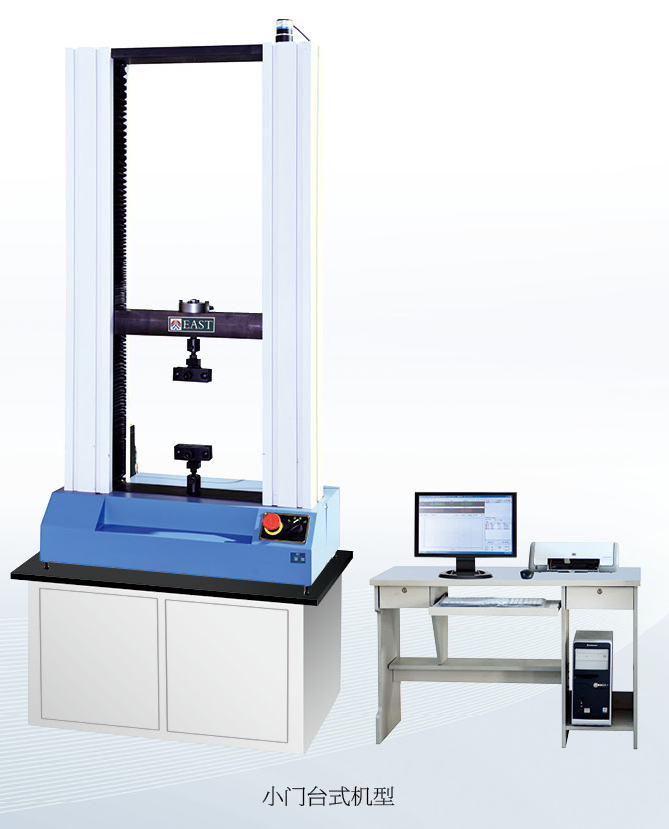

Small door type (desktop) |

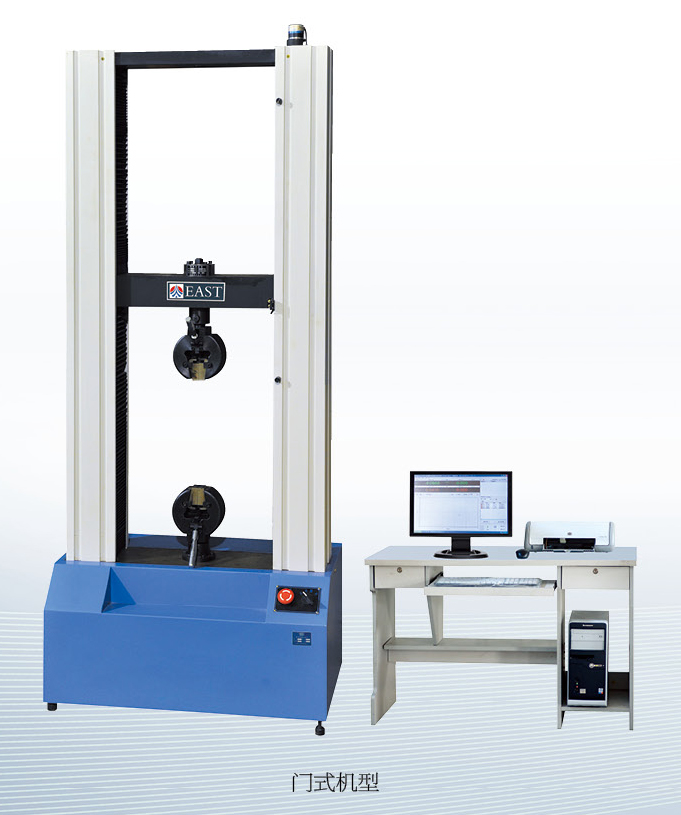

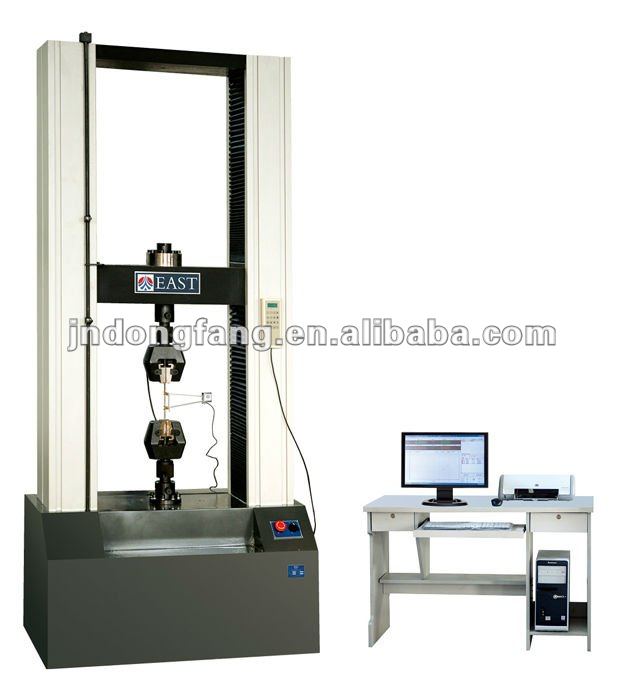

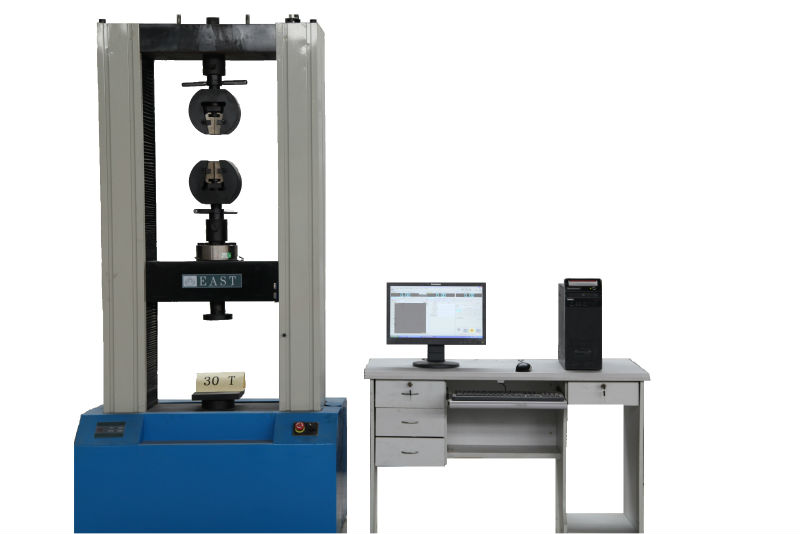

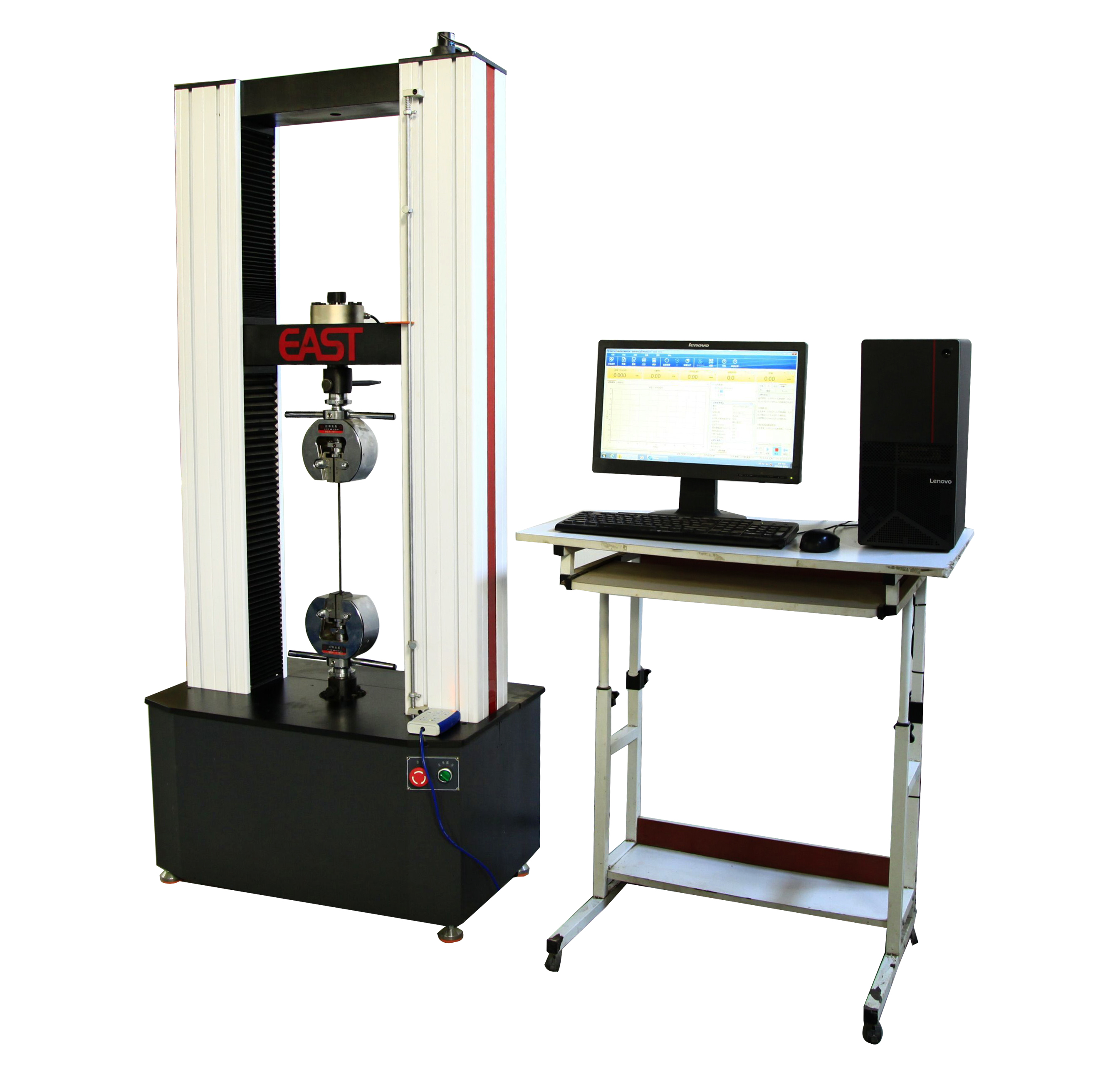

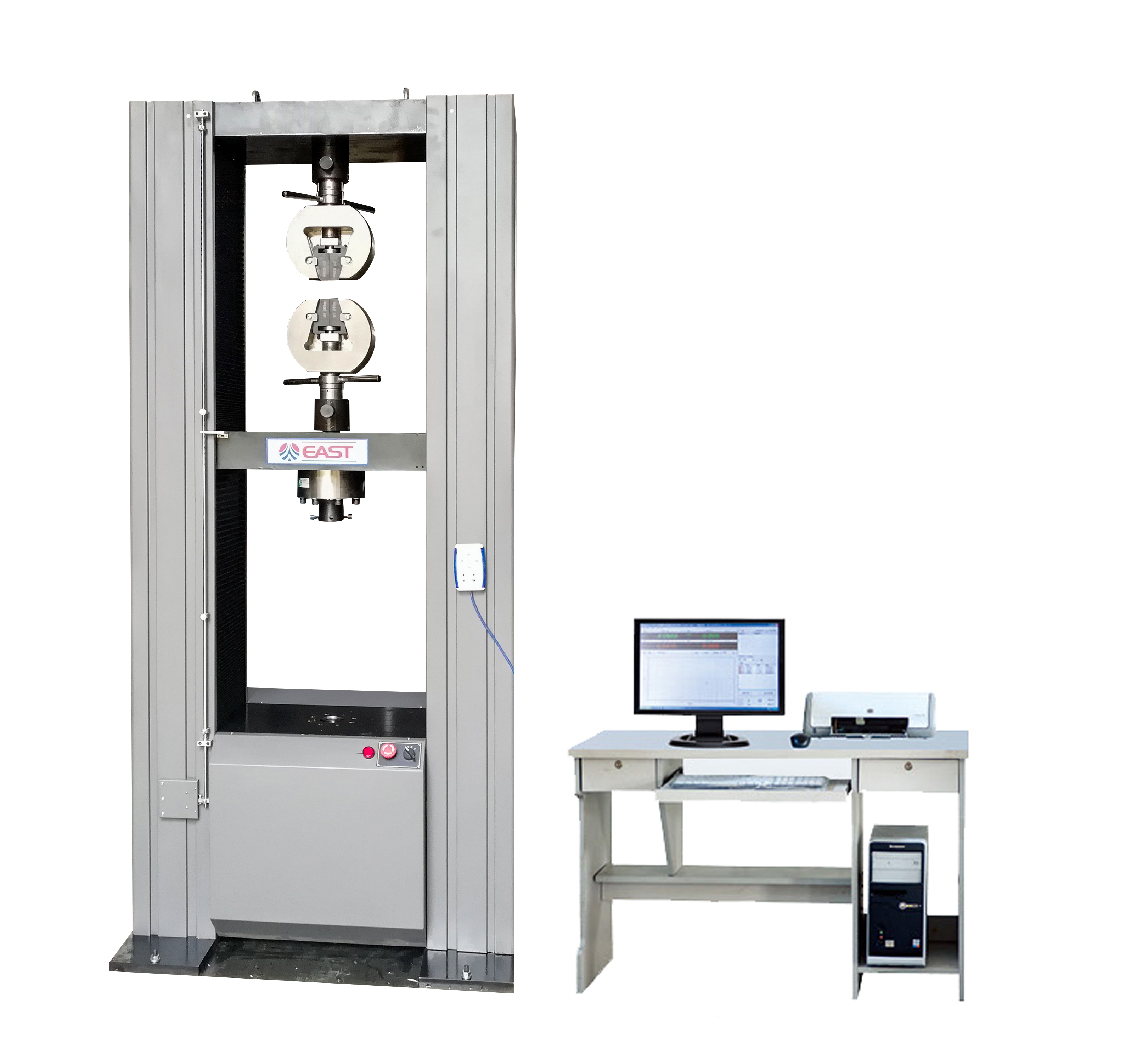

Door type |
||
|
basic configuration |
Precision ball screw, servo speed control motor and speed control system, three closed loop automatic control system |
||||
|
Maximum test force (KN) |
0.1,0.2,0.5,1,2,5 |
0.2,0.5,1,2,5,10 |
5,10,20,30,50 |
100 |
200,300/500,600 |
|
Test force measurement range |
0.2%~100%FS |
||||
|
Maximum error of test force indication |
Within ±0.5% of the indicated value |
||||
|
Deformation measurement range |
0.2%~100%FS |
||||
|
Deformation resolution |
0.01mm |
||||
|
Large deformation measurement range (optional) |
10~500mm |
||||
|
Large deformation indication error |
Within ±0.5% of the indicated value |
||||
|
Displacement indication error |
Within ±0.5% of the indicated value |
||||
|
Speed regulation range of test speed |
0.05~500mm/min |
0.05~500mm/min |
0.05~250mm/min |
||
|
Test speed control accuracy |
±0.5% |
||||
|
Effective stretching space |
0~650mm (large space can be customized according to user needs) |
||||
|
Effective test width |
—— |
350mm |
410mm |
420mm/500mm |
550mm/600mm |
|
Stretching fixture configuration |
?stretching fixture?1 set |
?lever type tensile fixture 1 set(hydraulic clamping fixture can be used for large-size testing machine) |
|||
|
Motor Power |
220V,0.5kw |
220V,0.8kw |
220V,1.2kw |
220V,1.5kw |
220V,3.0kw/4.5 kw |
|
Host machine size (mm) |
400×300×1200 |
620×370×1240 |
700×410×1680 |
960*480*1780 950×530×2100 |
1000×600×2300 1000×630×2400 |
?
?
?
?
?
?
?
?
?
?Free maintenance within one year, lifetime maintenance
?
?
