Computer-Controlled Hydraulic Universal Testing Machine | Reliable Laboratory Testing Equipment

$4999.00 ~ $6786.00 / set

use:

  • Auto Testing Machine
  • Plastic Testing Machine
  • Compression Testing Machine
  • Strength Testing Machine
  • Tensile Testing Machine
  • Textile Testing Instrument
  • Impact Testing Machine
  • Cement Testing Machine
  • Torsion Tester
  • Bending Testing Machine
  • Deformation Testing Machine
  • Universal Testing Machine
  • Other
Get Latest Price

Basic Info

Model No.
Brand Name
Warranty 1 Year
Customized Support Oem, Odm, Obm, Software Reengineering
Place Of Origin Shandong, China
Brand Name Chengyu
Model Number WAW-300D
power Hydraulic
Product name Computer Control Hydraulic Universal Testing Machine
Maximum Test Force 300KN
Weight 1500KG
Resolution of test force 0.01KN
Deformation measurement accuracy 0.01mm
Piston stroke 200mm
Pressure plate size DIA160mm
Show More

Product description

Products Description

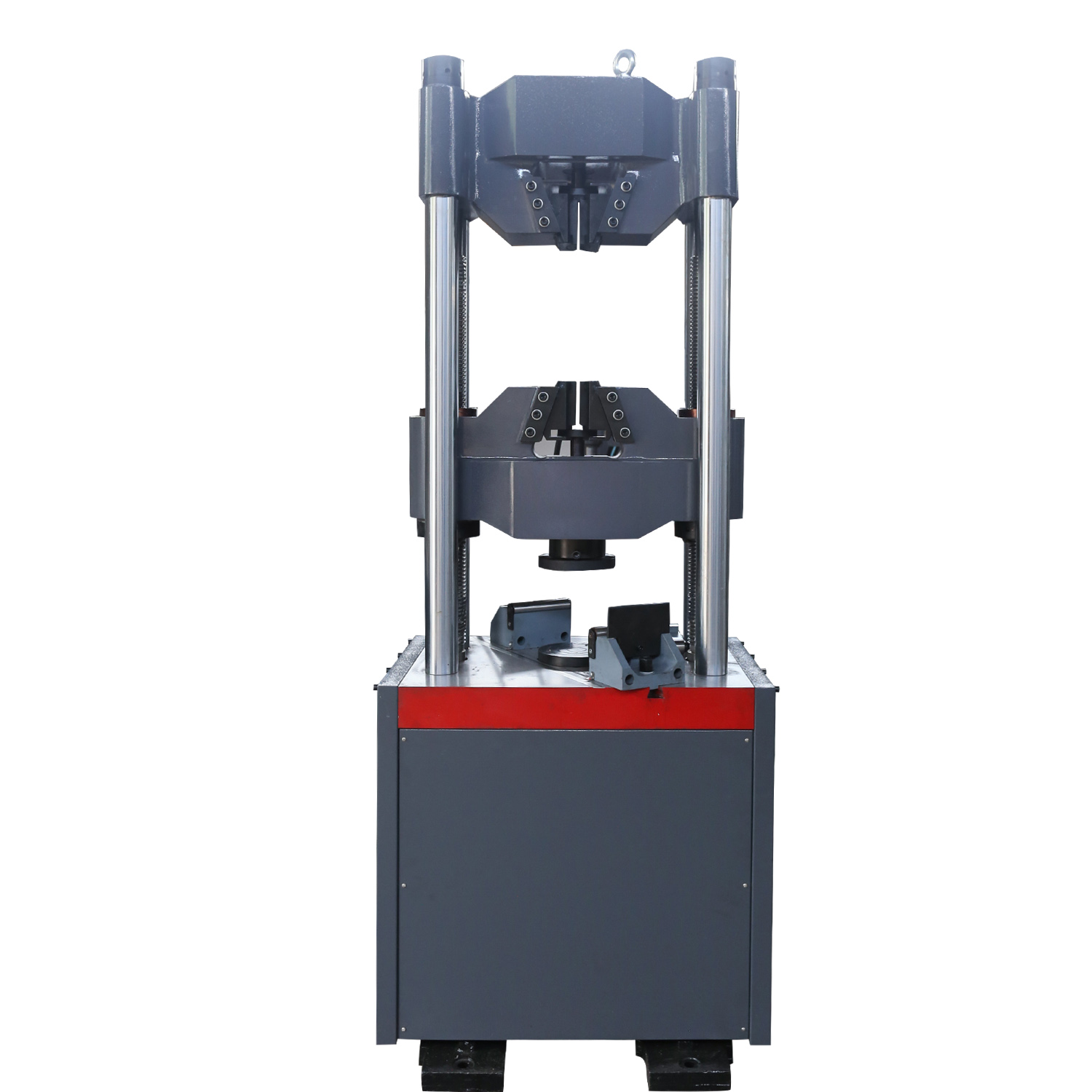

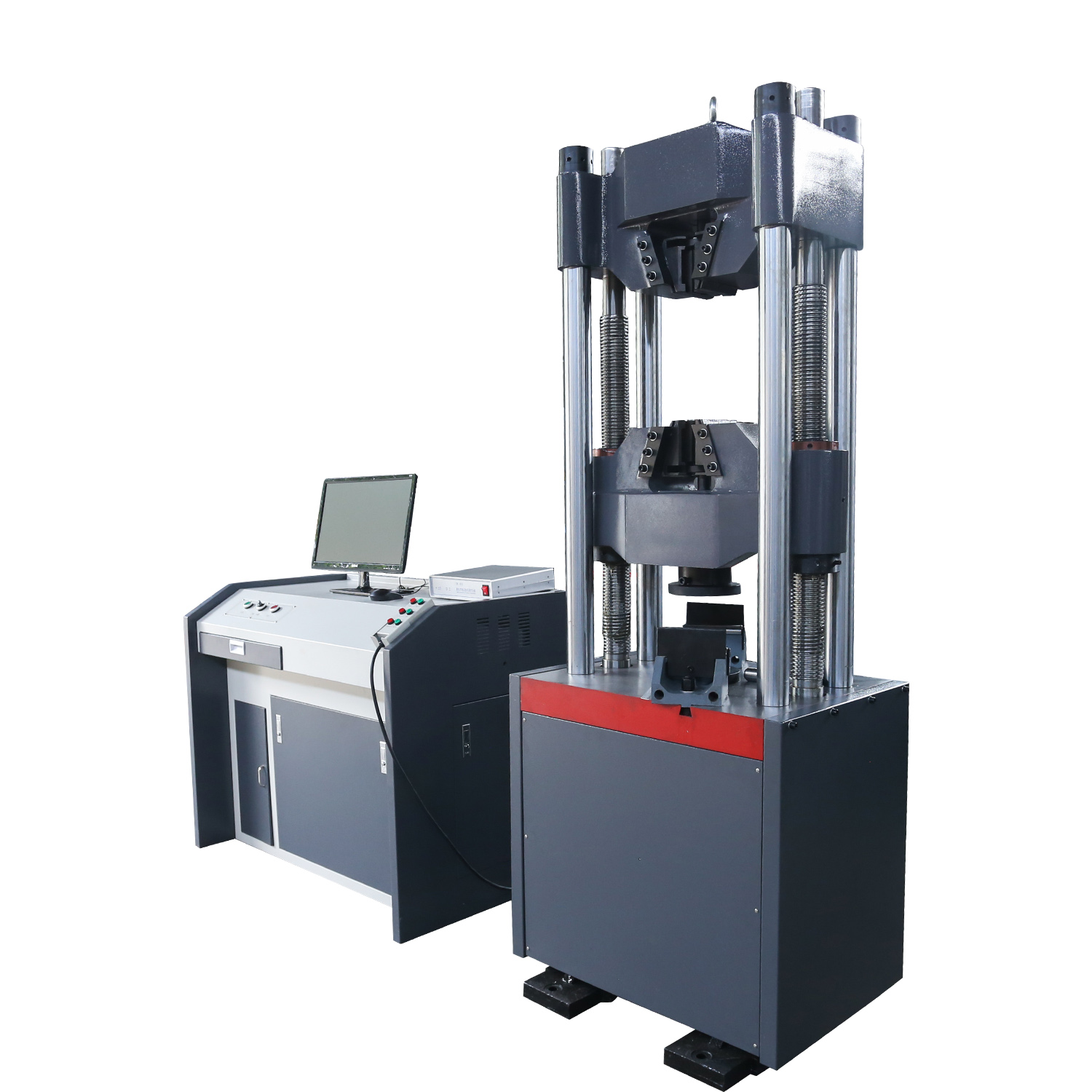

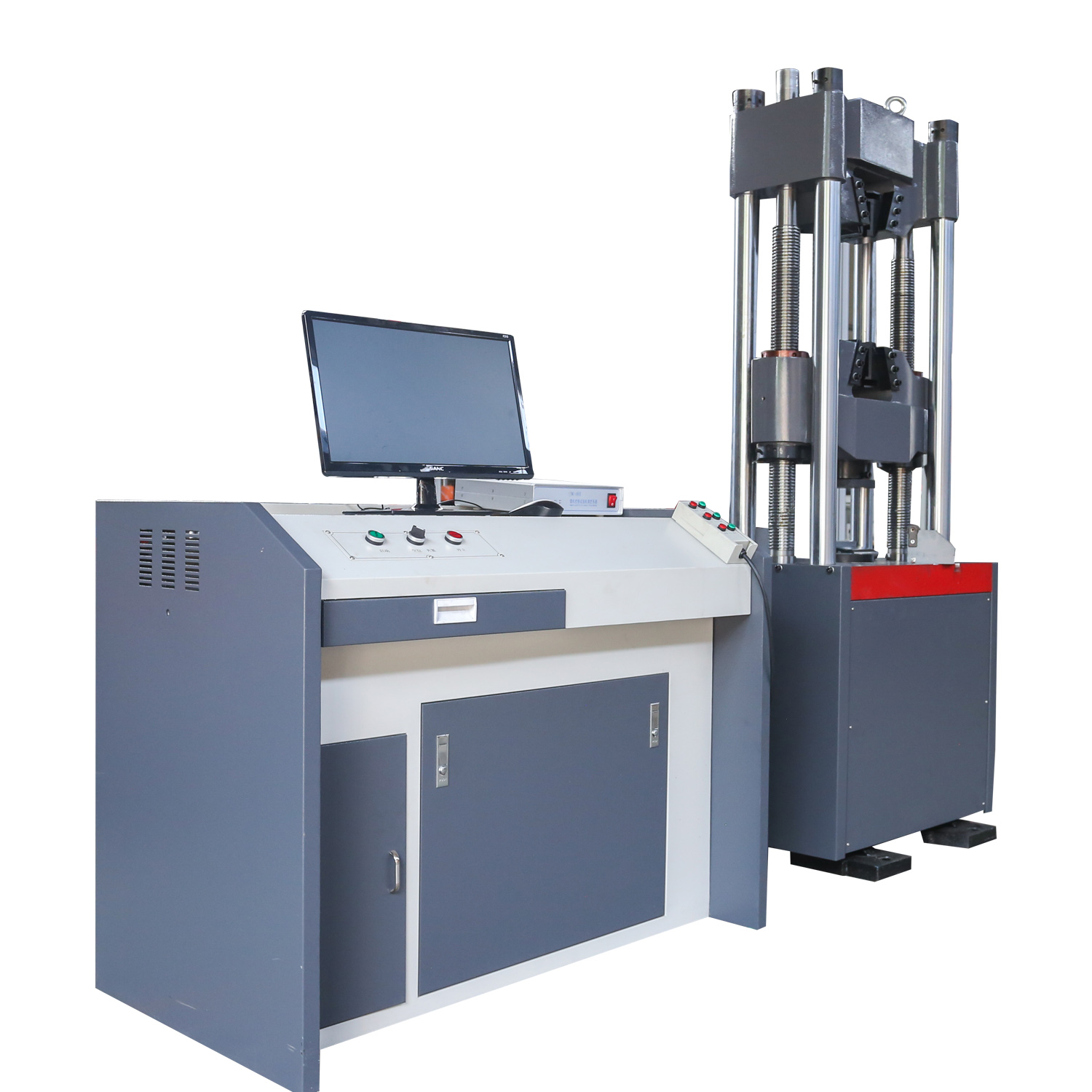

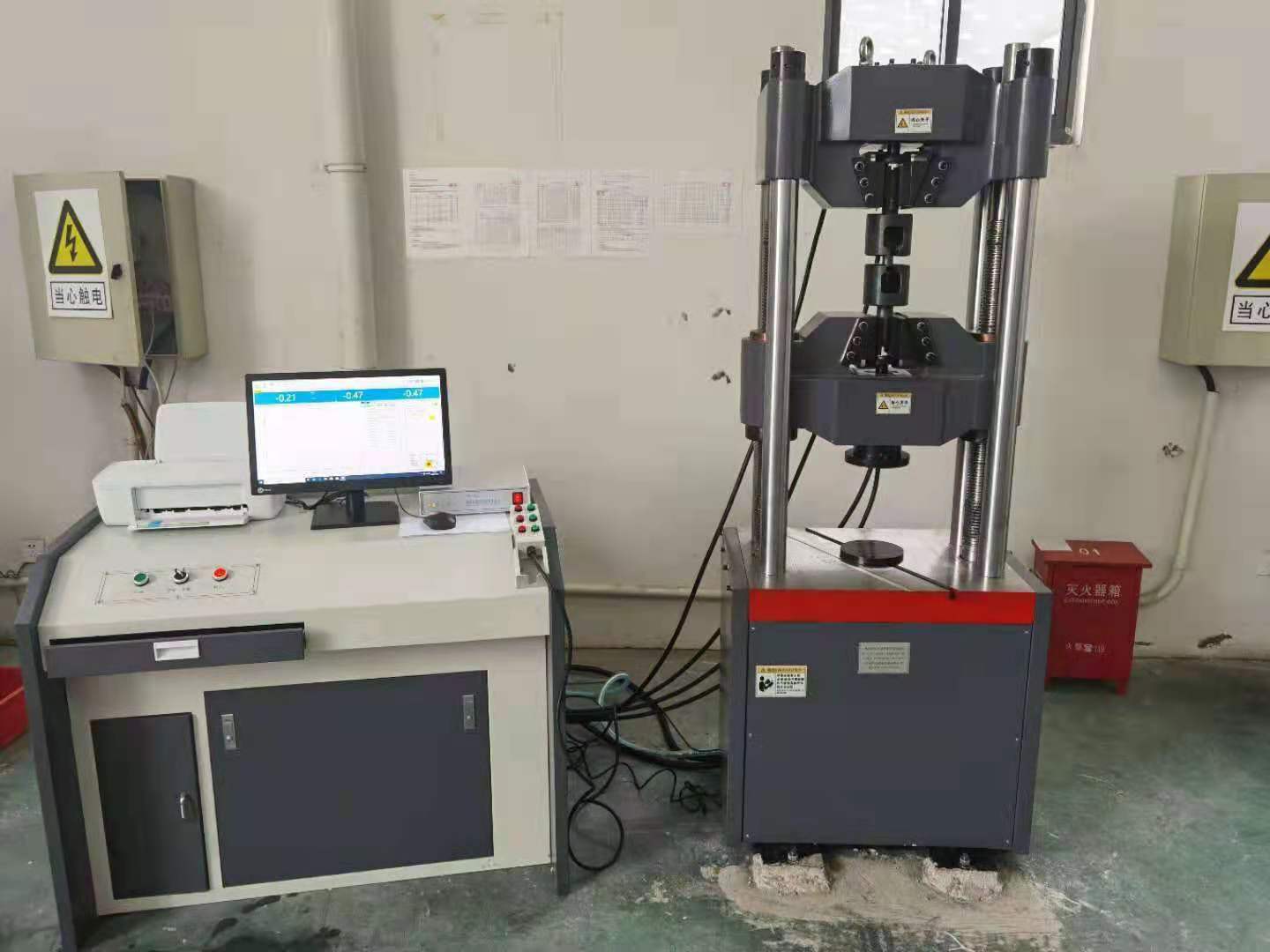

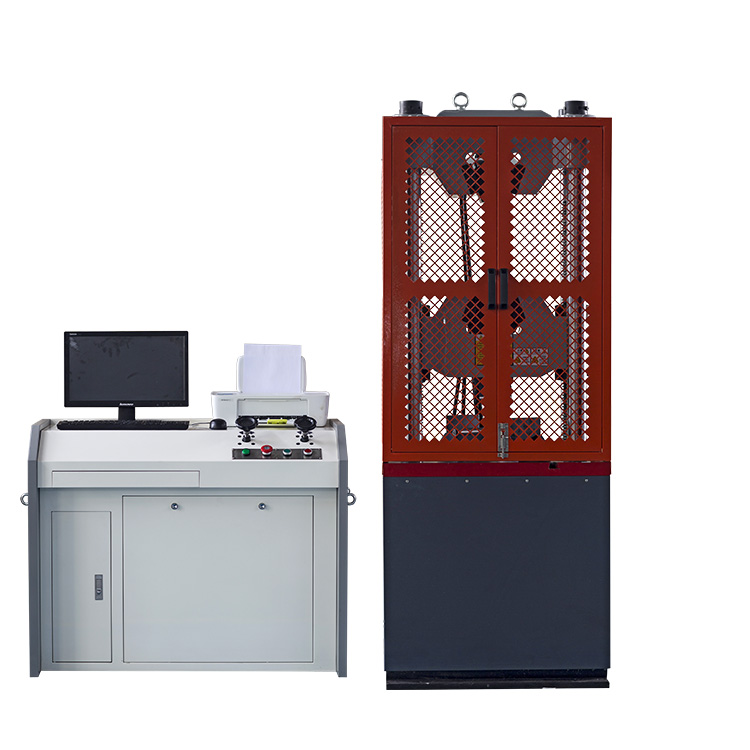

WAW-Series Electro-hydraulic Servo UTM
WAW-300D Computer controlled electro-hydraulic servo universal testing machine adopts the oil cylinder under-mounted host, which is mainly used for the tensile, compression and bending tests of metals and non-metals. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges, scientific research units and other fields. The test operation and data processing meet the requirements of GB228-2002 "Room Tensile Test Method for Room Temperature Materials".
It meets the requirements of the national standard GB/T228.1-2010 "Metal Material Tensile Test Method at Room Temperature", GB/T7314-2005 "Metal Compression Test Method", and complies with the data processing of GB, ISO, ASTM, DIN and other standards. It can meet the requirements of users and the standards provided.
Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards etc..
Specifications
Model
WAW-300D
Maximum test force
300kN
Test force measurement range
2%-100% FS
Resolution of test force
0.01 KN
Displacement measurement resolution
0.01 mm
Deformation measurement accuracy
0.01 mm
Relative error of indicated value of test force
≤±1% of indicated value
Maximum tensile test space
580mm(can be customzied)
Maximum compression test space
500mm(can be customized)
Flat specimen clamping thickness
0-30 mm
Round Specimen Holder Diameter
Φ4-Φ32

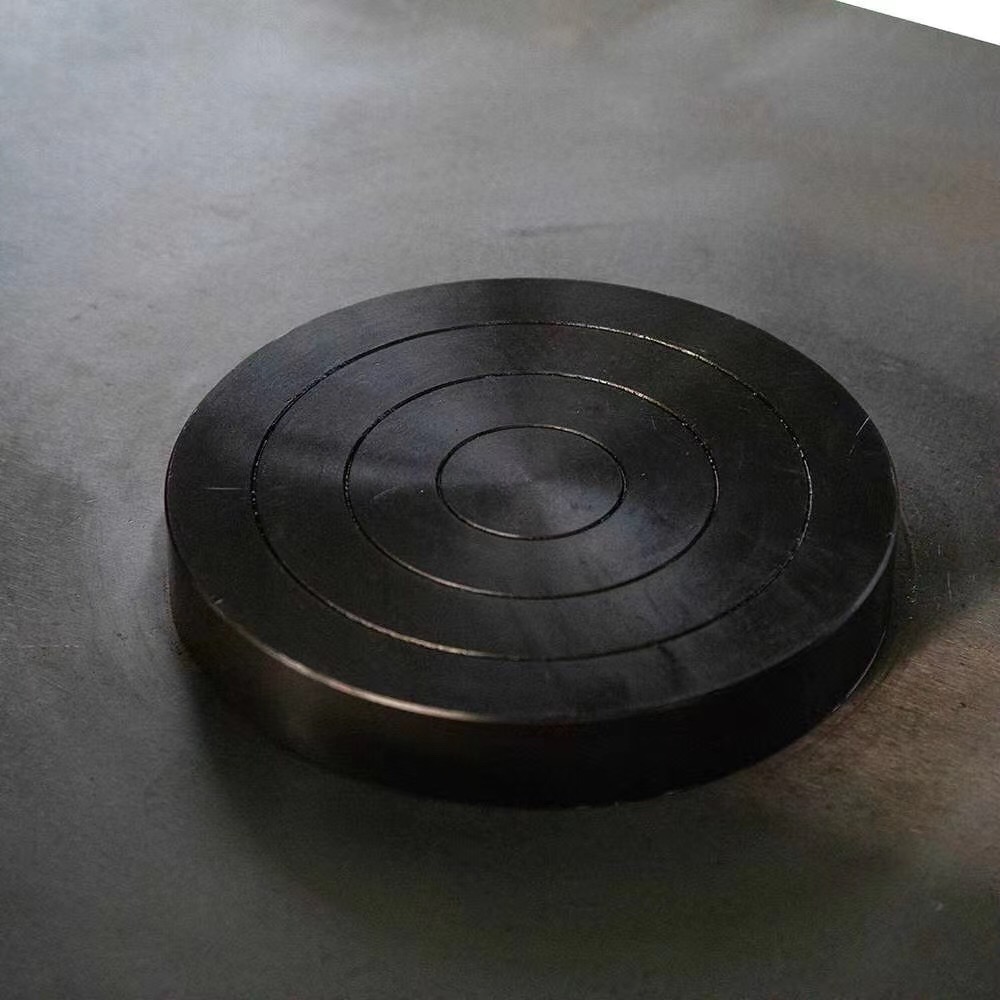

Pressure plate size
Φ160mm
Bending test stand spacing
450 mm
Stick width
120mm
Pivot diameter
φ30mm
Maximum moving speed of piston
50mm/min
Clamping method
Hydraulic clamping
Dimensions
Host: 750×600×1950 mm;?Oil Source: 1100×650×870mm
Total Weight
1500 kg
Product Details

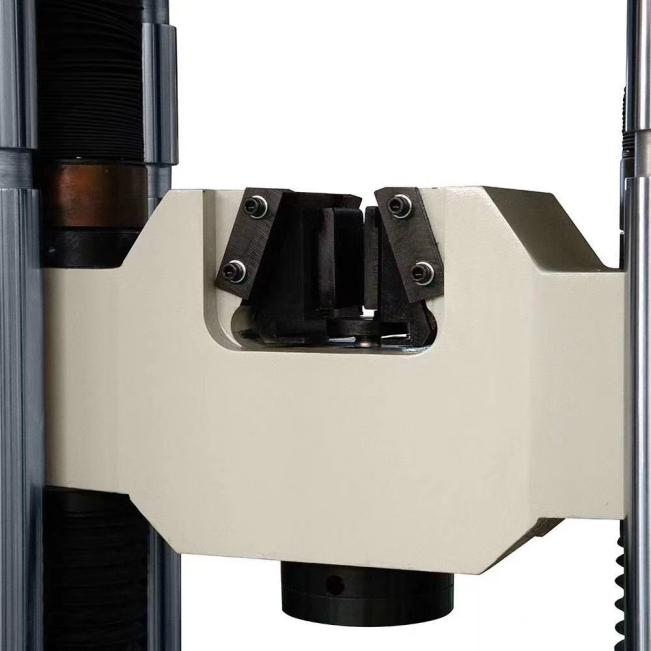

Tensile Test

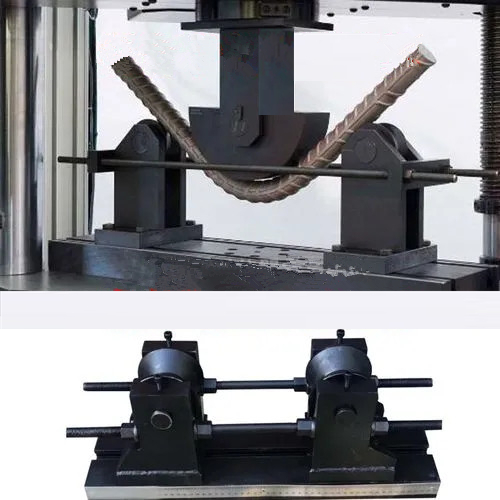

Bending Test
Compression Test

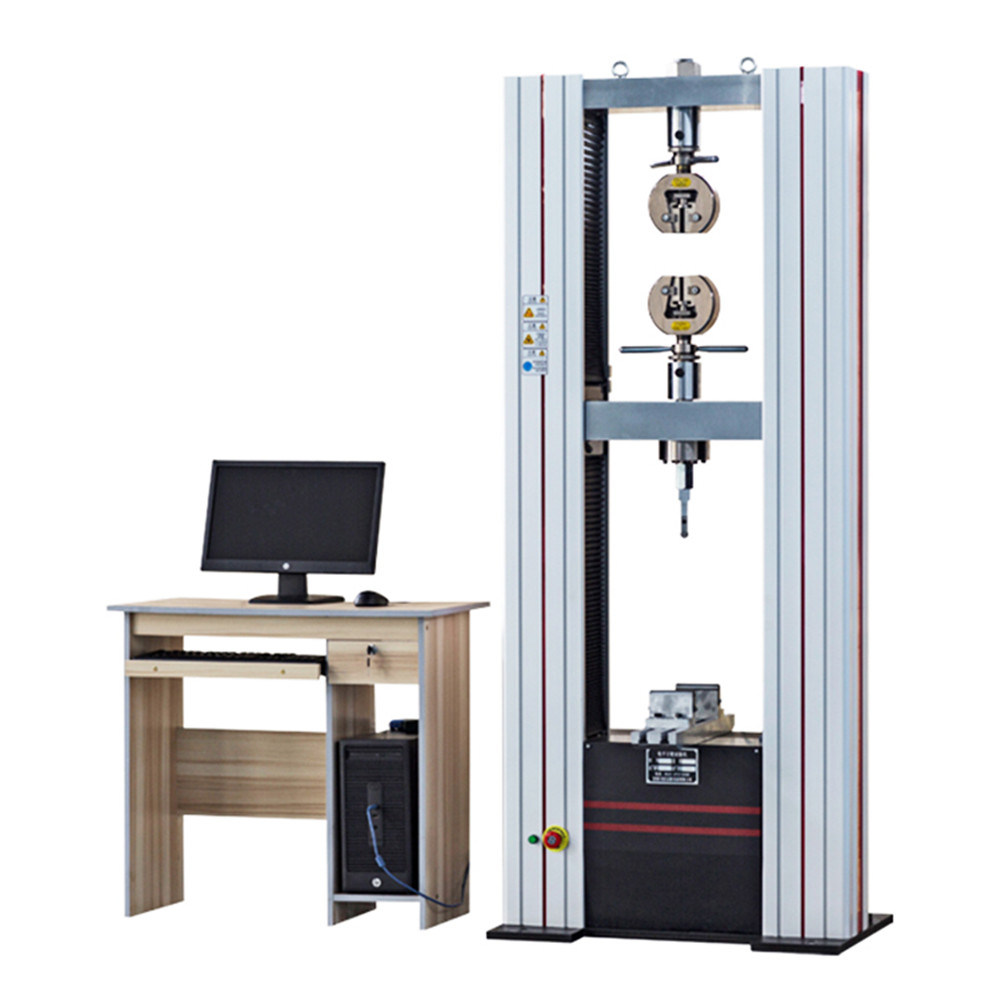

Recommend Products

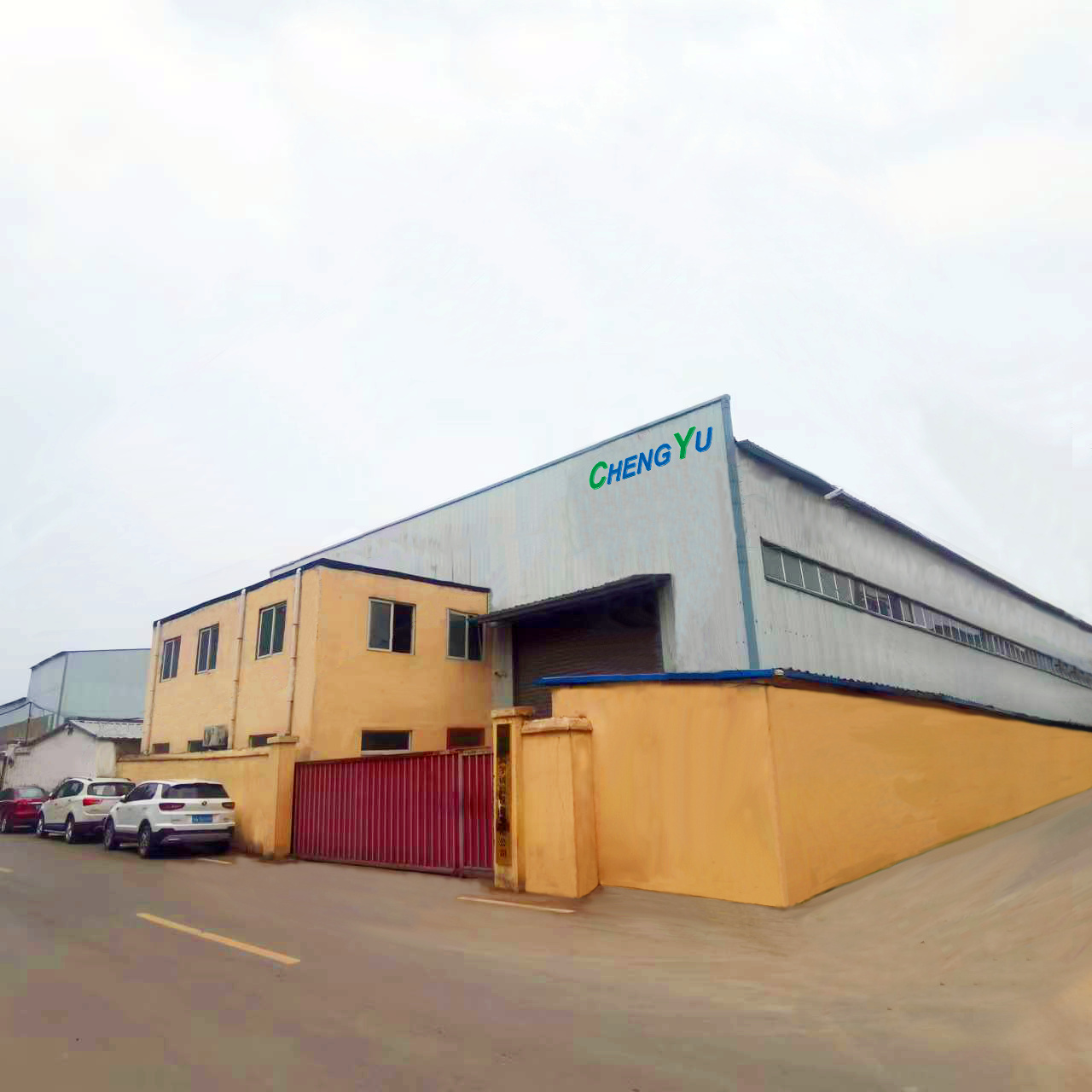

Chengyu testing Equipment Co., Ltd., a professional designer and manufacturer of material testing equipment, was established in 2001.Chengyu has R&D center and factory in Jinan and international dept in Qingdao, Shandong province, China
Why Choose Us
Advantage
? 24 hours online
? 21 years experiences
? Sample chamber of each model ? Best price, fast delivery ? OEM,ODM ? Oversea offices
?Own import and export business license ?ISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services
? Installation
? Training (Training customer employees)
? Calibration
? Preventative maintenance
? Replacement parts
? Assistancevia phone or internet ? On-site diagnosis and repair/online diagnosis and repair
