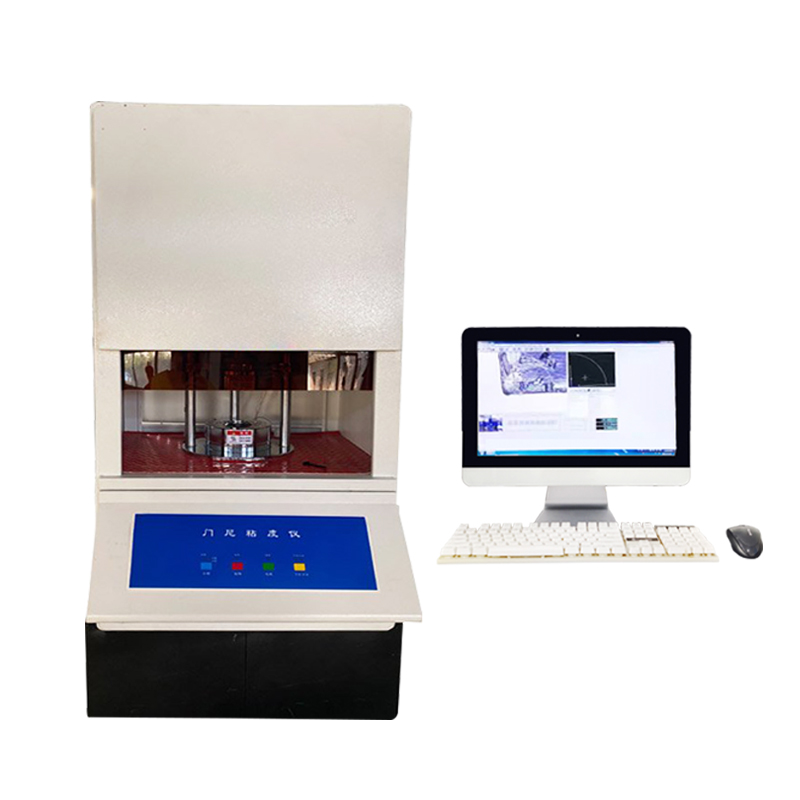

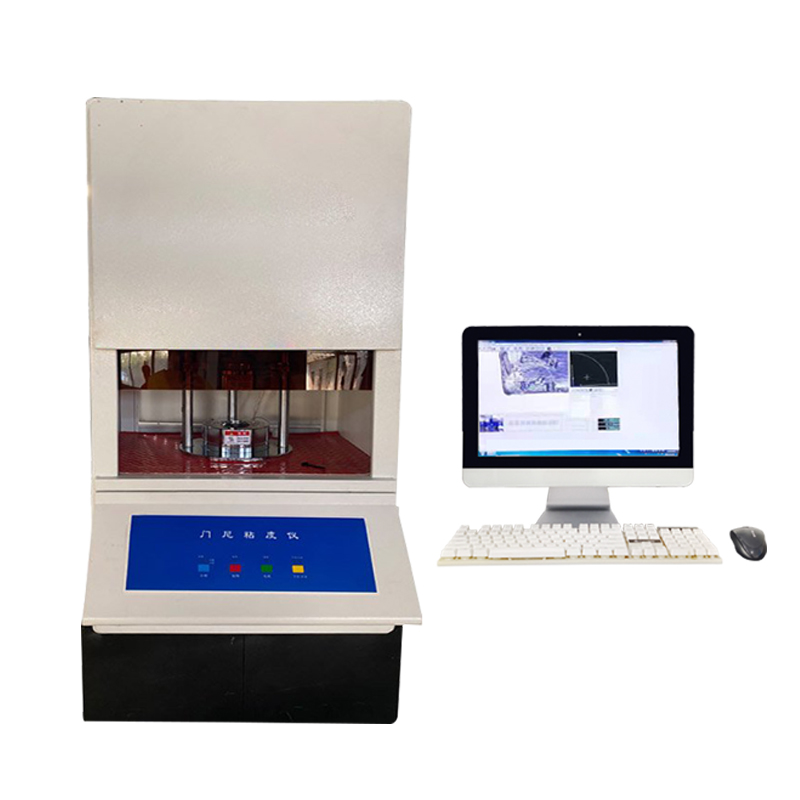

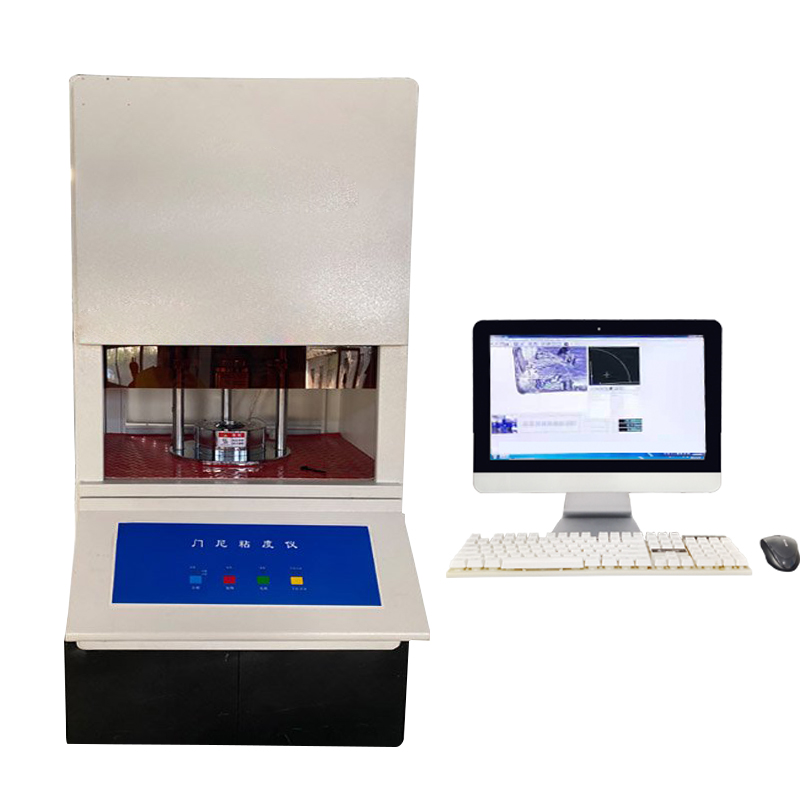

Computer-Controlled Mooney Viscometer for Evaluating Synthetic and Recycled Rubber Properties
$199.00
~ $2399.00
/ set
use:
- A type
- B type
- C type
- D type
Get Latest Price
You might also like
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | OBM, ODM, OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | Hongjin |
| power | Electronic |
Show More
Product description
Product Paramenters
Product Description.
Computer Controlled High Mooney Viscometer Synthetic Recycled Rubber Mooney Viscometer This machine conforms to the requirements of GB/T 1232 "Determination of Unvulcanized rubber Mooney viscosity", GB/T1233 "Determination of initial vulcanization characteristics of rubber rubber Mooney Viscometer method" and IS0289, IS0667 and other standards, used to determine the viscosity of raw rubber or mixed rubber, burning and vulcanization indexMicrocomputer control,
data display, automatic calibration, is the rubber industry and scientific research units of the ideal experimental
instrument.Imported intelligent digital temperature control instrument, easy to adjust and set, wide range of temperature control. The microcomputer adopts imported chip, high reliability, all the data can be calculated and printed automatically.

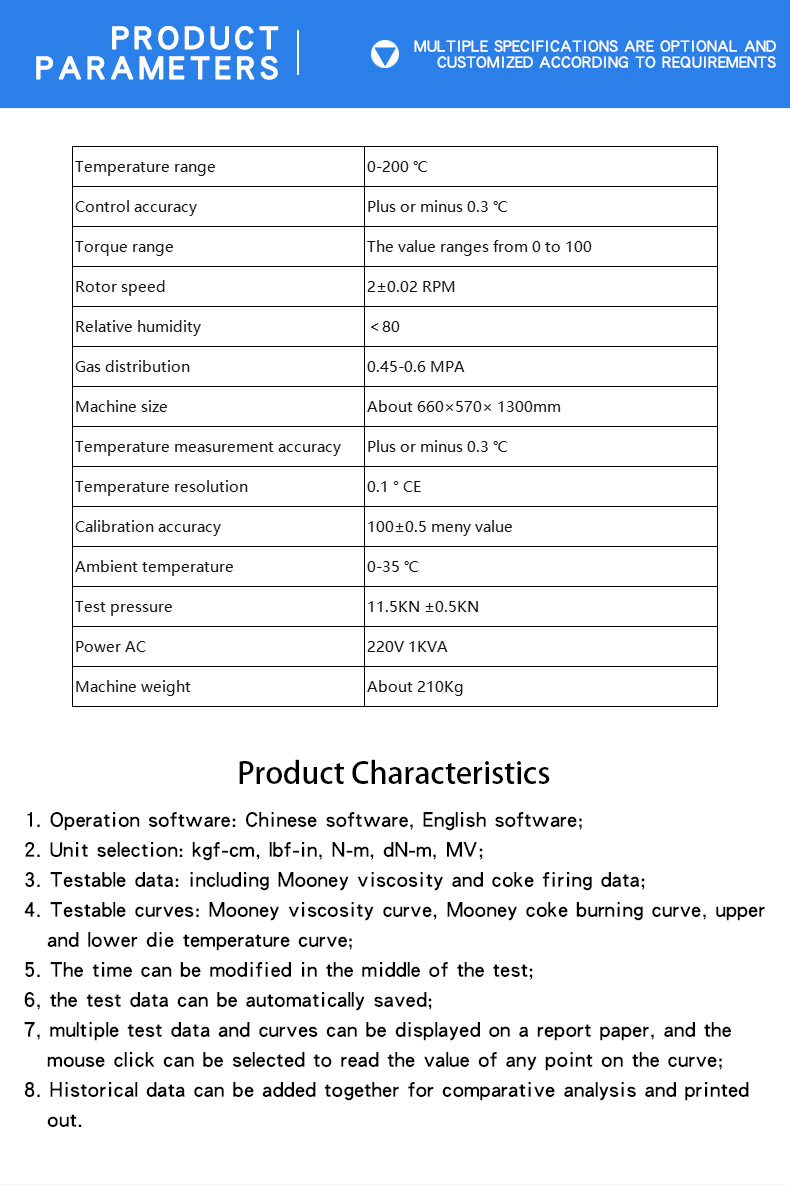

Product Characteristics
1. Operation software: Chinese software, English software;
2. Unit selection: kgf-cm, Ibf-in, N-m, dN-m, MV;
3. Testable data:including Mooney viscosity and coke firing data;
4. Testable curves: Mooney viscosity curve, Mooney coke burning curve, upper and lower die temperature curve;
5. The time can be modified in the middle of the test;
6, the test data can be automatically saved;
7,multiple test data and curves can be displayed on a report paper, and the mouse click can be selected to read the value of any point on the curve;
8. Historical data can be added together for comparative analysis and printed out.
Temperature range | 0-200 ℃ | ||||||
Control accuracy | Plus or minus 0.3 ℃ | ||||||
Torque range | The value ranges from 0 to 100 | ||||||
Rotor speed | 2±0.02 RPM | ||||||
Relative humidity | <80 | ||||||
Gas distribution | 0.45-0.6 MPA | ||||||
Machine size | About 660*570*1300mm | ||||||
Temperature measurement accuracy | Plus or minus 0.3 ℃ | ||||||
Temperature resolution | 0.1°CE | ||||||
Calibration accuracy | 100±0.5 meny value | ||||||
Ambient temperature | 0-35°℃ | ||||||
Test pressure | 11.5KN ±0.5KN | ||||||
Power AC | 220V 1KVA | ||||||
Machine weight | About 210Kg | ||||||
Products Description
Intimate voltage serviceConsiderate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance
indicator.
Excellent After sale Service
12 months warranty. Besides, we can help you to repair your problem controller freely, Free
replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video
and English operation muanual. We can provide video-con
Feel free to contact
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
https://www.hongjin-group.net/
