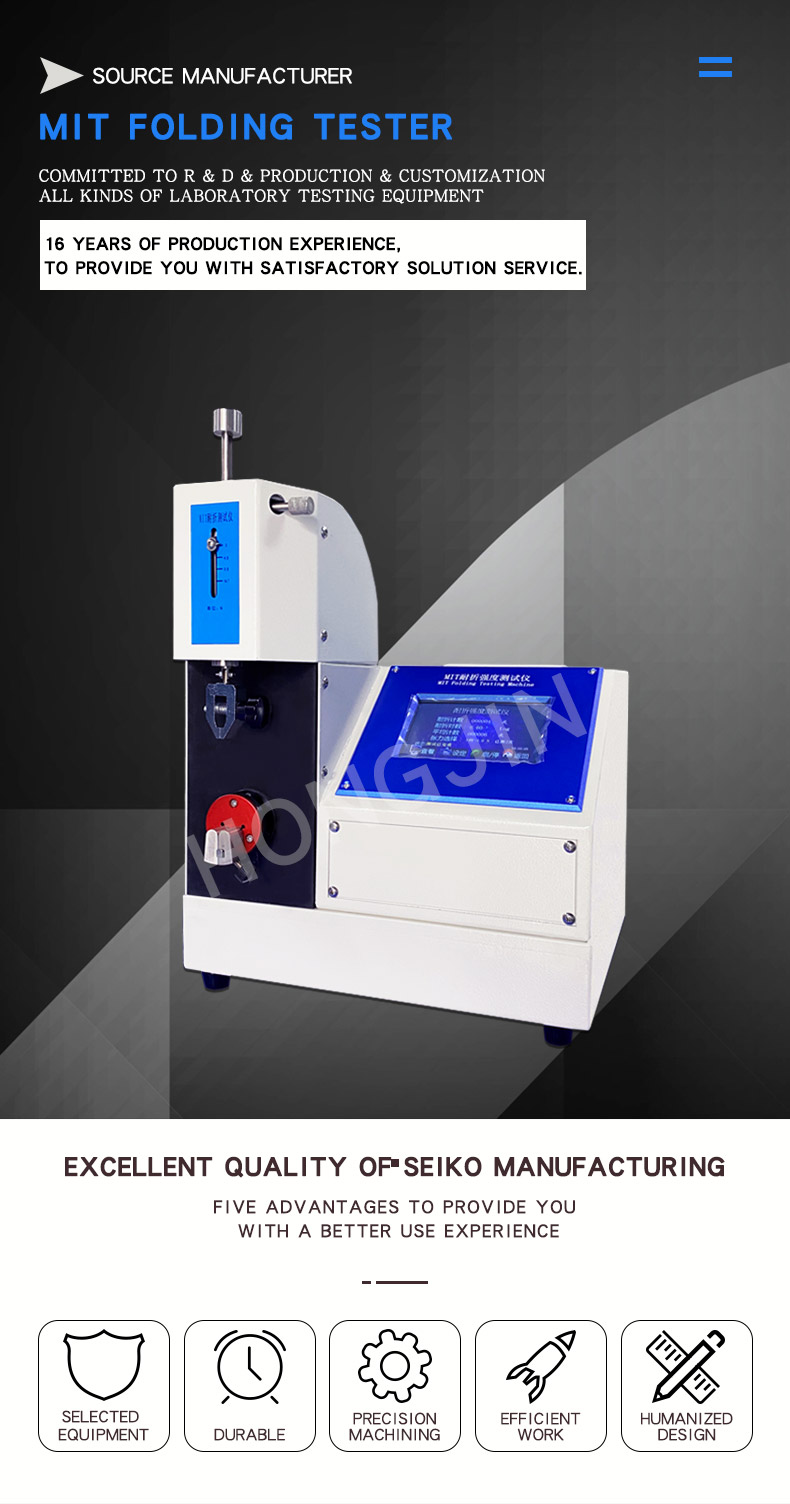

Materials Testing Tools: Exploring the MIT Paper Folding Tester, Aluminum Foil Folding Tester, and Cardboard Bending Strength Tester
$199.00
~ $1800.00
/ set
use:
- A type
- B type
- C type
- D type
Get Latest Price
You might also like
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | OBM, ODM, OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | Hongjin |
| power | Electronic |
Show More
Product description
Product Paramenters
Product Introduction

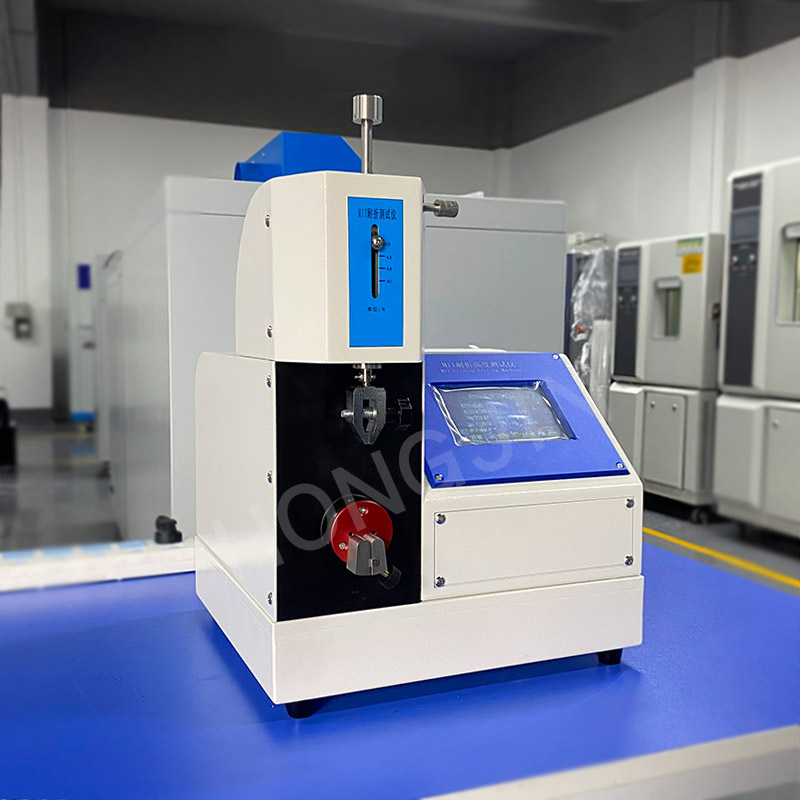

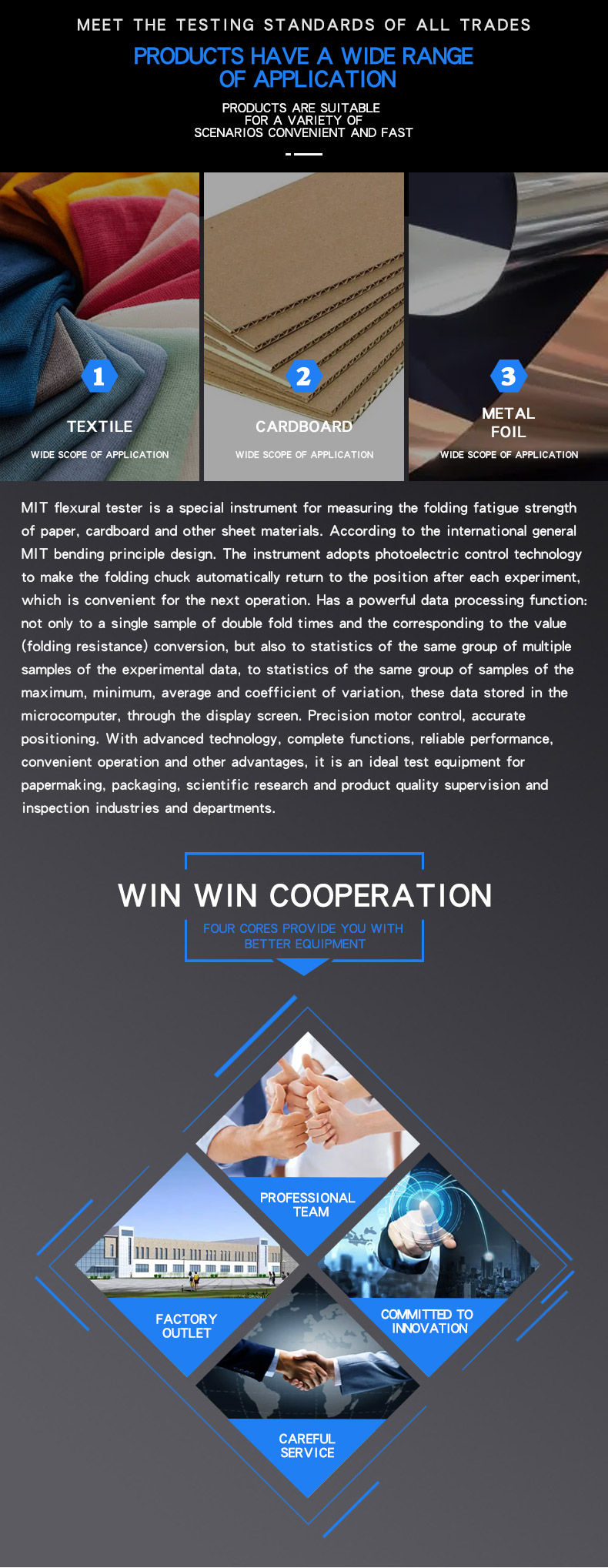

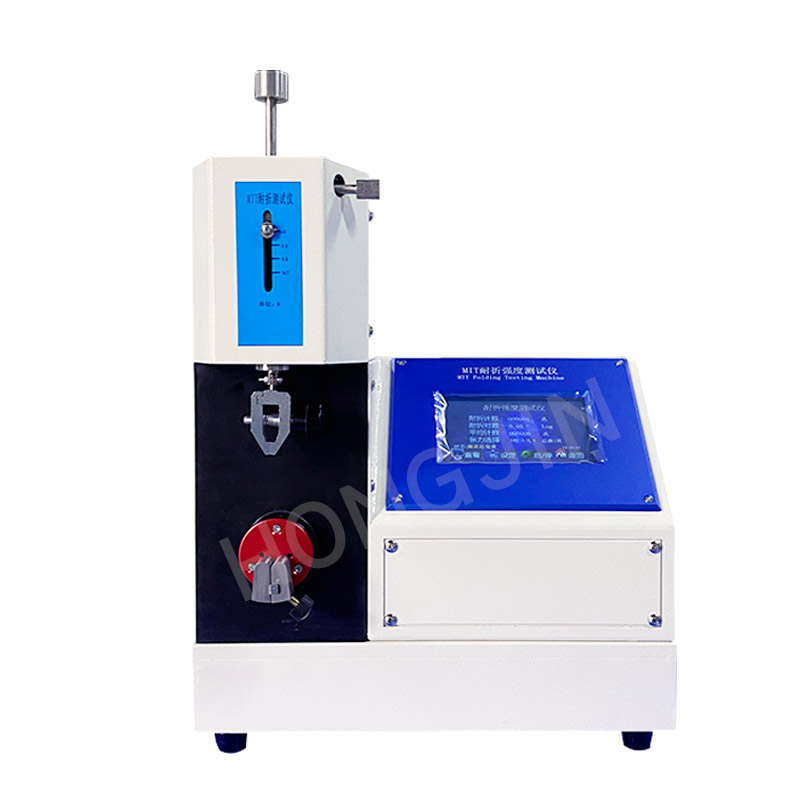

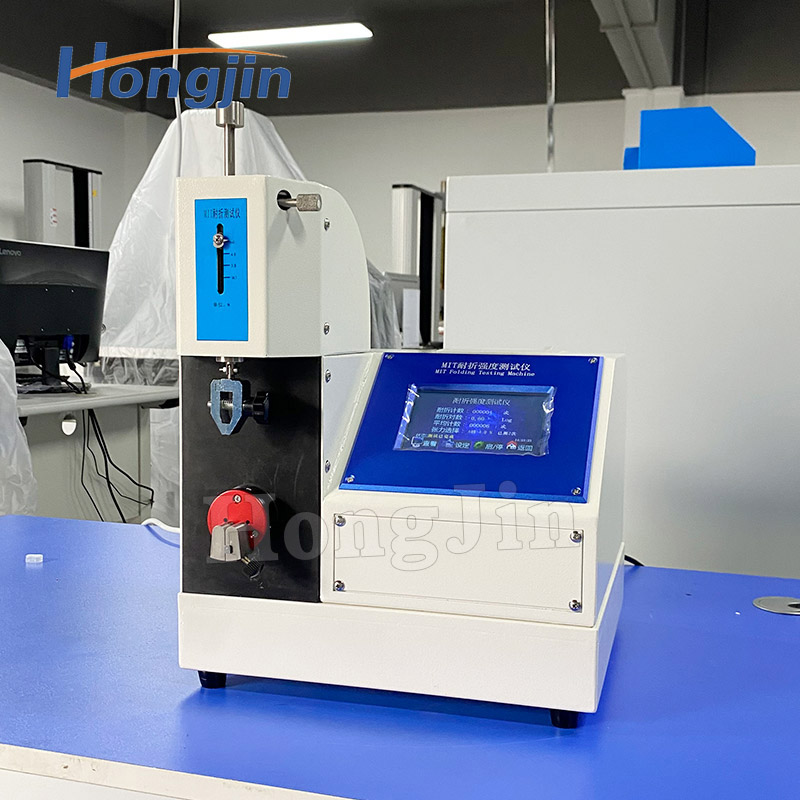

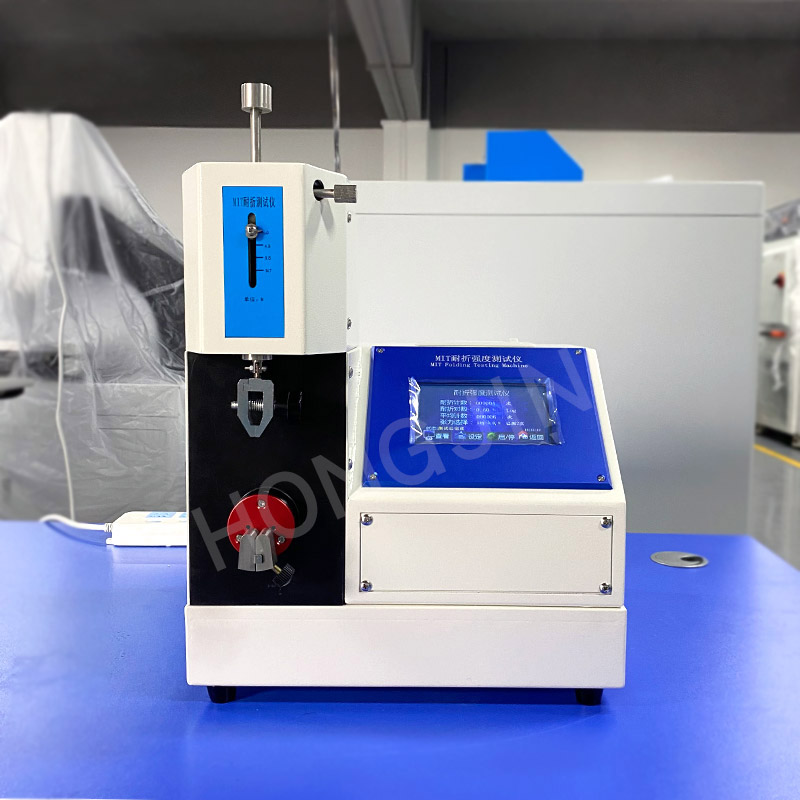

MIT Paper Folding Tester Aluminum Foil Folding Tester Cardboard Bending Strength Tester is a special instrument for measuring the folding fatigue strength of paper, cardboard and other sheet materials. According to the international general MIT bending principle design. The instrument adopts photoelectric control technology to make the folding chuck automatically return to the position after each experiment, which is convenient for the next operation. Has a powerful data processing function: not only to a single sample of double fold times and the corresponding to the value (folding resistance) conversion, but also to statistics of the same group of multiple samples of the experimental data, to
statistics of the same group of samples of the maximum, minimum, average and coefficient of variation, these data stored in the microcomputer, through the display screen. Precision motor control, accurate positioning. With advanced technology, complete functions, reliable performance, convenient operation and other advantages, it is an ideal test equipment for papermaking, packaging, scientific research and product quality supervision and inspection industries and departments.
Product advantages
1. Microcomputer control technology, open structure, simple and convenient operation, safe and reliable.2. Automatic measurement, statistics, printing of test results, and data storage function.
3. After the test is completed, it will automatically return to the zero position function.
4. Modern design concept of opto-mechanical-electrical integration, compact structure, elegant appearance and convenient maintenance.

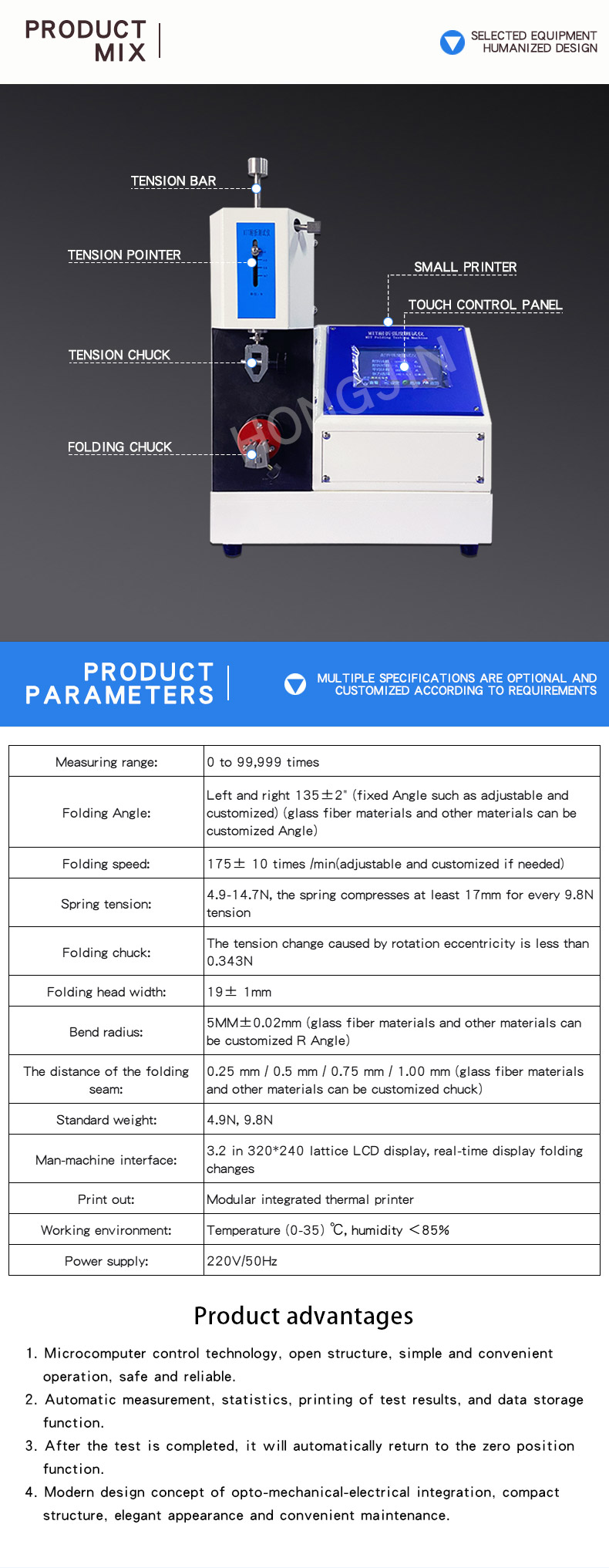

Measuring range: | 0 to 99,999 times | ||||||
Folding Angle: | Left and right 135±2" (fixed Angle such as adjustable and customized) (glass fiber materials and other materials can be customized Angle) | ||||||
Folding speed: | 175± 10 times /min(adjustable and customized if needed) | ||||||

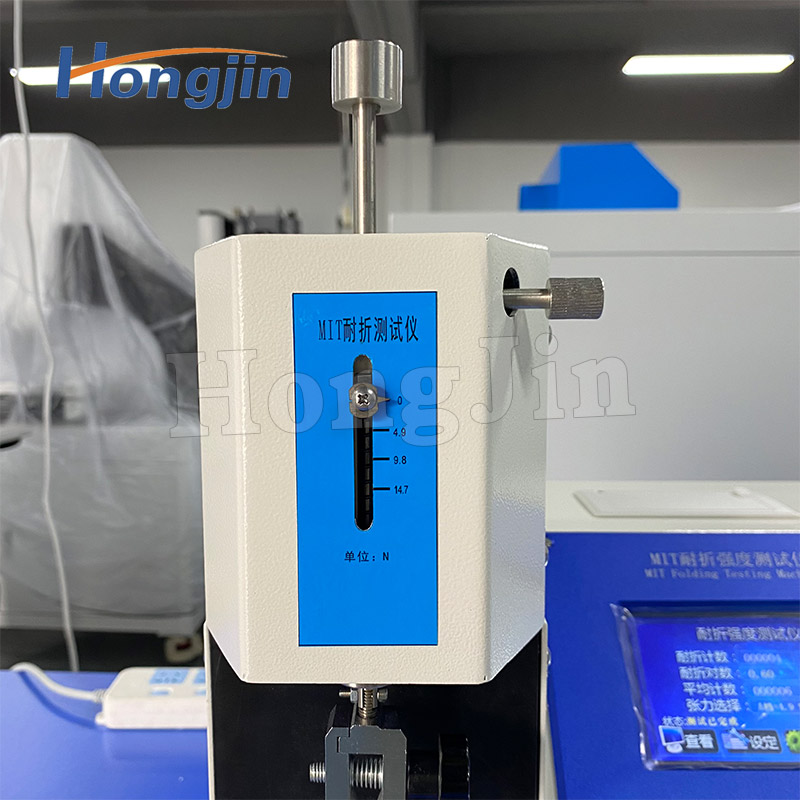

Spring tension: | 4.9-14.7N, the spring compresses at least 17mm for every 9.8N tension | ||||||
Folding chuck: | The tension change caused by rotation eccentricity is less than0.343N | ||||||
Folding head width: | 19± 1mm | ||||||
Bend radius: | 5MM±0.02mm (glass fiber materials and other materials can be customized RAngle) | ||||||
The distance of the folding seam: | 0.25 mm / 0.5 mm / 0.75 mm /1.00 mm (glass fiber materials and other materials can be customized chuck) | ||||||
Standard weight: | 4.9N, 9.8N | ||||||

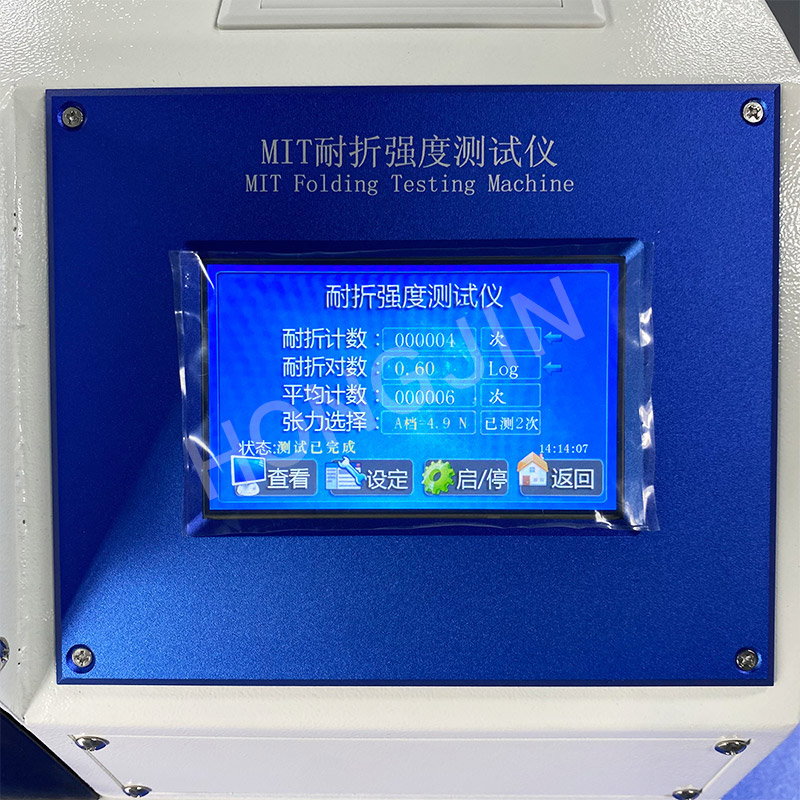

Man-machine interface: | 3.2 in 320*240 lattice LCD display, real-time display folding changes | ||||||
Print out: | Modular integrated thermal printer | ||||||
Working environment: | Temperature (0-35) ℃, humidity <85% | ||||||
Power supply: | 220V/50Hz | ||||||
