Computer-Controlled Multiple Workbenches Vertical Valve Body Tester
$15000.00
~ $25000.00
/ set
use:
- Auto Testing Machine
- Universal Testing Machine
Get Latest Price
You might also like
$10000.00
1 set (MOQ)
$12000.00
1 set (MOQ)
$10000.00
1 set (MOQ)
Basic Info
| Warranty | 1 Year |
|---|---|
| Customized Support | Oem, Odm |
| Place Of Origin | Zhejiang, China |
| Brand Name | YONGYE |
| Model Number | YFT-B100 |
Show More
Product description
Technical performance and feature
1. YFT-B vertical series hydraulic valve test machine is suitable for the shell and seal test of the valves below DN-300. There are two types of seal blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.
2. The impacting cylinder upward moves downward and upward to clamp or loosen the test valve.
1. YFT-B vertical series hydraulic valve test machine is suitable for the shell and seal test of the valves below DN-300. There are two types of seal blind plates: plastic seal plates for non-flange valve test and O rings seal plates for flange valve test.
2. The impacting cylinder upward moves downward and upward to clamp or loosen the test valve.
3. Test medium can be chosen including water, air or kerosene.

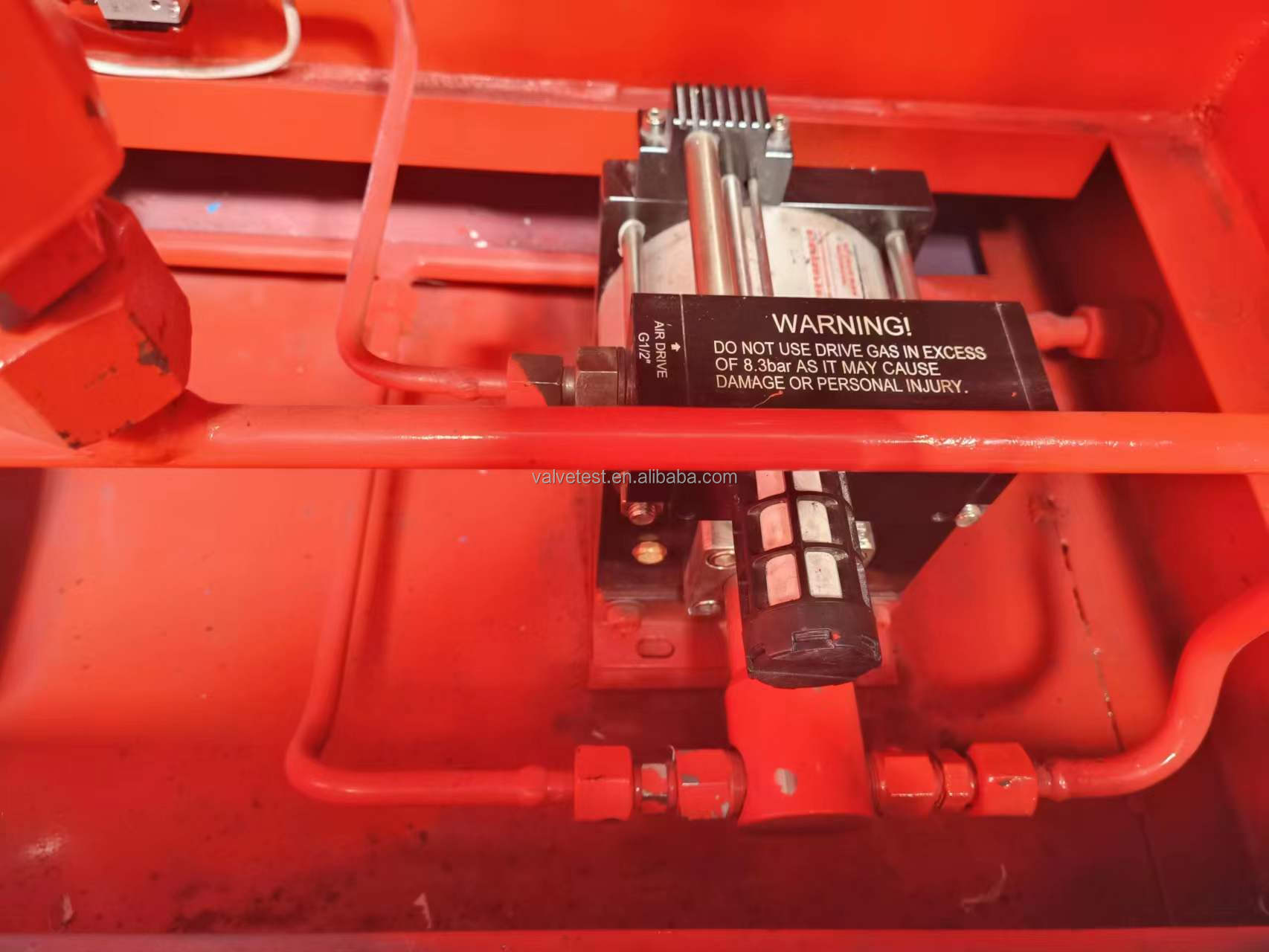

4. The valve test bench has low pressure water pump and water booster(air driving pump). There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the valve test stand has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the valve test rig.

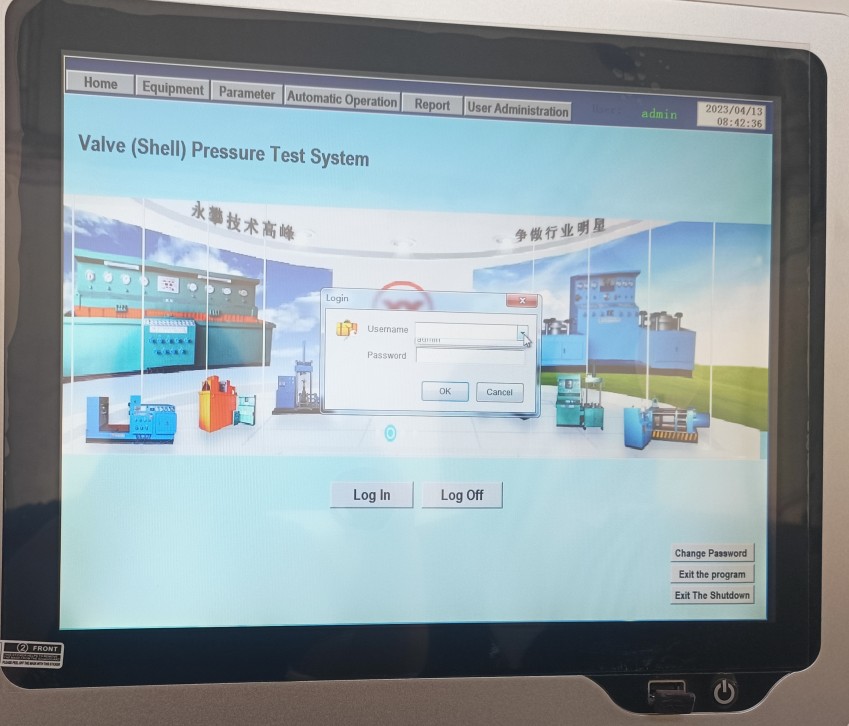

8. PLC control, touch screen display pressure diagram and printer system is optional.
4. The valve test bench has low pressure water pump and water booster(air driving pump). There is an air connection reserved for air pump.
6. Water and hydraulic oil can be reused.
7. the valve test stand has an automatic oil pressure discharge system. When using it, the high pressure condition and the relief pressure condition can be changed by itself. So it can reduce oil temperature, elongate life of the valve test rig.
8. PLC control, touch screen display pressure diagram and printer system is optional.

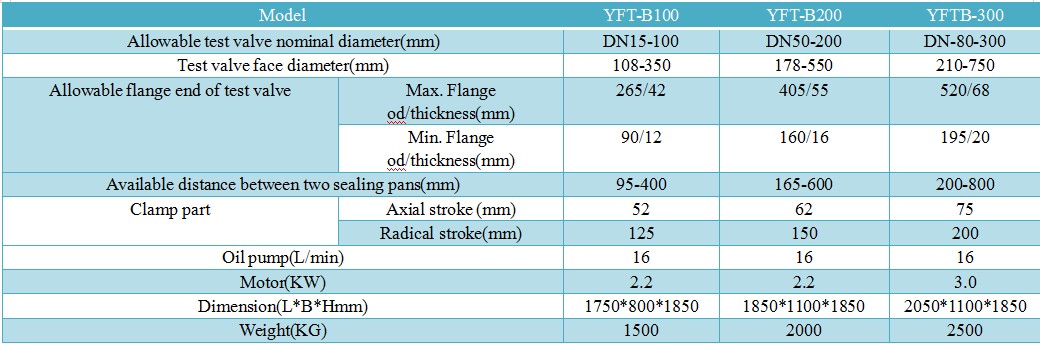

Main technical parameters and sizes

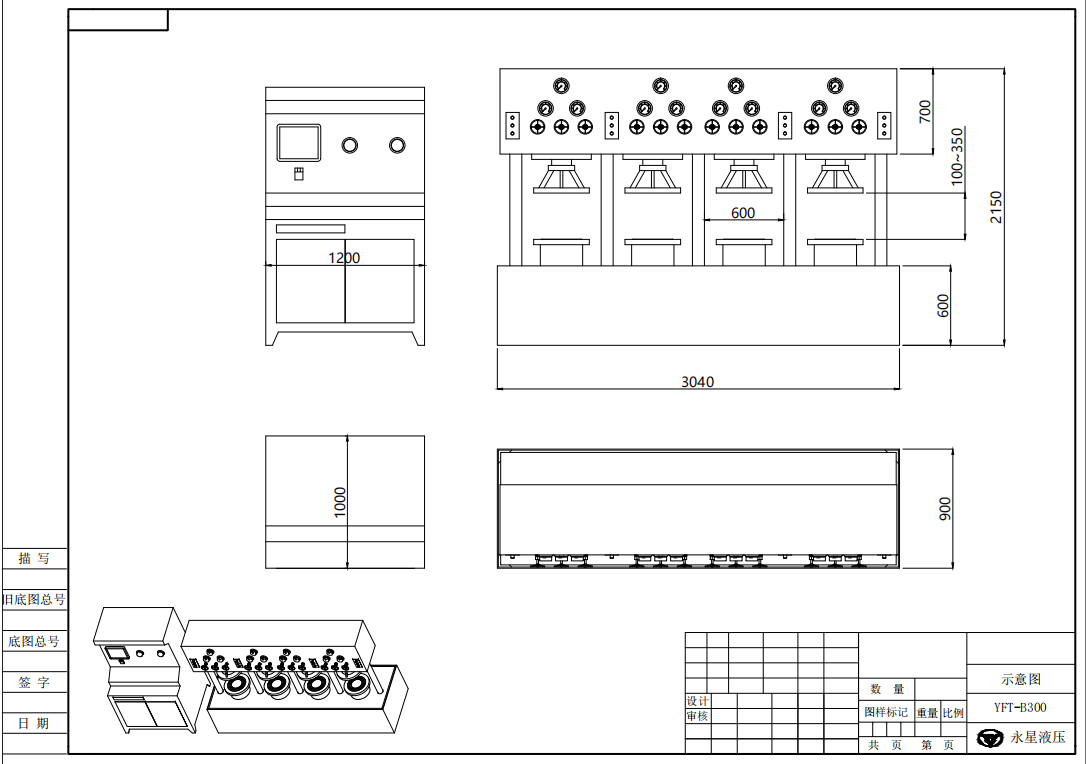

Schematic diagram

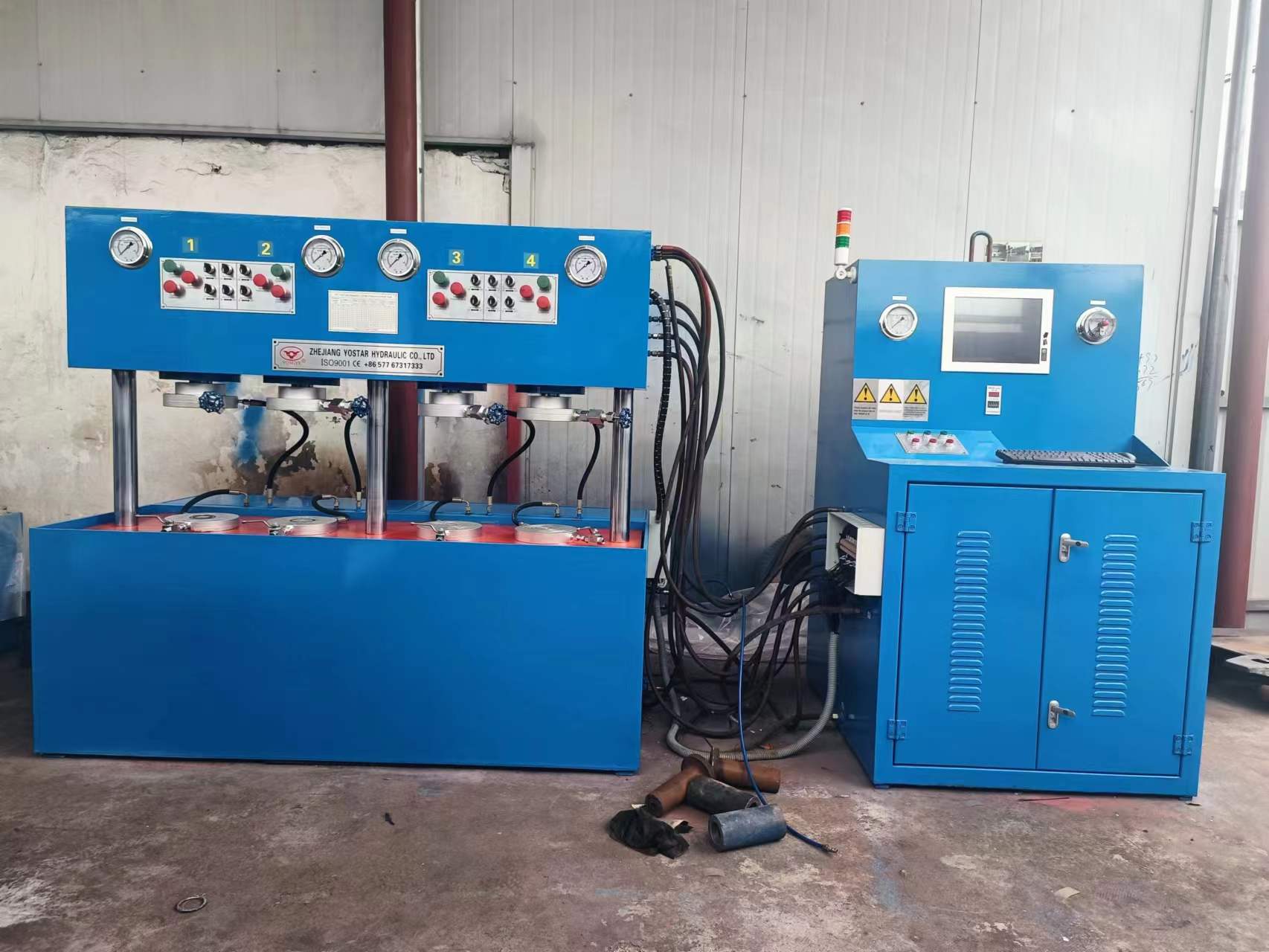

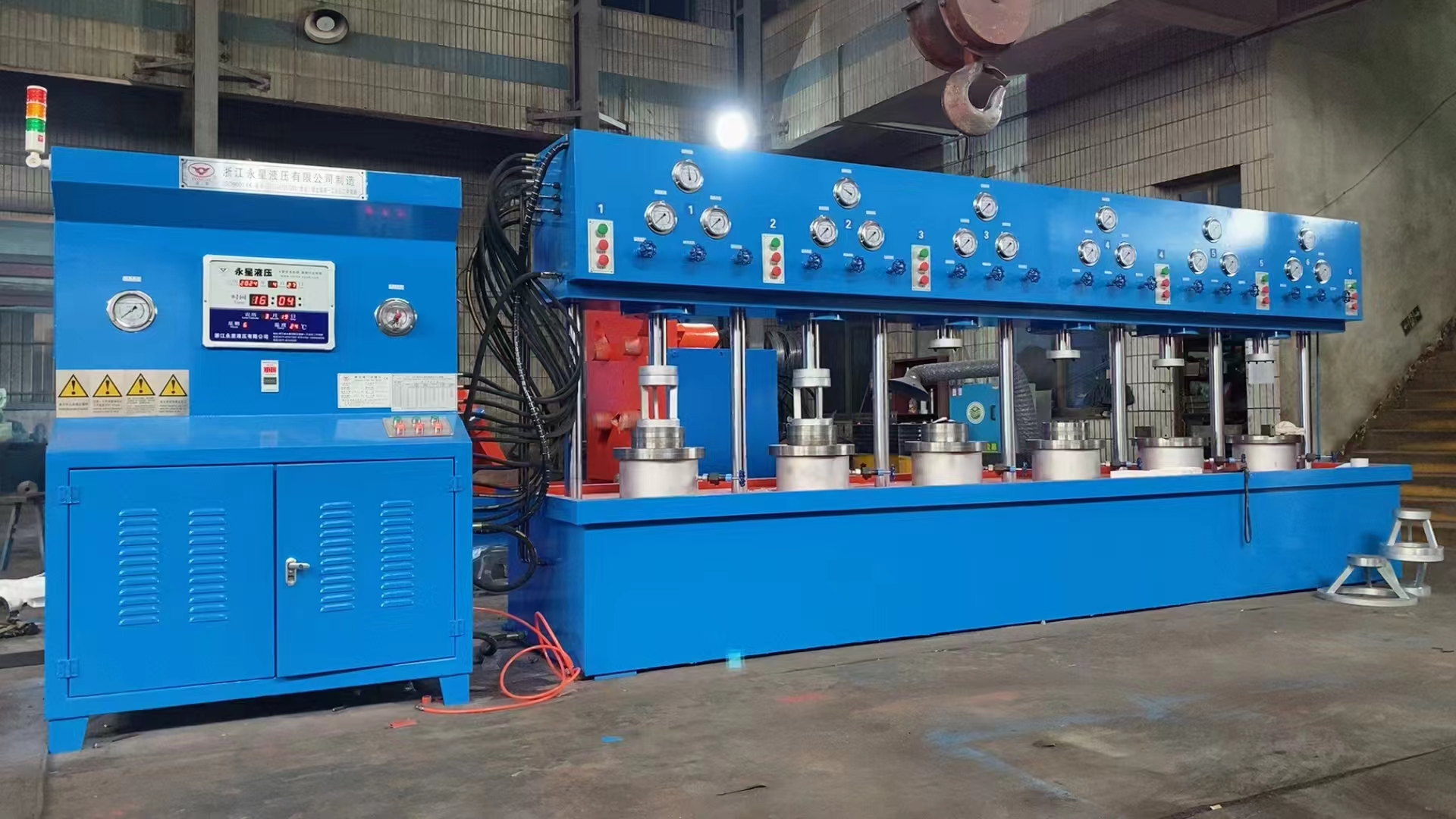

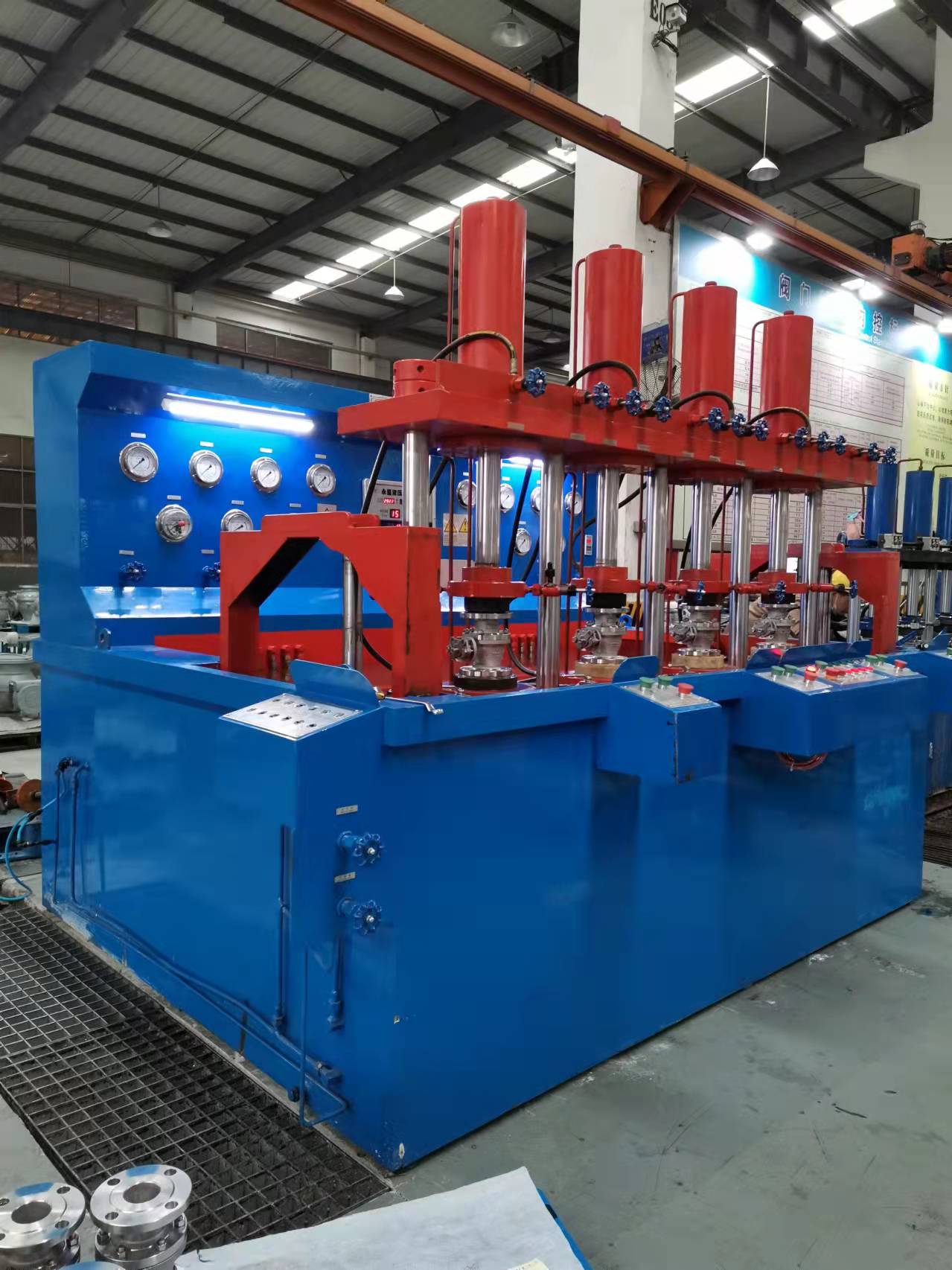

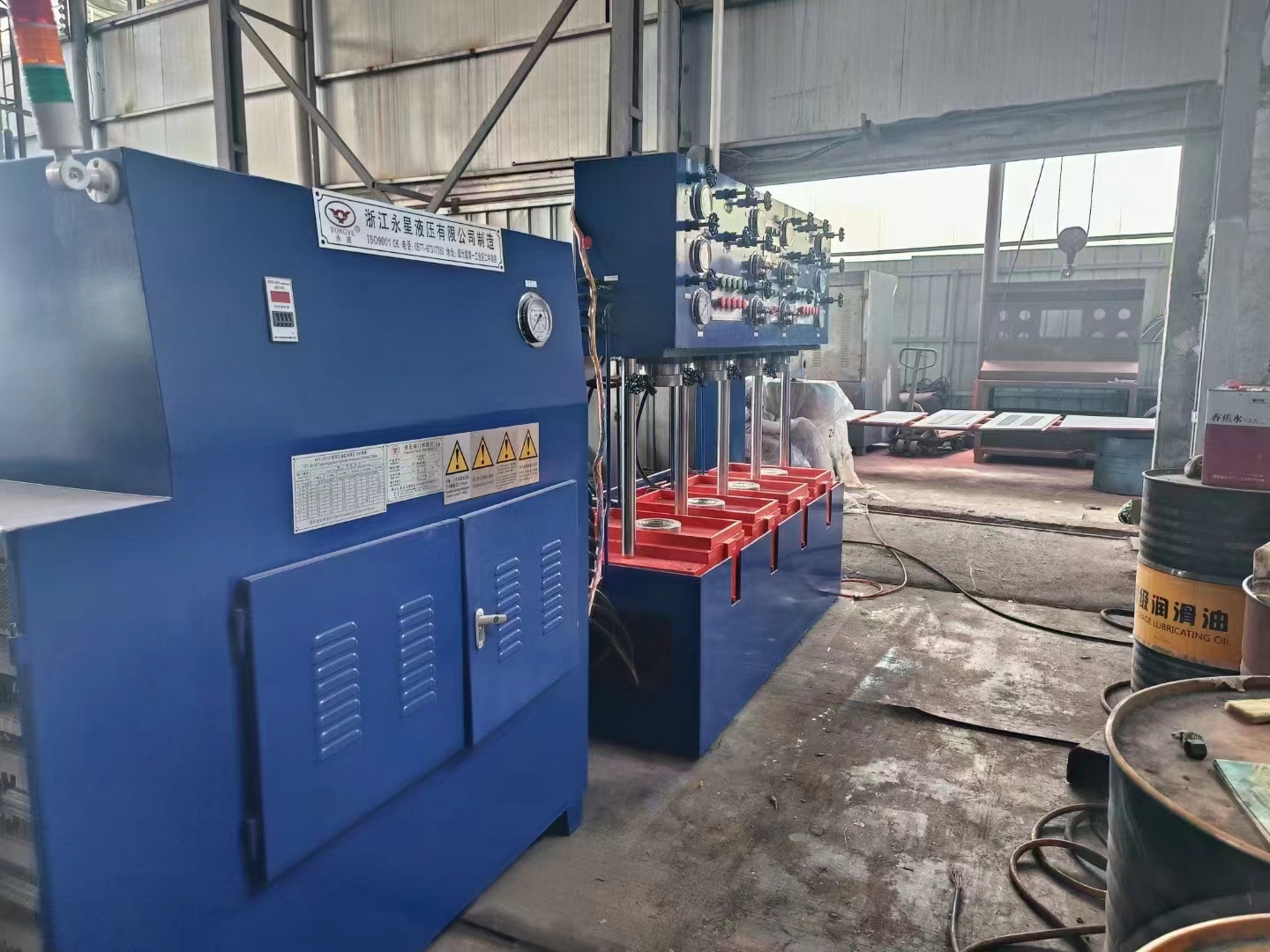

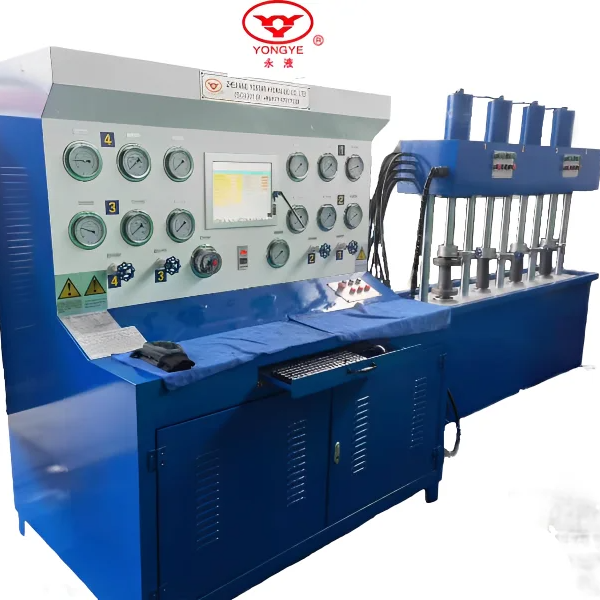

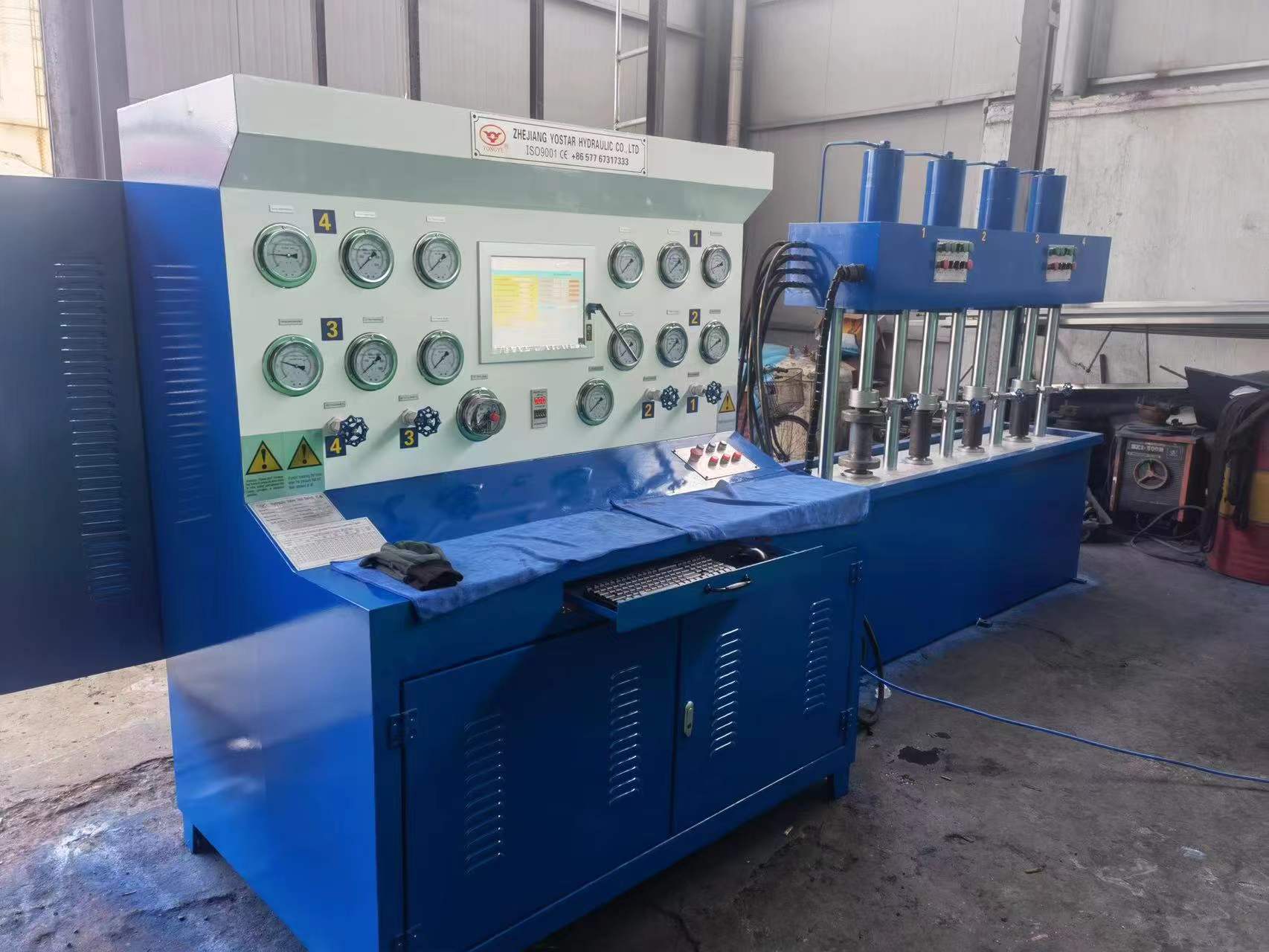

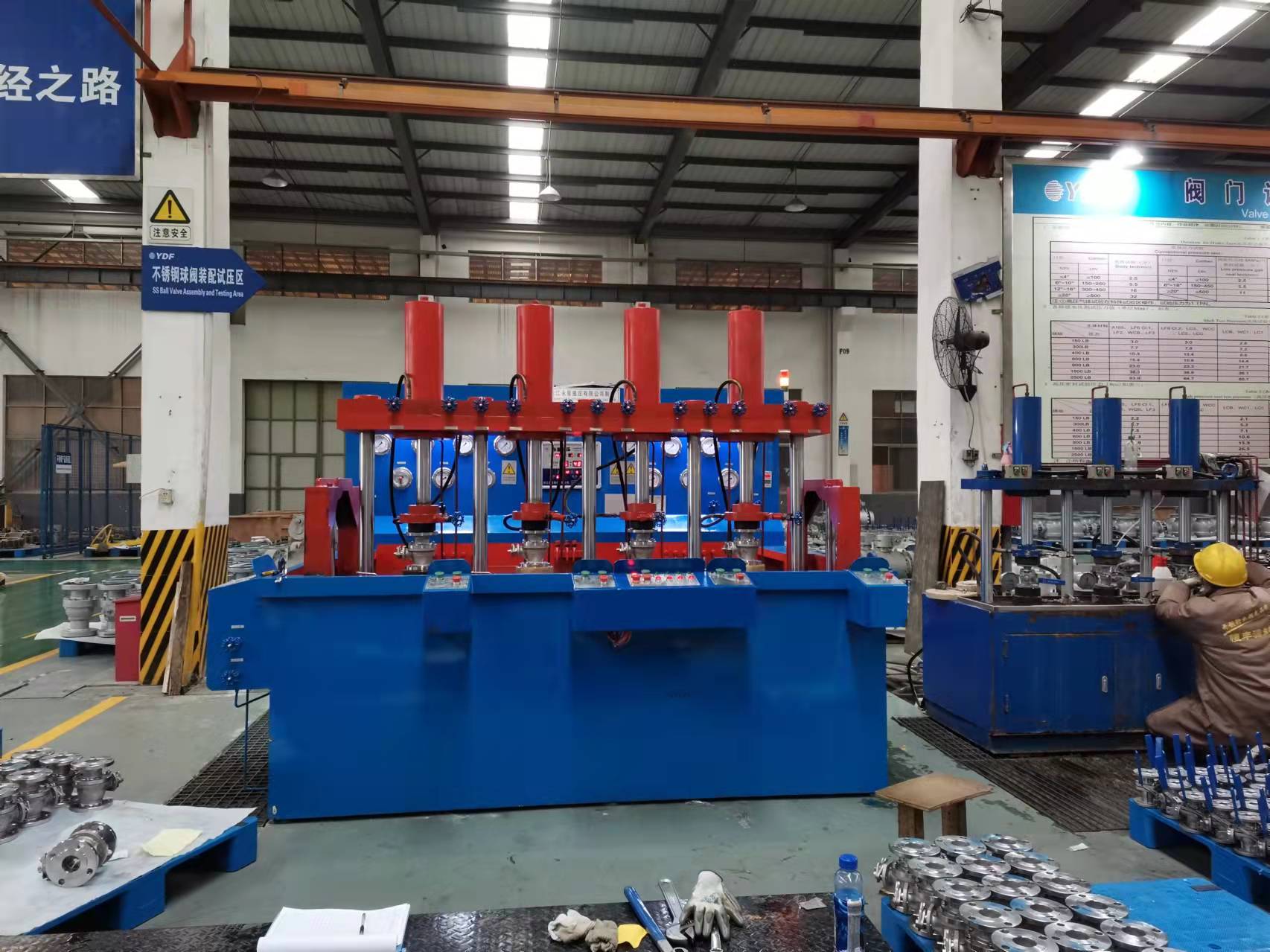

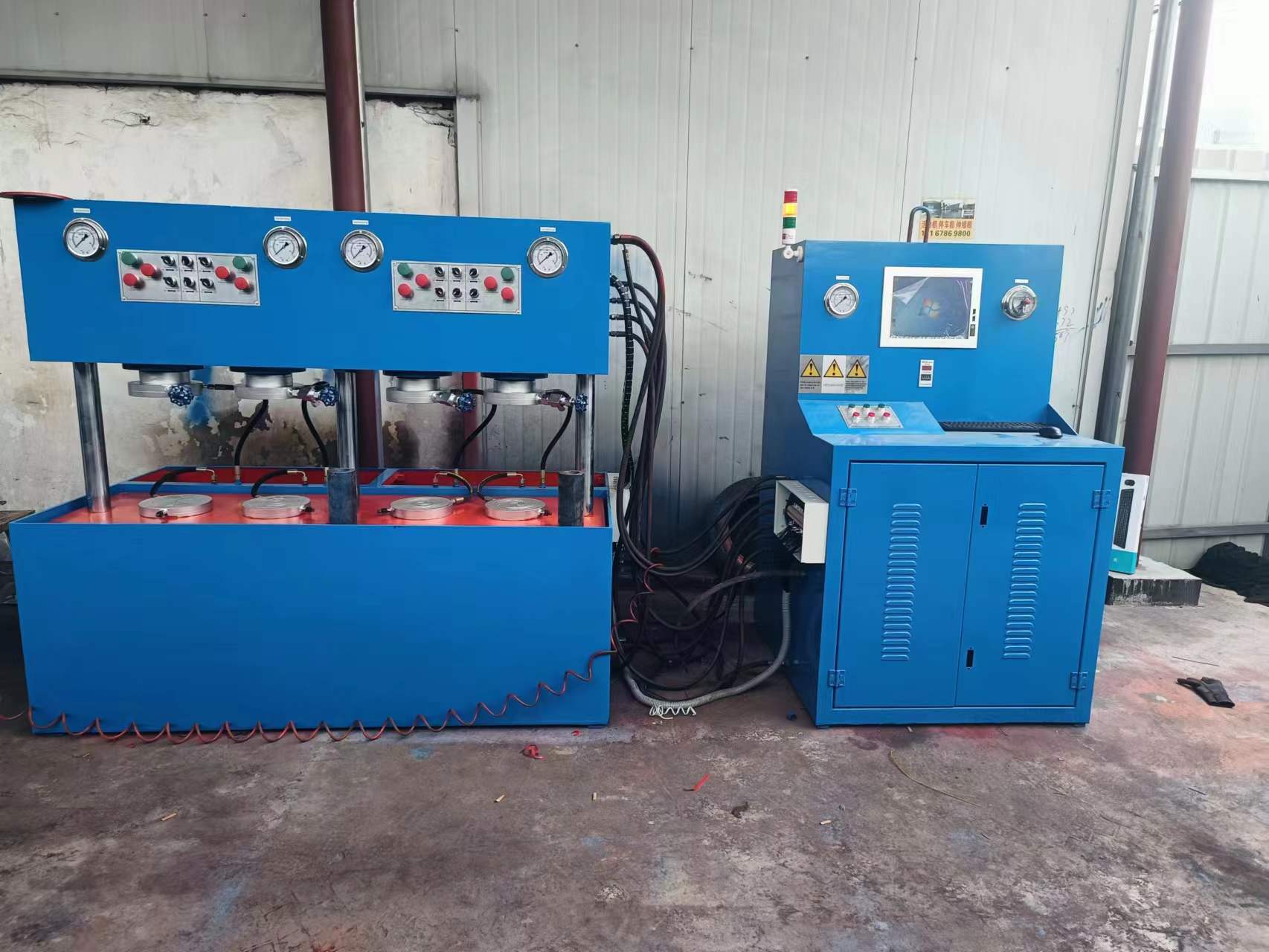

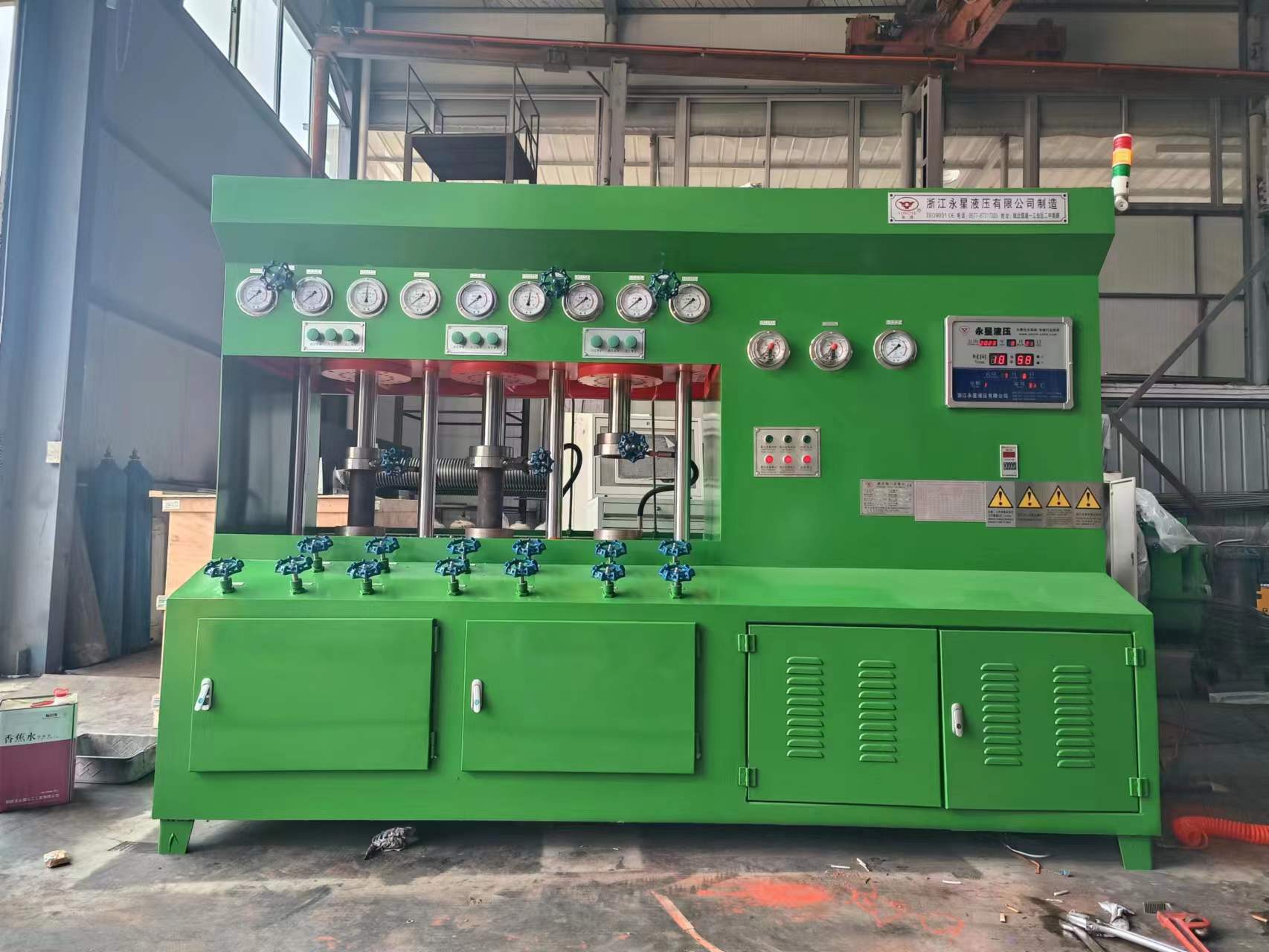

More pictures of multiple workbenches valve test machine
Main configuration

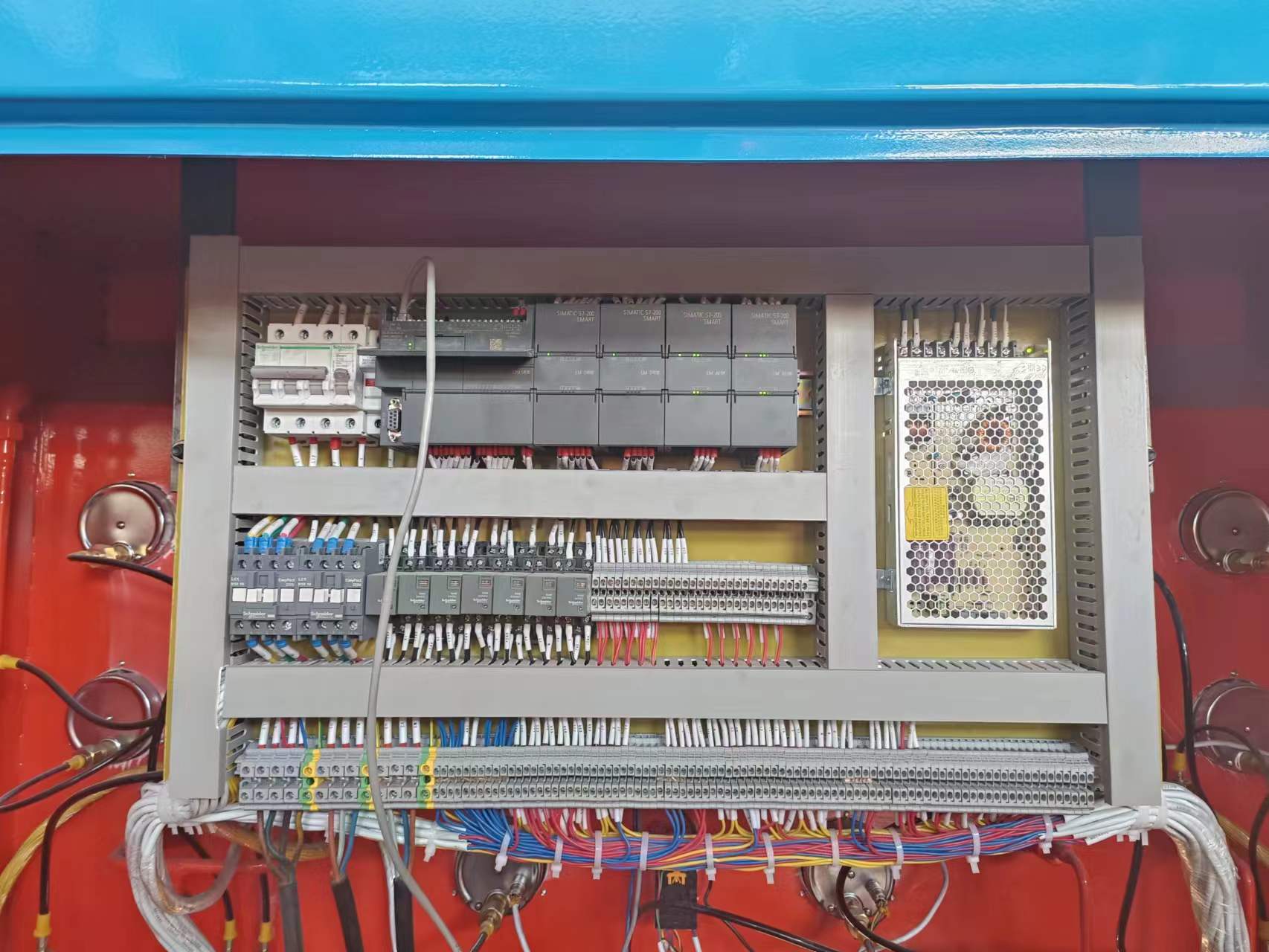

electric appliance(Schneider)

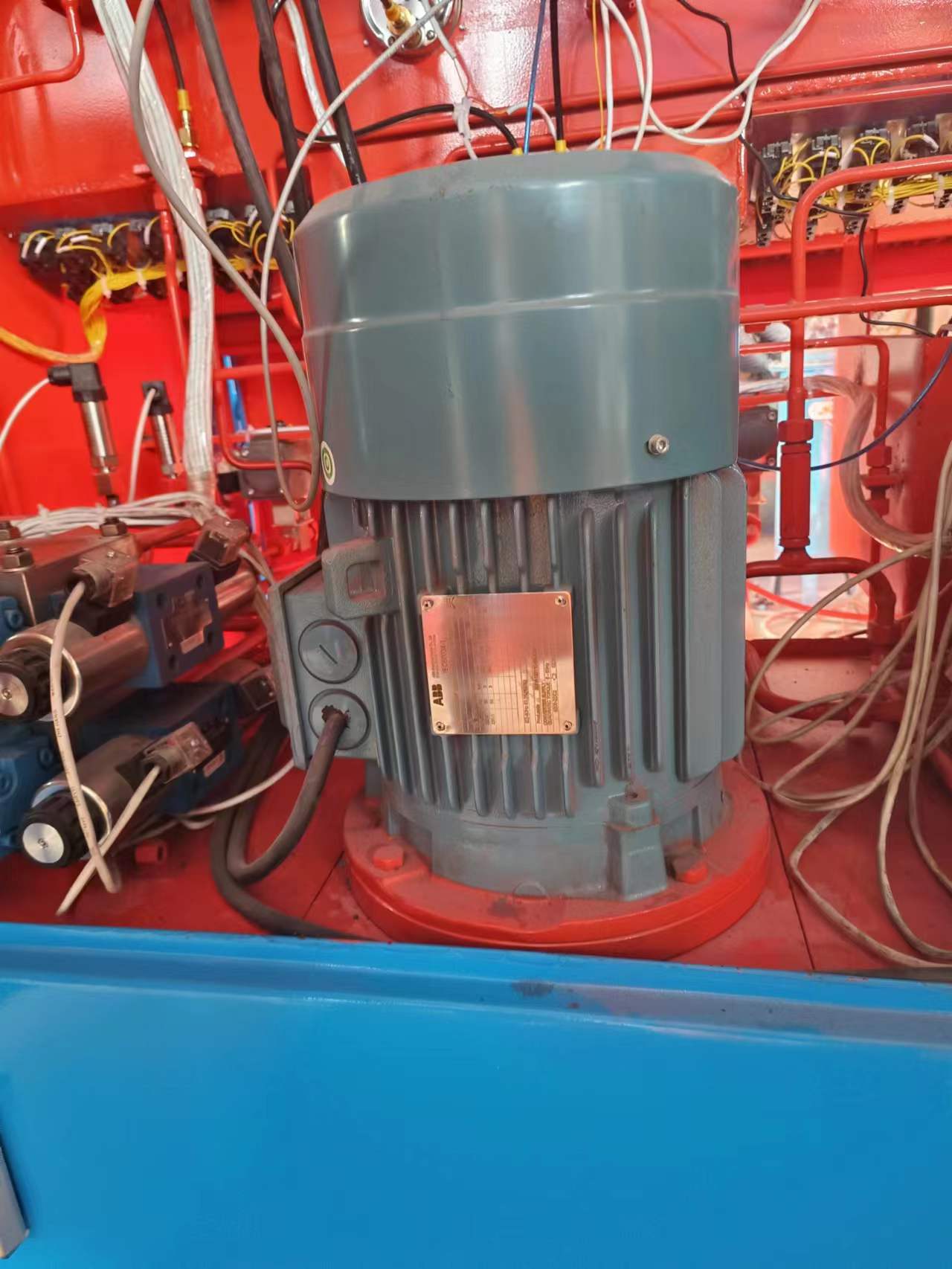

Motor(ABB)
High pressure water pump(air driving pump)/Shenzhen STK

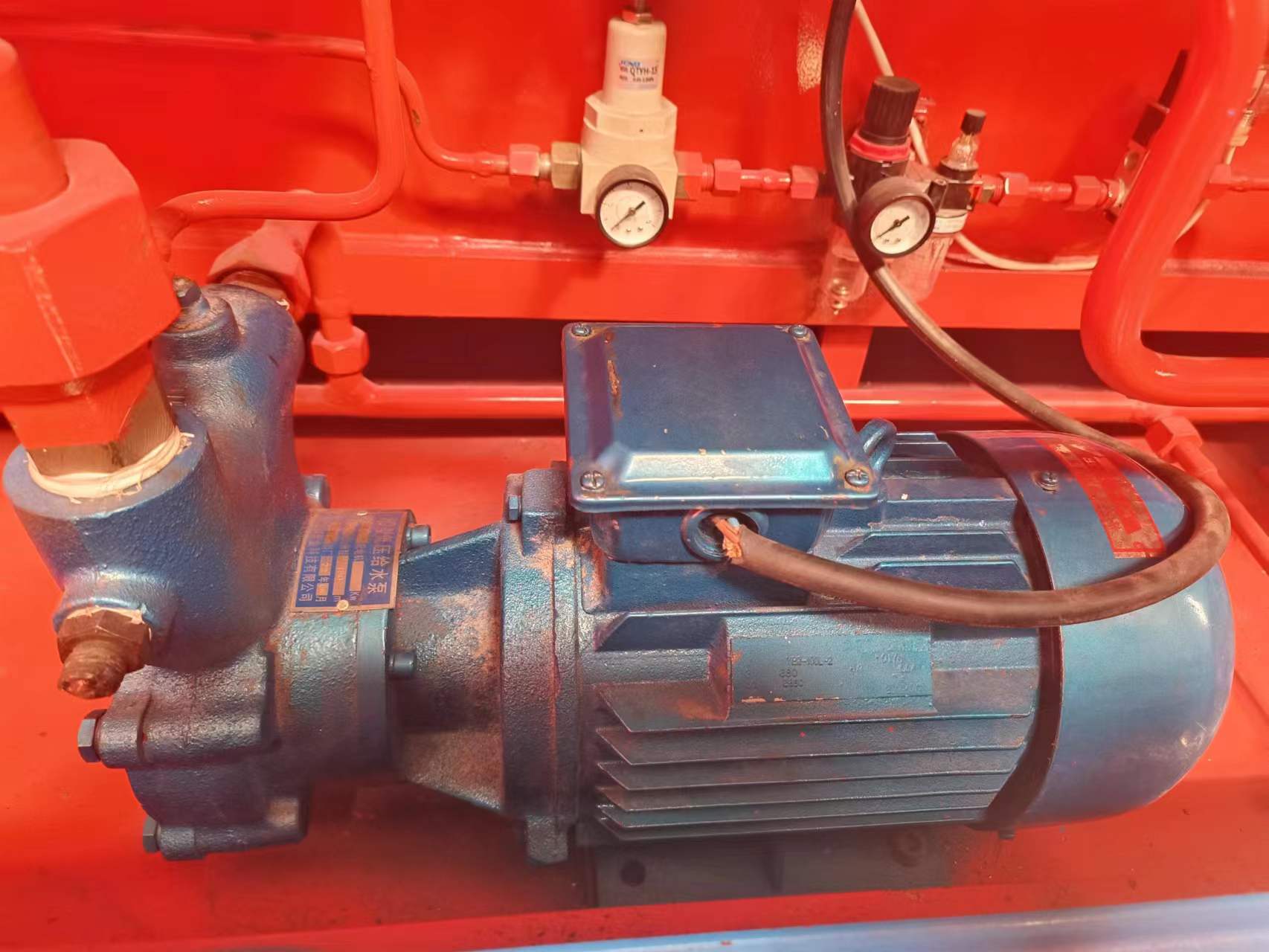

Low pressure water pump(Brand of China)
A brief Introduction of Yongxing Hydraulic Co. Ltd.
FAQ
1. Are you a manufacturer ?
Absolutely, our factory was founded in 1996, being one of the earliest valve test machine manufacturers in China, and we are the supplier of many trading companies selling valve test machines in China.
2. What is your company brand?
Our brand is YONGYE, and we have only one brand for we produce only valve test machines and related components.
3. What is your delivery time?
Usually 6 to 8 weeks. But it’s according to the size and technical parameters of the valve test bench. For this point, it is negotiable.
4. What is your payment term ?
Our standard payment is 30% to 50% down payment by T/T after order confirmation, 50% to 70% balance payment by T/T before shipment.
5. What is your machine warranty ?
Our machines are guaranteed by 12 months after date of shipment and life-long time free technical guidance
6. What information should I provide if I want to customize your valve test machine?
(1): the nominal diameter range dn= ?
(2): type of valve connection , flanged, threaded or welded?
(3): maximum test pressure of the maximum valve diameter(which is very important)
e.g.dn80-300 dn300=15.0MPa/900class (for seal test of for shell test, please specify it)
Absolutely, our factory was founded in 1996, being one of the earliest valve test machine manufacturers in China, and we are the supplier of many trading companies selling valve test machines in China.
2. What is your company brand?
Our brand is YONGYE, and we have only one brand for we produce only valve test machines and related components.
3. What is your delivery time?
Usually 6 to 8 weeks. But it’s according to the size and technical parameters of the valve test bench. For this point, it is negotiable.
4. What is your payment term ?
Our standard payment is 30% to 50% down payment by T/T after order confirmation, 50% to 70% balance payment by T/T before shipment.
5. What is your machine warranty ?
Our machines are guaranteed by 12 months after date of shipment and life-long time free technical guidance
6. What information should I provide if I want to customize your valve test machine?
(1): the nominal diameter range dn= ?
(2): type of valve connection , flanged, threaded or welded?
(3): maximum test pressure of the maximum valve diameter(which is very important)
e.g.dn80-300 dn300=15.0MPa/900class (for seal test of for shell test, please specify it)
