Cat6 Patch Cord UTP

1. Cable Construction

Conductor:Cat6 UTP stranded, 24AWG, 7*0.20, bare copper.

Cable OD:Nominal Diameter 6.0+/-0.2mm

Insulation:Polyethylene with color marking on white cores.

Color Code:BL/WH-BL, OR/WH-OR, GN/GN-WH, BR/BR-WH

Shield:None

Outer Jacket and boots:PVC, CMX,CM,CMR, Leaded and Lead-free as well as LSZH versions available

Cable Color:blue, others colors from RAL and Pantone are available.

2. Mechanical Characteristics

Cable to Plug Tensile strength:9kgsf (90n) Min.

Minimum Bending Radius:22 MM

Storage Temperature:-20 to +80C

Durability:750 mating cycles

Plug housing:UL 94-V0, UL94-V2, Polycarbonate.

Plug contact material:50u gold plating over 100u nickel plated copper alloy.

Fire Performance:IEC332.1, VW1, IEC332.3 versions available depending on Jacket Type.

Product lengths:0.5m~100M optional.

3. Electrical Performance

Contact resistance:20mOhm max.

Voltage Rating:75V max.

Dielectric Strength:1000 Volts / 1 minute min rms

Amps:1.0 Amps max.

Insulation Resistance:500Mohm min. @500Vdc

Performance test:100% patch cord test for Cat6A, Cat6, and optional for Cat5e patch cord

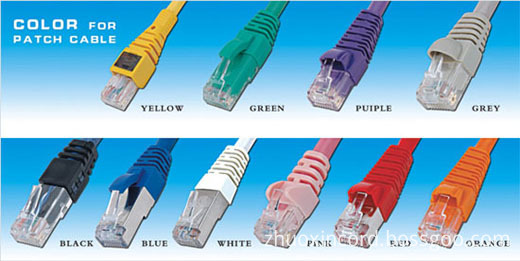

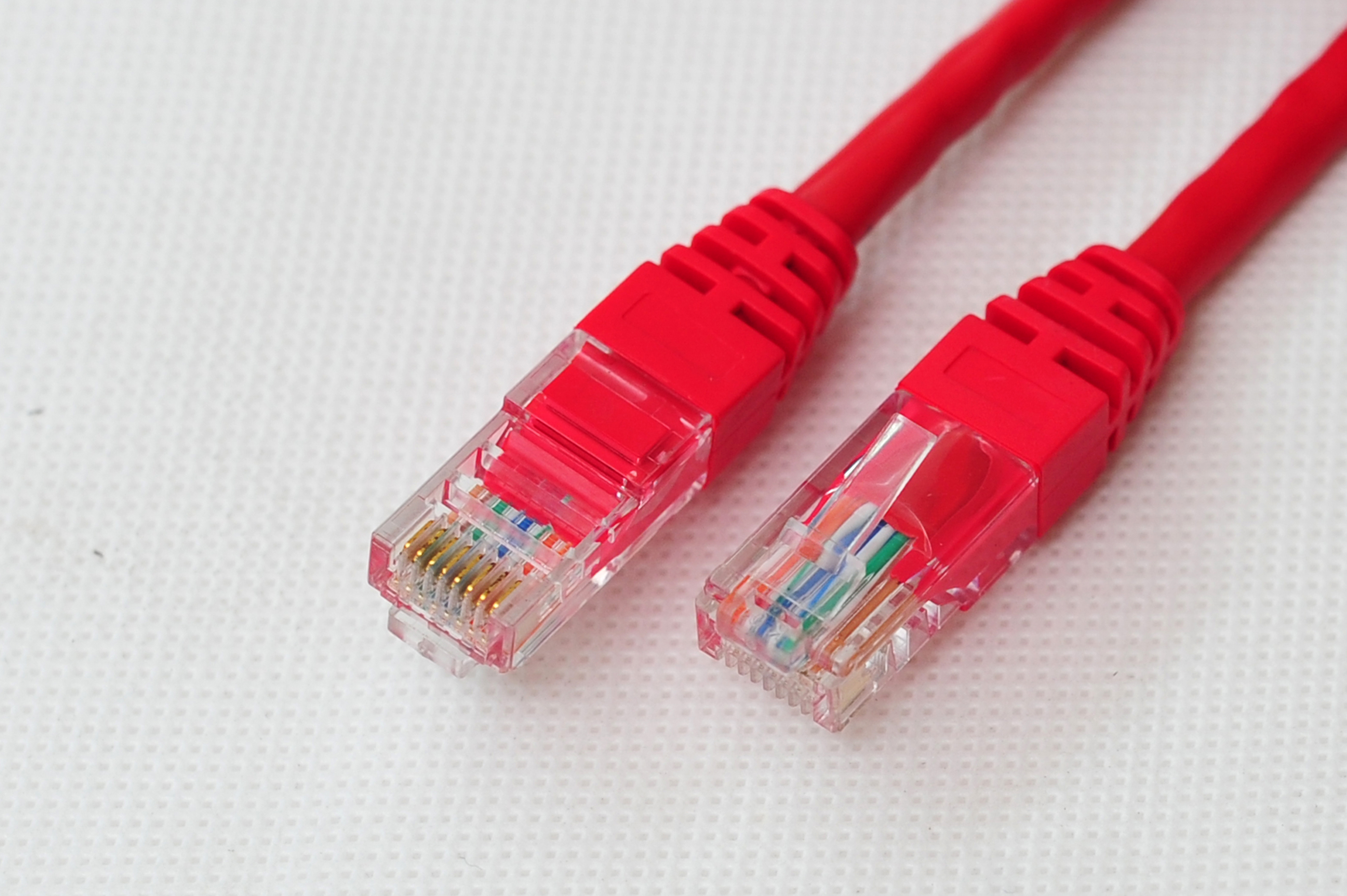

4. Picture
