Computer Shielded Control Cable Cat5e
$2.00
100 Bag/Bags (MOQ)
Basic Info
| Brand Name | yuxin |
|---|---|
| Application | Construction |
| Voltage | Low and Medium Voltage Cable |
| Current | DC & AC |
| Insulation Material | XLPE |
| Sheath Material | PVC |
Product description
pvc insulated sheathed computer control cable
Product Description
Computer Shielded Control Cable Cat5e
Application structured cabling for computer networks such as Ethernet over twisted pair.
CAT5 cable support 10/100 Ethernet.
CAT5e cable will support Ethernet,and Gigabit Ethernet. It can completely backwards compatible .
Product testing is using MEA network analyzer that imported from Germany.
Model cat5e cable
Conductor Size 24AWG
4*2*1/0.51mm (0.50mm, 0.48mm, 0.45mm, 0.4mm, 0.38mm)
Conductor Material BC/CCU/CCA/OFC/CCS
Nuber Of Conductor 2P, 4P
Shiled FTP/STP/SFTP /SSTP
Flammability Grade: CMX,CM,MP,CMG,MPG,CMR,MPR
Indoor / Outdoor Single jacket / Double jacket
Insulation Material PE , HDPE
Insulation Thickness 0.55mm
Number of pairs: 4 pairs
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
Jacket Material PVC, ROHS PVC, LSZH PVC
Jacket Thickness 0.92-0.95mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MΩ.km
Transmission Velocity 65%
Operating Temperation -20 °C - +75 °C
PVC Jacket Color As client`s request.
Print Words On Cable CAT5E 4P 24AWG VERIFIED TO
EIA/TIA 568B.ISO/IEC 11801 EN501
or clients' request.
1.Standard
2.Application
The product is suitable for use in power distribution lines or fixed installations with rated power-frequency voltage up to and including 0.6/1kV.
3.Operating characteristics
Rated power-frequency voltage Uo/U: 0.6/1kV
Max. Permissible continuous operating temperature of conductor(PVC/XLPE):70℃/90℃
Max. Short-circuit temperature of conductor shall not exceed(5s maximumduration):
PVC:cross-section of conductor≤300mm2-160℃
cross-section of conductor≤300mm2-160℃
XLEP:250℃
The ambient temperature under installation should not below 0℃
The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of multi-core cable should not less than 15 times of the cable diameter.
|
Type |
Name |
Application |
|
|
NH(B)-VV |
PVC insulated and PVC sheathed B type fire-resistant power cable |
For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable in magnetic duct is not permissible. |
|
|
NH(B)-YJV |
XLPE insulated and PVC sheathed B type fire-resistant power cable |
||
|
NH(A)-VV |
PVC insulated and PVC sheathed A type fire-resistant power cable |
||
|
NH(A)-YJV |
XLPE insulated and PVC sheathed A type fire-resistant power cable |
||
|
NH(B)-VV22 |
PVC insulated and PVC sheathed steel tape armored B type fire-resistant power cable |
For laying indoors, in tunnel, in cable trench or direct buried, able to bear external mechanical forces, bue unable to bear large pulling force. |
|
|
NH(B)-YJV22 |
XLPE insulated and PVC sheathed steel tape armored B type fire-resistant power cable |
||
|
NH(A)-VV22 |
PVC insulated and PVC sheathed steel tape armored A type fire-resistant power cable |
||
|
NH(A)-YJVV22 |
XLPE insulated and PVC sheathed steel tape armored A type fire-resistant power cable |
||
|
|
|||
|
Type |
No. Of cores |
Nominal cross-sectional areas mm2 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
1 |
1.0-800 1.0-800 1.0-800 1.0-800 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
2 |
1.0-300 1.0-300 4-300 4-300 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
3 |
1.0-400 1.0-400 4-400 4-400 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
4 |
1.0-400 1.0-400 4-400 4-400 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
3+1 |
1.5-400 1.5-400 4-400 4-400 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
5 |
1.0-400 1.0-400 4-400 4-400 |
|
|
NH(B)-VV NH(B)-YJV NH(A)-VV NH(A)-YJV NH(B)-VV22 NH(B)-YJV22 NH(A)-VV22 NH(A)-YJVV22 |
4+1 or 3+2 |
1.5-400 1.5-400 4-400 4-400 |
|

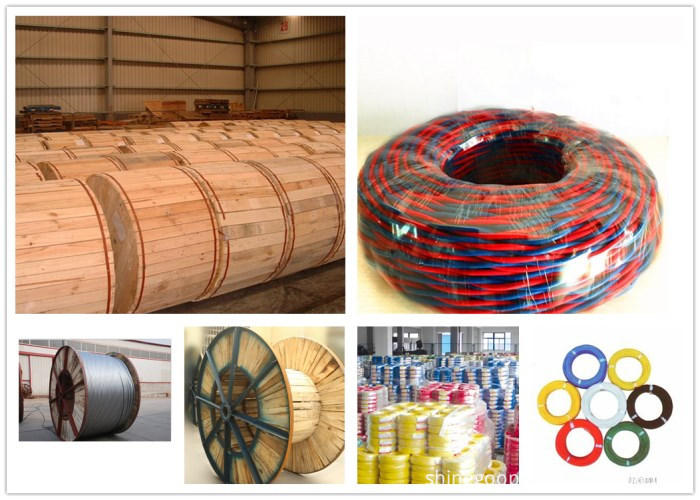

Packaging & Shipping
In coils, wooden drums, steel drums or steel-wooden drums.
We could producing according to the customers' requirements.
Welcome your request for any quotations!
