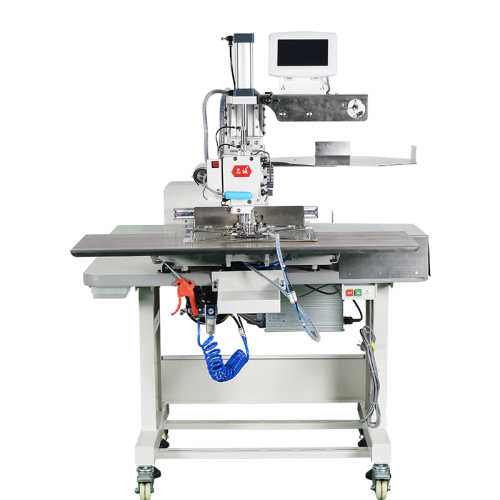

Computerized cross bottom automatic sewing machine

$10000.00 ~ $15000.00 / Set/Sets

Model:

MC-3020H

Get Latest Price

You might also like

Long Arm Single Needle Chain Sewing Machine

$10000.00

1 Set/Sets (MOQ)

Container bag sewing machine

1 Set/Sets (MOQ)

Cross computer sewing machine

1 Set/Sets (MOQ)

Corner ring computer sewing machine

1 Set/Sets (MOQ)

Computerized cross bottom automatic sewing machine

$10000.00

1 Set/Sets (MOQ)

Lifting ring, stevedore belt computer sewing machine

1 Set/Sets (MOQ)

Cross corner computer sewing machine

1 Set/Sets (MOQ)

Cross corner loop computer sewing machine

1 Set/Sets (MOQ)

cross bottom computer sewing machine

$10000.00

1 Set/Sets (MOQ)

Extra-thick material sewing machine

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	Rainbow Wonder
status	New
Applicable industry	Manufacturing Plant, Other
Out-of-warranty service	Video Technical Support, Online Support
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
Marketing type	Hot Product 2019
place of origin	China
Service system	Video Technical Support, Online Support

Product description

The automatic oil supply system can ensure that the parts are not easy to wear, increase the service life of the machine, and reduce the maintenance cost.

The lower shaft directly drives the rotary hook shaft without any relay gear, which reduces the gear gap, and the color thread specification is easy to debug.

This machine adopts a double-sized kettle bobbin, which reduces the time to replace the bottom thread, saves waste of working hours and improves sewing efficiency.

Open head cover for easy maintenance and disposal.

USES: cross bottom and top of jumbo bag,	Computer special sewing machine Type:MC-3020G（300mm*200mm）
	Sewing range: X300mmY200mm
	Sewing route: single needle chain
	Rotary type: Three times the hook
	Sewing speed: 2-2800/ min
	Feeding mode: intermittent feeding (pulse motor driven)
	Figure storage: LCD screen (external usb flash disk)
	Programmer: real color LCD screen.
	Needle type：DP×17 230/26#
	Pin code：0.1-12.7
	Pressure：0.5mpa
	External pressure foot drive: pneumatic.
	Medium pressure foot drive: motor/pneumatic.
	Voltage: single phase 220V.
	Machine weight: 147kg.
	Volume: 1200 wide and 1100 high 1100/mm.
