Multihead Weigher Working Theory

The product is fed to the upper storage funnel where it is dispersed to the feed hoppers by main vibrator pan.Each feed hopper drops the product into a weigh hopper beneath it as soon as the weigh hopper becomes empty.

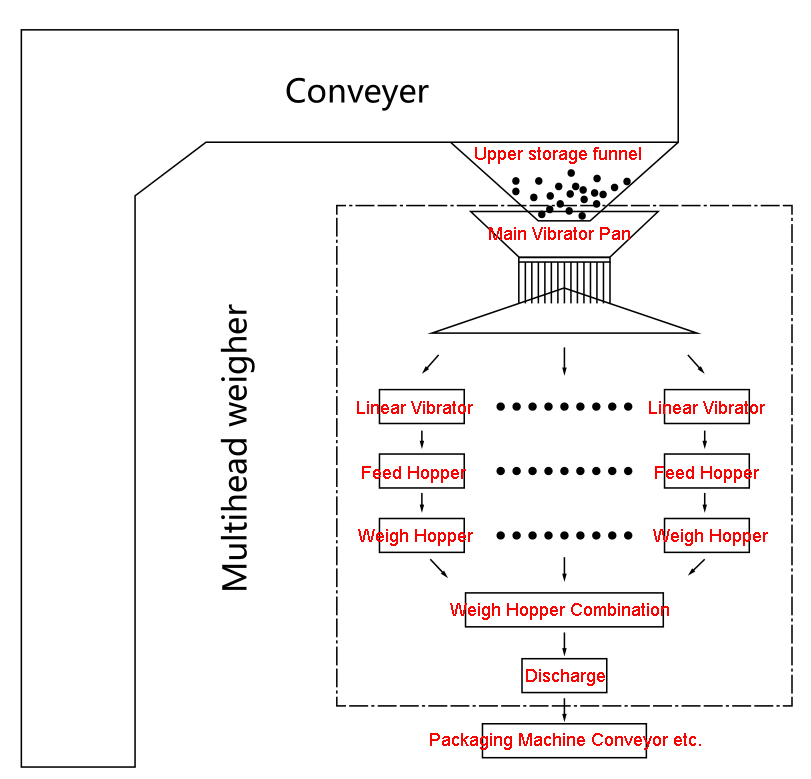

The weigher's computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight.The multihead weigher opens all the hoppers of this combination contains the weight.The multihead weigher opens all the hoppers of this conbination and the product falls,via a discharge chute,into a packaging machine or,alternatively,into a distribution system which places the product,for example,into trays.The working principle of the multihead weigher is shown as the following picture:

Application

It is suitable for weighing of granule, slice, roll or irregular shape materials such as cereal, pasta, candy, seed, chips, coffee bean, nut, puffy food, biscuit, chocolate, pet food, frozen foods, etc. It is also suitable for non-food industry such as screws, bolts and plastic components.

?

Main Features

· ? Multi-language HMI available.

· ? IP65 waterproof standard.

· ? Automatic or manual adjusting of linear feeding channels according to products difference.

· ? Load cell or photo sensor to detect feeding level of product.

· ? Preset Stagger dumping function to avoid blockage during product dropping.

· ? Production records can be checked and downloaded to PC.

·? ?Food contact parts can be disassembled without tools, easy clean.

·? ?Remote control and Ethernet available (by Option).

?

Specifications

Reminder:The actual speed and accuracy depend on product features.?

?

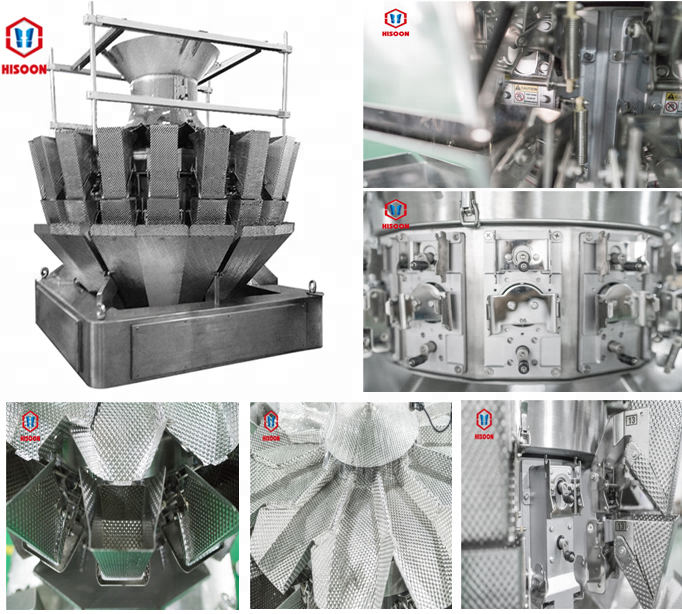

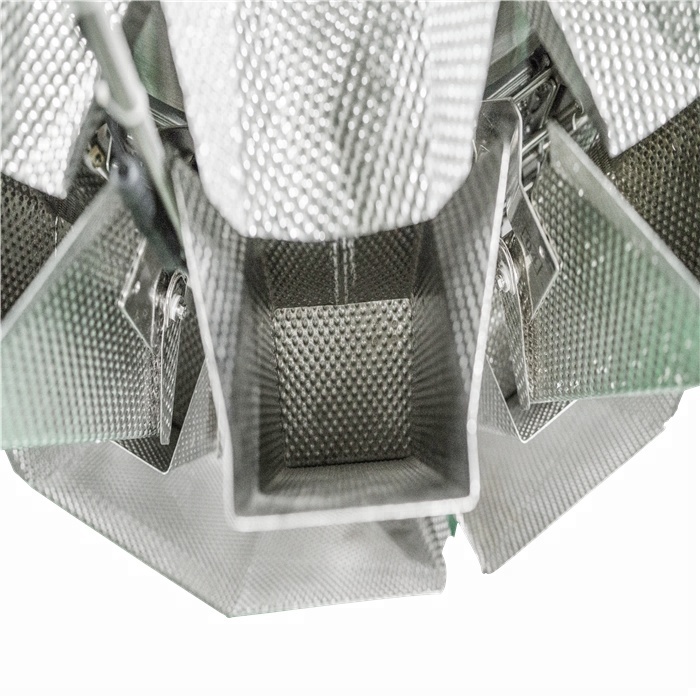

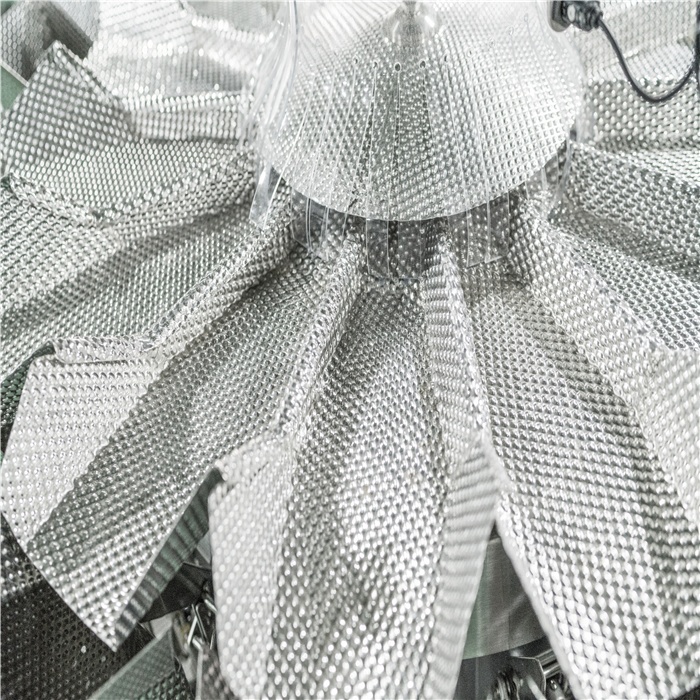

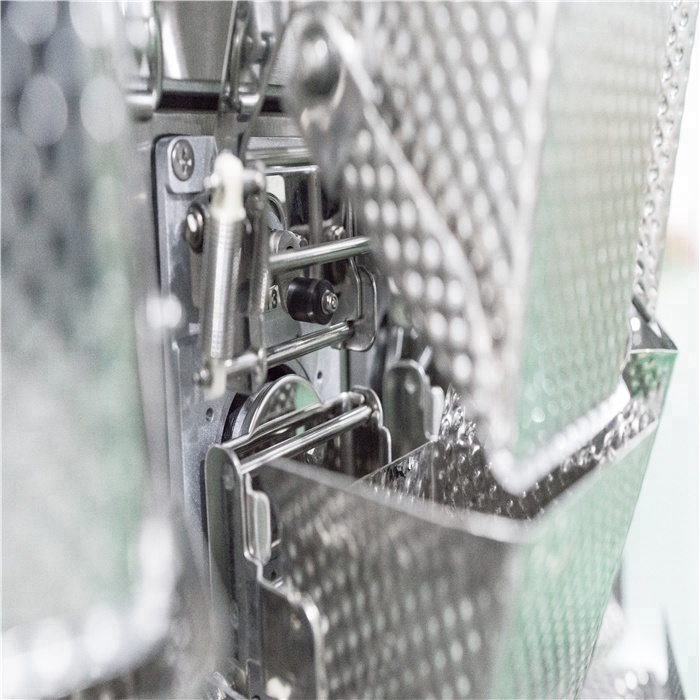

Product Details Show

?

?

?

Zhongshan Hisoon Packaging Machinery Co., Ltd is a Hi-tech enterprise which focus on researching, developing, designing, manufacturing and selling of automatic weighing and packing equipment.

Hisoonpack products cover various?Automatic Elevator and Coveyor, Multihead Scale, Linear Scale, Auger Dozer, Vertical Packaging Machine, Rotary Pouch Machine, Horizontal Doybag Machine, Check Weigher, Metal Detector, Labeling Machine, High Speed Carton Erector and Sealing Machine.

Based on rich experience on automatic packing industry, our team of engineer can design and offer tailor-made project from producing line layout, manufacturing, commissioning and training to after sale service.

Our automatic packing machine can be widely used in fields of food, pharmaceutical, spice, forage, pet food, chemicals, hardware etc. With high quality control, we export machines to worldwide over 30 countries.

We always follow the principle of our company philosophy?Tailored Designing, Professional Manufacturing, Devoting to Innovation, Striving For Excellence?to create more benefits for our customer.

?

?

?
